Model # LGC20AW-PLGC20AW Official Amana dryer

Here are the diagrams and repair parts for Official Amana LGC20AW-PLGC20AW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

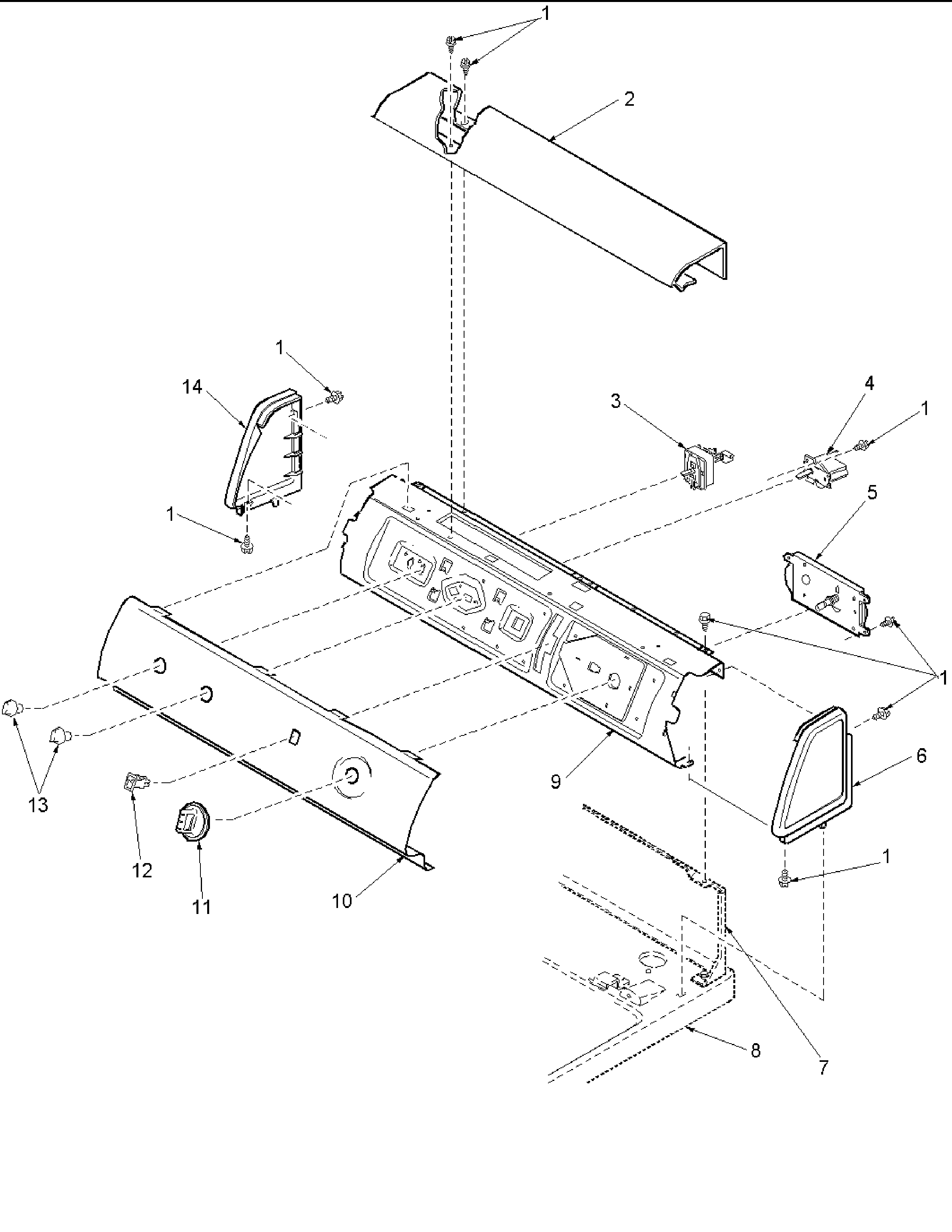

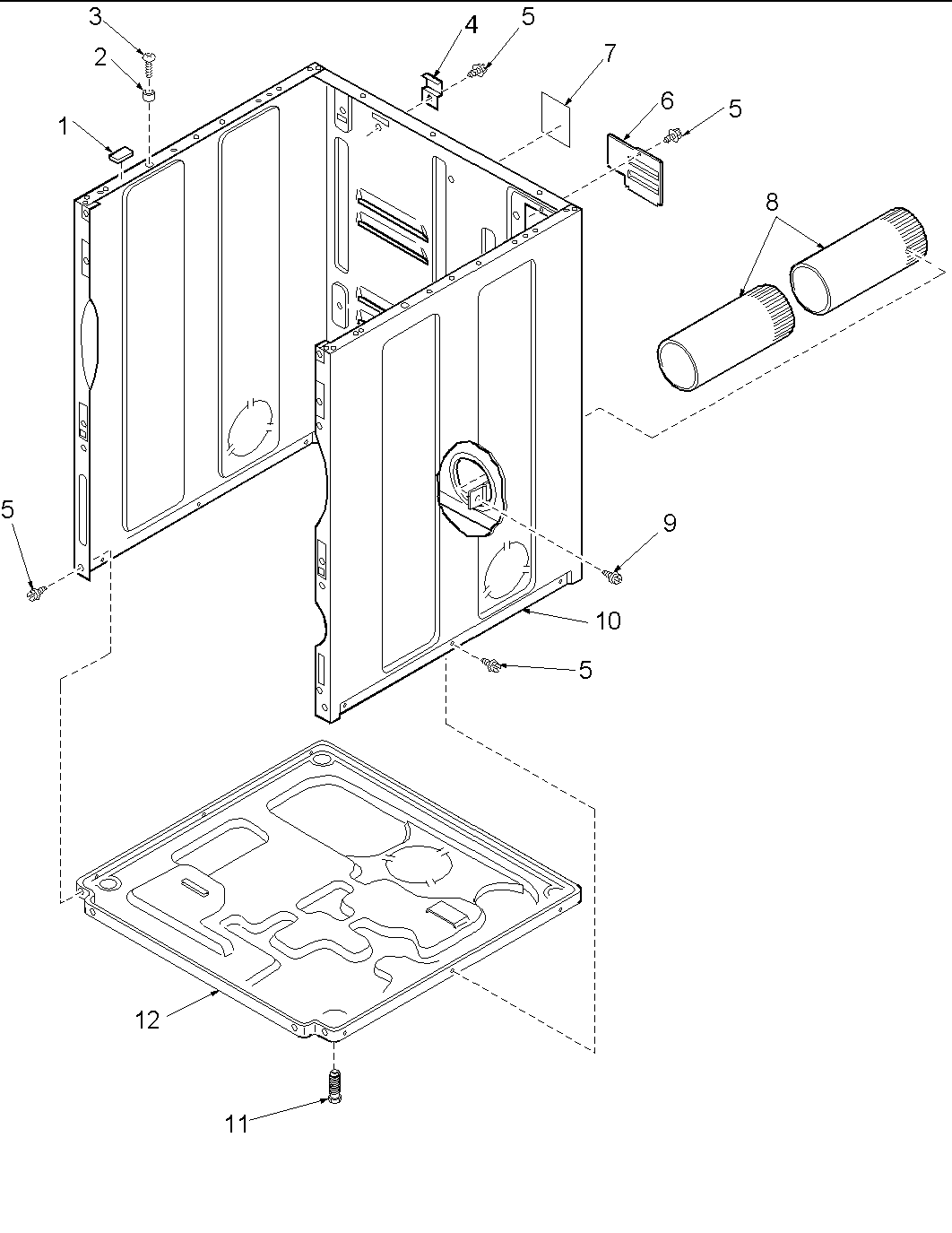

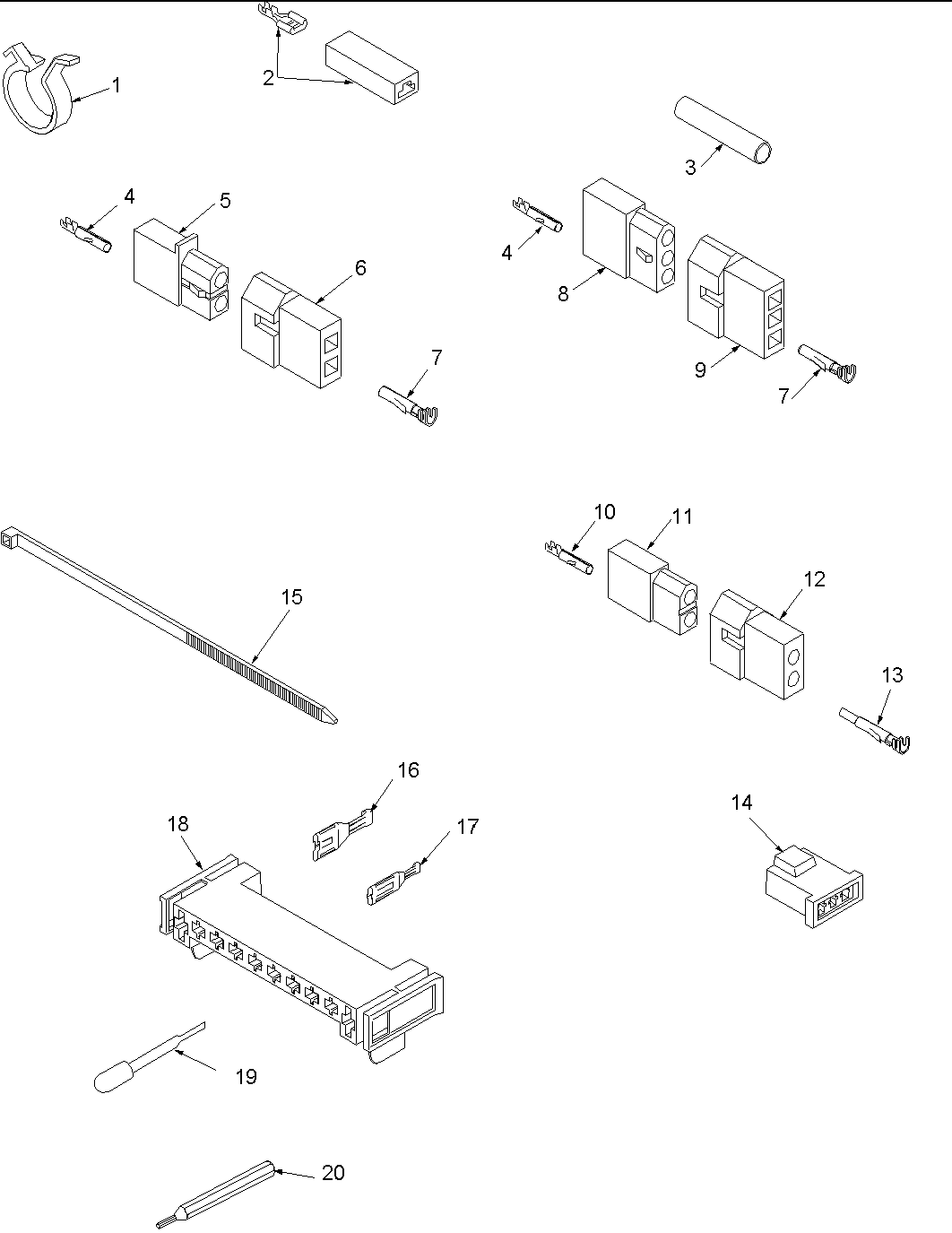

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Coil 58804B
#8

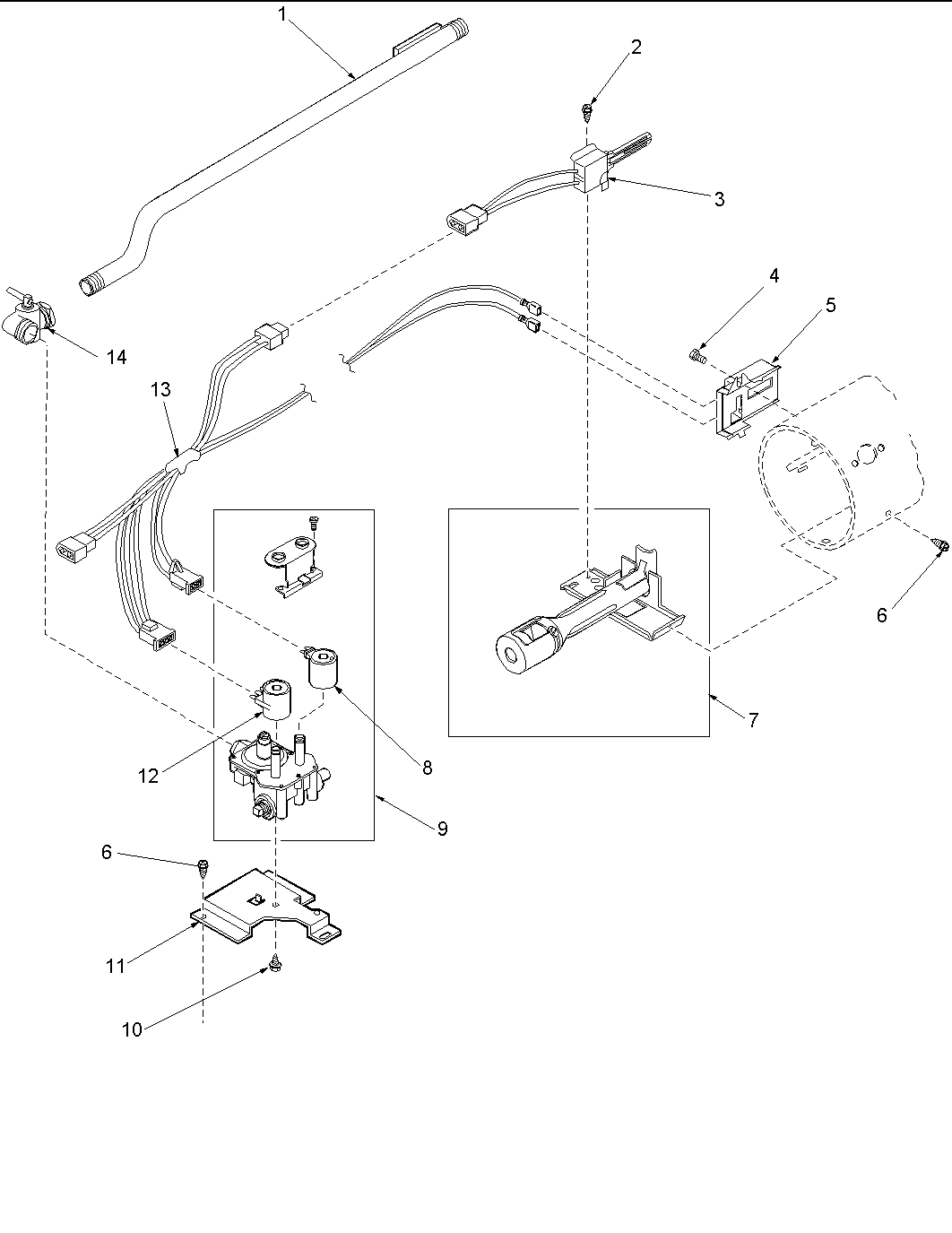

Gas valve, igniter & gas conversion kits diagram

Coil

Part #58804B

The manufacturer no longer makes this part, and there's no substitute part

Coil 58804A
#12

Gas valve, igniter & gas conversion kits diagram

Coil

Part #58804A

Replaced by #279834

?
Manufacturer substitution
This part replaces 58804A. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Motor 502368
#4

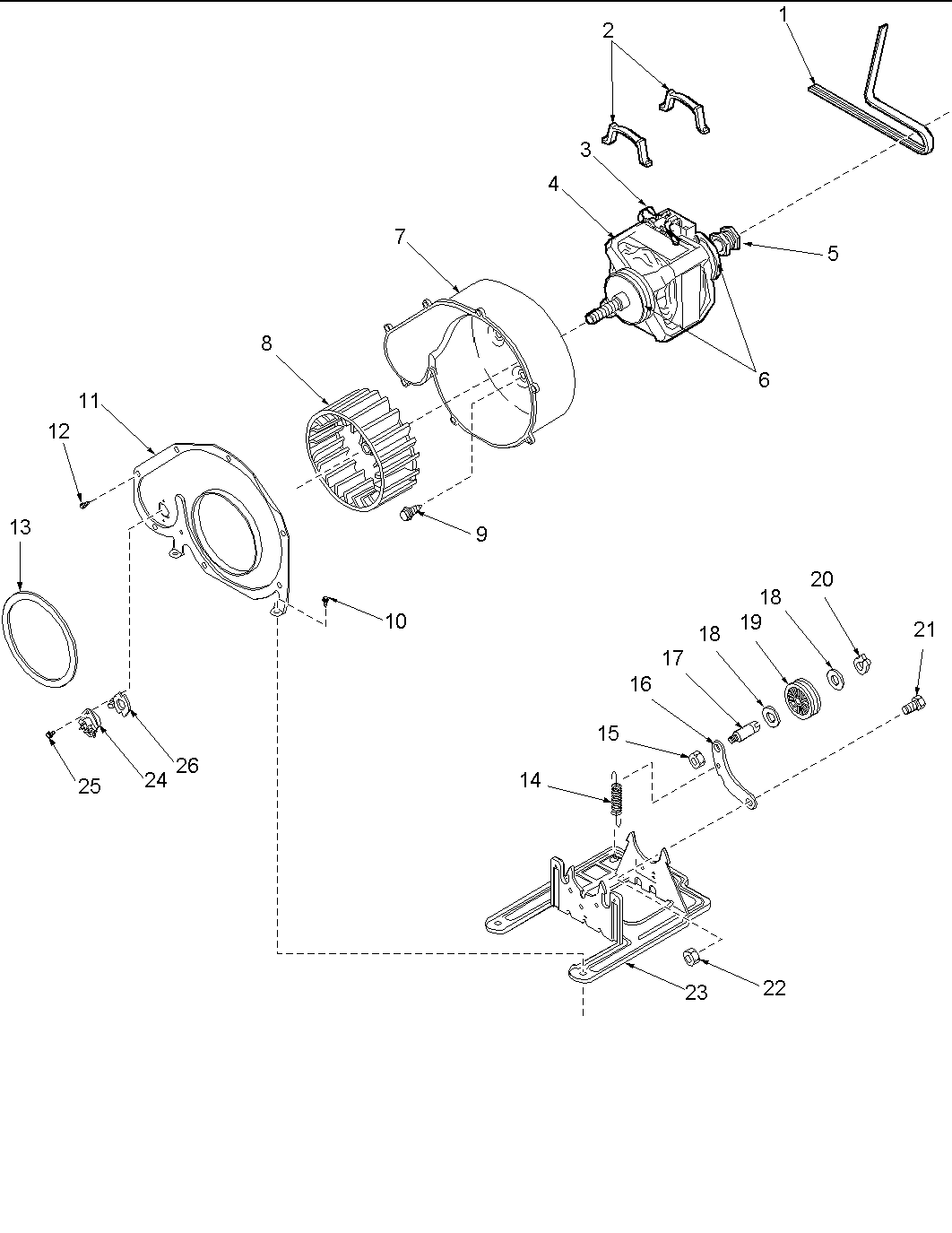

Motor and fan assemblies diagram

Motor

Part #502368

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 502368. Substitute parts can look different from the original.
BEST SELLER
$132.01 |
8% OFF Phone Price : $144.01
In Stock
Switch 504570
#12

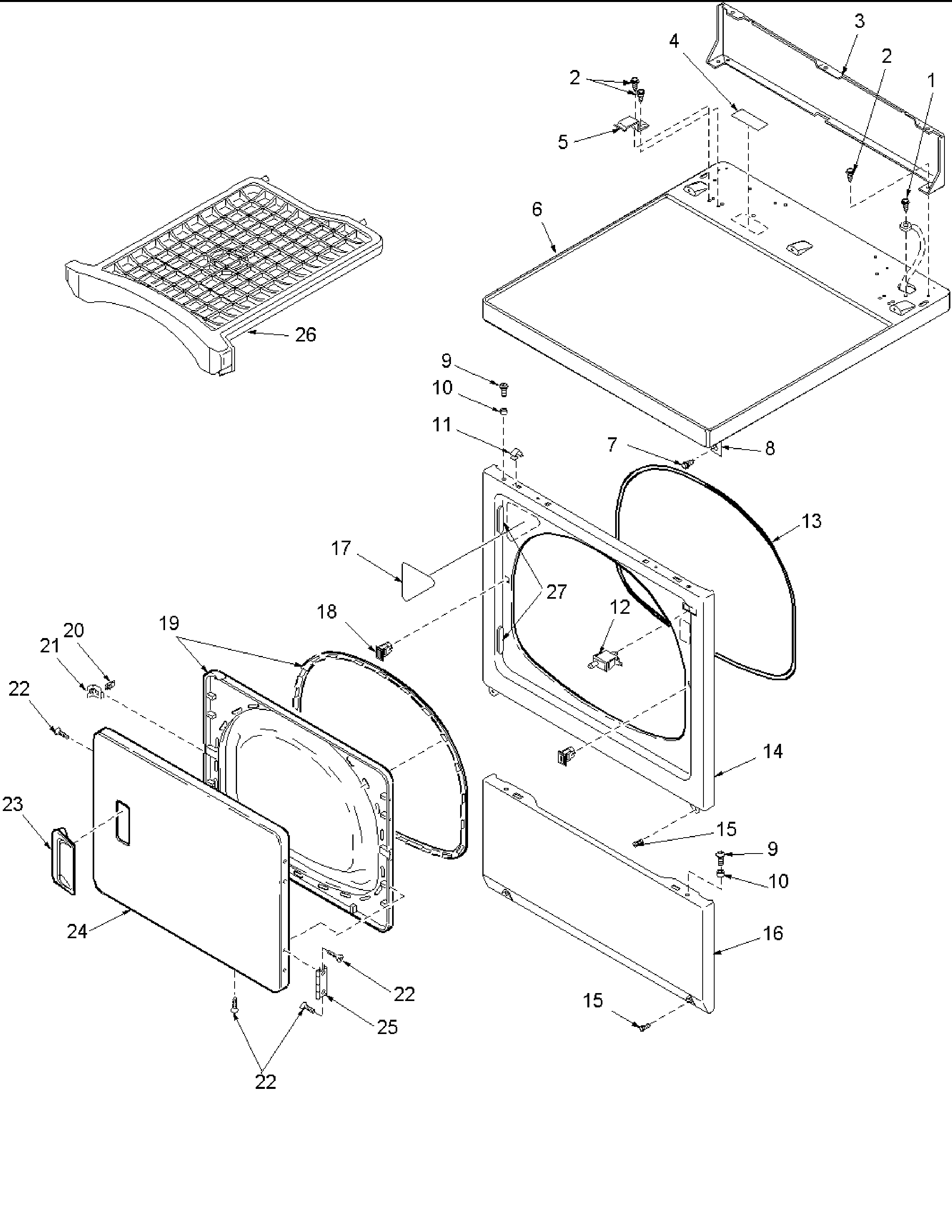

Door and front, access, and top panels diagram

Switch

Part #504570

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 504570. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Washer 52549
Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Retainer Ring 23748
Retainer ring

Part #23748

Replaced by #WP23748

?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Bracket 500062
#20

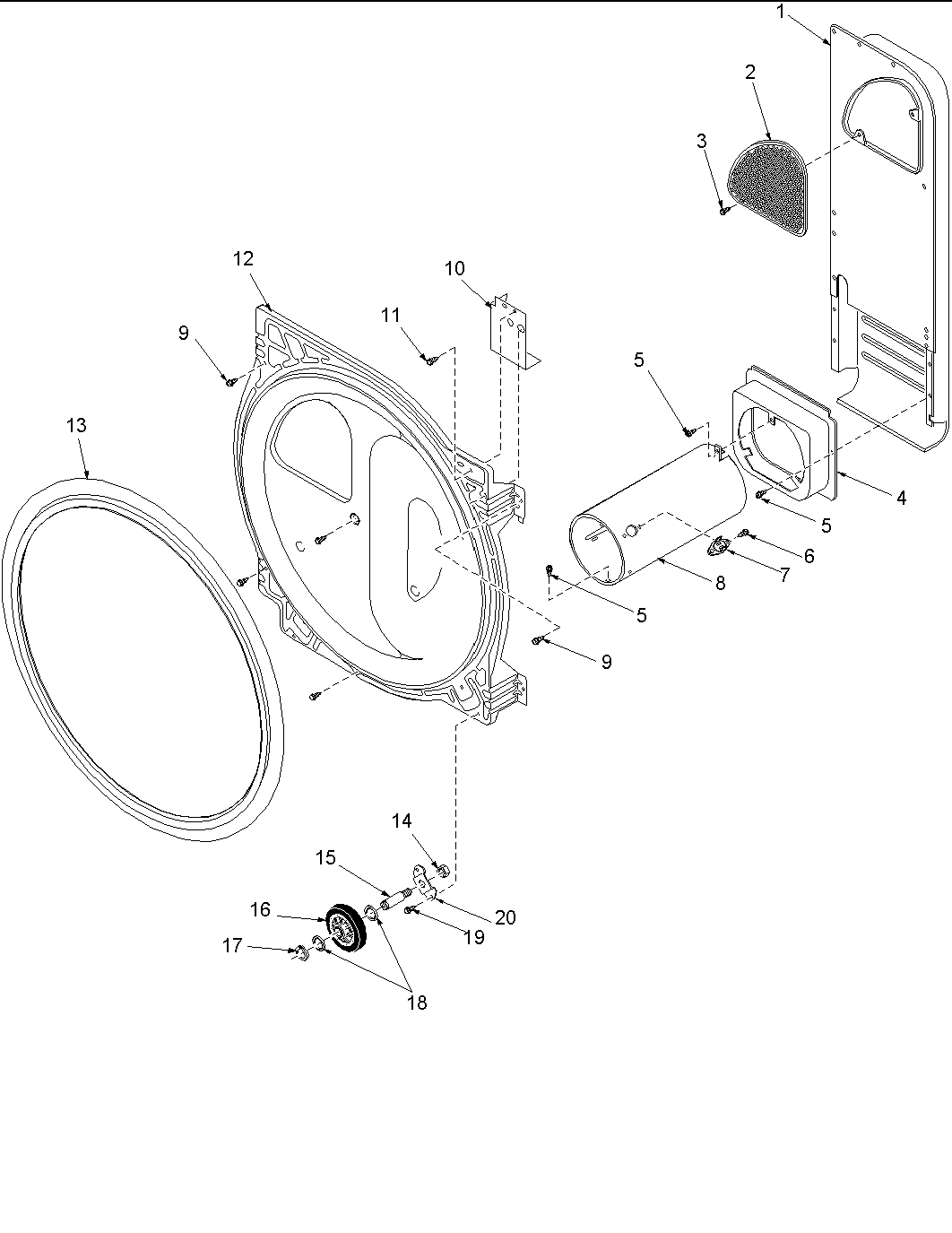

Rear bulkhead, rollers & air duct assy diagram

Bracket

Part #500062

Replaced by #WP40113601

?
Manufacturer substitution
This part replaces 500062. Substitute parts can look different from the original.
$38.50 |
13% OFF Phone Price : $44.50
In Stock
Clip 56080
#11

Door and front, access, and top panels diagram

Clip

Part #56080

Replaced by #WP22001650

?
Manufacturer substitution
This part replaces 56080. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 32671
Screw

Part #32671

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 32671. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Thermostat 503979
#24

Motor and fan assemblies diagram

Thermostat

Part #503979

Replaced by #WP503979

?
Manufacturer substitution
This part replaces 503979. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
