Model # DW730A Official Jenn-Air dishwasher

Here are the diagrams and repair parts for Official Jenn-Air DW730A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

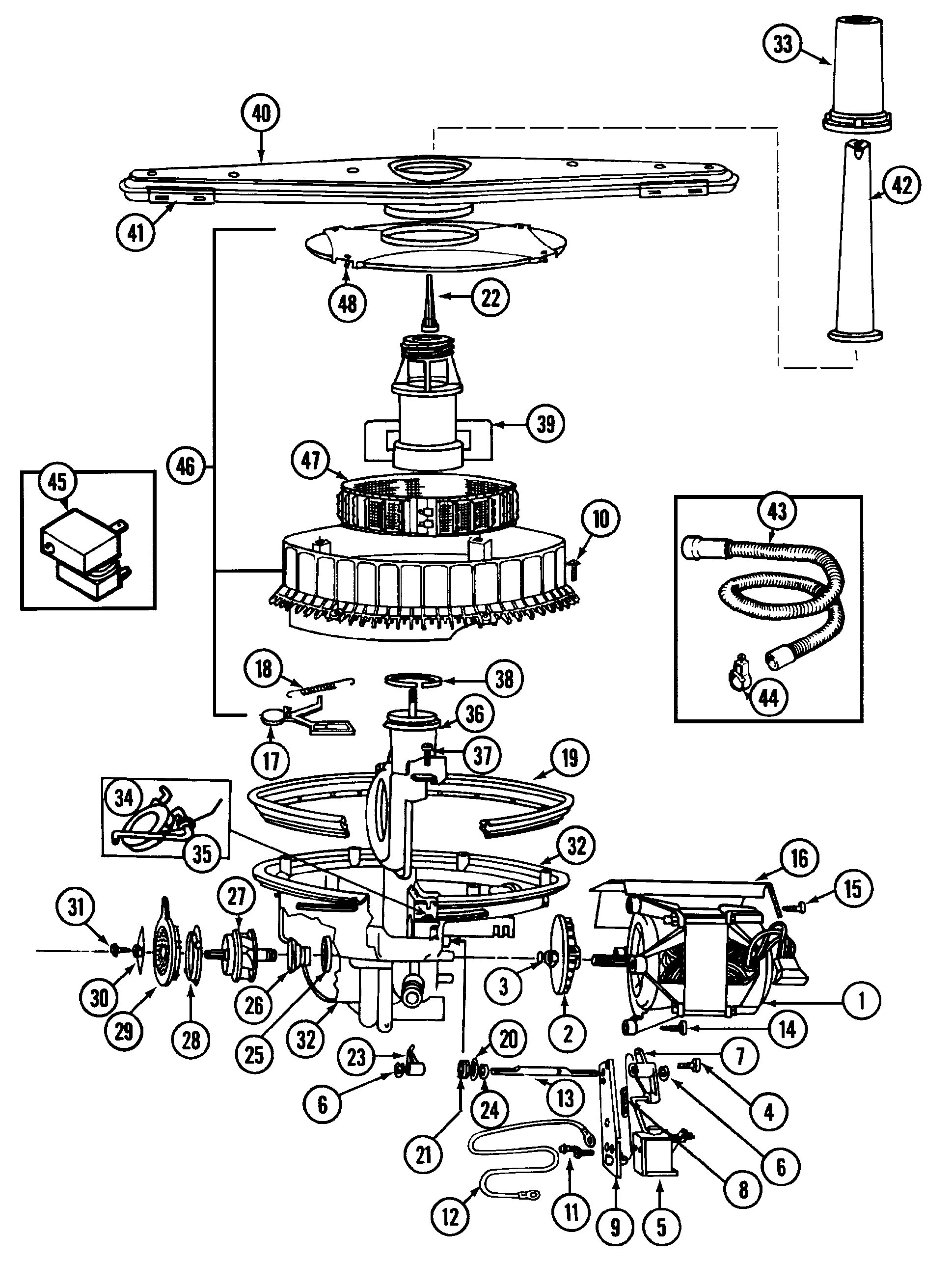

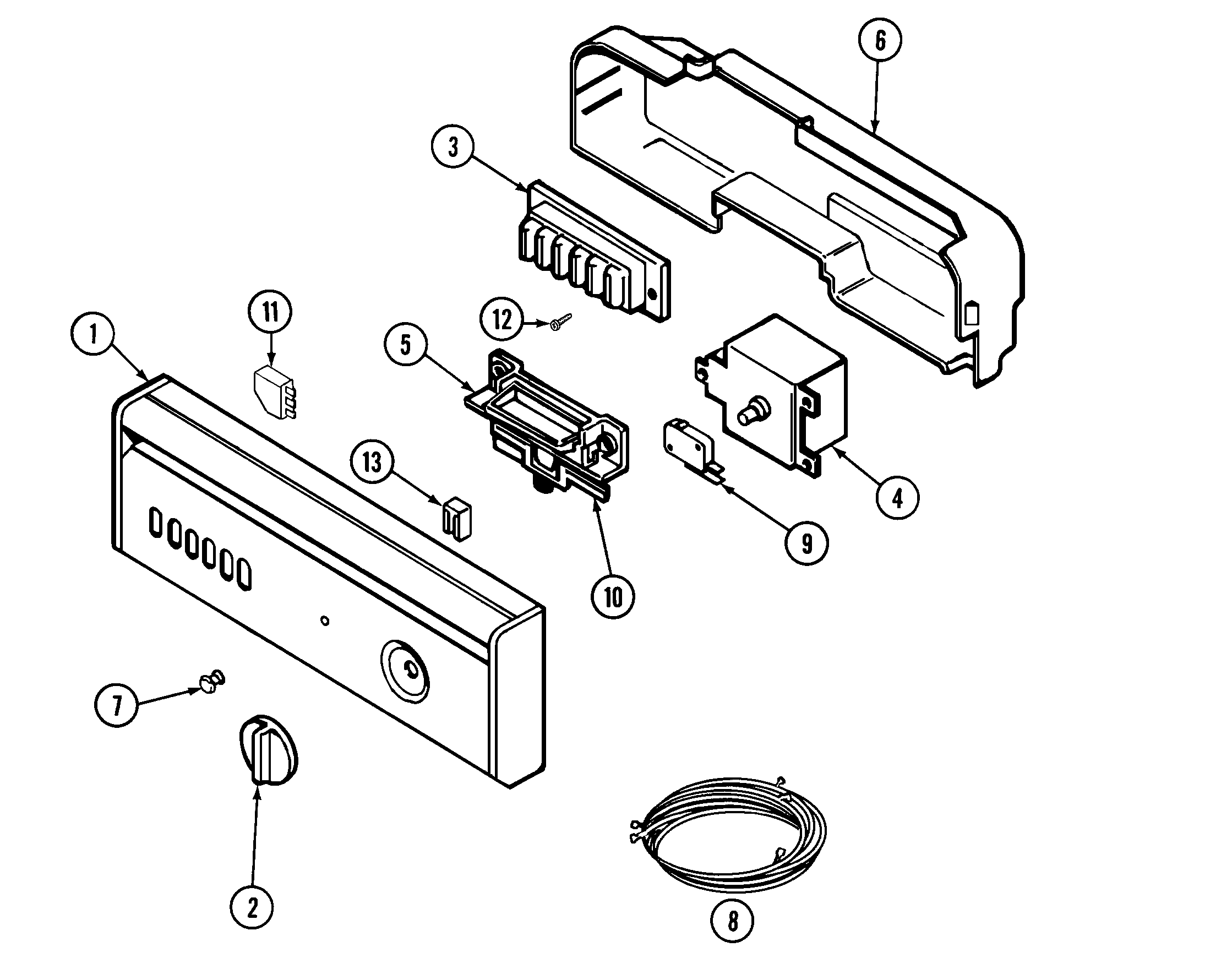

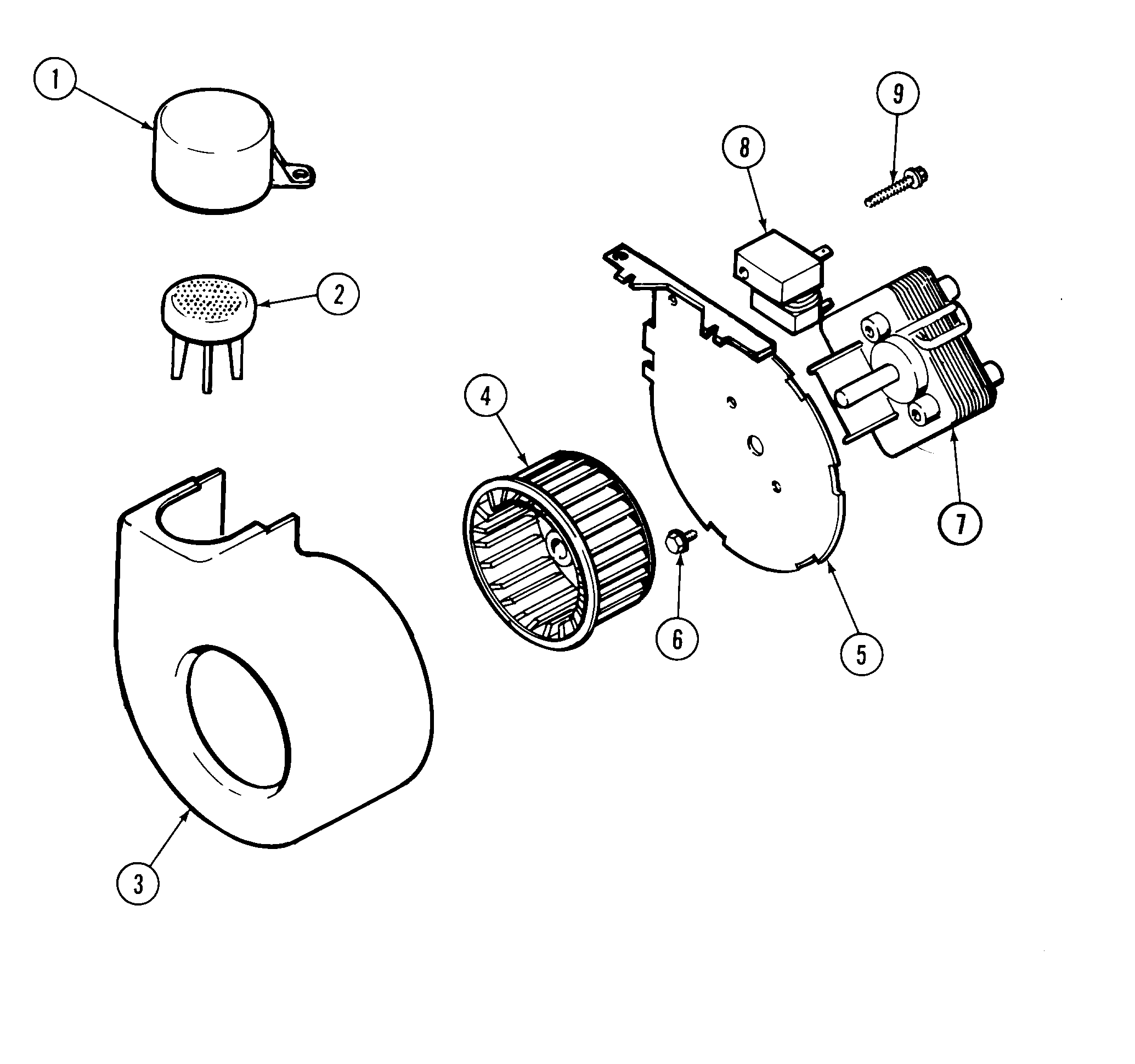

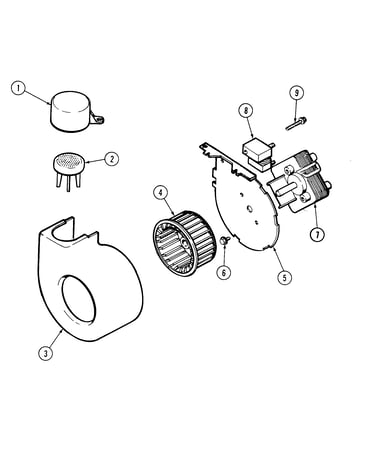

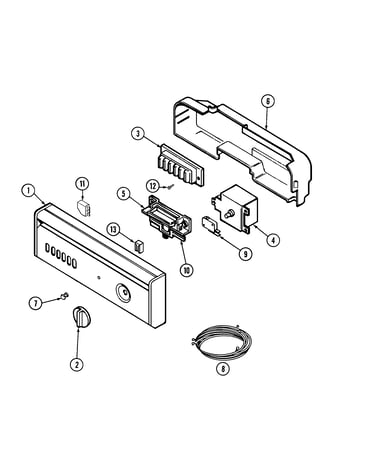

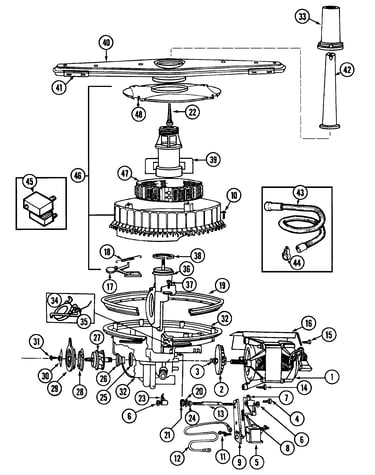

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Clamp Spring 911856
#3

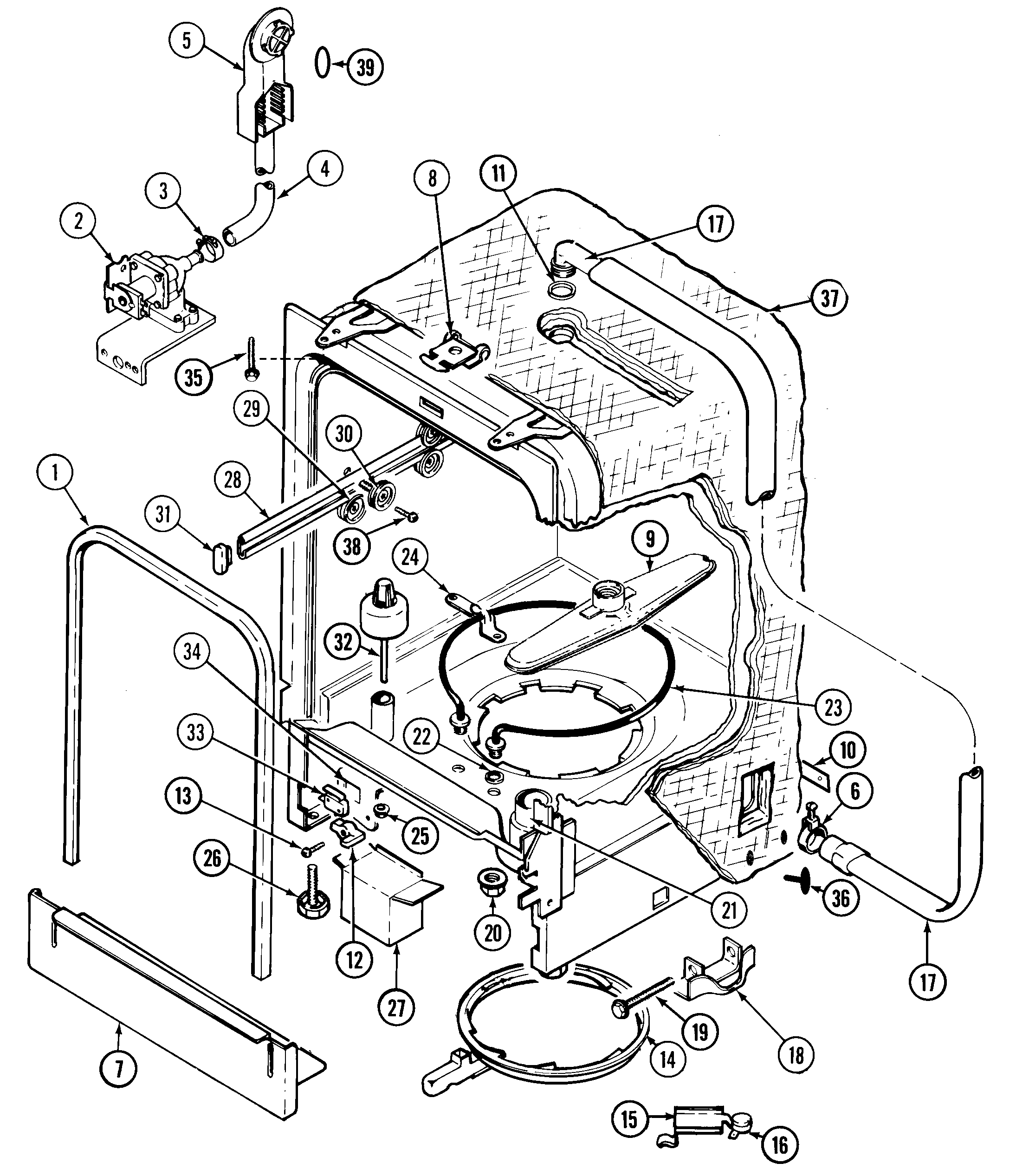

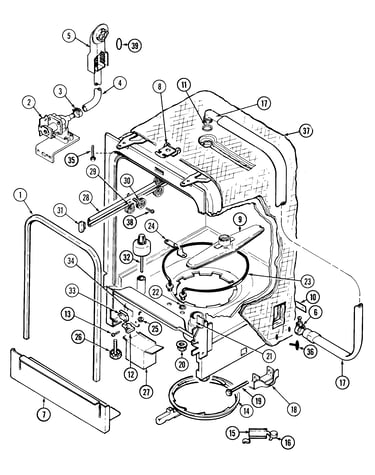

Tub (dw730a) diagram

Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Door Spring Link 912653
#13

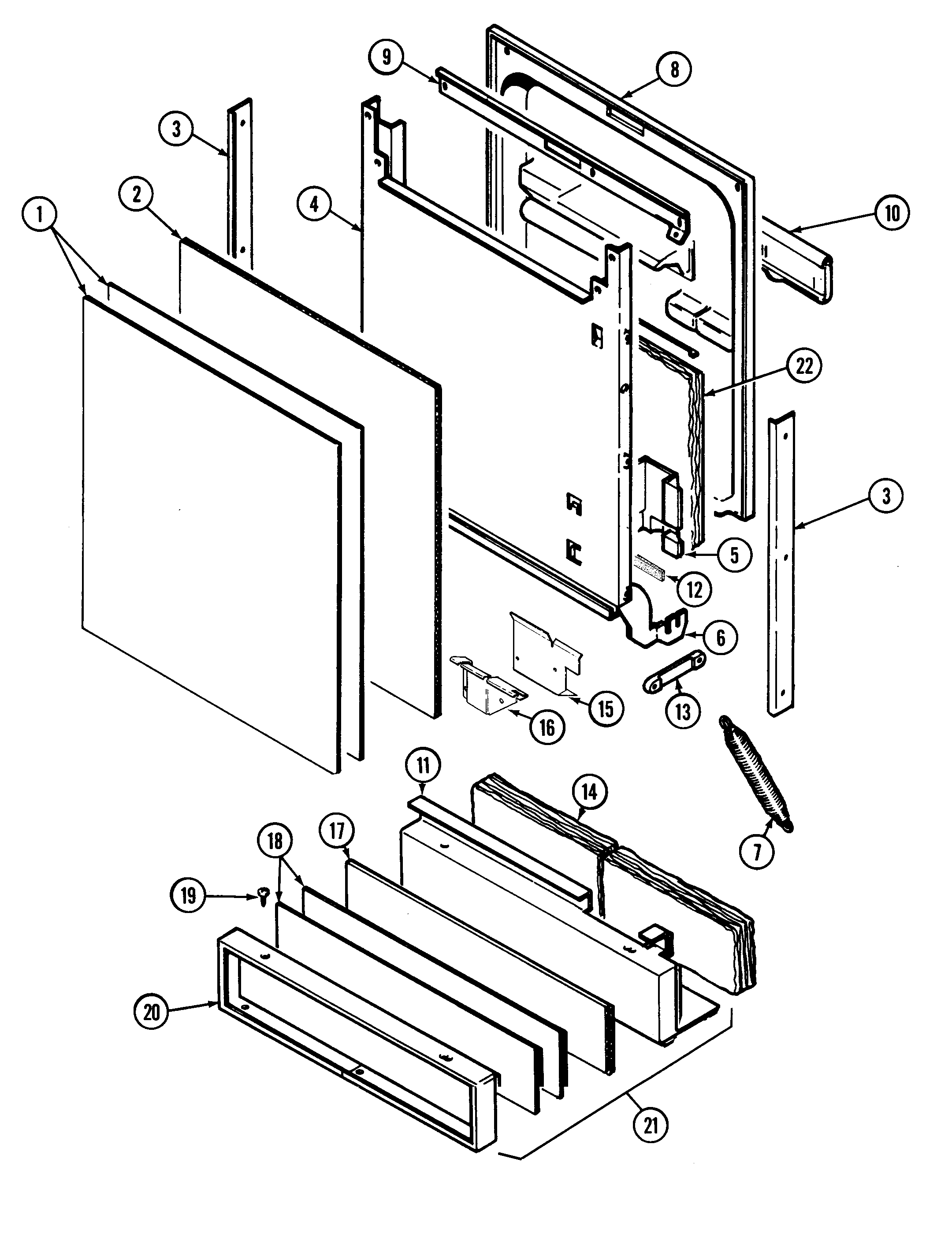

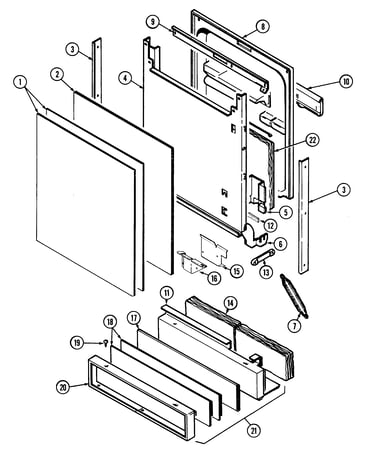

Door (dw730a) diagram

Dishwasher door spring link

Part #912653

Replaced by #WP912653

?
Manufacturer substitution
This part replaces 912653. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
Silverware Cover 912639
#7

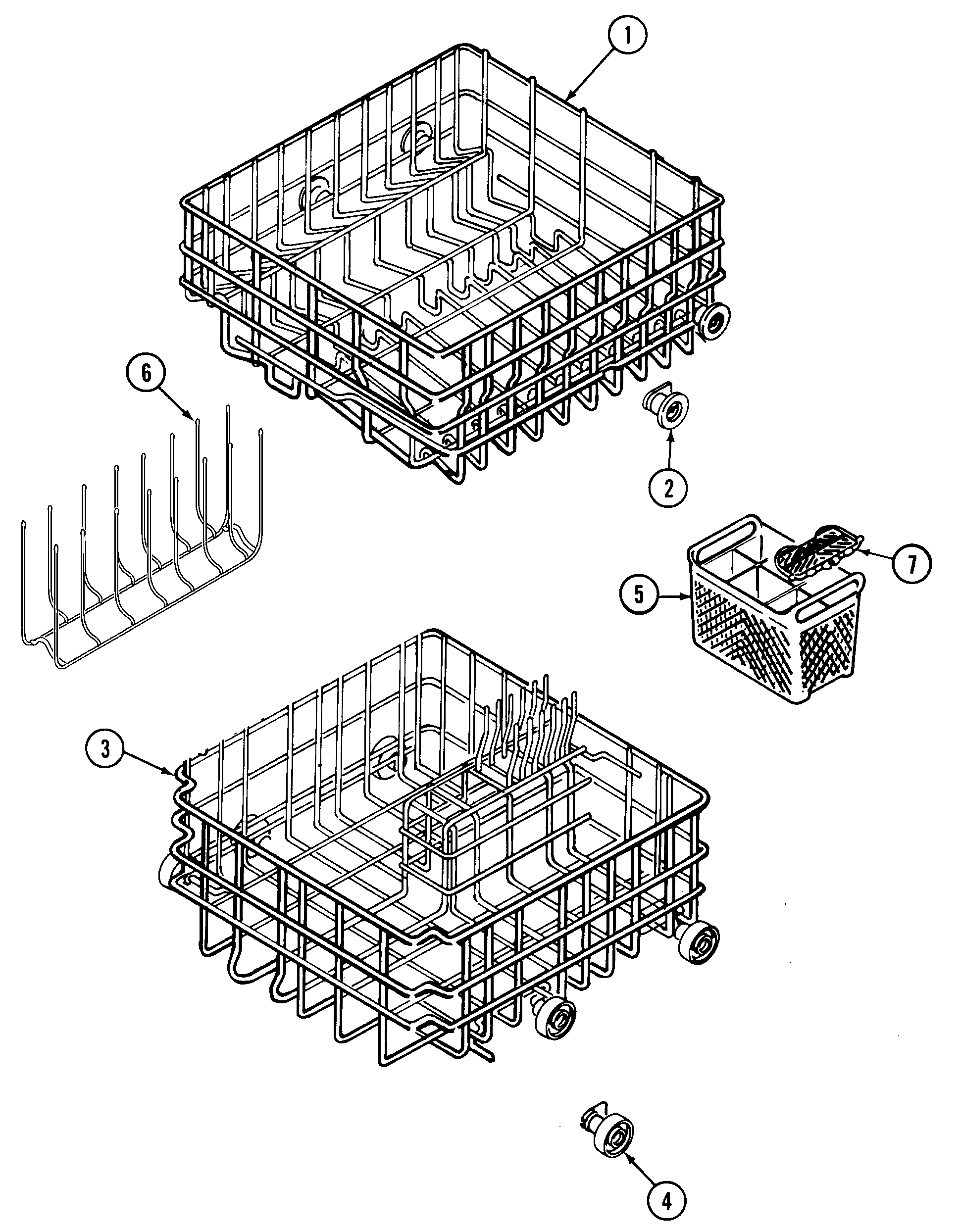

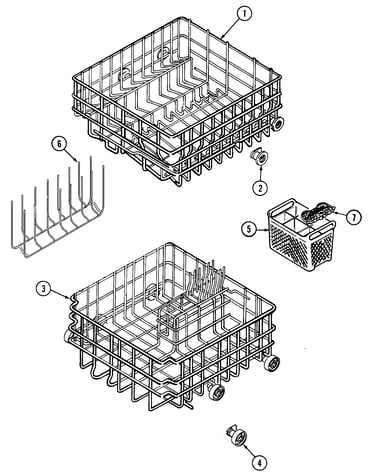

Racks (dw730a) diagram

Silverware cover

Part #912639

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces 912639. Substitute parts can look different from the original.
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Silverware Basket 903446
#5

Racks (dw730a) diagram

Silverware basket

Part #903446

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces 903446. Substitute parts can look different from the original.
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Plate Screw 912365
Plate screw

Part #912365

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 912365. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Water Valve 903400
#2

Tub (dw730a) diagram

Water valve

Part #903400

The manufacturer no longer makes this part, and there's no substitute part

Door Screw 912620
#8A

Door (dw730a) diagram

Door screw

Part #912620

Replaced by #WPY912620

?
Manufacturer substitution
This part replaces 912620. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Wax Motor 902899
#1

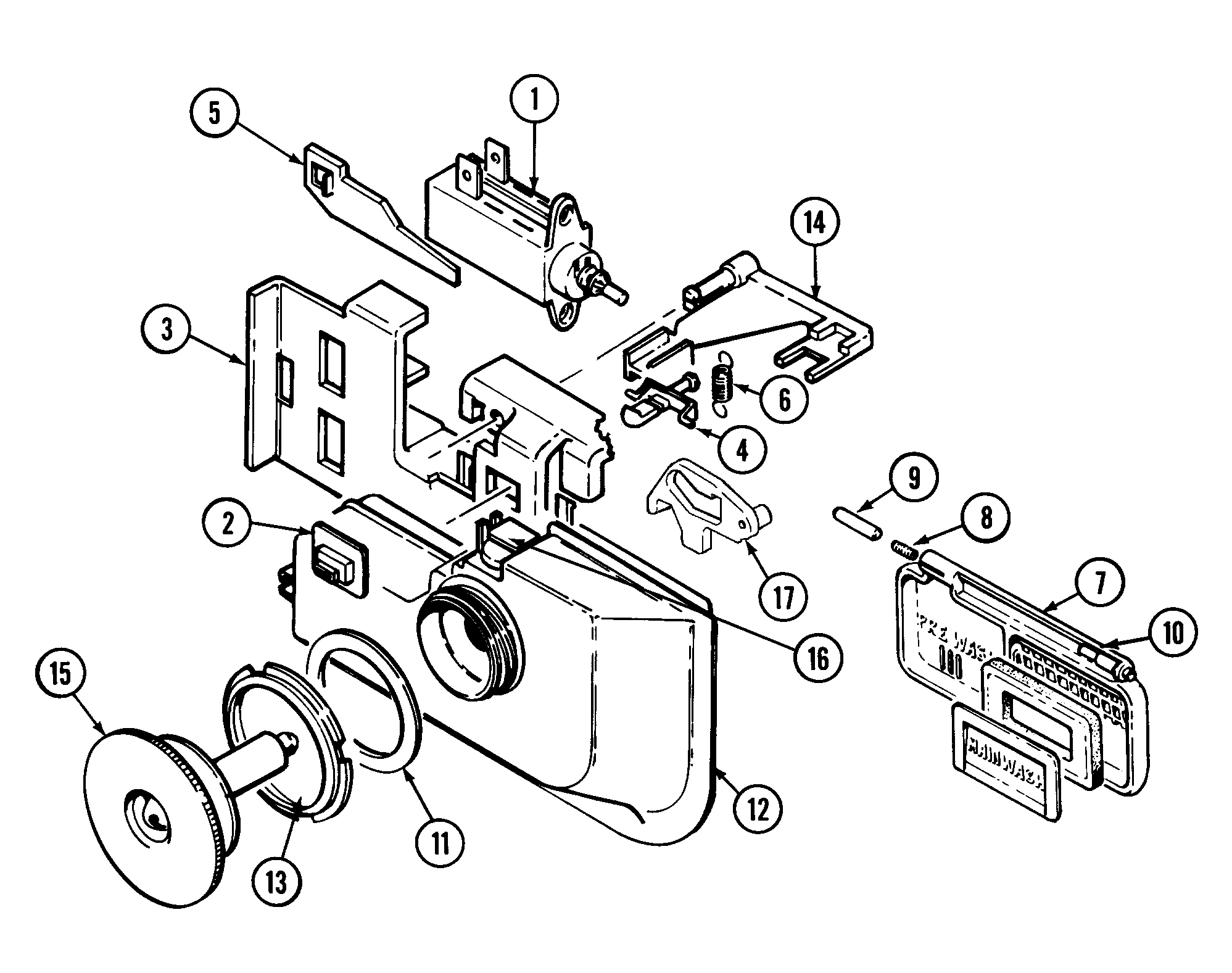

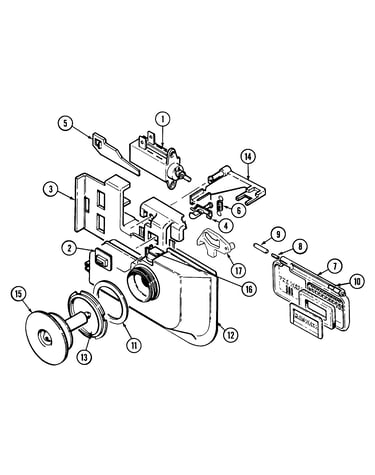

Rinse aid & soap dispenser (dw730a) diagram

Wax motor

Part #902899

Replaced by #WP902899

?
Manufacturer substitution
This part replaces 902899. Substitute parts can look different from the original.
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Water Switch 900882
#33

Tub (dw730a) diagram

Water switch

Part #900882

Replaced by #WP99002560

?
Manufacturer substitution
This part replaces 900882. Substitute parts can look different from the original.
$31.76 |
16% OFF Phone Price : $37.76
In Stock
Dishwasher Dishrack Wheel 903093
#2

Racks (dw730a) diagram

Dishwasher dishrack wheel

Part #903093

Replaced by #WP903093

?
Manufacturer substitution
This part replaces 903093. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock
