Model # GTS1031 Official Bosch table saw

Here are the diagrams and repair parts for Official Bosch GTS1031 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Bosch Carriage Brc 2610910015
#36

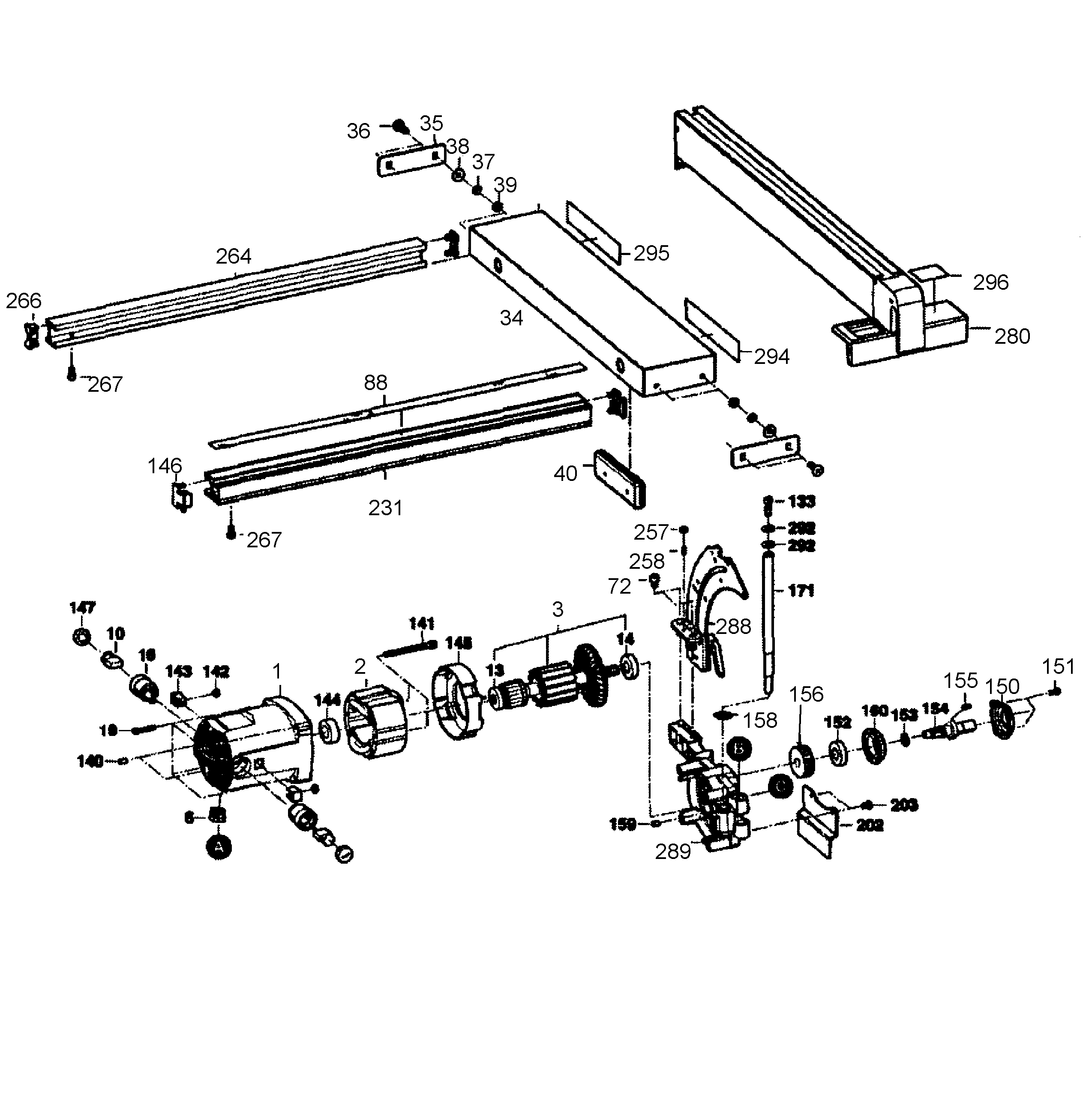

Motor assy diagram

Bosch carriage brc

Part #2610910015

The manufacturer no longer makes this part, and there's no substitute part

Lock Plate 2610996912
#230

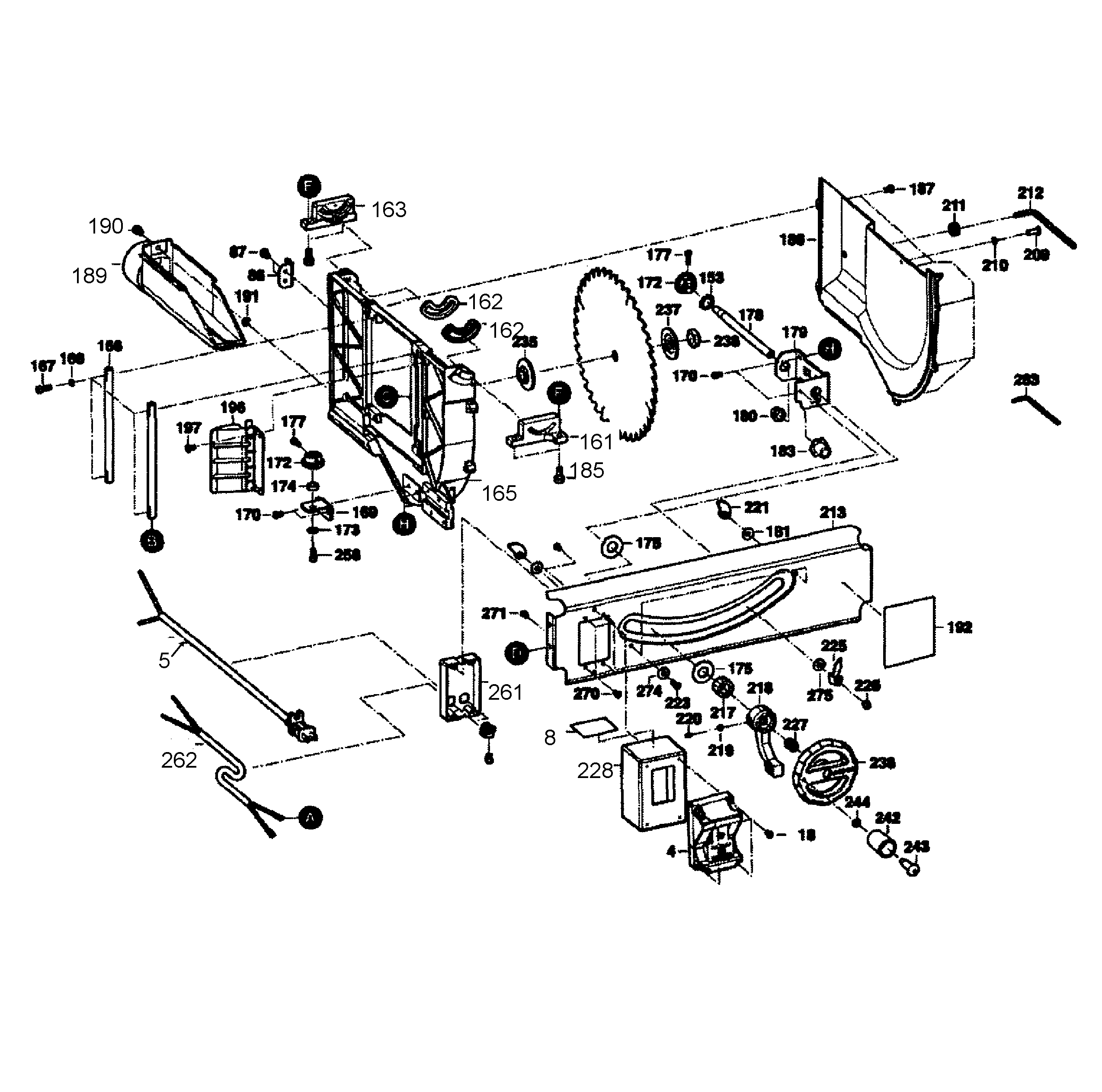

Cabinet diagram

Lock plate

Part #2610996912

The manufacturer no longer makes this part, and there's no substitute part

Bosch Nut 2610015008
#39

Motor assy diagram

Bosch nut

Part #2610015008

The manufacturer no longer makes this part, and there's no substitute part

Bosch Label 2610015081
#294

Motor assy diagram

Bosch label

Part #2610015081

The manufacturer no longer makes this part, and there's no substitute part

Washer 2610950109
#292

Motor assy diagram

Washer

Part #2610950109

The manufacturer no longer makes this part, and there's no substitute part

Bosch Key 2610015019
#81

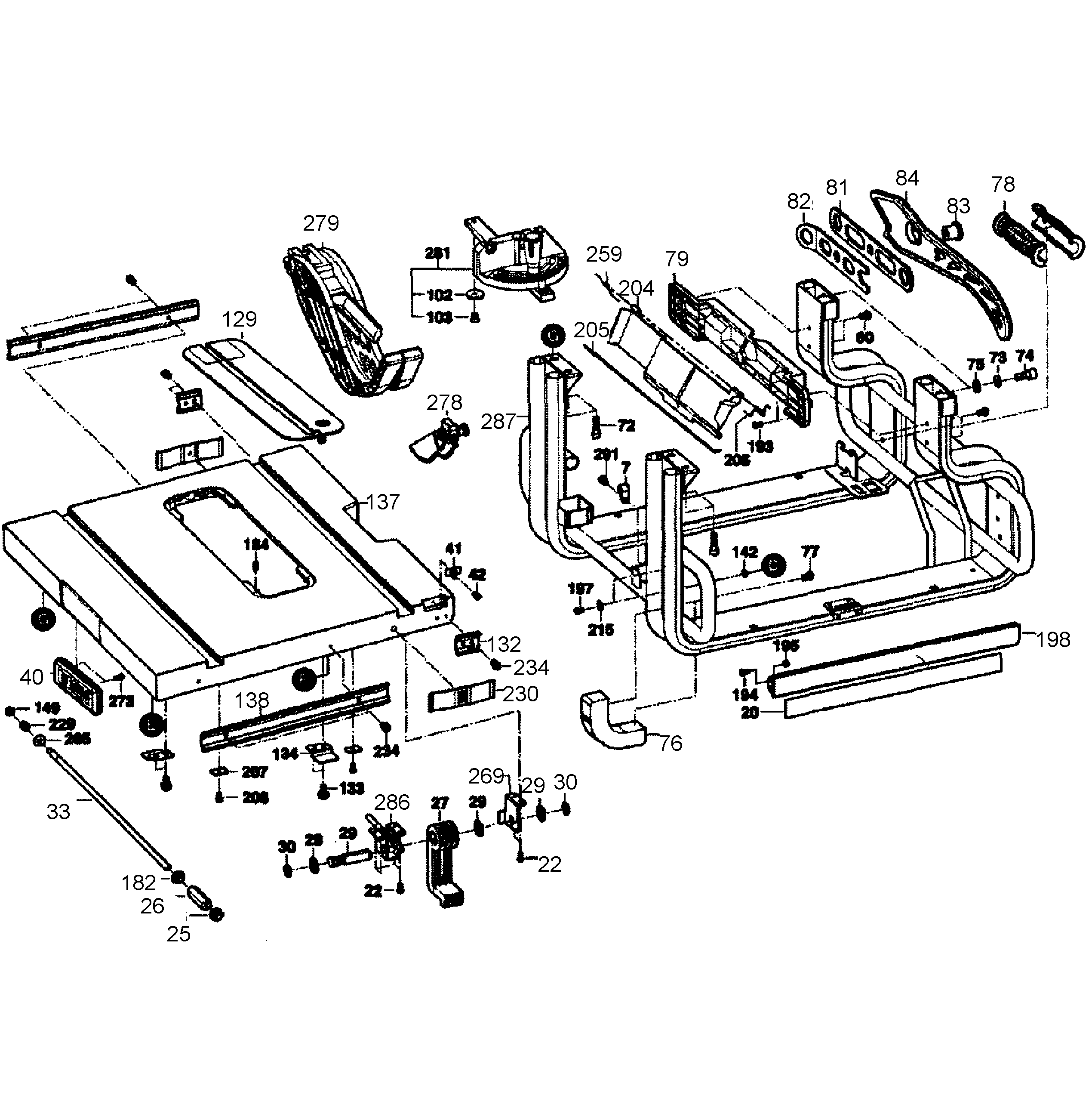

Table assy diagram

Bosch key

Part #2610015019

The manufacturer no longer makes this part, and there's no substitute part

Bosch Rod 2610015090
#289

Motor assy diagram

Bosch rod

Part #2610015090

The manufacturer no longer makes this part, and there's no substitute part

Bosch Spring 2610016565
#259

Table assy diagram

Bosch spring

Part #2610016565

The manufacturer no longer makes this part, and there's no substitute part

Bosch Scale 2610015024
#88

Motor assy diagram

Bosch scale

Part #2610015024

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Motor Brush Set 2610997207
#10

Motor assy diagram

Table saw motor brush set

Part #2610997207

The manufacturer no longer makes this part, and there's no substitute part
