Bosch
Table Saw

Model # GTS1031 Official Bosch table saw

Here are the diagrams and repair parts for Official Bosch GTS1031 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Bosch Washer 2610015068
#235

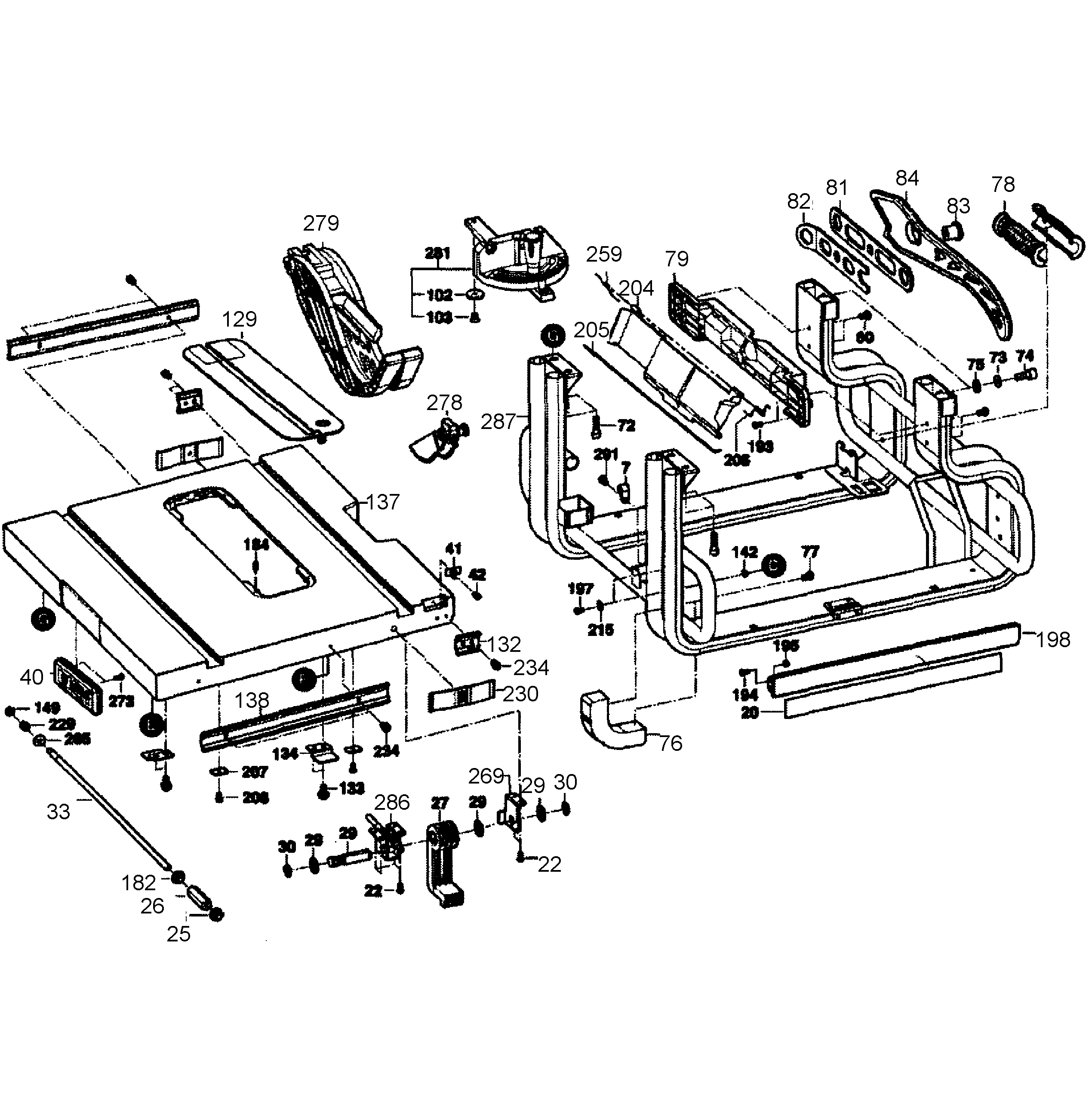

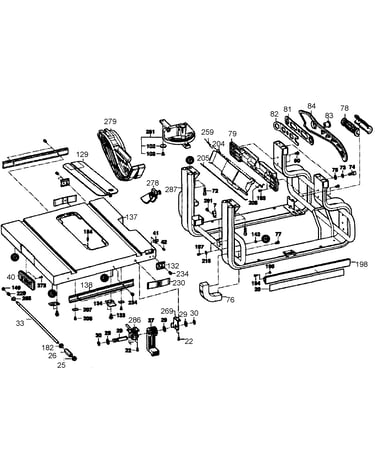

Table assy diagram

Bosch washer

Part #2610015068

The manufacturer no longer makes this part, and there's no substitute part

Bosch Handle 2610015062
#218

Table assy diagram

Bosch handle

Part #2610015062

The manufacturer no longer makes this part, and there's no substitute part

Bosch Motor Housing 2610014691
#1

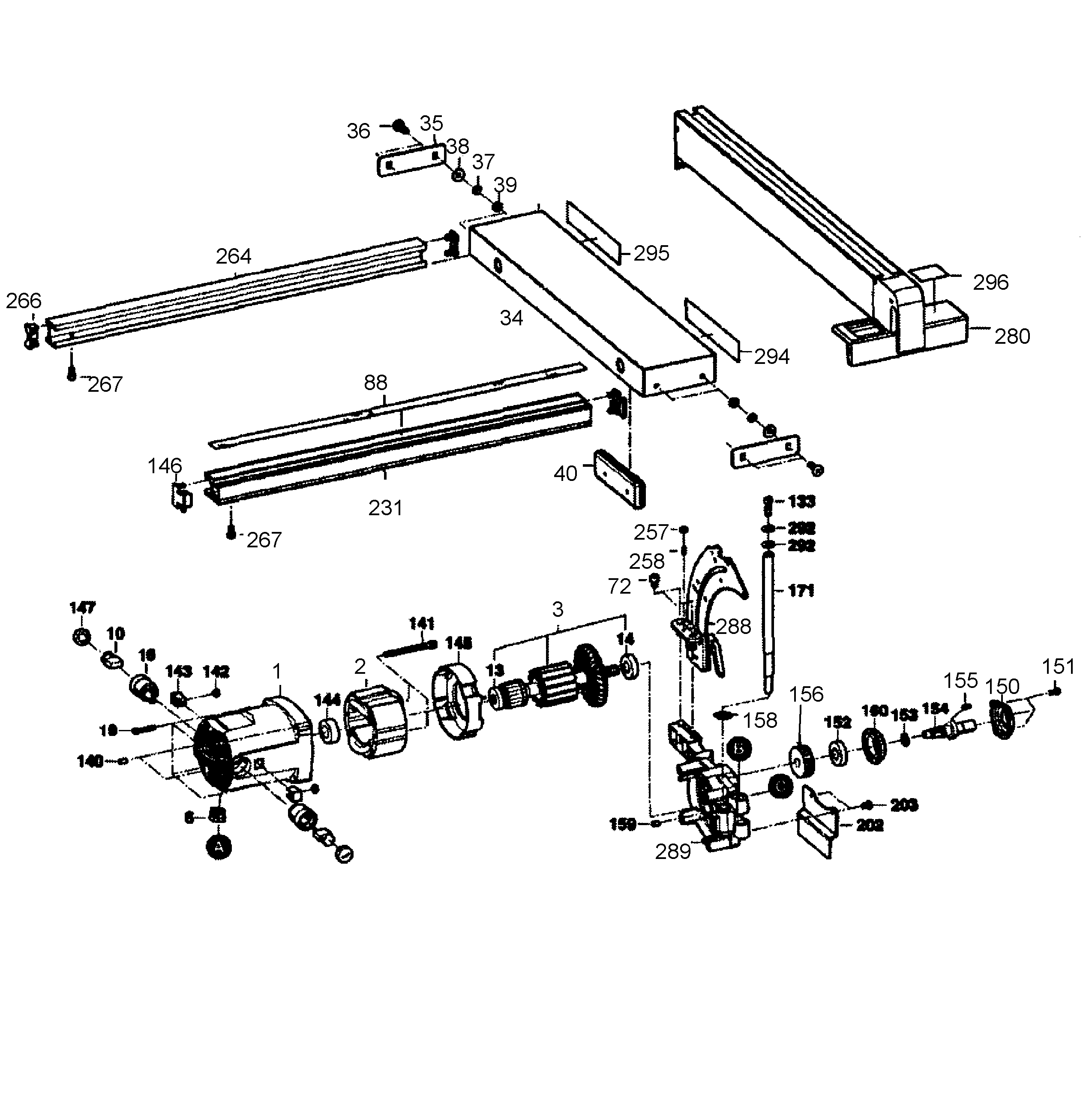

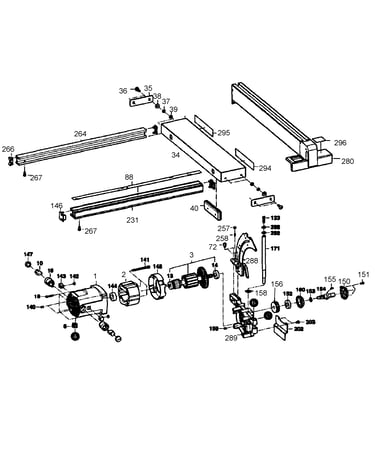

Motor assy diagram

Bosch motor housing

Part #2610014691

The manufacturer no longer makes this part, and there's no substitute part

Bosch Label 2610014696
#192

Table assy diagram

Bosch label

Part #2610014696

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt 2610911929
#141

Motor assy diagram

Hex bolt

Part #2610911929

The manufacturer no longer makes this part, and there's no substitute part

Bosch Rod 2610015037
#166

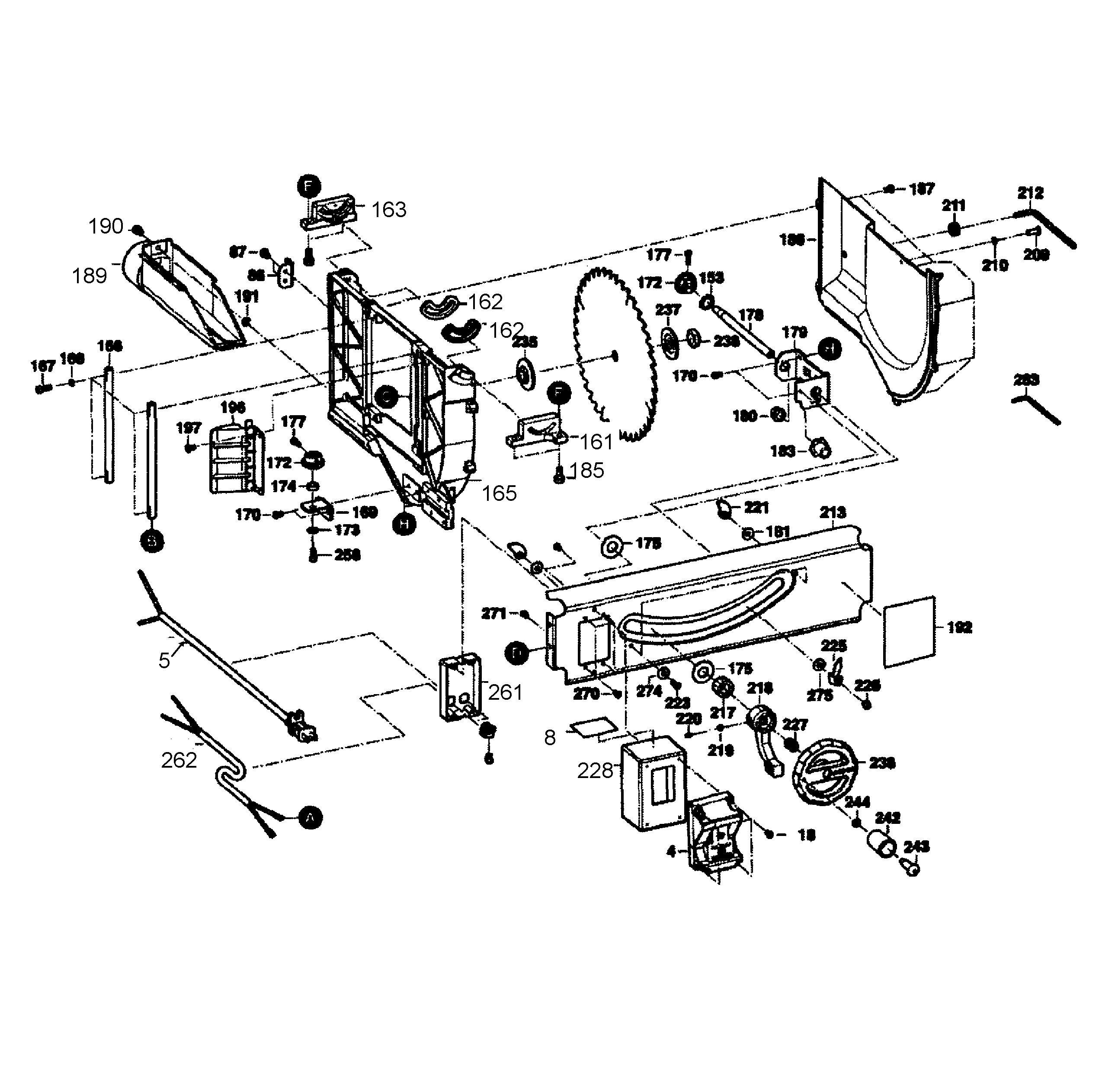

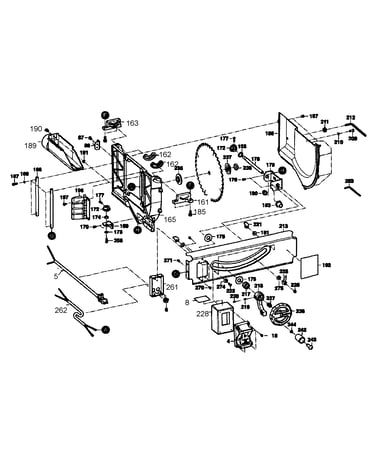

Cabinet diagram

Bosch rod

Part #2610015037

The manufacturer no longer makes this part, and there's no substitute part

Bosch Reduction Gear 2610012985
#156

Motor assy diagram

Bosch reduction gear

Part #2610012985

The manufacturer no longer makes this part, and there's no substitute part

Bosch Miter Gauge 2610015084
#281

Table assy diagram

Bosch miter gauge

Part #2610015084

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 2610016561
#194

Cabinet diagram

Bosch screw

Part #2610016561

The manufacturer no longer makes this part, and there's no substitute part

Screw 2610950439
#203

Motor assy diagram

Screw

Part #2610950439

The manufacturer no longer makes this part, and there's no substitute part
