Model # EL8ATRRRQ05 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool EL8ATRRRQ05 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Light Bulb 4390465
#9

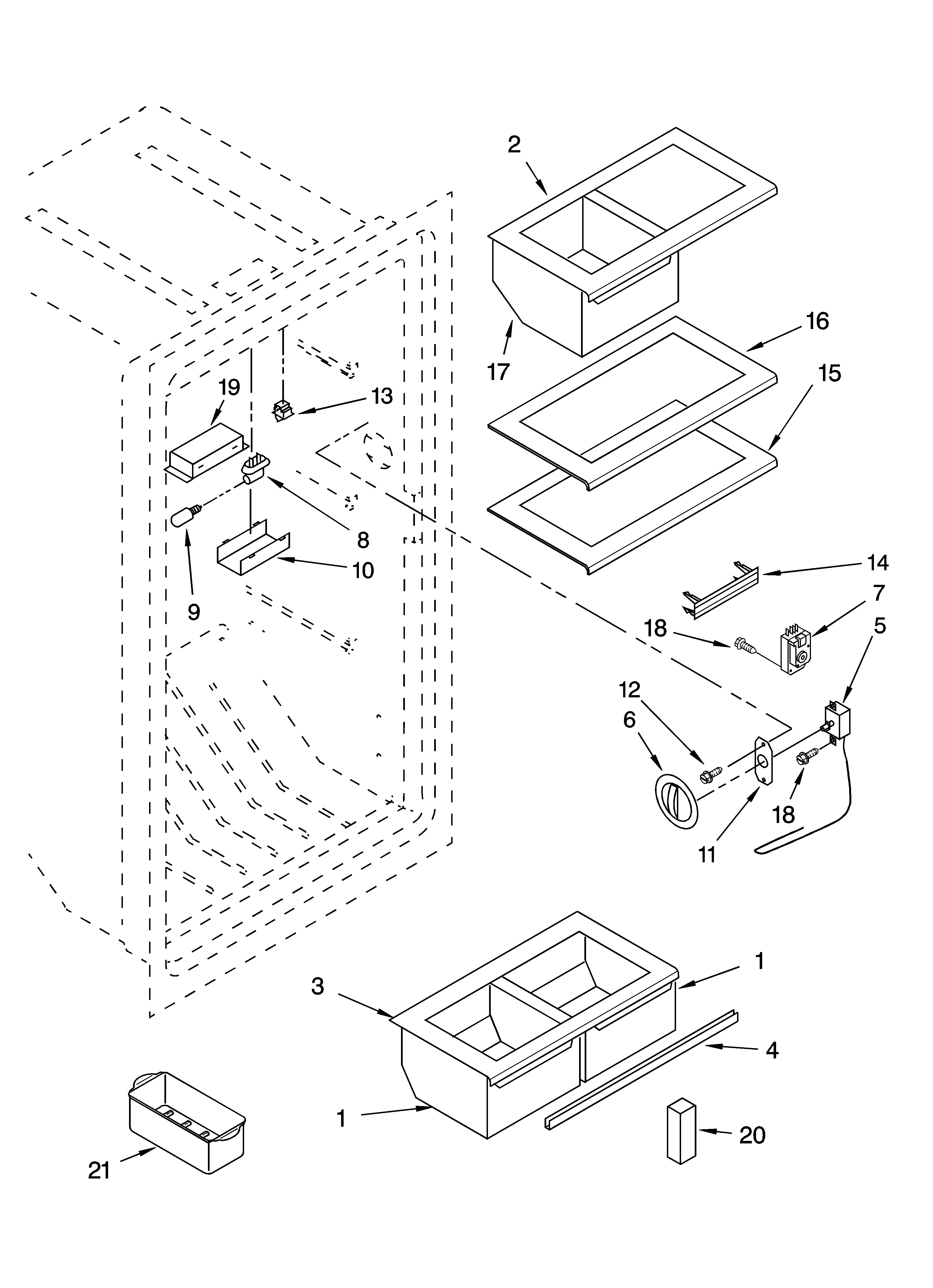

Liner parts diagram

Light bulb

Part #4390465

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4390465. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Switch 4390513
#13

Liner parts diagram

Switch

Part #4390513

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 4390513. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 4357299
#16

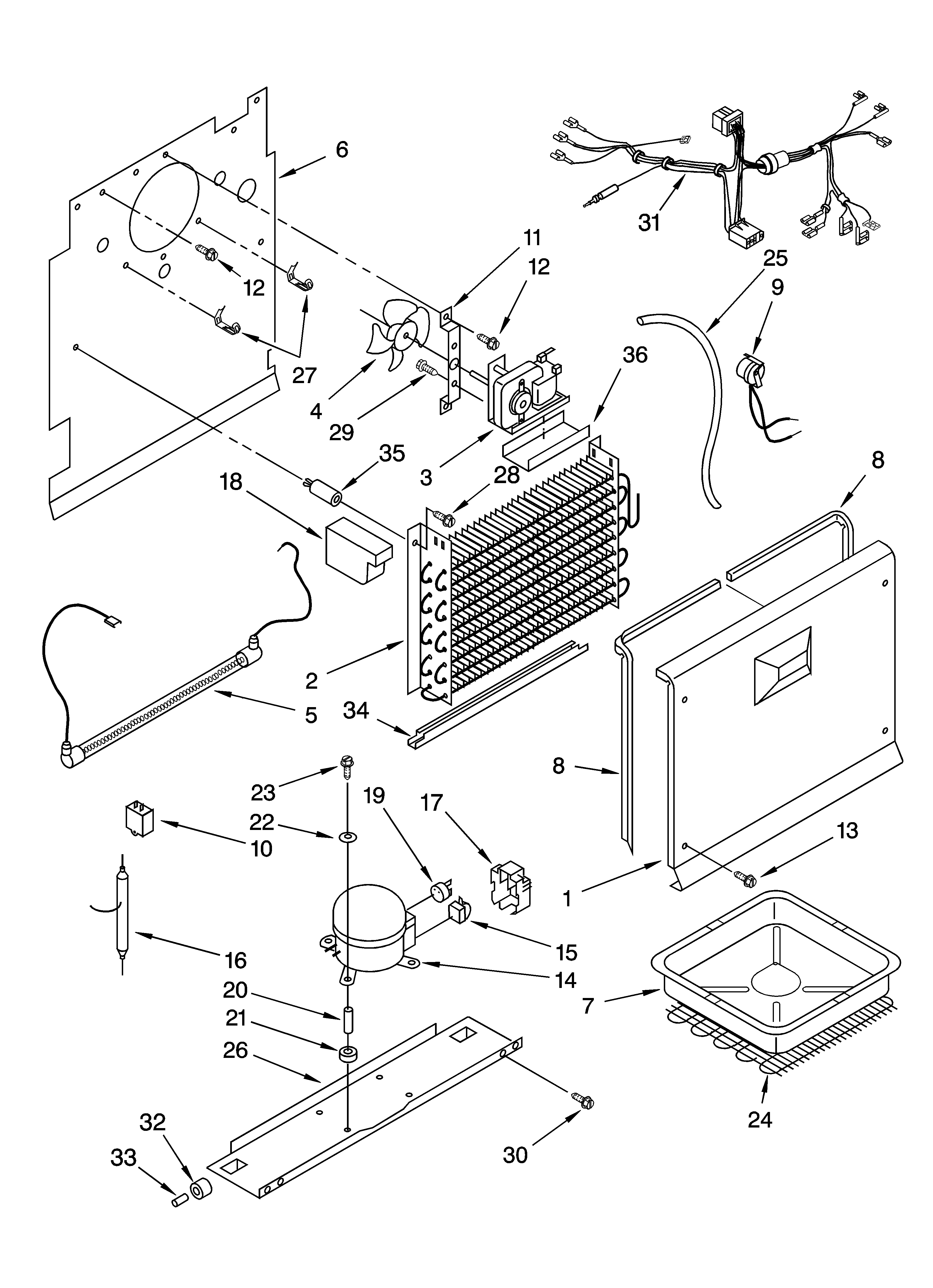

Unit parts, optional parts (not included) diagram

Drier tube

Part #4357299

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4357299. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Unit parts, optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Defrost Timer 4357124
#7

Liner parts diagram

Defrost timer

Part #4357124

Replaced by #WP3-81329

?
Manufacturer substitution
This part replaces 4357124. Substitute parts can look different from the original.
$88.66 |
6% OFF Phone Price : $94.66
In Stock
Heater 4356923
#5

Unit parts, optional parts (not included) diagram

Heater

Part #4356923

Replaced by #W11175809

?
Manufacturer substitution
This part replaces 4356923. Substitute parts can look different from the original.
$78.88 |
7% OFF Phone Price : $84.88
In Stock
Level Legs W10177675
#10

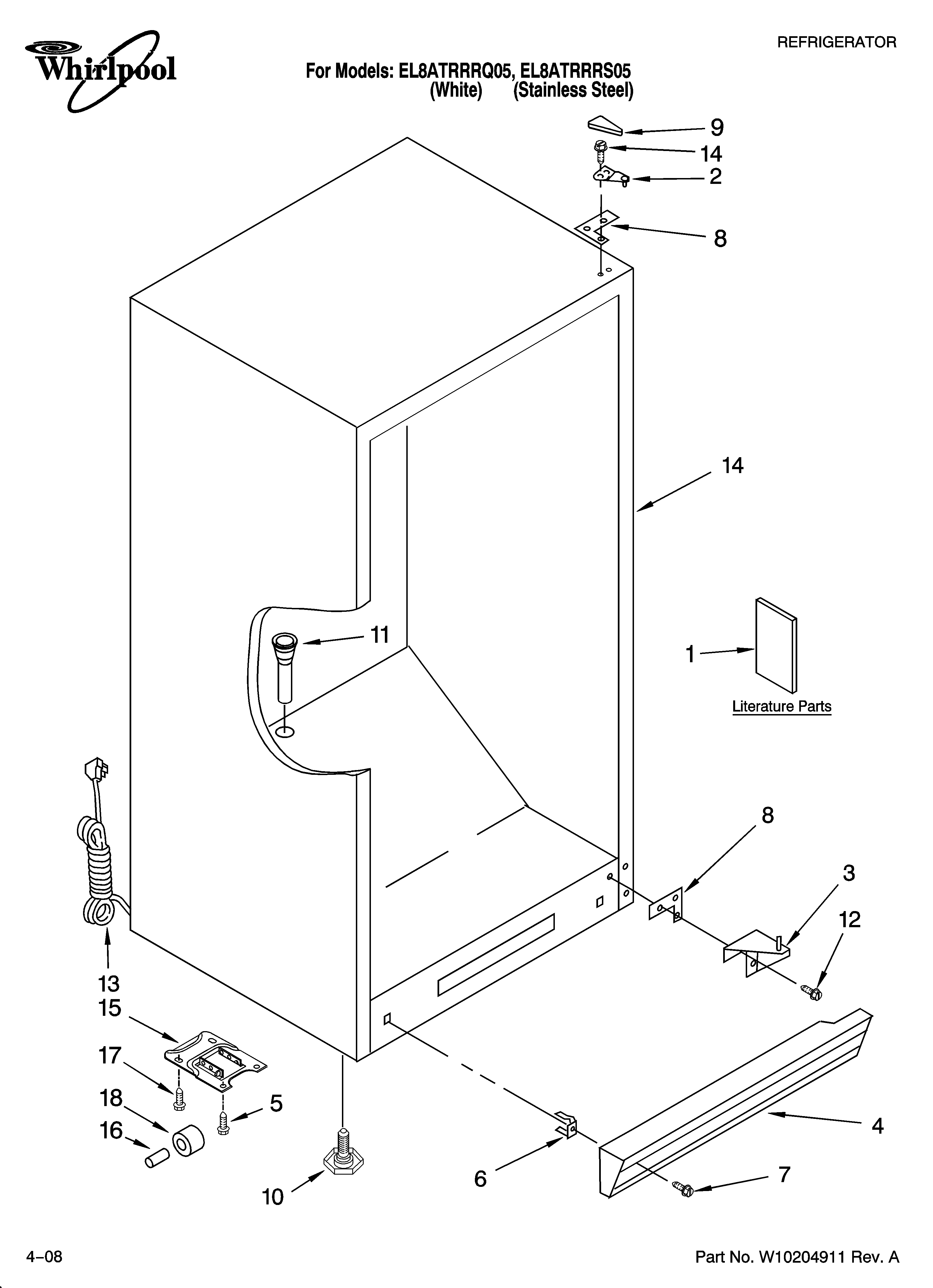

Cabinet parts diagram

Level legs

Part #W10177675

Replaced by #WP3-82710-001

?
Manufacturer substitution
This part replaces W10177675. Substitute parts can look different from the original.
This item is not returnable
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Compressor 8210240
#14

Unit parts, optional parts (not included) diagram

Compressor

Part #8210240

Replaced by #W10237328

?
Manufacturer substitution
This part replaces 8210240. Substitute parts can look different from the original.
$387.50 |
$12.00 OFF Phone Price : $399.50
In Stock
Freezer Door Gasket (black) 8210343
#3A

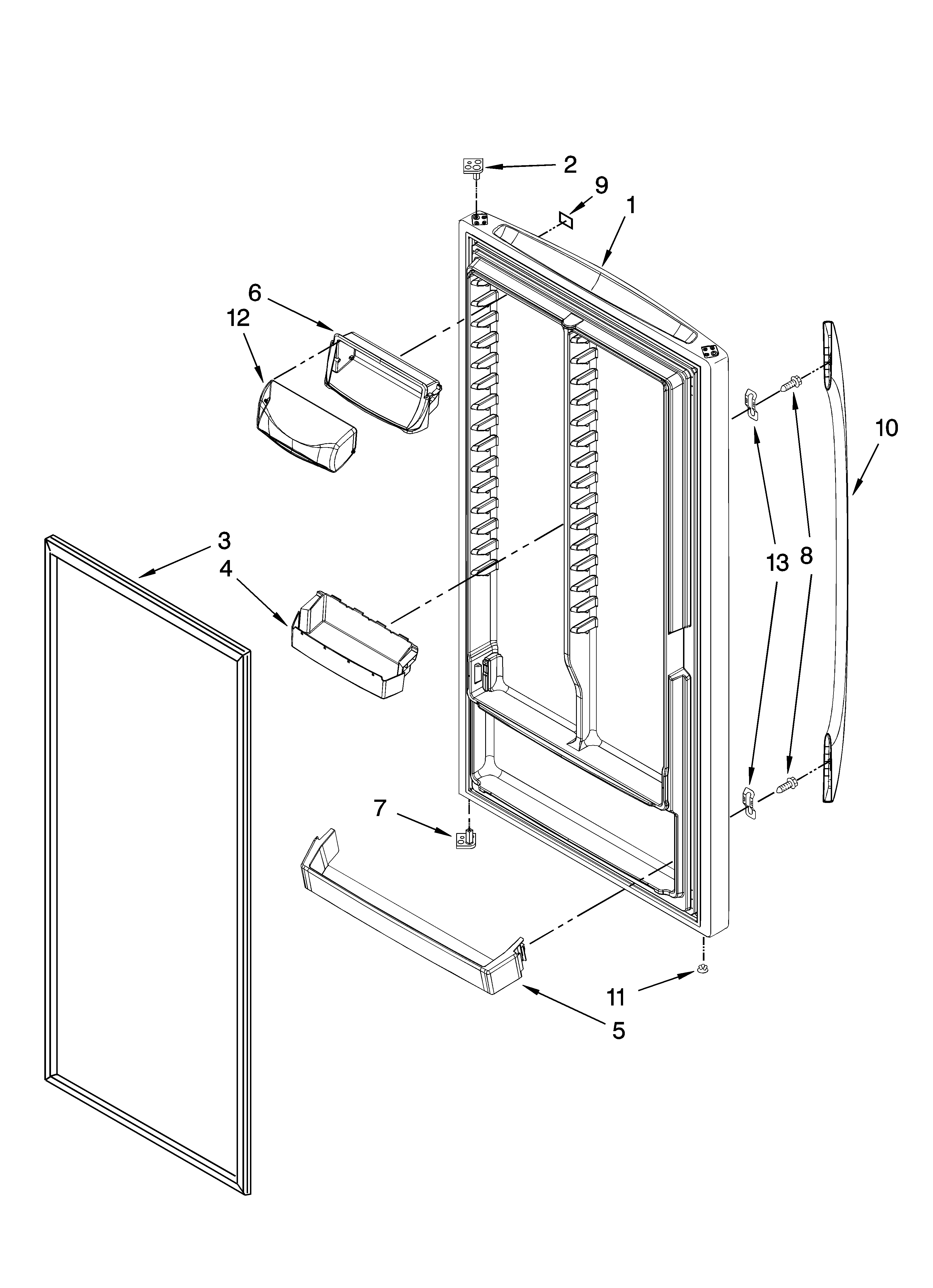

Door parts diagram

Freezer door gasket (black)

Part #8210343

$210.76 |
5% OFF Phone Price : $222.76
In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344
#NI

Unit parts, optional parts (not included) diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$109.53 |
10% OFF Phone Price : $121.53
In Stock
