Model # 70172822-78 Official Sears gym set

Here are the diagrams and repair parts for Official Sears 70172822-78 gym set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

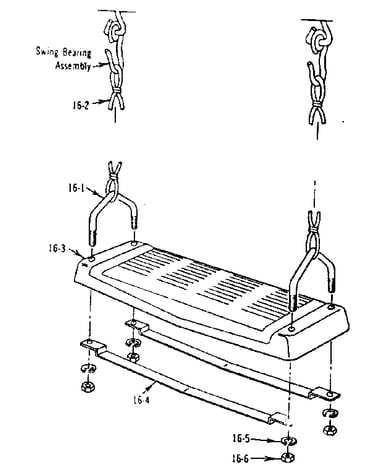

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Top Bar 6013760
#14

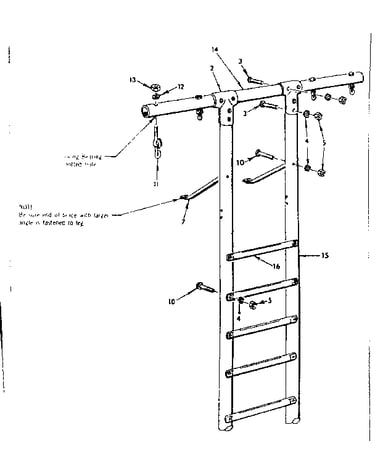

Top bar assembly no. 4 diagram

Top bar

Part #6013760

The manufacturer no longer makes this part, and there's no substitute part

Stand 6180720
#27

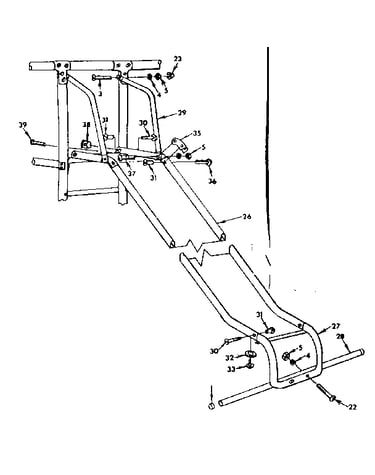

Slide assembly no. 20 diagram

Stand

Part #6180720

The manufacturer no longer makes this part, and there's no substitute part

Connector 2993020
#1

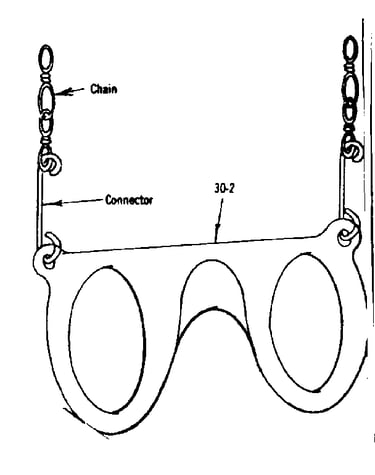

Trapeze bar installation no. 2 diagram

Connector

Part #2993020

The manufacturer no longer makes this part, and there's no substitute part

End Cap 2992980
#38

Slide assembly no. 20 diagram

End cap

Part #2992980

The manufacturer no longer makes this part, and there's no substitute part

Washer 2993770
Washer

Part #2993770

The manufacturer no longer makes this part, and there's no substitute part

Top Bar 6014260
#1

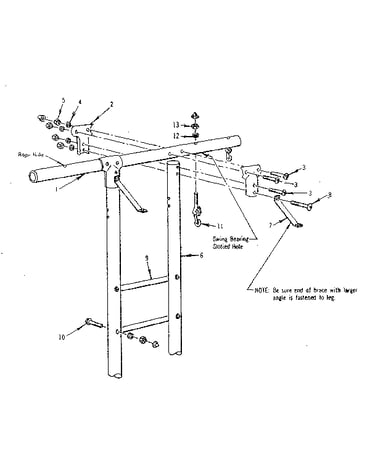

Top bar assembly no. 1 diagram

Top bar

Part #6014260

The manufacturer no longer makes this part, and there's no substitute part

Bar 6131030
#28

Slide assembly no. 20 diagram

Bar

Part #6131030

The manufacturer no longer makes this part, and there's no substitute part

End Cap 2994370
#25

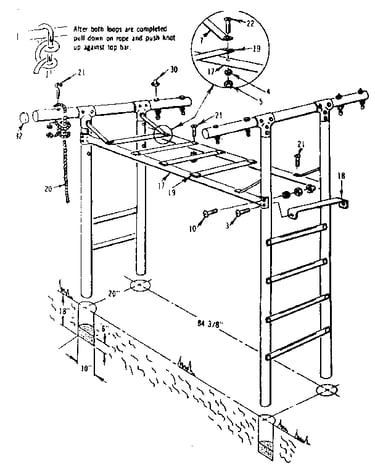

Over head rail assembly no. 5 diagram

End cap

Part #2994370

The manufacturer no longer makes this part, and there's no substitute part

Rope 6995380
#20

Over head rail assembly no. 5 diagram

Rope

Part #6995380

The manufacturer no longer makes this part, and there's no substitute part

Brace 6212450
#9

Top bar assembly no. 1 diagram

Brace

Part #6212450

The manufacturer no longer makes this part, and there's no substitute part
