Model # 200691001 Official Craftsman 2-cycle engine

Here are the diagrams and repair parts for Official Craftsman 200691001 2-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

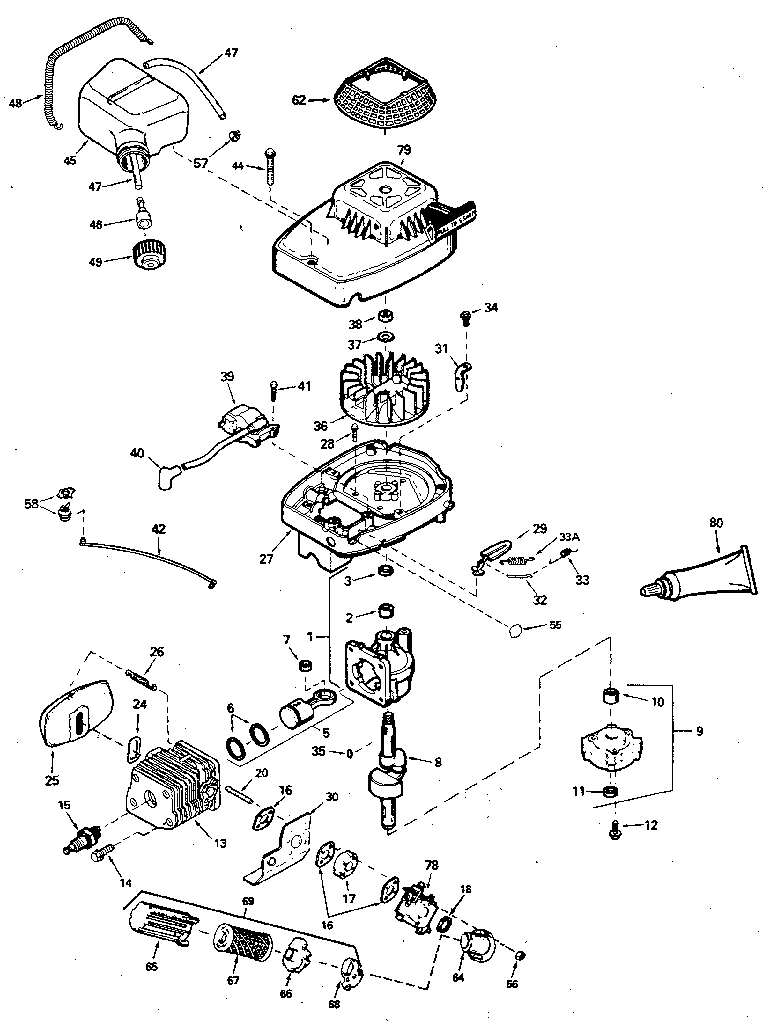

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Troybilt Lawn & Garden Equipment Engine Air Filter 35066
#67

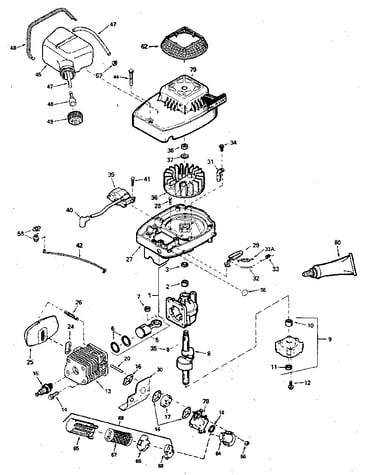

Replacement parts diagram

Troybilt lawn & garden equipment engine air filter

Part #35066

BEST SELLER
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Tecumseh Lawn & Garden Equipment Engine Air Filter Cover (replaces 35986, B35065) 35065
#65

Replacement parts diagram

Tecumseh lawn & garden equipment engine air filter cover (replaces 35986, b35065)

Part #35065

BEST SELLER
This item is not returnable
$9.69 |
9% OFF Phone Price : $10.69
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 410246, 410250, 410276, 410282) 410246A
#47

Replacement parts diagram

Lawn & garden equipment engine fuel line (replaces 410246, 410250, 410276, 410282)

Part #410246A

This item is not returnable
$8.46 |
11% OFF Phone Price : $9.46
In Stock
Fuel Cap 410248
#49

Replacement parts diagram

Fuel cap

Part #410248

Replaced by #410280

?
Manufacturer substitution
This part replaces 410248. Substitute parts can look different from the original.
This item is not returnable
$8.20
In Stock
Screw 650814
#41

Replacement parts diagram

Screw

Part #650814

Replaced by #651007

?
Manufacturer substitution
This part replaces 650814. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Gasket 510327
#16

Replacement parts diagram

Gasket

Part #510327

Replaced by #510327B

?
Manufacturer substitution
This part replaces 510327. Substitute parts can look different from the original.
This item is not returnable
$5.71
In Stock
Tecumseh Spring 570669
#33

Replacement parts diagram

Tecumseh spring

Part #570669

This item is not returnable
$4.14
In Stock
Tecumseh Shutter 632294
#10

Replacement parts diagram

Tecumseh shutter

Part #632294

$8.20
In Stock
Lawn & Garden Equipment Screw 650867
Lawn & garden equipment screw

Part #650867

This item is not returnable
$2.16
In Stock
Tecumseh Lever 632318
#38

Replacement parts diagram

Tecumseh lever

Part #632318

This item is not returnable
$5.80
In Stock
