Model # 917384420 Official Craftsman lawn mower
Here are the diagrams and repair parts for Official Craftsman 917384420 lawn mower, as well as links to manuals and error code tables, if available.
Owner’s manual
View engineBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
917384420 Walk-Behind Mowers
#61

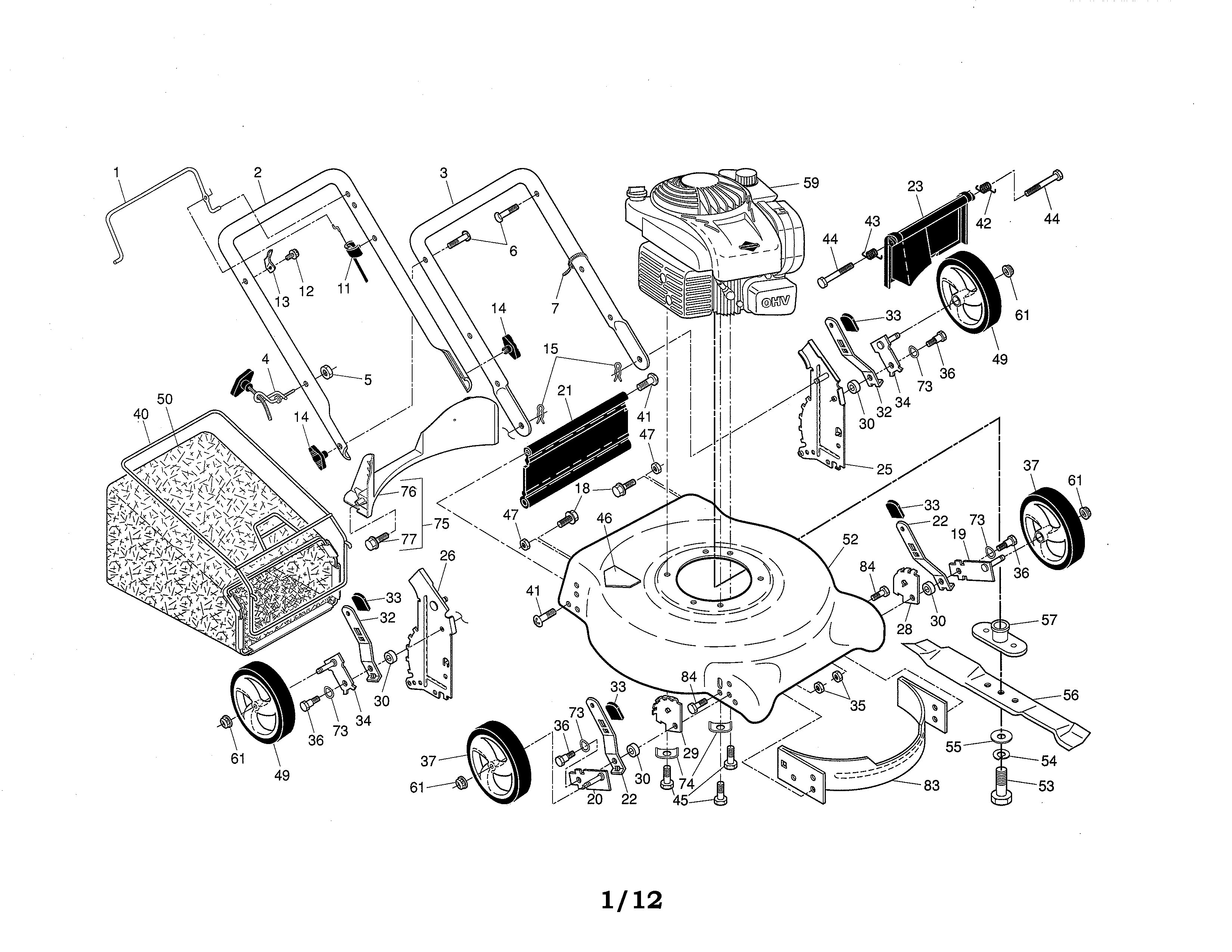

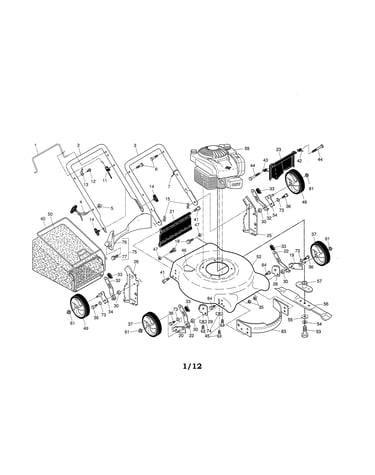

Lawn mower diagram
Lawn & garden equipment nut
Part #409148
Replaced by #532409149
?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
This item is not returnable
$5.93 |
14% OFF Phone Price : $6.93
In Stock
#56
Lawn mower diagram
Lawn mower blade
Part #406712
Replaced by #532406712
?
Manufacturer substitution
This part replaces 406712. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$24.70 |
20% OFF Phone Price : $30.70
In Stock
#49
Lawn mower diagram
Lawn mower wheel, 8 x 1-3/4-in
Part #194348X460
Replaced by #583720201
?
Manufacturer substitution
This part replaces 194348X460. Substitute parts can look different from the original.
$22.29 |
21% OFF Phone Price : $28.29
In Stock
#50
Lawn mower diagram
Lawn mower grass bag
Part #408955
Replaced by #532410666
?
Manufacturer substitution
This part replaces 408955. Substitute parts can look different from the original.
$61.78 |
9% OFF Phone Price : $67.78
In Stock
#21
Lawn mower diagram
Lawn mower rear skirt
Part #418655
Replaced by #532416860
?
Manufacturer substitution
This part replaces 418655. Substitute parts can look different from the original.
$14.85 |
12% OFF Phone Price : $16.85
In Stock
#57
Lawn mower diagram
Lawn mower blade adapter
Part #850977
Replaced by #581547901
?
Manufacturer substitution
This part replaces 850977. Substitute parts can look different from the original.
$23.98 |
20% OFF Phone Price : $29.98
In Stock
#84
Lawn mower diagram
Bolt
Part #17000510
Replaced by #817000510
?
Manufacturer substitution
This part replaces 17000510. Substitute parts can look different from the original.
$7.20 |
12% OFF Phone Price : $8.20
In Stock
#30
Lawn mower diagram
Height spacer
Part #401629
Replaced by #532401629
?
Manufacturer substitution
This part replaces 401629. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Was : $5.31
In Stock
#33
Lawn mower diagram
Walk-behind lawn mower selector knob
Part #87877
Replaced by #532087877
?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
#53
Lawn mower diagram
Lawn & garden equipment screw
Part #851084
Replaced by #532851084
?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
Symptoms for gas walk-behind mowers
Choose a symptom to see related walk-behind mower repairs.
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…
Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…
