Model # DW217 TYPE 1 Official Black & Decker drill/driver

Here are the diagrams and repair parts for Official Black & Decker DW217-TYPE-1 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Gasket 176655-00
#46

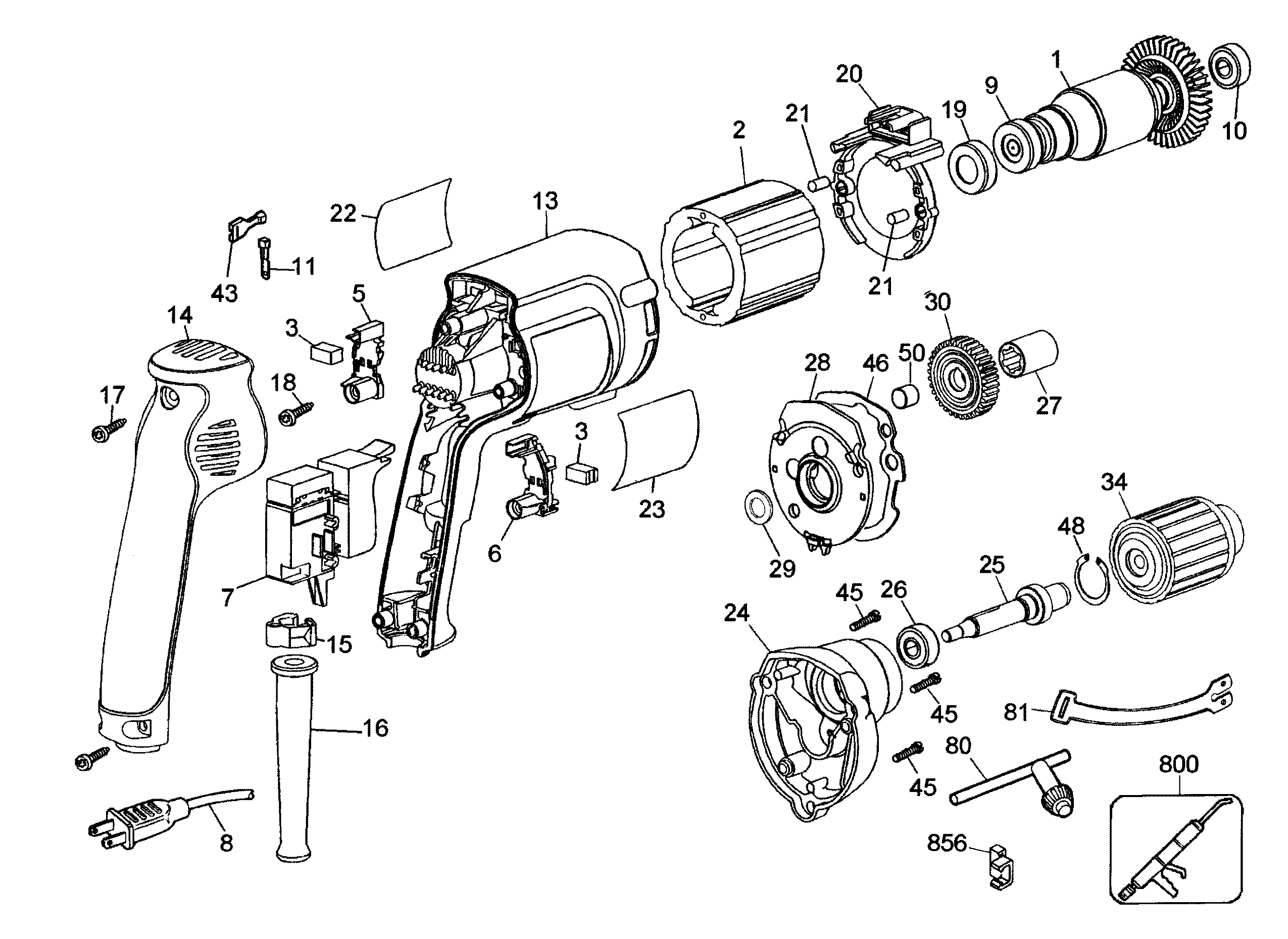

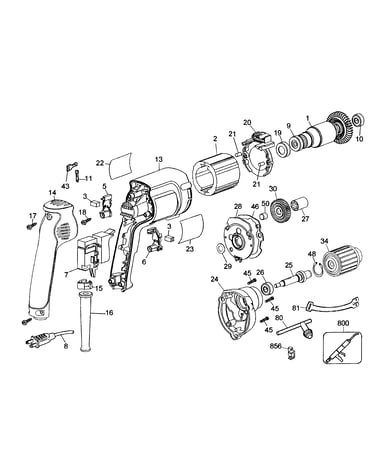

Drill assy diagram

Gasket

Part #176655-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Sleeve 949721-03
#19

Drill assy diagram

Black & decker sleeve

Part #949721-03

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#26

Drill assy diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Arm Fan 382299-00SV
#1

Drill assy diagram

Arm fan

Part #382299-00SV

The manufacturer no longer makes this part, and there's no substitute part

Gear 176629-00
#30

Drill assy diagram

Gear

Part #176629-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 023813-00
#29

Drill assy diagram

Washer

Part #023813-00

The manufacturer no longer makes this part, and there's no substitute part

Holder 065288-02
#81

Drill assy diagram

Holder

Part #065288-02

The manufacturer no longer makes this part, and there's no substitute part

Id Label 395047-00
#22

Drill assy diagram

Id label

Part #395047-00

The manufacturer no longer makes this part, and there's no substitute part

Case 176693-00SV
#24

Drill assy diagram

Case

Part #176693-00SV

The manufacturer no longer makes this part, and there's no substitute part

Cover 176816-01
#14

Drill assy diagram

Cover

Part #176816-01

The manufacturer no longer makes this part, and there's no substitute part
