Kenmore
Microwave/Hood Combo

Model # 72180409400 Official Kenmore microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore 72180409400 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

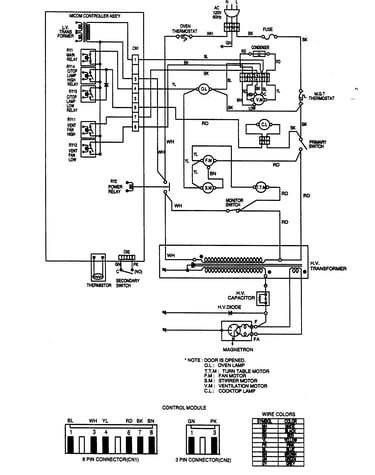

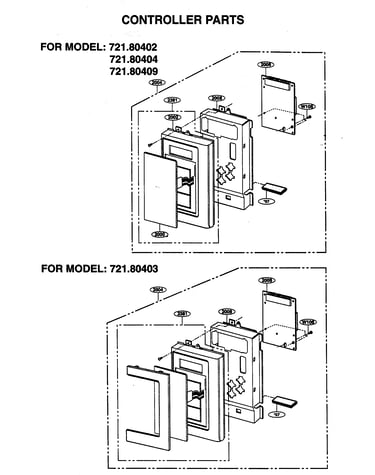

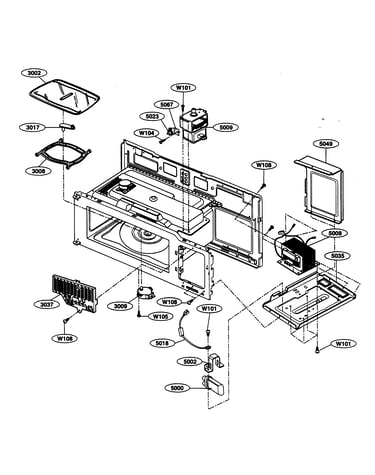

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Lg Microwave Charcoal Filter 5230W1A003A
#5037

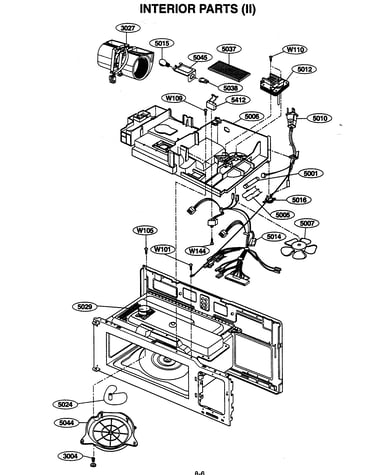

Interior parts 2 diagram

Lg microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$32.13 |
16% OFF Phone Price : $38.13
In Stock
Microwave Thermostat (replaces 6930w1a002k, 6930wrt003c) 6930W1A003J
#5016

Interior parts 2 diagram

Microwave thermostat (replaces 6930w1a002k, 6930wrt003c)

Part #6930W1A003J

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Latch Body Assembly (replaces 3501w1a019p) 3501W1A019C
#4001

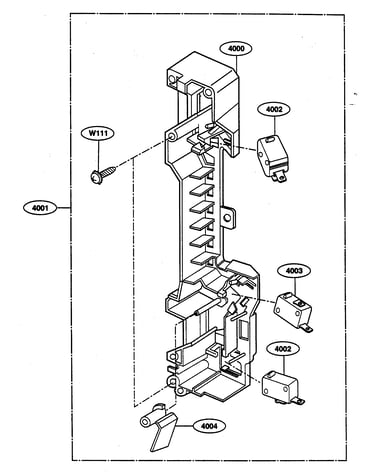

Latch board diagram

Microwave latch body assembly (replaces 3501w1a019p)

Part #3501W1A019C

Replaced by #AEJ75540901

?
Manufacturer substitution
This part replaces 3501W1A019C. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

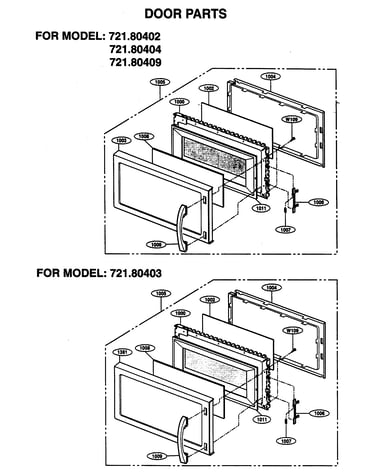

Door assy diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

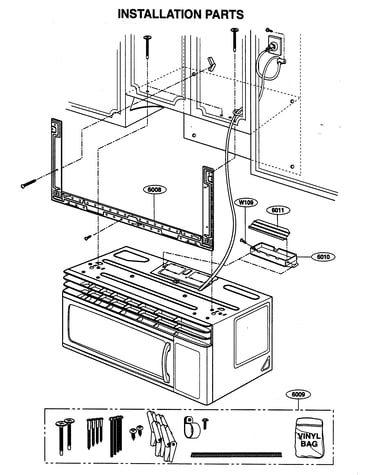

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Grease Filter 2B72705C
#3026

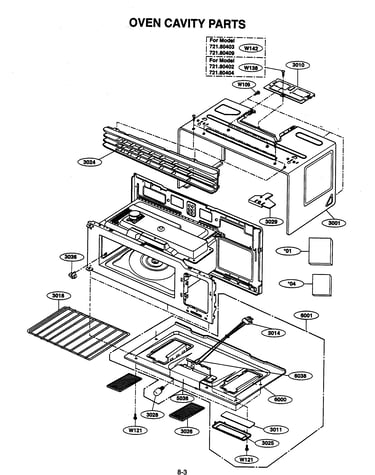

Oven cavity diagram

Microwave grease filter

Part #2B72705C

$11.12 |
15% OFF Phone Price : $13.12
In Stock
Microwave Door Latch Holder 3500W1A013A
#4000

Latch board diagram

Microwave door latch holder

Part #3500W1A013A

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A013A. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
Back Order
Seal Tape 3536WRA001R
#1002

Door assy diagram

Seal tape

Part #3536WRA001R

Replaced by #3536W1A012B

?
Manufacturer substitution
This part replaces 3536WRA001R. Substitute parts can look different from the original.
This item is not returnable
$5.56 |
15% OFF Phone Price : $6.56
In Stock
Us Pressed Steel Microwave Door Latch Lever 4510W4A005A
#4004

Latch board diagram

Us pressed steel microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
