Model # 143126051 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143126051 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

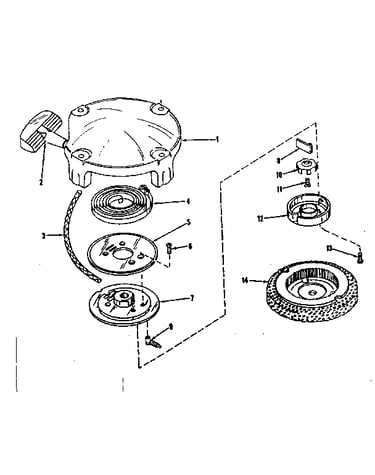

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |

Gasket 27110
#20

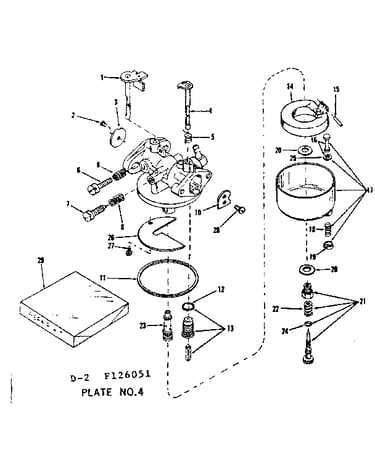

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Screw 30063
#149

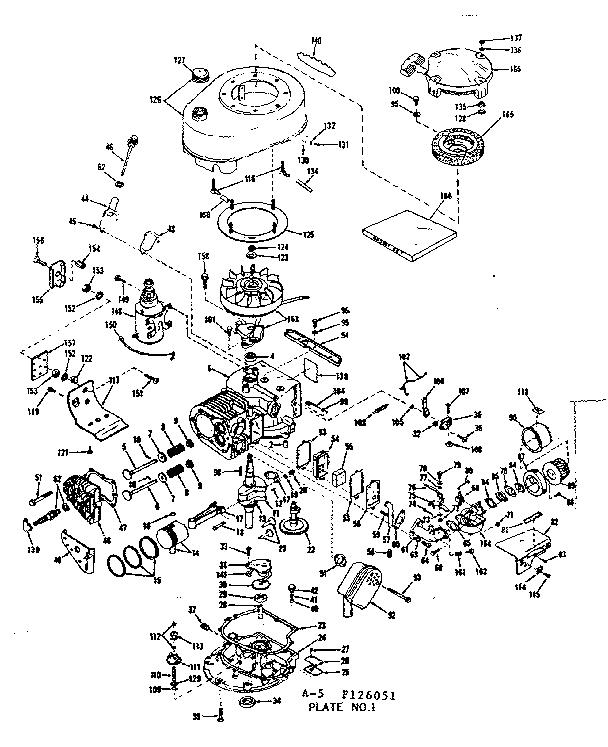

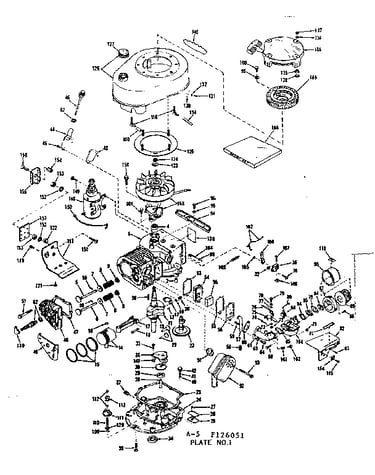

Basic engine diagram

Screw

Part #30063

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27930
#91

Basic engine diagram

Gasket

Part #27930

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 30590
#129

Basic engine diagram

Flat washer

Part #30590

The manufacturer no longer makes this part, and there's no substitute part

Pin 20810
#10

Basic engine diagram

Pin

Part #20810

The manufacturer no longer makes this part, and there's no substitute part

/brether Asy 28423
#54

Basic engine diagram

/brether asy

Part #28423

The manufacturer no longer makes this part, and there's no substitute part

Fitting 28584
#116

Basic engine diagram

Fitting

Part #28584

The manufacturer no longer makes this part, and there's no substitute part

Clip 27793
#114

Basic engine diagram

Clip

Part #27793

The manufacturer no longer makes this part, and there's no substitute part

Breaker Assembly 30547
#5

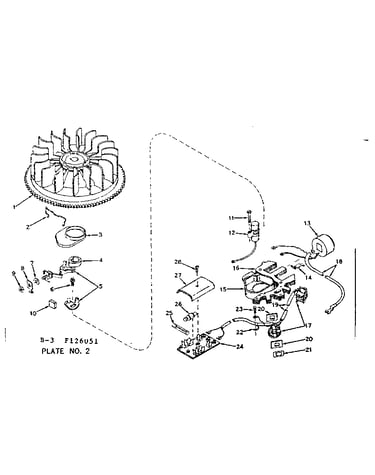

Alternator magneto diagram

Breaker assembly

Part #30547

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 650490
#123

Basic engine diagram

Flat washer

Part #650490

The manufacturer no longer makes this part, and there's no substitute part
