Model # 486244062 Official Craftsman 42" snow blade

Here are the diagrams and repair parts for Official Craftsman 486244062 42" snow blade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Skid Shoe 23070
#6

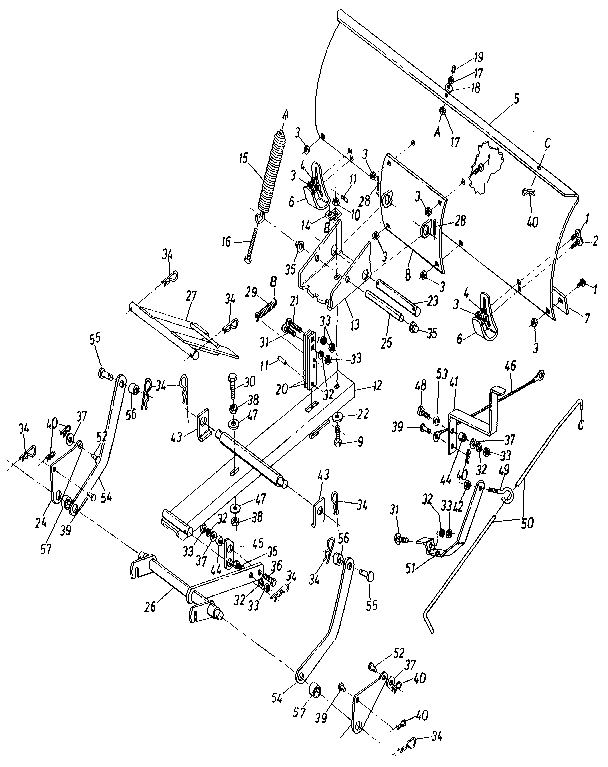

42" snow blade diagram

Skid shoe

Part #23070

Replaced by #24690BL1

?
Manufacturer substitution
This part replaces 23070. Substitute parts can look different from the original.
BEST SELLER
$9.46 |
10% OFF Phone Price : $10.46
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#34

42" snow blade diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
Back Order
Lawn Tractor Snow Blade Attachment Wear Plate 23117
#7

42" snow blade diagram

Lawn tractor snow blade attachment wear plate

Part #23117

Replaced by #23117BL3

?
Manufacturer substitution
This part replaces 23117. Substitute parts can look different from the original.
BEST SELLER
$29.91 |
17% OFF Phone Price : $35.91
In Stock
Lawn Tractor Snow Blade Attachment Angle Lock Spring (replaces 732-0360, Af-43348) 43348
#29

42" snow blade diagram

Lawn tractor snow blade attachment angle lock spring (replaces 732-0360, af-43348)

Part #43348

$8.11 |
11% OFF Phone Price : $9.11
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Carriage Bolt 43079
#2

42" snow blade diagram

Carriage bolt

Part #43079

Replaced by #44326

?
Manufacturer substitution
This part replaces 43079. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hex Lock Nut, 5/16-in 43064
#3

42" snow blade diagram

Lawn tractor attachment hex lock nut, 5/16-in

Part #43064

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Lock Washer, 3/8-in 43003
#32

42" snow blade diagram

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Carriage Bolt, 5/16-18 X 3/4-in 43080
#1

42" snow blade diagram

Lawn & garden equipment carriage bolt, 5/16-18 x 3/4-in

Part #43080

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 43087
#36

42" snow blade diagram

Screw

Part #43087

This item is not returnable
$2.16
Back Order
