Maytag
Top-Mount Refrigerator

Model # PTF1952GRQ Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag PTF1952GRQ refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

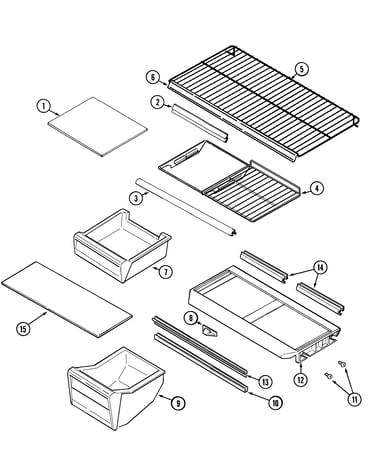

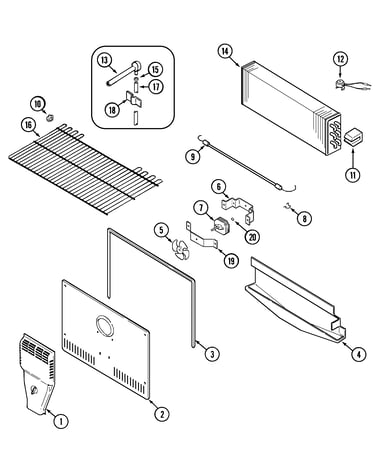

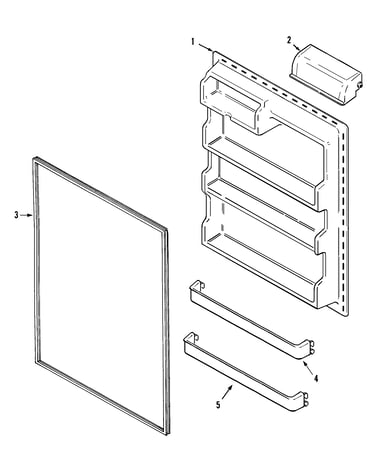

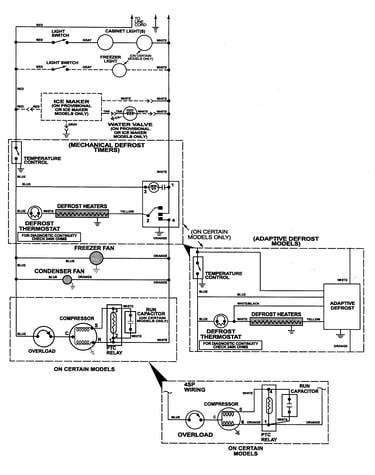

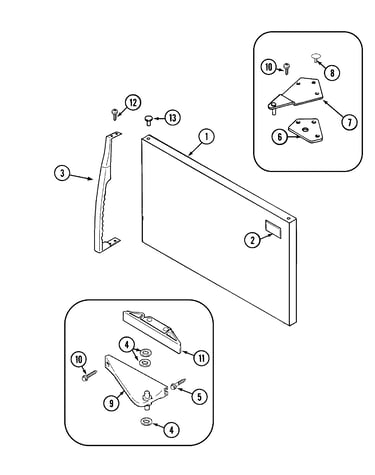

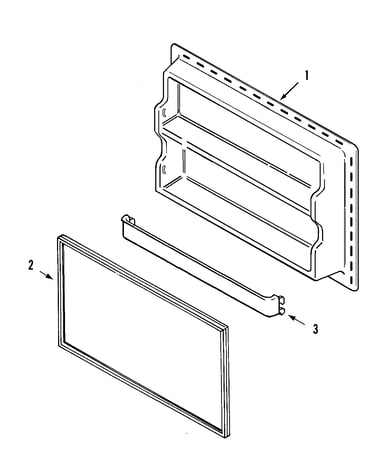

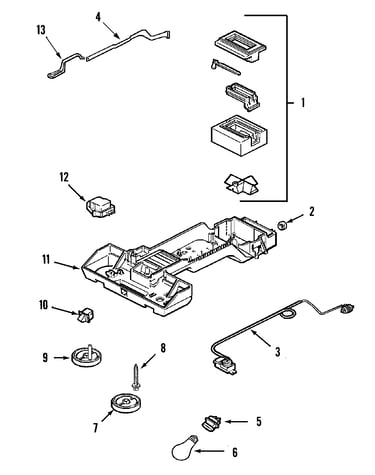

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Refrigerator Uv Dye Dryer 13900-1
Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Module 95109-1
#10

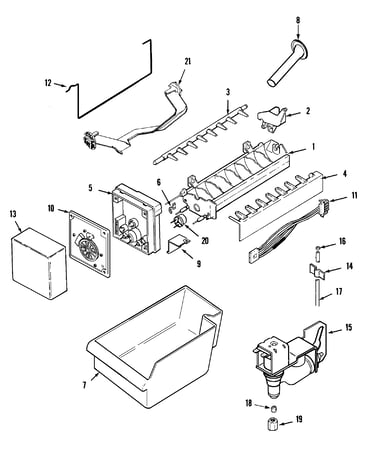

Ice maker diagram

Refrigerator ice maker module

Part #95109-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95109-1. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Thermostat 95092-1
#20

Ice maker diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
BEST SELLER
$47.98 |
11% OFF Phone Price : $53.98
In Stock
Screw 400016-1
Screw

Part #400016-1

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400016-1. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Relay 61006022
#4

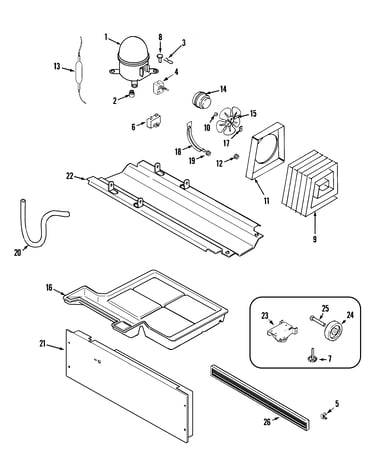

Compressor (rev 13) diagram

Refrigerator relay

Part #61006022

Replaced by #W11285096

?
Manufacturer substitution
This part replaces 61006022. Substitute parts can look different from the original.
$60.85 |
9% OFF Phone Price : $66.85
In Stock
Refrigerator Screw 61005165
Refrigerator screw

Part #61005165

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 61005165. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Tubing Valve 61004390
Tubing valve

Part #61004390

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 61004390. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Ice Maker Fill Cup 95100-1
#2

Ice maker diagram

Refrigerator ice maker fill cup

Part #95100-1

Replaced by #WP628356

?
Manufacturer substitution
This part replaces 95100-1. Substitute parts can look different from the original.
This item is not returnable
$27.77 |
18% OFF Phone Price : $33.77
In Stock
Refrigerator Water Inlet Valve Assembly 61005273
#15

Ice maker diagram

Refrigerator water inlet valve assembly

Part #61005273

Replaced by #WP61005273

?
Manufacturer substitution
This part replaces 61005273. Substitute parts can look different from the original.
$50.79 |
11% OFF Phone Price : $56.79
In Stock
Water Clamp 61001161
Water clamp

Part #61001161

Replaced by #WPM0114003

?
Manufacturer substitution
This part replaces 61001161. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
