Kenmore
Upright Vacuum

Model # 1163591090 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163591090 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Kenmore Vacuum Hepa Bag, Type O, 2-pack 50690
#29A

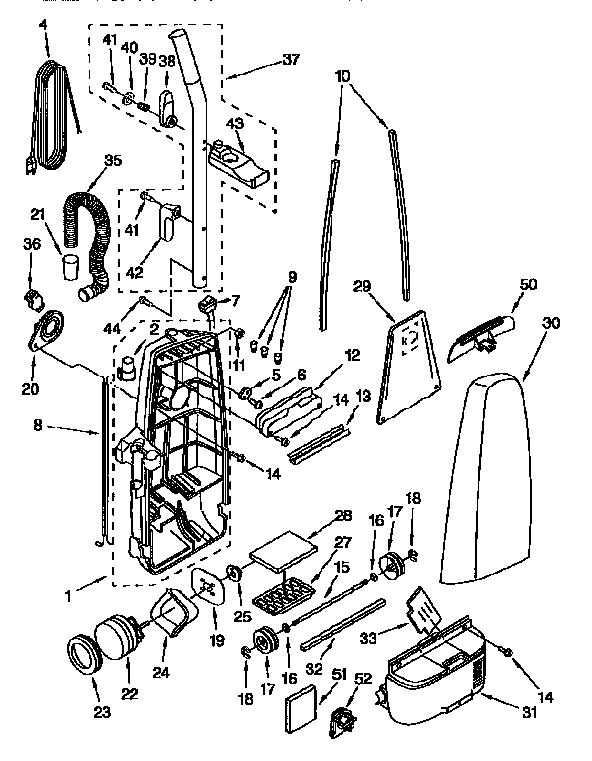

Dust compartment diagram

Kenmore vacuum hepa bag, type o, 2-pack

Part #50690

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Drive Belt 4369591
#5

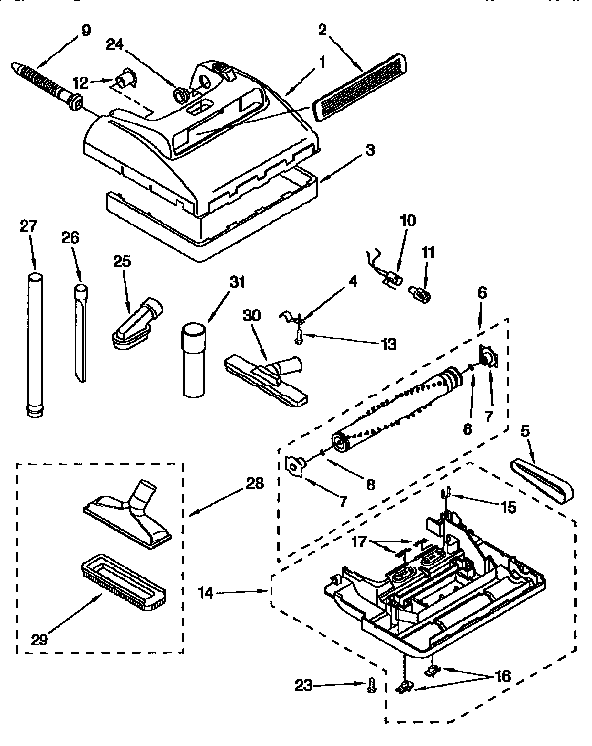

Nozzle and attachment diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Secondary Filter 4369572
#28

Dust compartment diagram

Vacuum secondary filter

Part #4369572

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#26

Nozzle and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 4369526
#10

Nozzle and attachment diagram

Bulb socket

Part #4369526

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 4368609
#28

Nozzle and attachment diagram

Vacuum beater bar

Part #4368609

The manufacturer no longer makes this part, and there's no substitute part

Bearing 4368577
#7

Nozzle and attachment diagram

Bearing

Part #4368577

The manufacturer no longer makes this part, and there's no substitute part

Protector 4359733
#52

Dust compartment diagram

Protector

Part #4359733

The manufacturer no longer makes this part, and there's no substitute part

Shaft 4369527
#12

Nozzle and attachment diagram

Shaft

Part #4369527

The manufacturer no longer makes this part, and there's no substitute part
