GE
Bottom-Mount Refrigerator

Model # CJE23DP3WBD1 Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE CJE23DP3WBD1 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

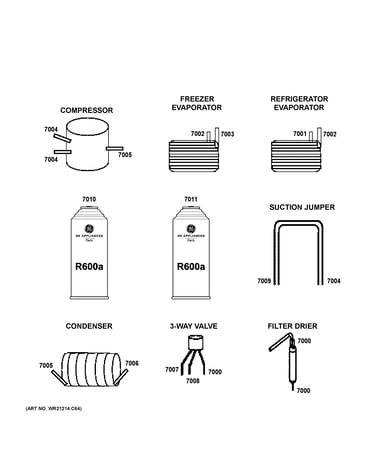

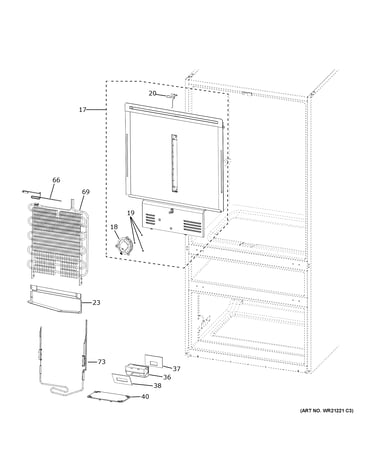

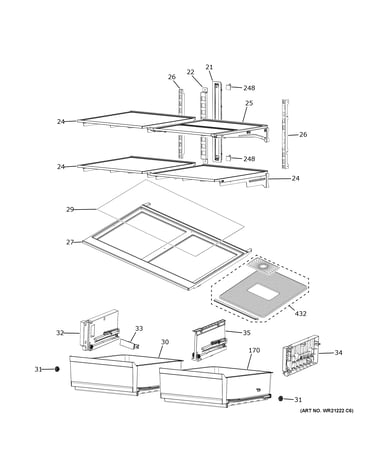

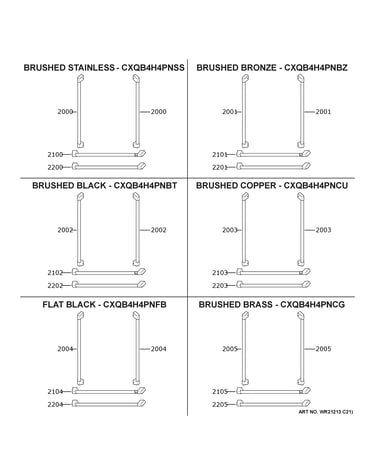

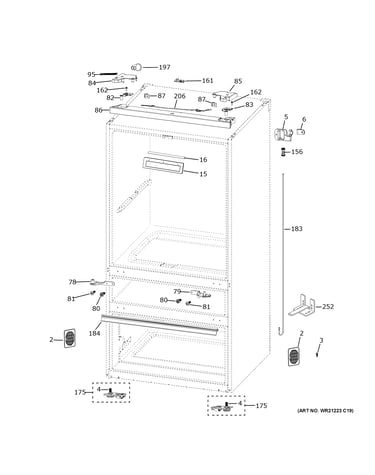

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Filter Drier WR87X31893
#160

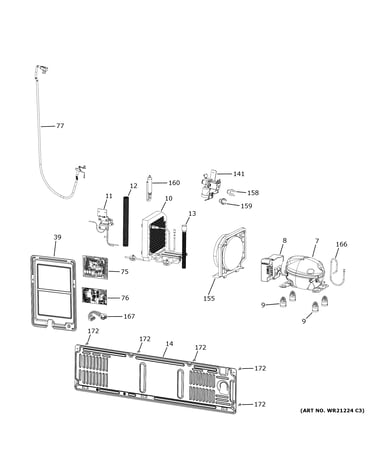

Machine compartment diagram

Filter drier

Part #WR87X31893

Replaced by #WR87X30875

?
Manufacturer substitution
This part replaces WR87X31893. Substitute parts can look different from the original.
BEST SELLER
$56.29
In Stock
Refrigerator Defrost Sensor (replaces Wr55x31993) WR55X29875
Refrigerator defrost sensor (replaces wr55x31993)

Part #WR55X29875

BEST SELLER
This item is not returnable
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Refrigerator Freezer Evaporator Fan Motor Assembly WR60X32088
#67

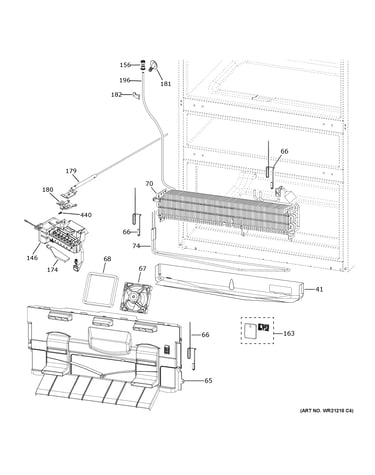

Freezer section diagram

Refrigerator freezer evaporator fan motor assembly

Part #WR60X32088

BEST SELLER
$59.42 |
9% OFF Phone Price : $65.42
In Stock
Refrigerator Water Filter Bypass (replaces Wr17x30044) WR17X33825
#173

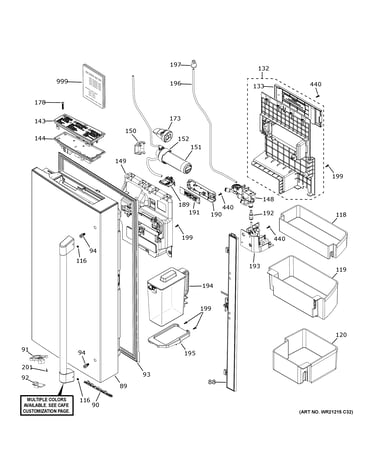

Left door & water pitcher diagram

Refrigerator water filter bypass (replaces wr17x30044)

Part #WR17X33825

BEST SELLER
$31.32 |
16% OFF Phone Price : $37.32
In Stock
Refrigerator Dual Water Inlet Valve Assembly WR57X24979
#148

Left door & water pitcher diagram

Refrigerator dual water inlet valve assembly

Part #WR57X24979

BEST SELLER
$88.83 |
6% OFF Phone Price : $94.83
In Stock
Freezer Evaporator Cover W/ Thermistor WR14X32098
#65

Freezer section diagram

Freezer evaporator cover w/ thermistor

Part #WR14X32098

BEST SELLER
$112.33 |
10% OFF Phone Price : $124.33
In Stock
3 Way Valve W/ Bracket WR86X36438
#11

Machine compartment diagram

3 way valve w/ bracket

Part #WR86X36438

BEST SELLER
$72.11
In Stock
Refrigerator Isolation Water Inlet Valve WR57X31999
#141

Machine compartment diagram

Refrigerator isolation water inlet valve

Part #WR57X31999

BEST SELLER
$51.65 |
10% OFF Phone Price : $57.65
In Stock
Convertible Thermistor WR55X31992
Convertible thermistor

Part #WR55X31992

$9.62 |
9% OFF Phone Price : $10.62
In Stock
Freezer Drawer Gasket WR14X32103
#106

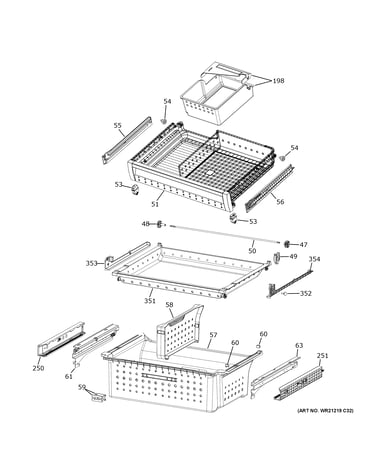

Freezer drawer diagram

Freezer drawer gasket

Part #WR14X32103

$54.48 |
10% OFF Phone Price : $60.48
In Stock
