Frigidaire
Room Air Conditioner

Model # FAS226T2A1 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAS226T2A1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Universal/multiflex (frigidaire) Partition 5303295753
#17

Electrical parts diagram

Universal/multiflex (frigidaire) partition

Part #5303295753

$32.49
In Stock
Insert 08016401
#8

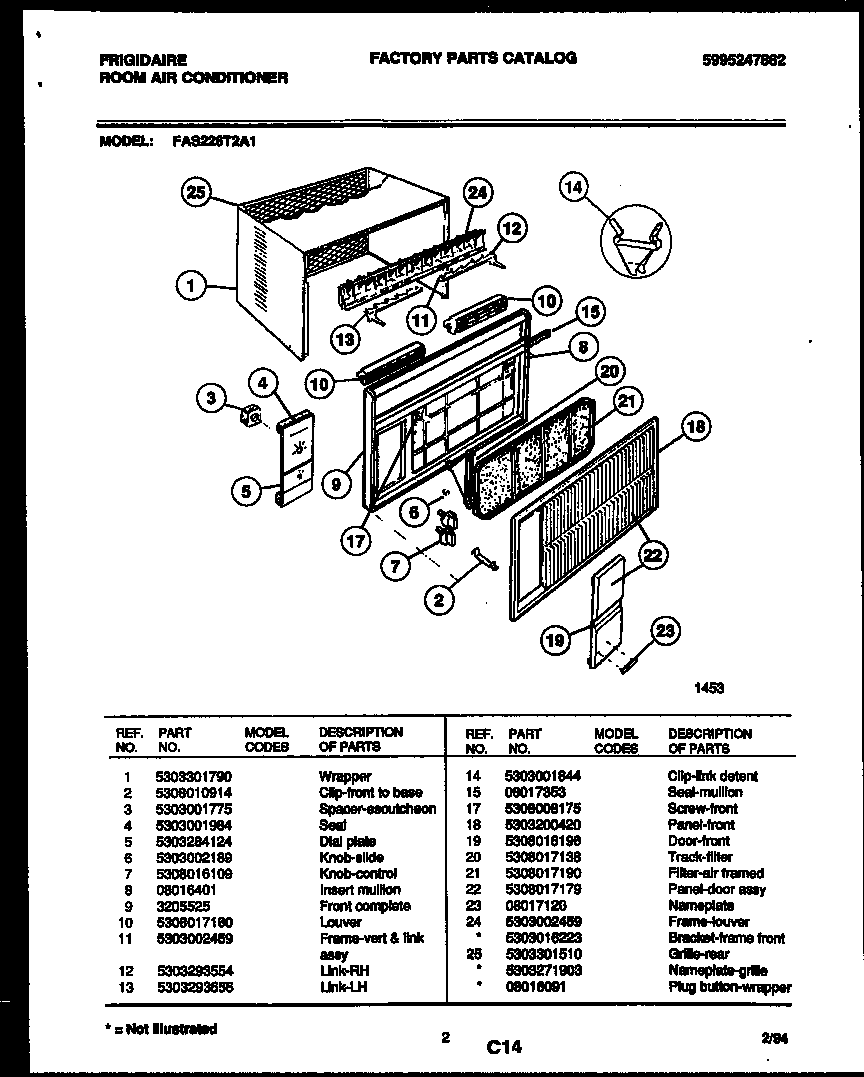

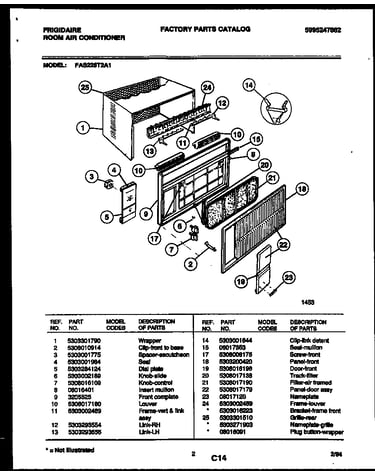

Cabinet parts diagram

Insert

Part #08016401

This item is not returnable
$5.99
In Stock
Divider 3015321
#11

Electrical parts diagram

Divider

Part #3015321

This item is not returnable
$4.79
In Stock
Plate Dial 5303284124
#5

Cabinet parts diagram

Plate dial

Part #5303284124

$13.49
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#9

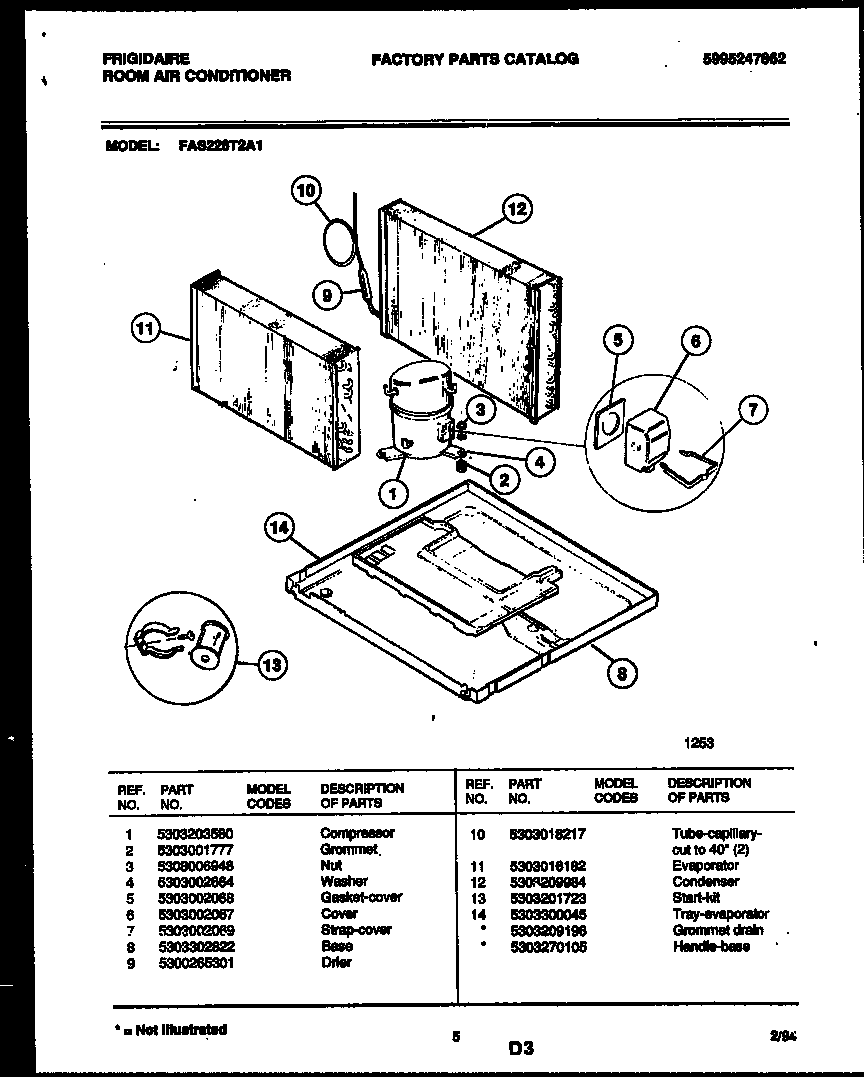

System parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Universal/multiflex (frigidaire) Cover 5303002067
#6

System parts diagram

Universal/multiflex (frigidaire) cover

Part #5303002067

$14.32
In Stock
Nut-hex 3017023
#12

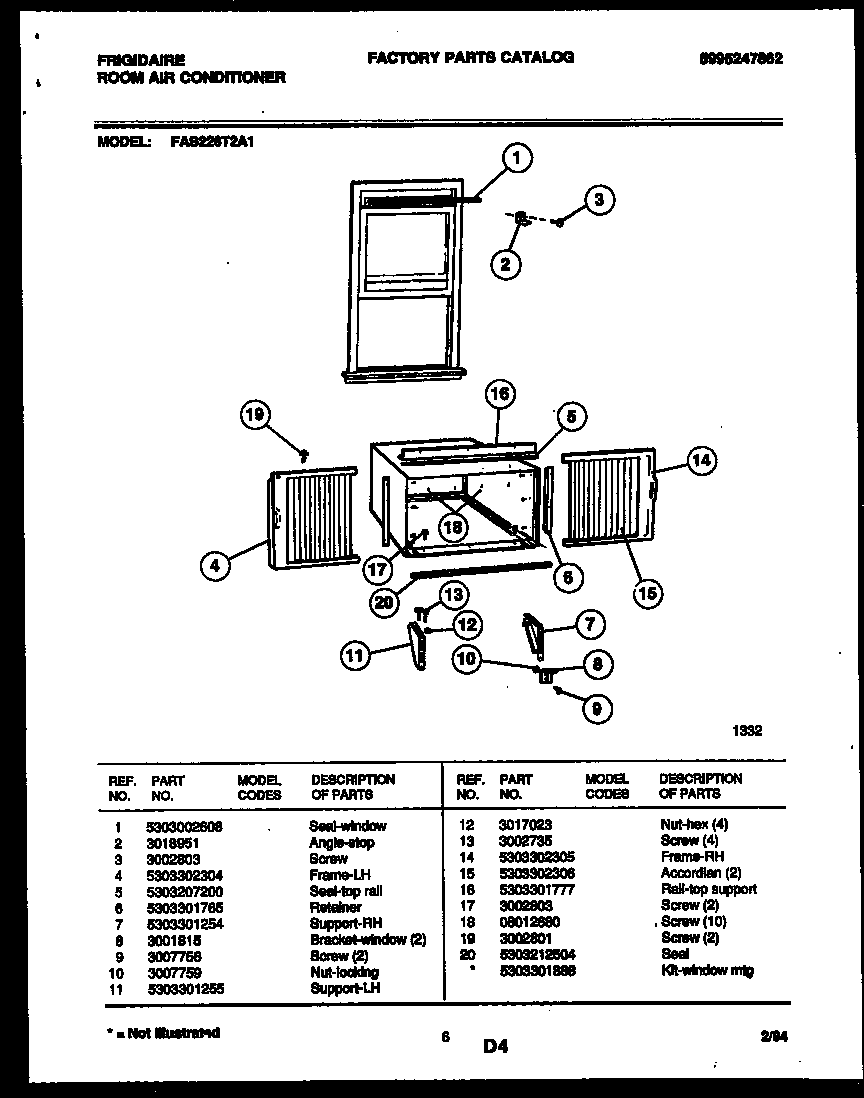

Window mounting parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Motor 5303017557
#1

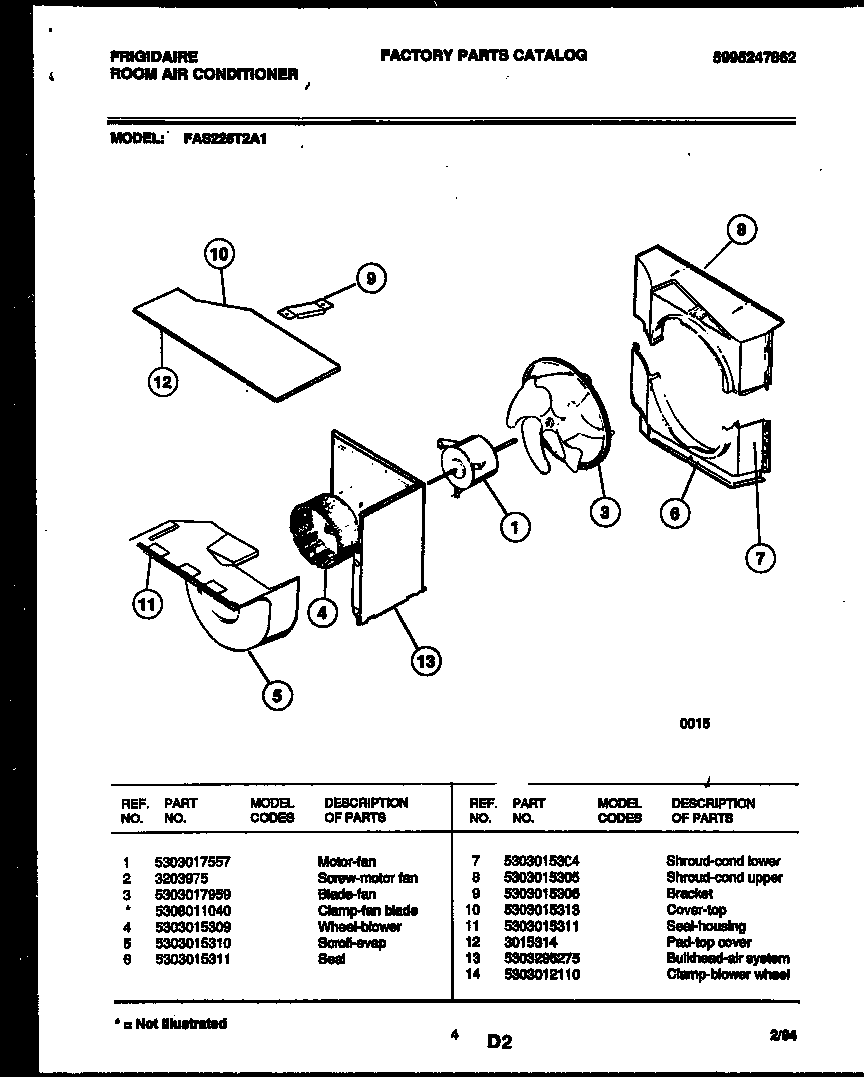

Air handling parts diagram

Motor

Part #5303017557

Replaced by #309630608

?
Manufacturer substitution
This part replaces 5303017557. Substitute parts can look different from the original.
$376.68
In Stock
Grommet 5303209196

#NI

All parts diagram

Grommet

Part #5303209196

The manufacturer no longer makes this part, and there's no substitute part
