Hoover
Upright Vacuum

Model # U5753-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5753-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Vacuum Wheel 38522077
#58

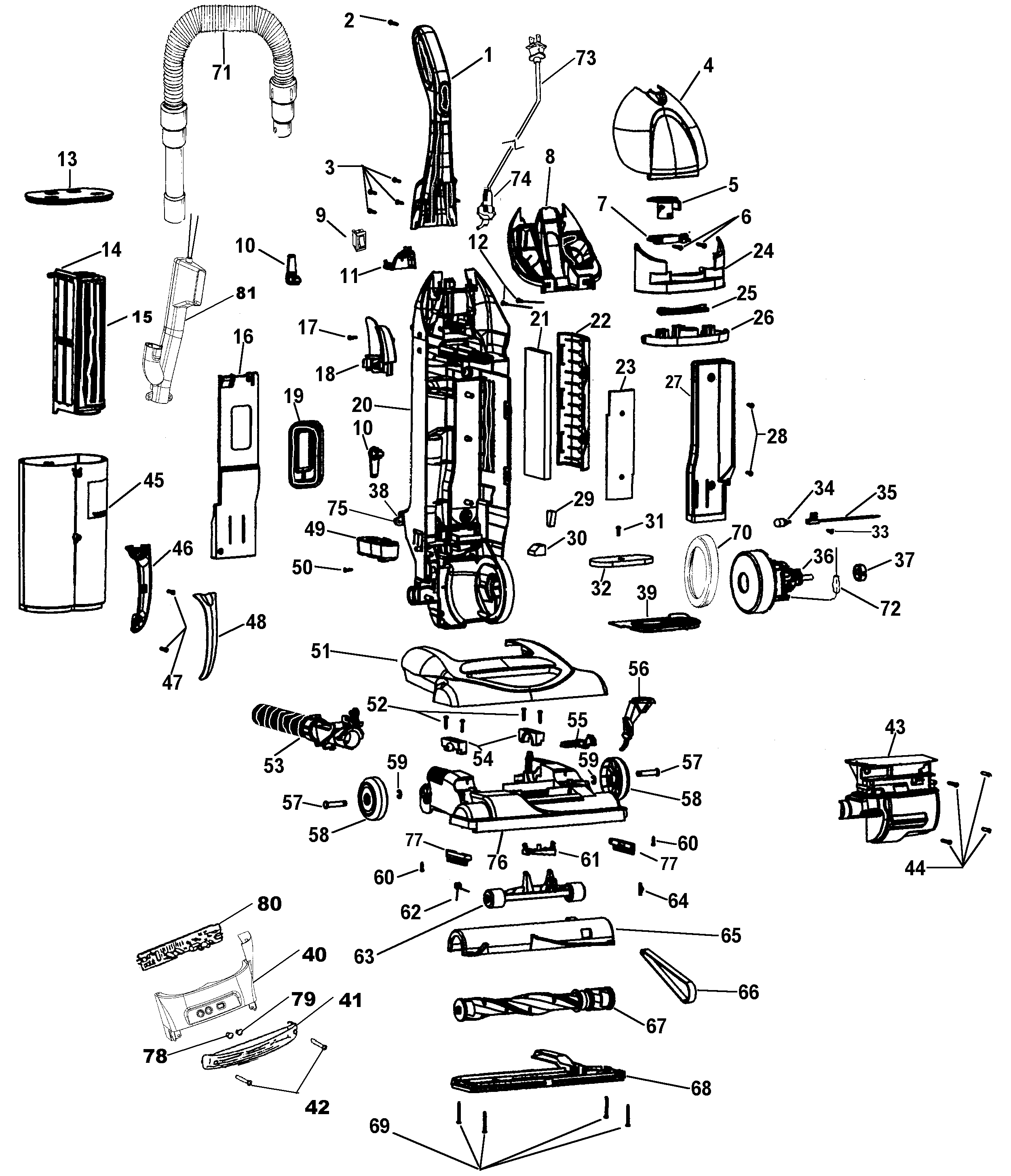

Complete assembly diagram

Vacuum wheel

Part #38522077

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447230
#44

Complete assembly diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447121
#69

Complete assembly diagram

Vacuum screw

Part #21447121

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38762008
#32

Complete assembly diagram

Vacuum motor safety filter

Part #38762008

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 39457018
#46

Complete assembly diagram

Vacuum handle

Part #39457018

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#62

Complete assembly diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447236
#2

Complete assembly diagram

Vacuum screw

Part #21447236

The manufacturer no longer makes this part, and there's no substitute part

Handle 39457049
#48

Complete assembly diagram

Handle

Part #39457049

The manufacturer no longer makes this part, and there's no substitute part

Lens Cover 39383107
#41

Complete assembly diagram

Lens cover

Part #39383107

The manufacturer no longer makes this part, and there's no substitute part

Edf Cover 37944024
#40

Complete assembly diagram

Edf cover

Part #37944024

The manufacturer no longer makes this part, and there's no substitute part
