Model # 52318 Official Bosch jig saw

Here are the diagrams and repair parts for Official Bosch 52318 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Roller 2600913007
#32

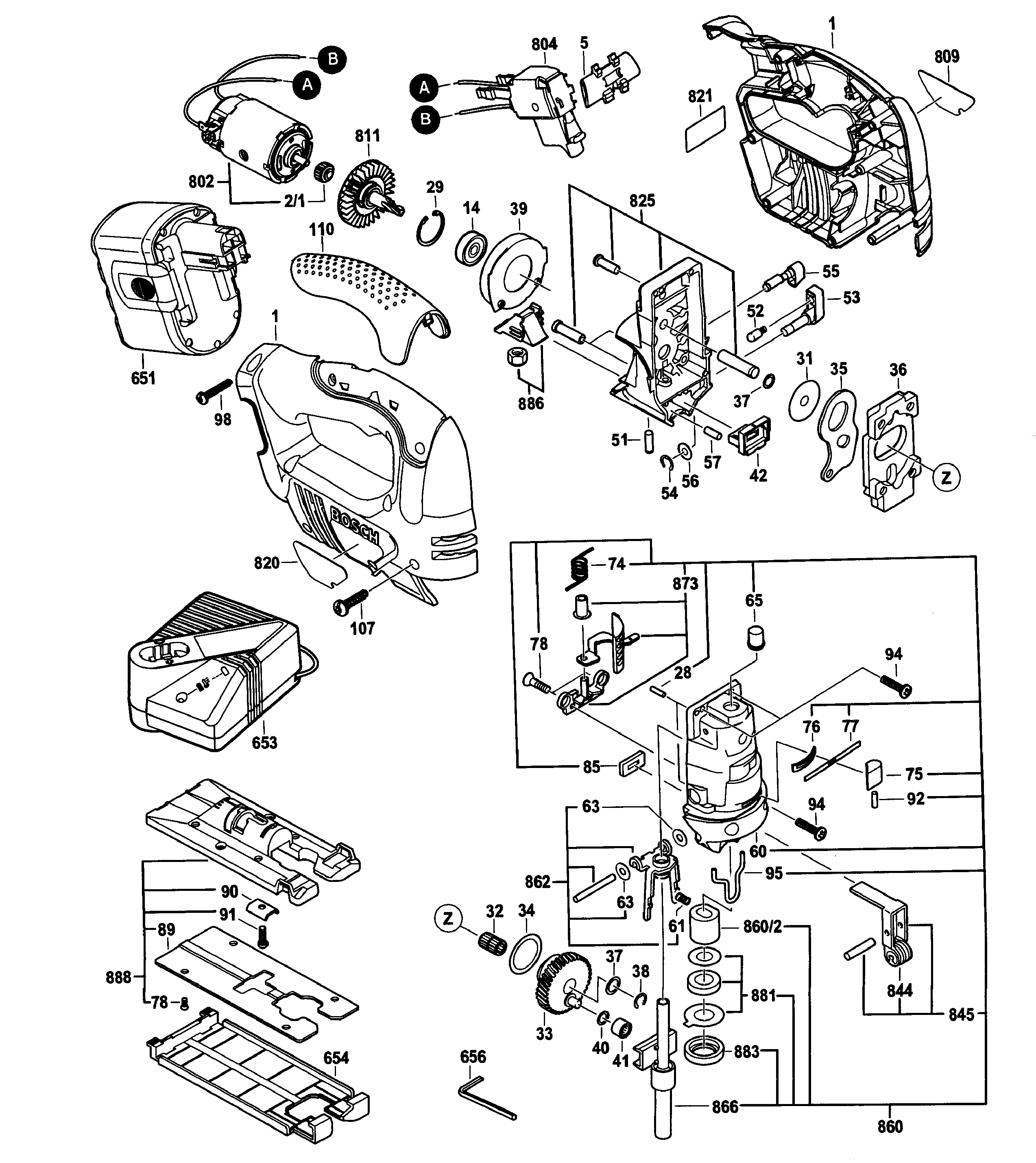

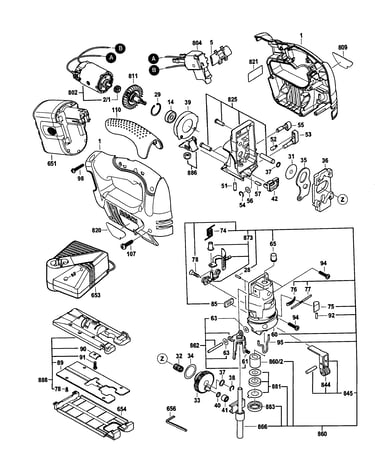

Jig saw diagram

Roller

Part #2600913007

The manufacturer no longer makes this part, and there's no substitute part

Bosch Assembly Seal 2600290902
#881

Jig saw diagram

Bosch assembly seal

Part #2600290902

The manufacturer no longer makes this part, and there's no substitute part

Bosch Eccentric 2606320088
#33

Jig saw diagram

Bosch eccentric

Part #2606320088

The manufacturer no longer makes this part, and there's no substitute part

Bosch Spring 2604651011
#74

Jig saw diagram

Bosch spring

Part #2604651011

The manufacturer no longer makes this part, and there's no substitute part

Bosch Plate 2601016079
#77

Jig saw diagram

Bosch plate

Part #2601016079

The manufacturer no longer makes this part, and there's no substitute part

Bosch Guide Roller 2601321904
#845

Jig saw diagram

Bosch guide roller

Part #2601321904

The manufacturer no longer makes this part, and there's no substitute part

Bosch Base Plate 2601098082
#89

Jig saw diagram

Bosch base plate

Part #2601098082

The manufacturer no longer makes this part, and there's no substitute part

Bosch Coupling 2606445901
#811

Jig saw diagram

Bosch coupling

Part #2606445901

The manufacturer no longer makes this part, and there's no substitute part

Allen Wrench, 5-mm 1907950006
#656

Jig saw diagram

Allen wrench, 5-mm

Part #1907950006

The manufacturer no longer makes this part, and there's no substitute part

Bosch Plunger Assembly 2600780911
#866

Jig saw diagram

Bosch plunger assembly

Part #2600780911

The manufacturer no longer makes this part, and there's no substitute part
