Model # WF42H5000AW/A2-11 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF42H5000AW-A2-11 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

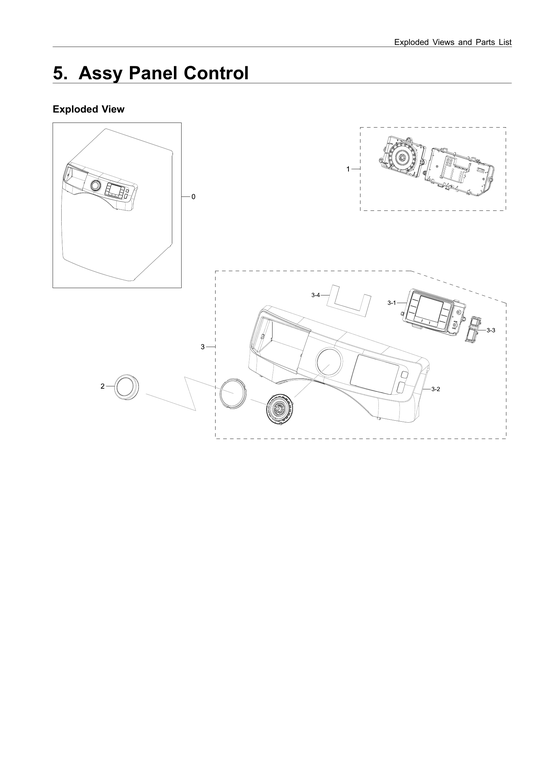

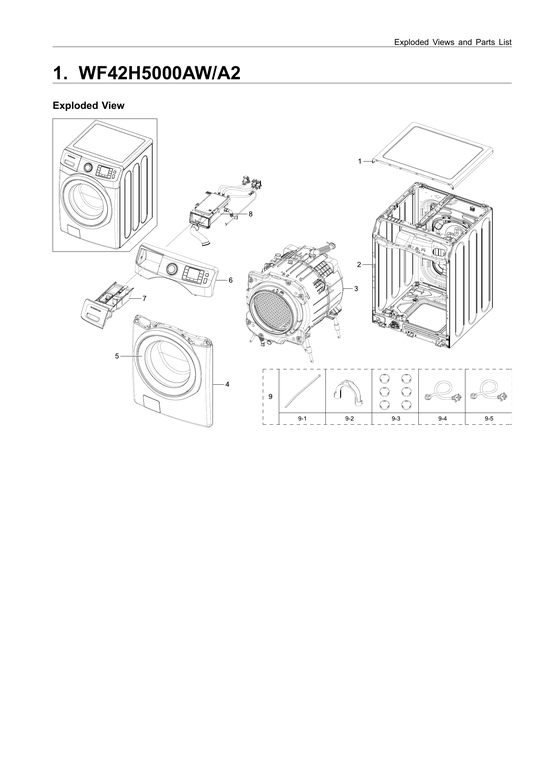

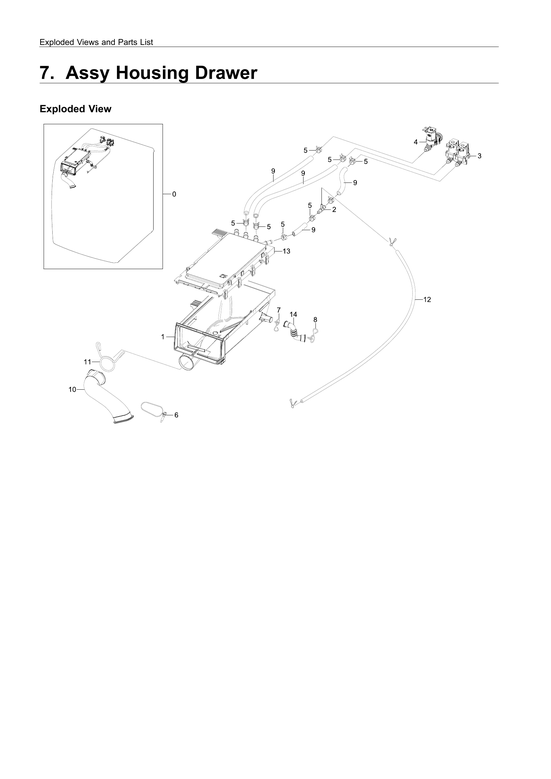

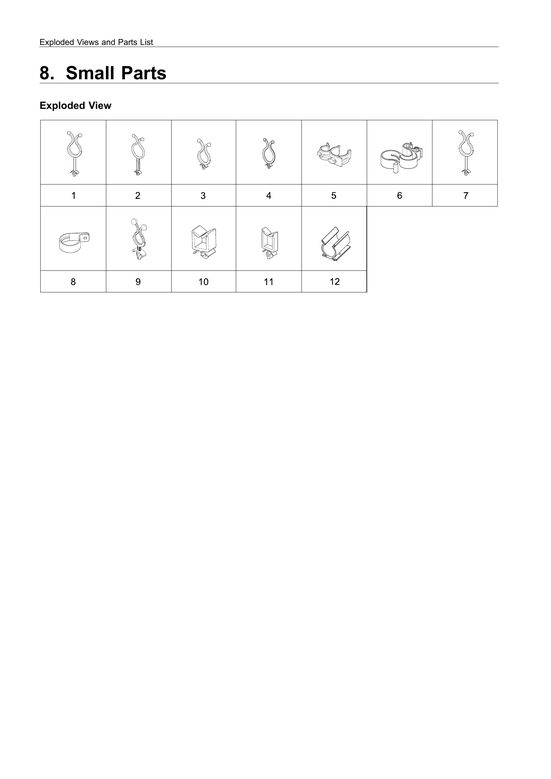

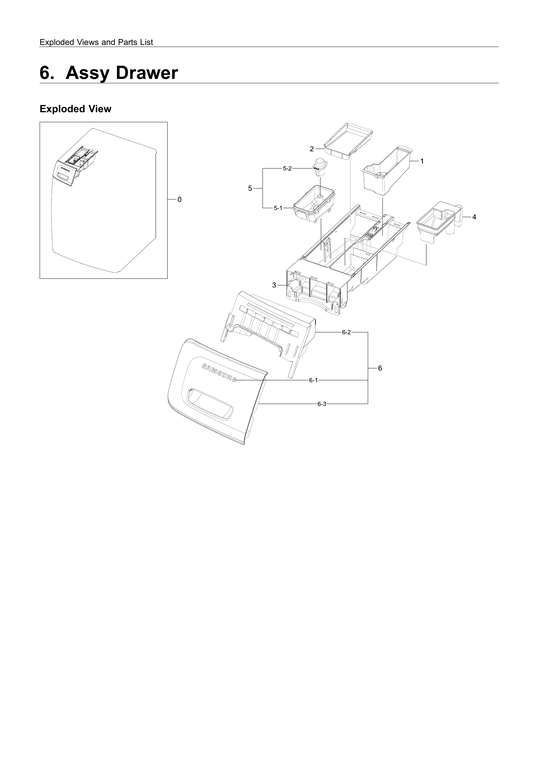

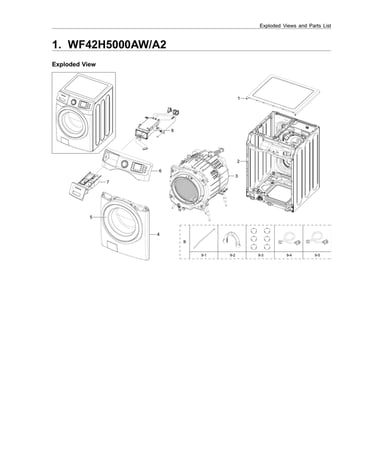

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Washer Drain Pump DC31-00187A
#11-1

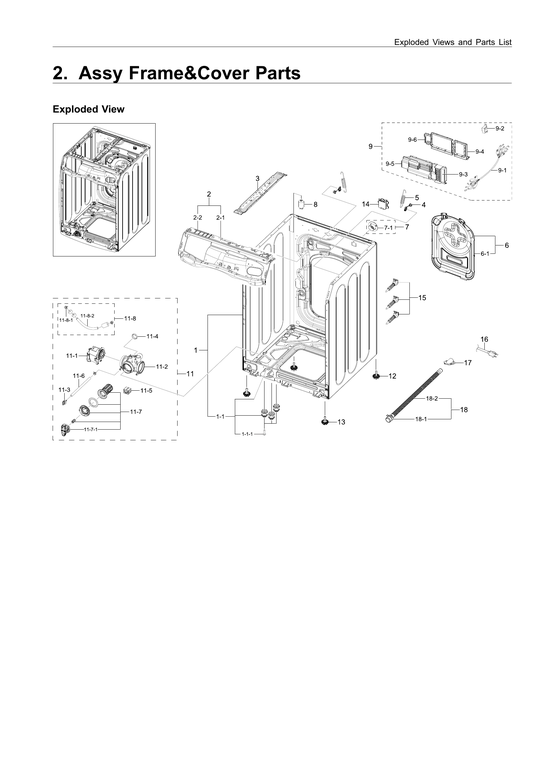

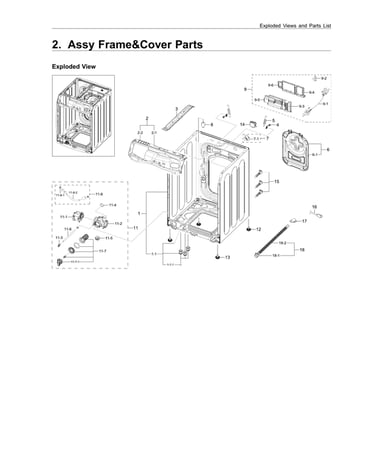

Frame & cover parts diagram

Washer drain pump

Part #DC31-00187A

BEST SELLER
$129.67 |
8% OFF Phone Price : $141.67
In Stock
Washer Shock Absorber (replaces Dc66-00650d) DC66-00470A
#1-2

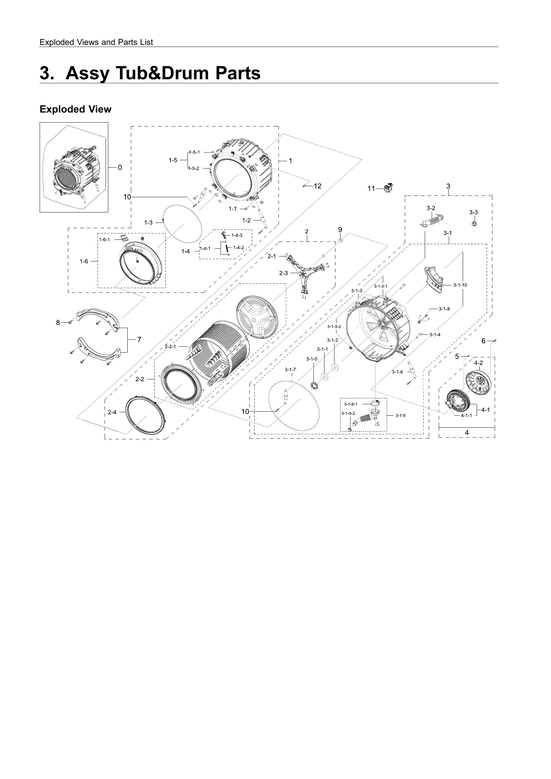

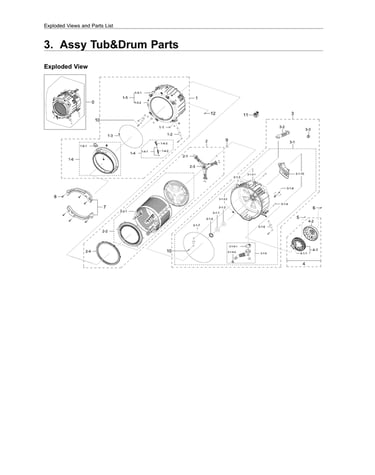

Tub & drum parts diagram

Washer shock absorber (replaces dc66-00650d)

Part #DC66-00470A

BEST SELLER
$49.01 |
11% OFF Phone Price : $55.01
In Stock
Washer Shock Absorber (replaces Dc66-00650c) DC66-00470B
#3-1-6

Tub & drum parts diagram

Washer shock absorber (replaces dc66-00650c)

Part #DC66-00470B

BEST SELLER
$30.91 |
16% OFF Phone Price : $36.91
In Stock
Washer Bolt (replaces Dc60-40138a) DC97-02412A
#8

Tub & drum parts diagram

Washer bolt (replaces dc60-40138a)

Part #DC97-02412A

BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Washer Door Boot Spring Clamp DC97-04973B
#4

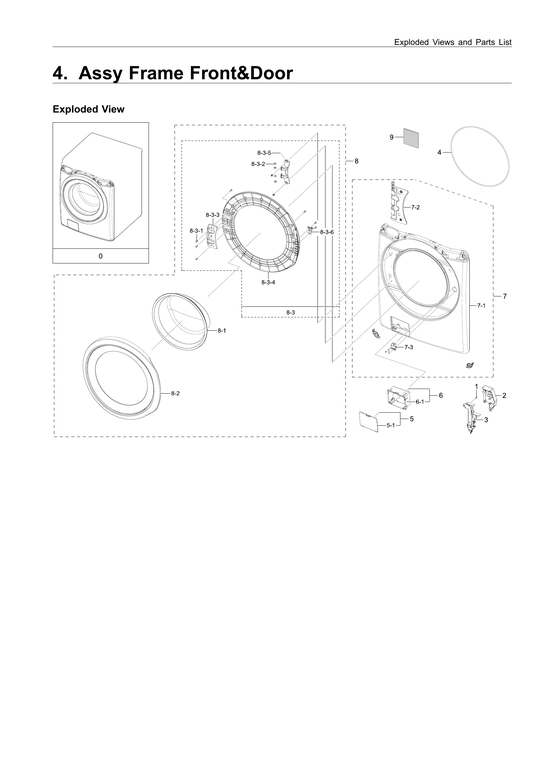

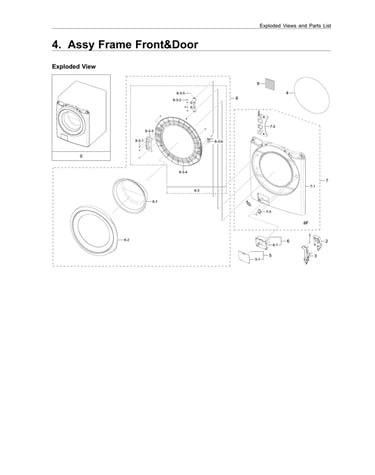

Front frame & door parts diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Washer Door Lock Switch (replaces Dc6400519b) DC64-00519D
#3

Front frame & door parts diagram

Washer door lock switch (replaces dc6400519b)

Part #DC64-00519D

BEST SELLER
$106.34 |
10% OFF Phone Price : $118.34
In Stock
Samsung Washer Outer Rear Tub (replaces Dc97-17040b) DC97-19636A
#3-1

Tub & drum parts diagram

Samsung washer outer rear tub (replaces dc97-17040b)

Part #DC97-19636A

BEST SELLER
This item is not returnable
$249.23 |
5% OFF Phone Price : $261.23
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#2-1

Tub & drum parts diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Washer Water-level Pressure Switch DC96-01703G
#11

Tub & drum parts diagram

Washer water-level pressure switch

Part #DC96-01703G

BEST SELLER
$53.72 |
10% OFF Phone Price : $59.72
In Stock
Washer Outer Tub Gasket DC69-00804A
#3-1-7

Tub & drum parts diagram

Washer outer tub gasket

Part #DC69-00804A

BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
