Thermador
Gas Range

Model # PRG364EDH02 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRG364EDH02 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

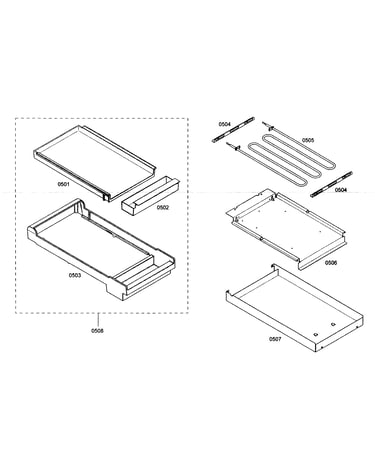

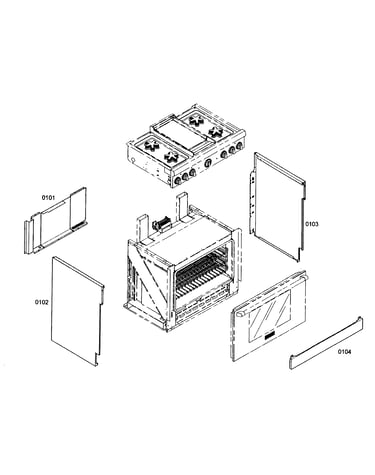

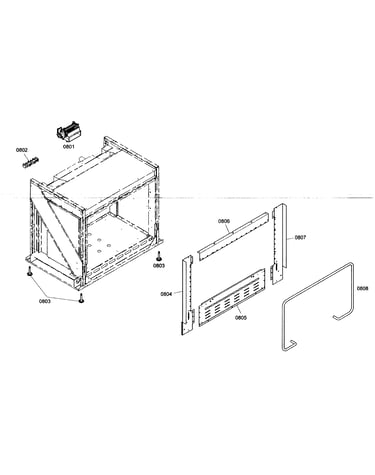

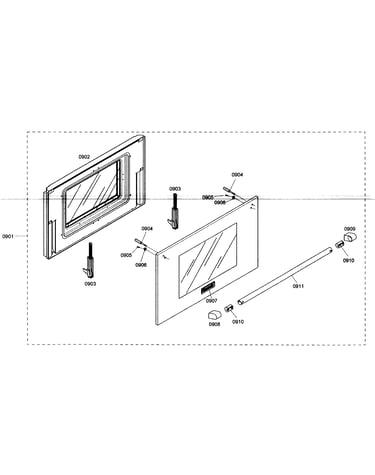

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Holder 600607
#308

Burner assy diagram

Holder

Part #600607

Replaced by #00600607

?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Igniter 492431
#706

Oven diagram

Igniter

Part #492431

Replaced by #00492431

?
Manufacturer substitution
This part replaces 492431. Substitute parts can look different from the original.
$120.69 |
9% OFF Phone Price : $132.69
In Stock
Tube 189023
#302

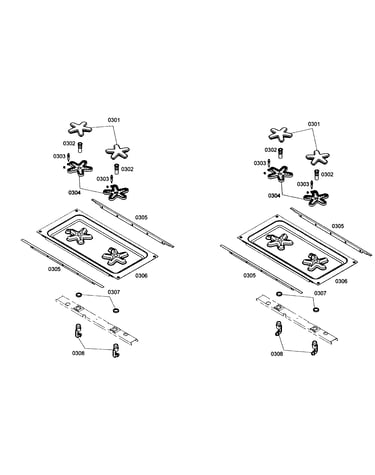

Burner assy diagram

Tube

Part #189023

Replaced by #00189023

?
Manufacturer substitution
This part replaces 189023. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Switch 428049
#203

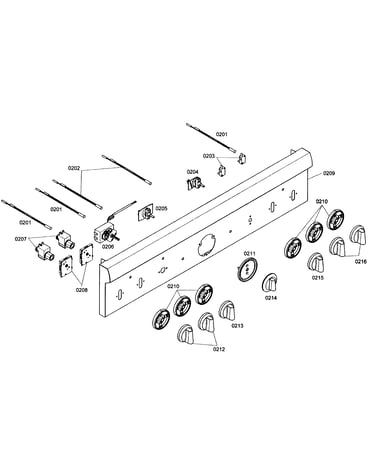

Control panel diagram

Switch

Part #428049

Replaced by #00428049

?
Manufacturer substitution
This part replaces 428049. Substitute parts can look different from the original.
$15.83 |
11% OFF Phone Price : $17.83
In Stock
Cover 489125
#704

Oven diagram

Cover

Part #489125

Replaced by #00489125

?
Manufacturer substitution
This part replaces 489125. Substitute parts can look different from the original.
$202.62
In Stock
Shelf 445571
#1003

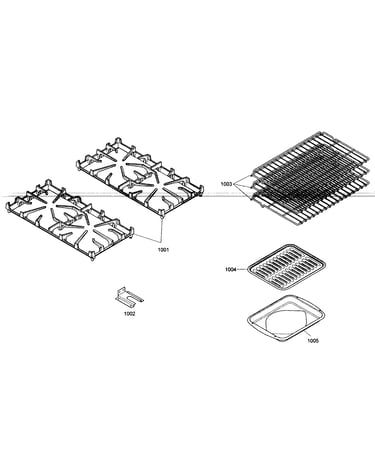

Accessory diagram

Shelf

Part #445571

Replaced by #00445571

?
Manufacturer substitution
This part replaces 445571. Substitute parts can look different from the original.
$139.82
In Stock
Control Unit 605350
#601

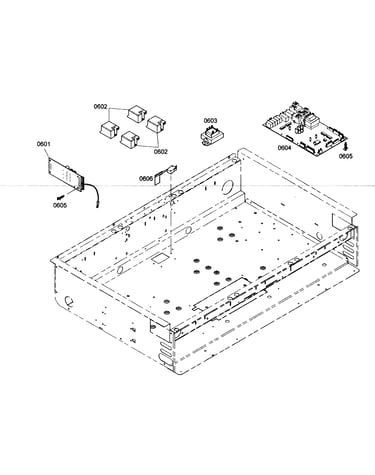

Control assy diagram

Control unit

Part #605350

Replaced by #00619016

?
Manufacturer substitution
This part replaces 605350. Substitute parts can look different from the original.
$192.89 |
6% OFF Phone Price : $204.89
In Stock
Support 498042
#710

Oven diagram

Support

Part #498042

Replaced by #00498042

?
Manufacturer substitution
This part replaces 498042. Substitute parts can look different from the original.
$124.94
In Stock
Tube 445582
#418

Gas supply diagram

Tube

Part #445582

Replaced by #00445582

?
Manufacturer substitution
This part replaces 445582. Substitute parts can look different from the original.
$136.49 |
8% OFF Phone Price : $148.49
In Stock
