Amana
Bottom-Mount Refrigerator

Model # IM105L Official Amana freezer plus refrigerator - 1961

Here are the diagrams and repair parts for Official Amana IM105L freezer plus refrigerator - 1961, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

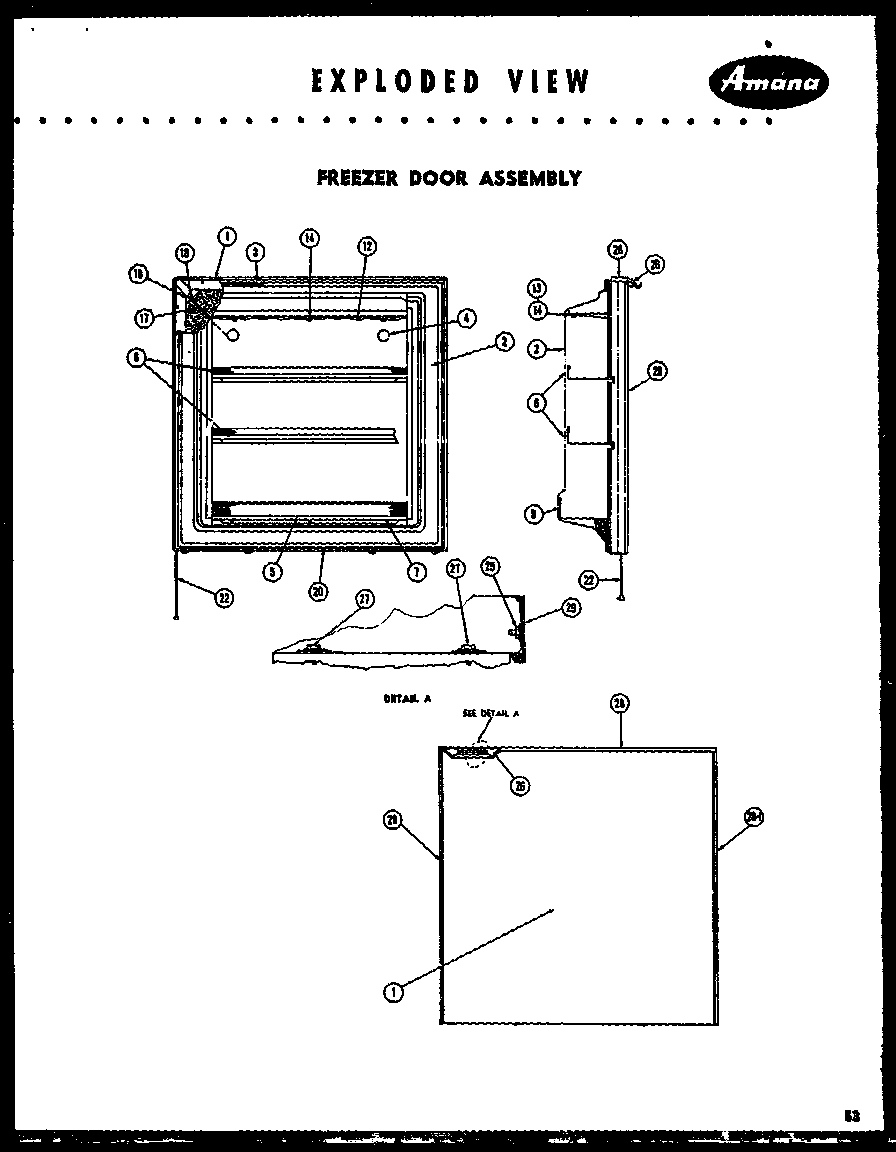

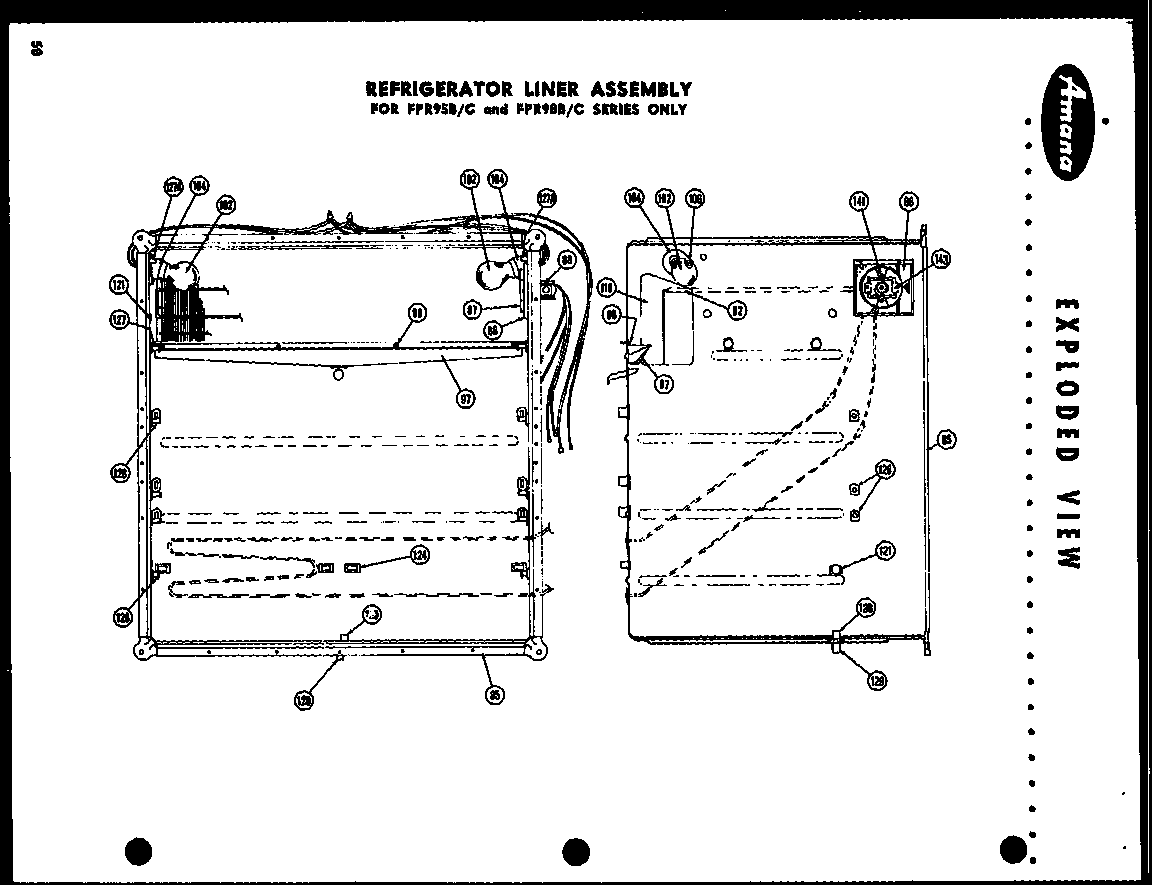

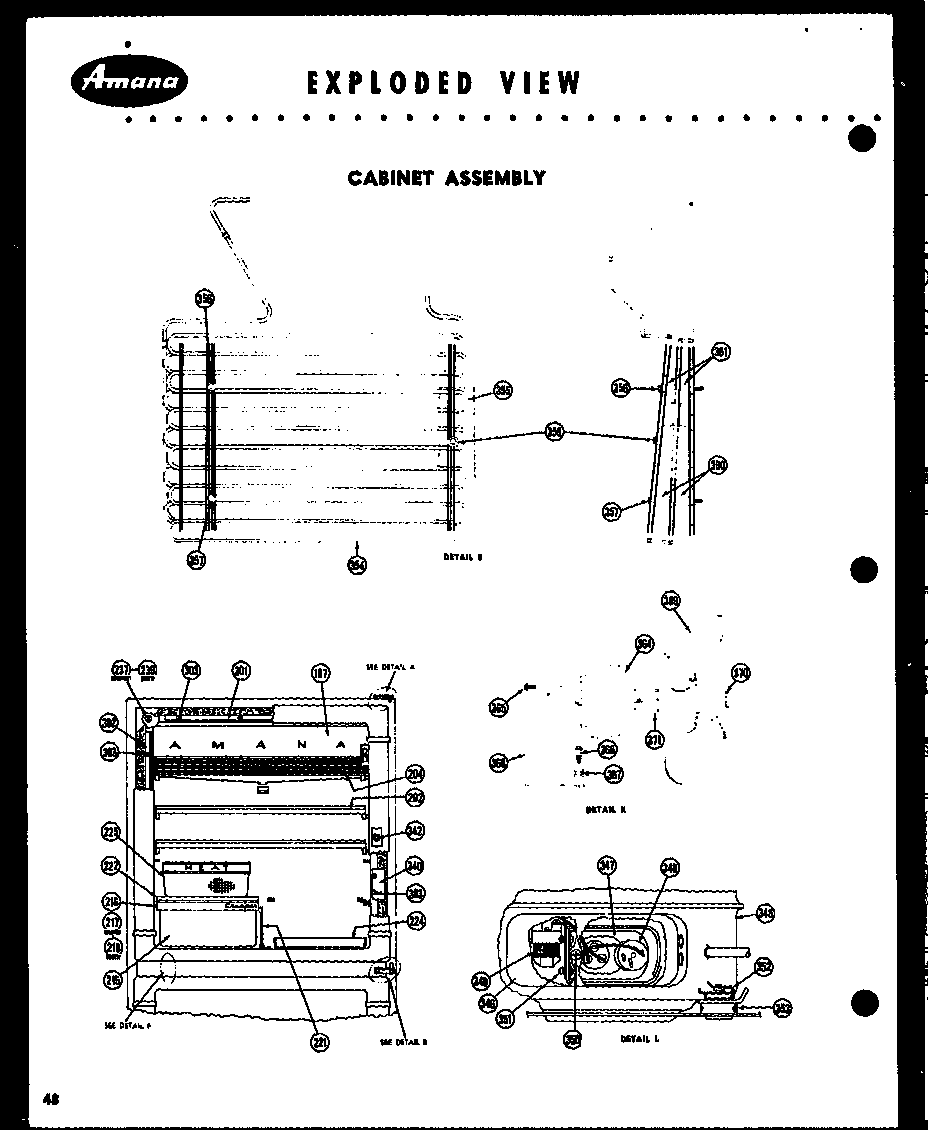

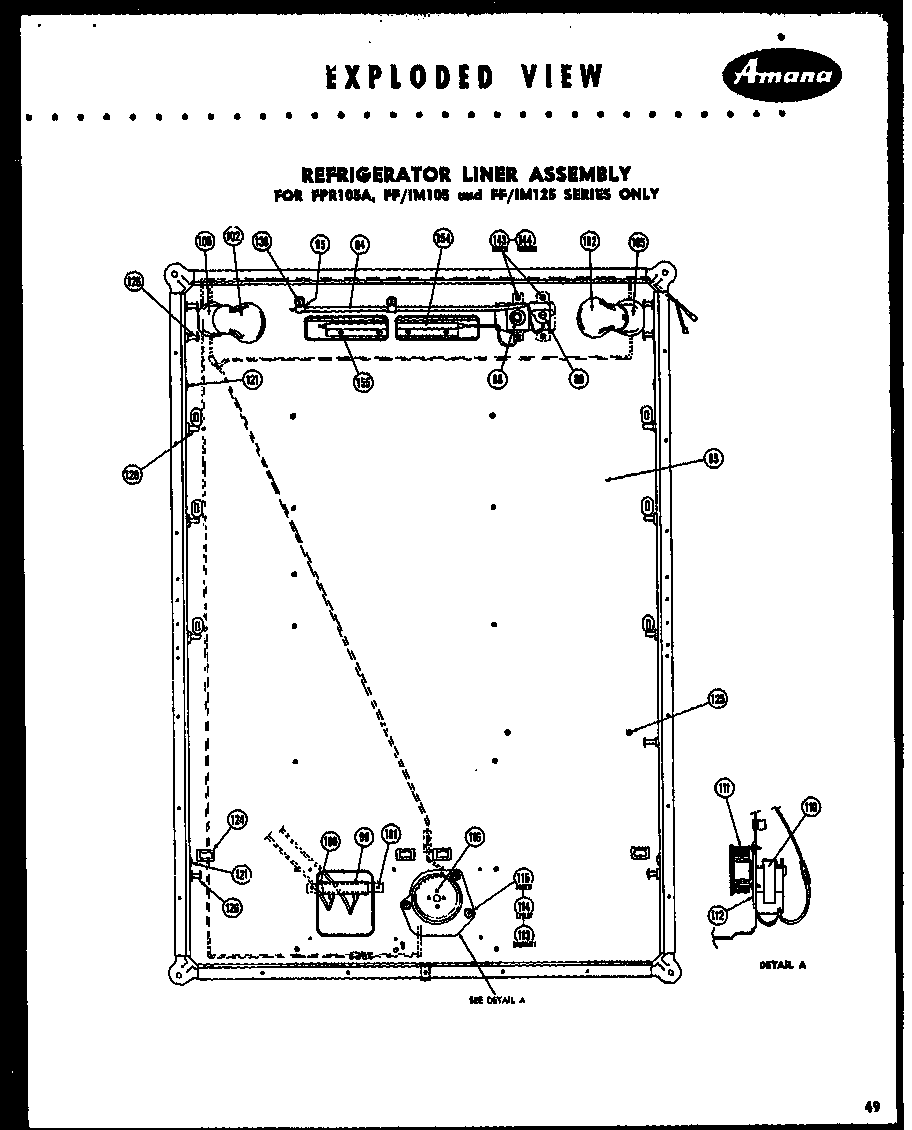

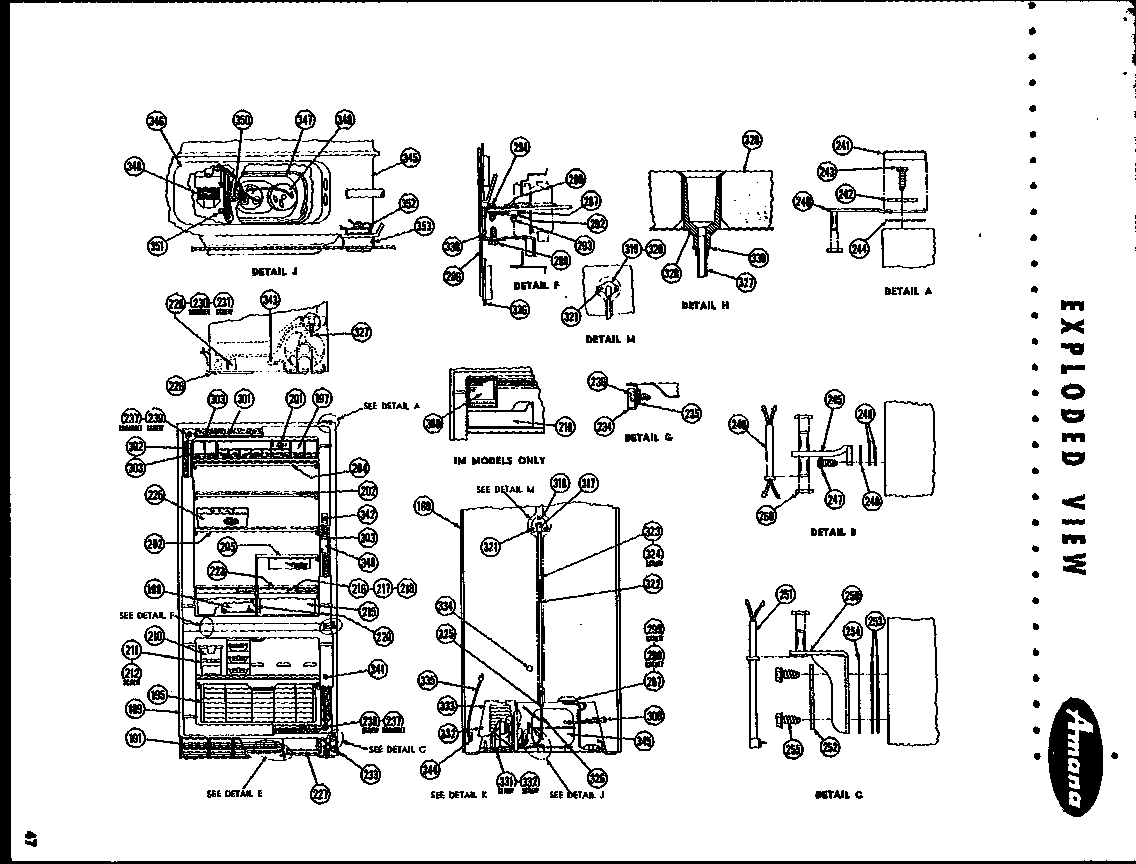

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 480 parts  |
Drier B2150501

#NI

All parts diagram

Drier

Part #B2150501

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150501. Substitute parts can look different from the original.
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Breaker Frame, Door Handle Side, Refrigerator Section D3782204
#307

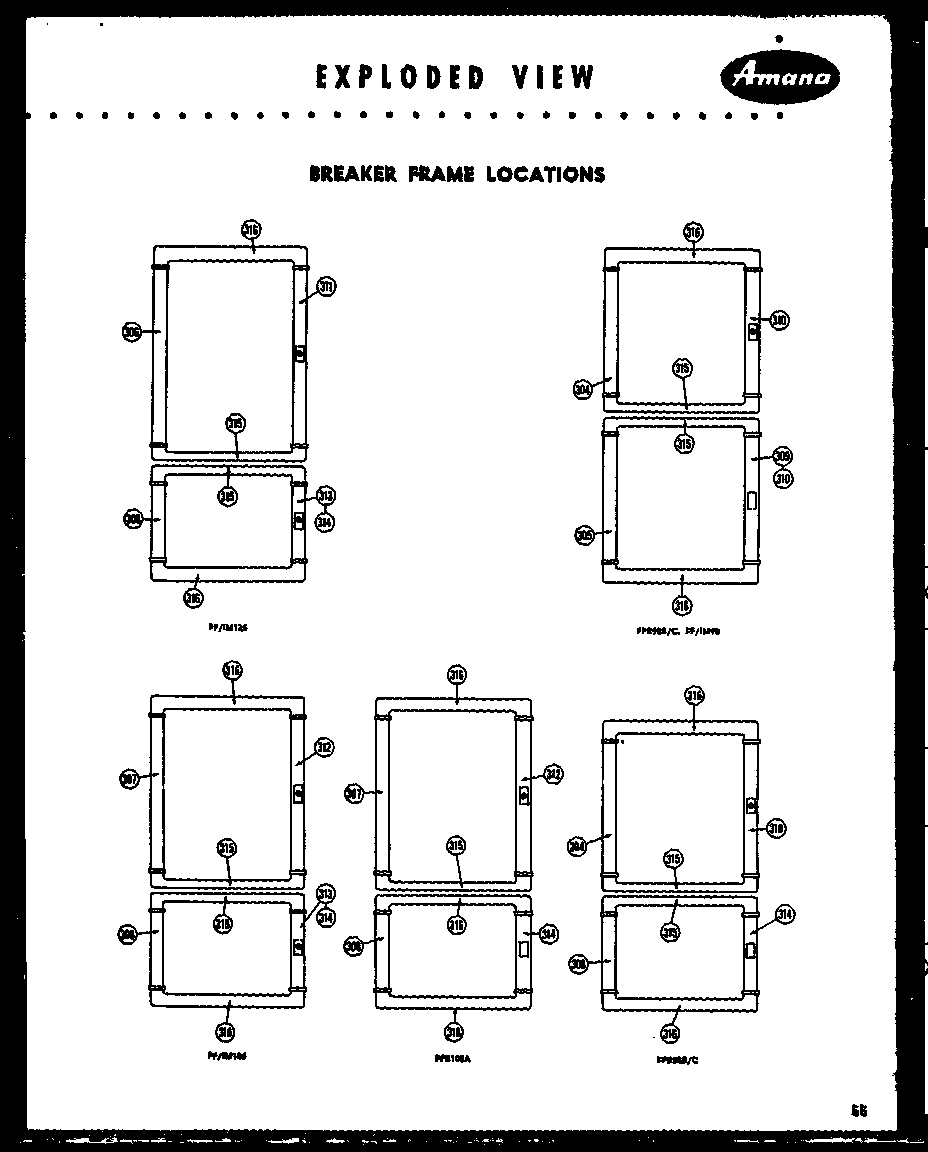

Breaker frame locations (fpr95b) (fpr95c) (fpr98b) (fpr98c) (fpr105a) (ff98) (im98) (ff105) (im105) (ff125) (im125) diagram

Breaker frame, door handle side, refrigerator section

Part #D3782204

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support Post A0325401
Refrigerator support post

Part #A0325401

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor Blade B0535401
#148A

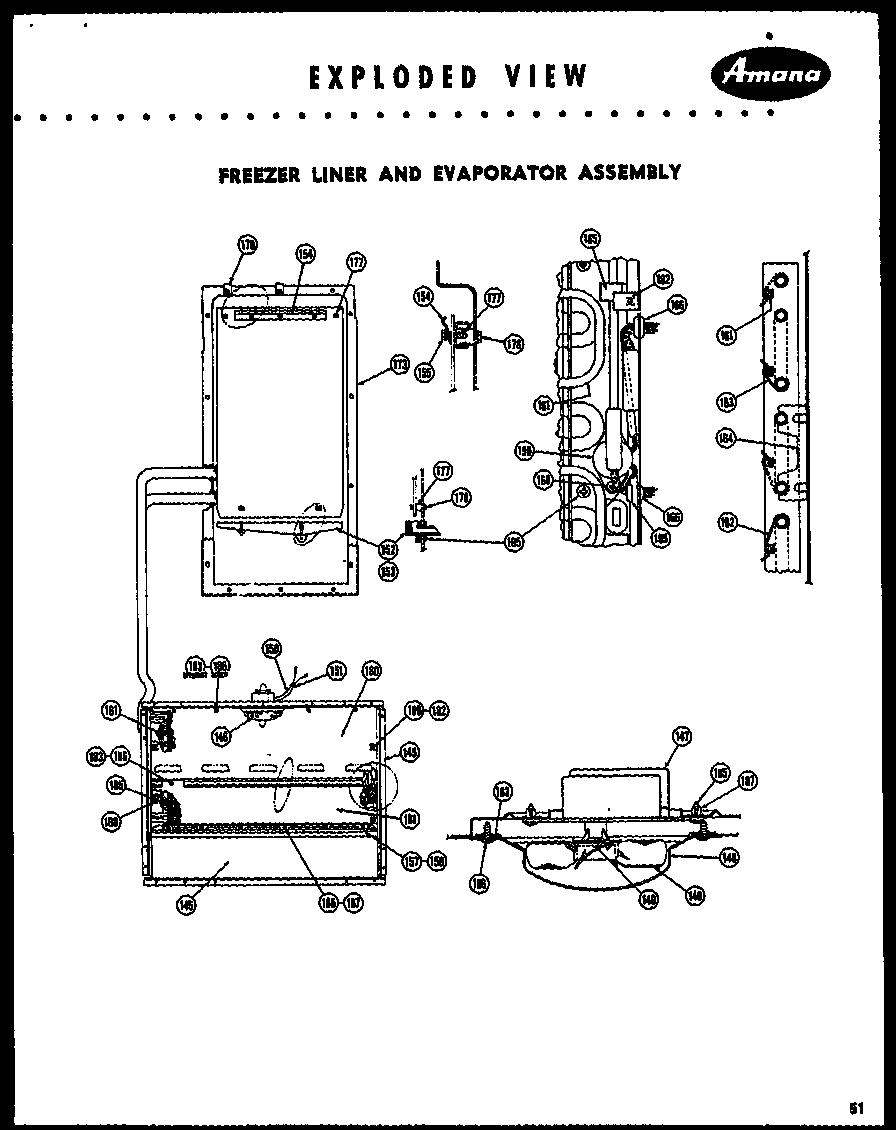

Freezer liner and evaporator assembly diagram

Fan motor blade

Part #B0535401

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Tie Rod B0544404
#46A

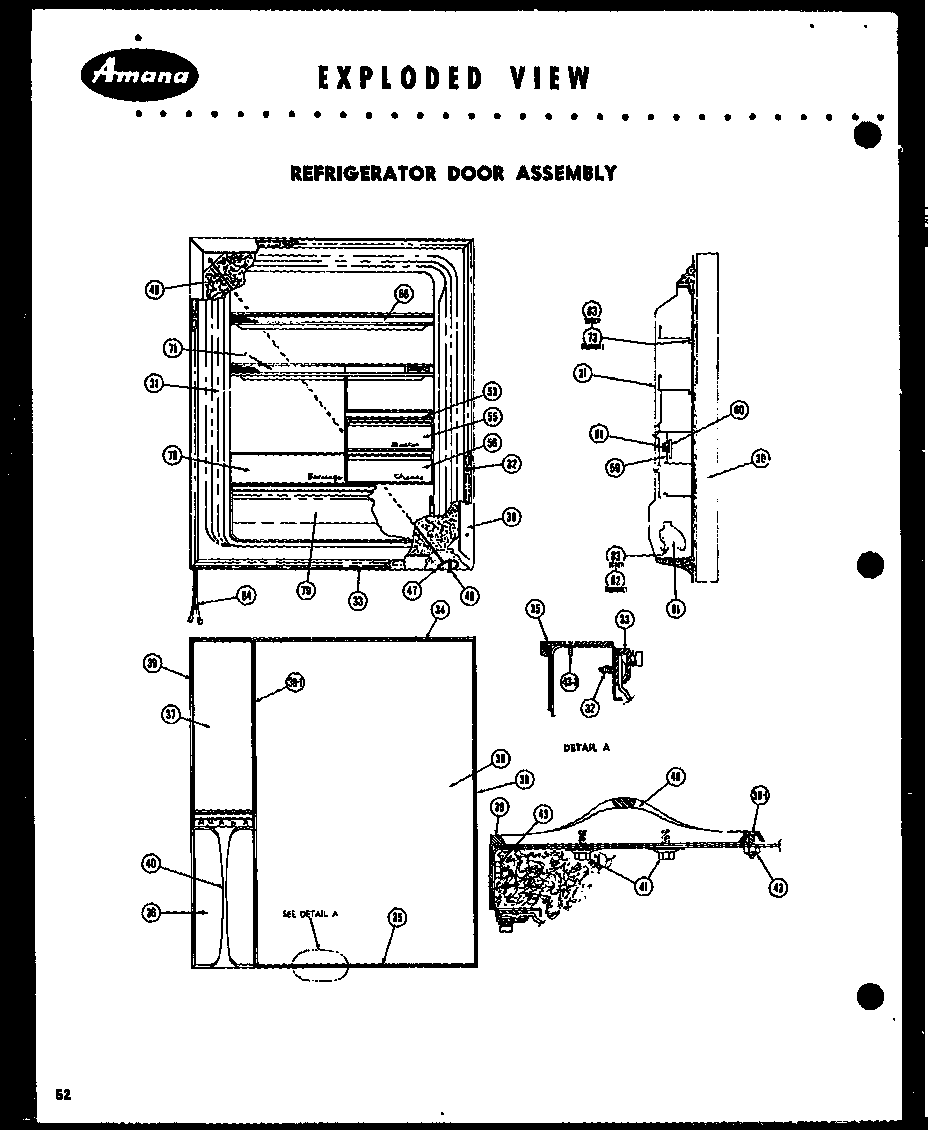

Refrigerator door assembly diagram

Refrigerator tie rod

Part #B0544404

The manufacturer no longer makes this part, and there's no substitute part

Can-o-gas, R12, 10 Oz. (carton Of 12) A0356004

#NI

All parts diagram

Can-o-gas, r12, 10 oz. (carton of 12)

Part #A0356004

The manufacturer no longer makes this part, and there's no substitute part

Keps Nut, Sealing, #10-24, Handle To Door Mounting Botto A3030401

#NI

All parts diagram

Keps nut, sealing, #10-24, handle to door mounting botto

Part #A3030401

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Blower Wheel B0515201
Refrigerator blower wheel

Part #B0515201

The manufacturer no longer makes this part, and there's no substitute part

Clamp, Drain Hose Mounting A0321901
Clamp, drain hose mounting

Part #A0321901

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Shelf D3797501
#68B

Refrigerator door assembly diagram

Refrigerator door shelf

Part #D3797501

The manufacturer no longer makes this part, and there's no substitute part
