Model # GFS185MN01 Official Caloric refrigerator

Here are the diagrams and repair parts for Official Caloric GFS185MN01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

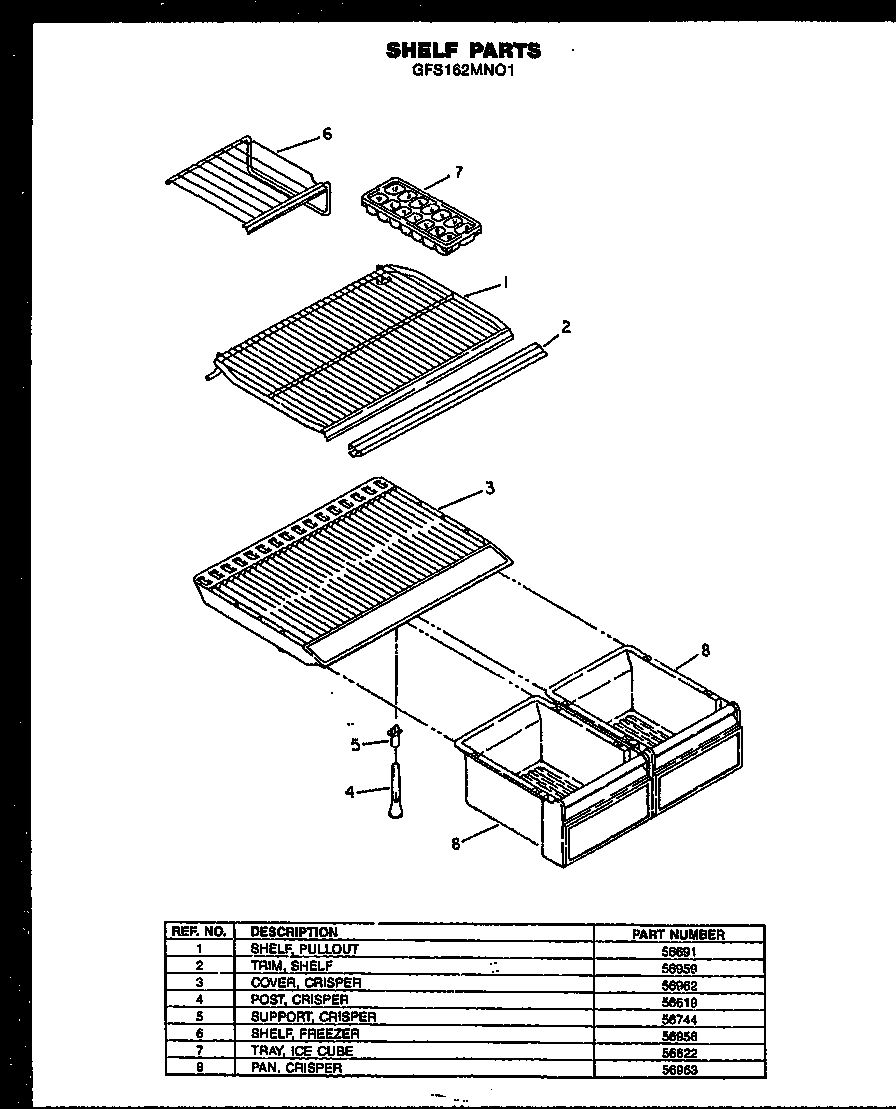

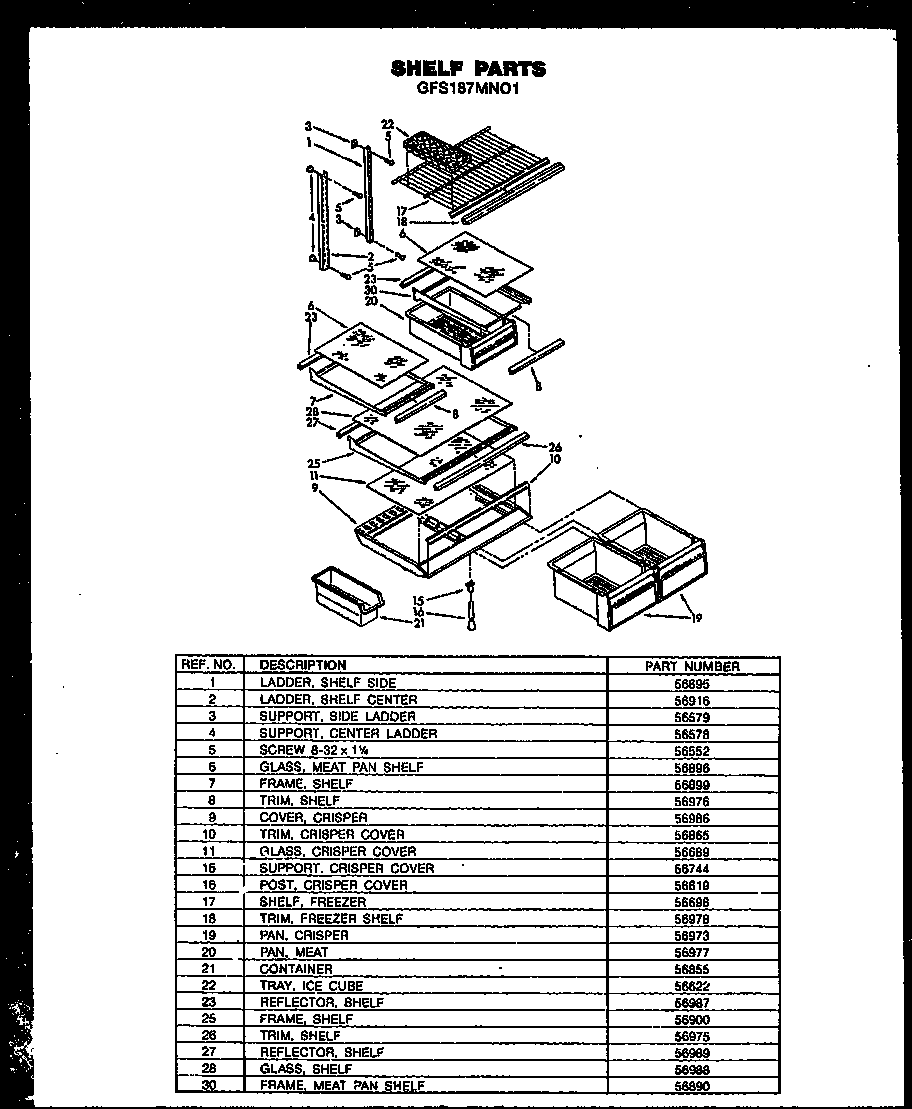

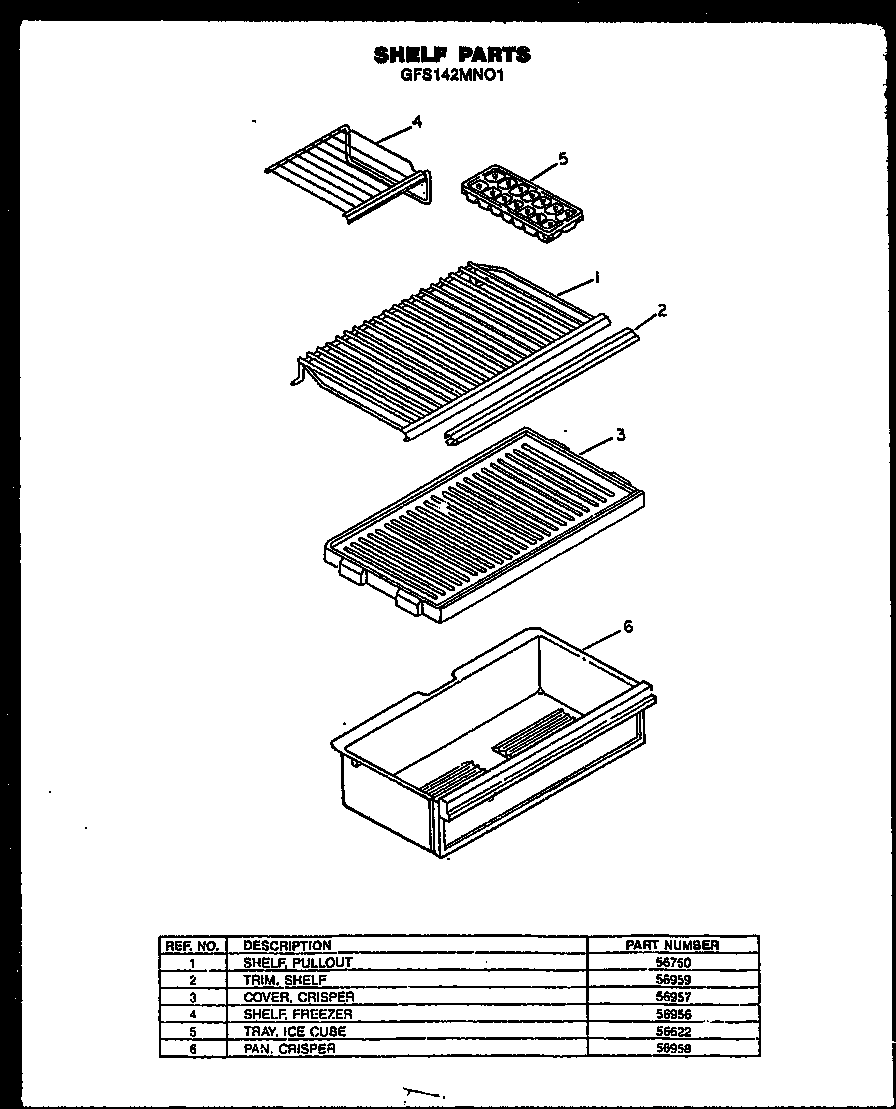

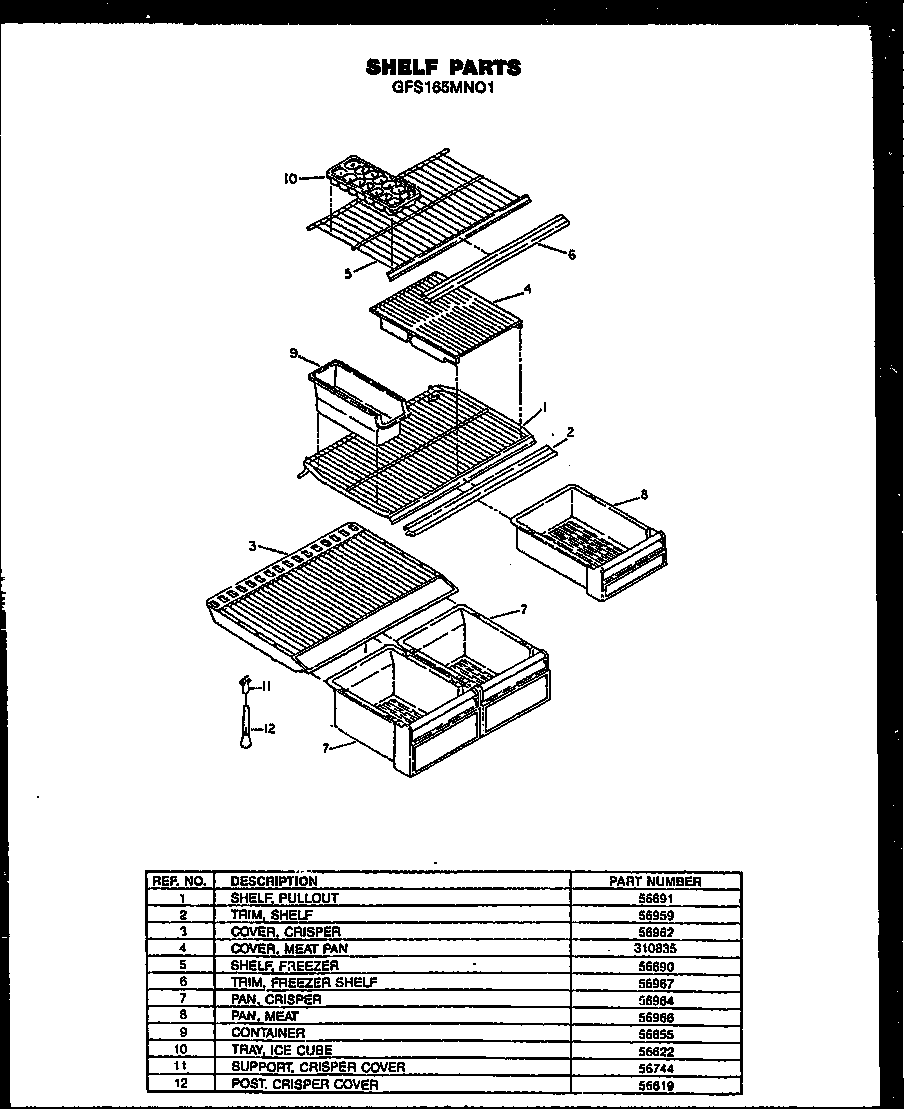

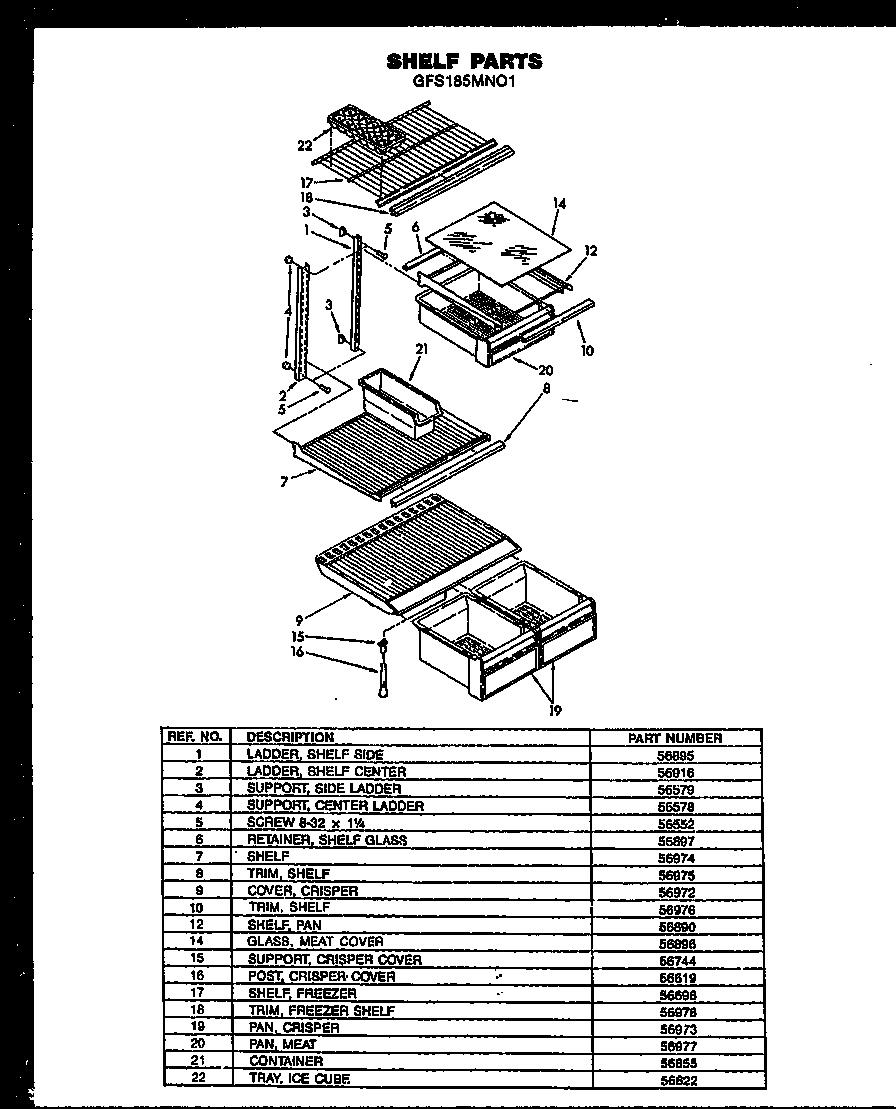

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 319 parts  |
Refrigerator Door Shelf Trim 56969
#21

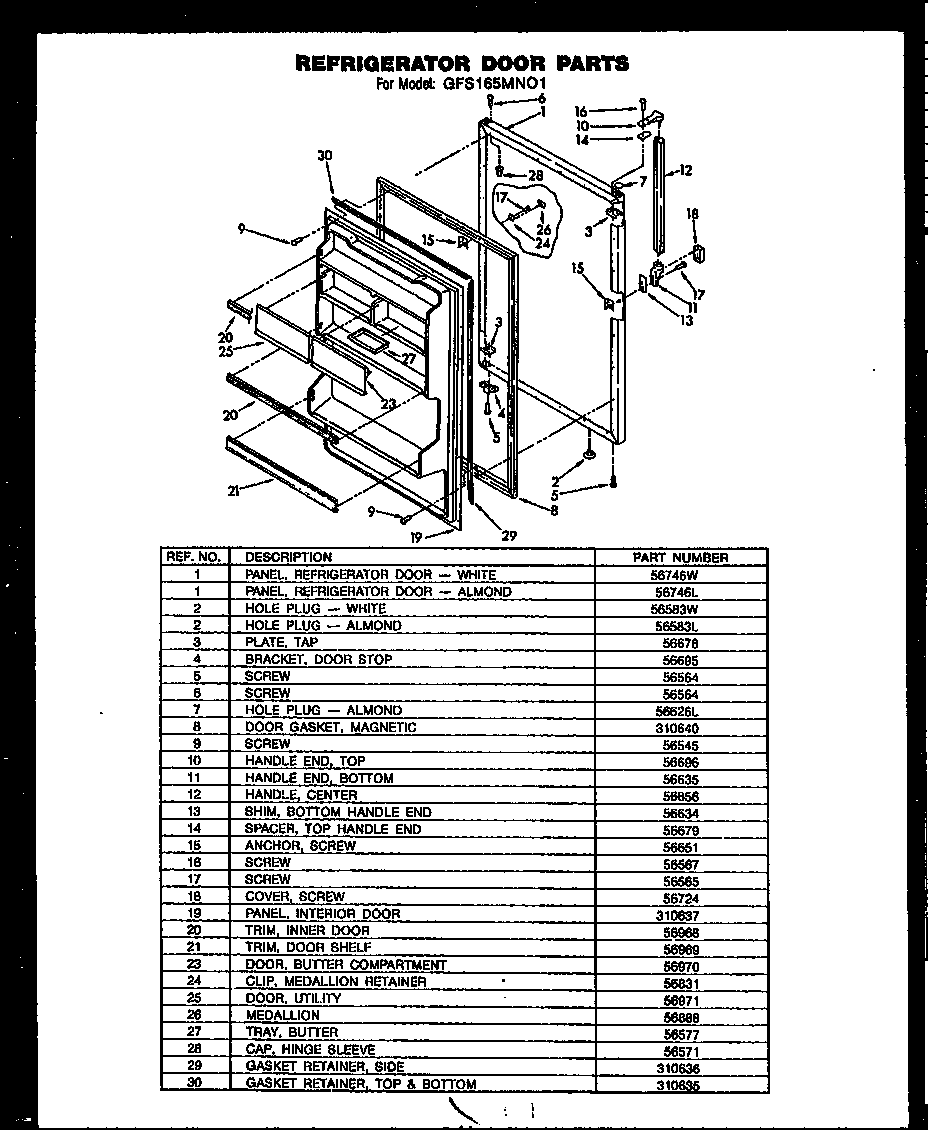

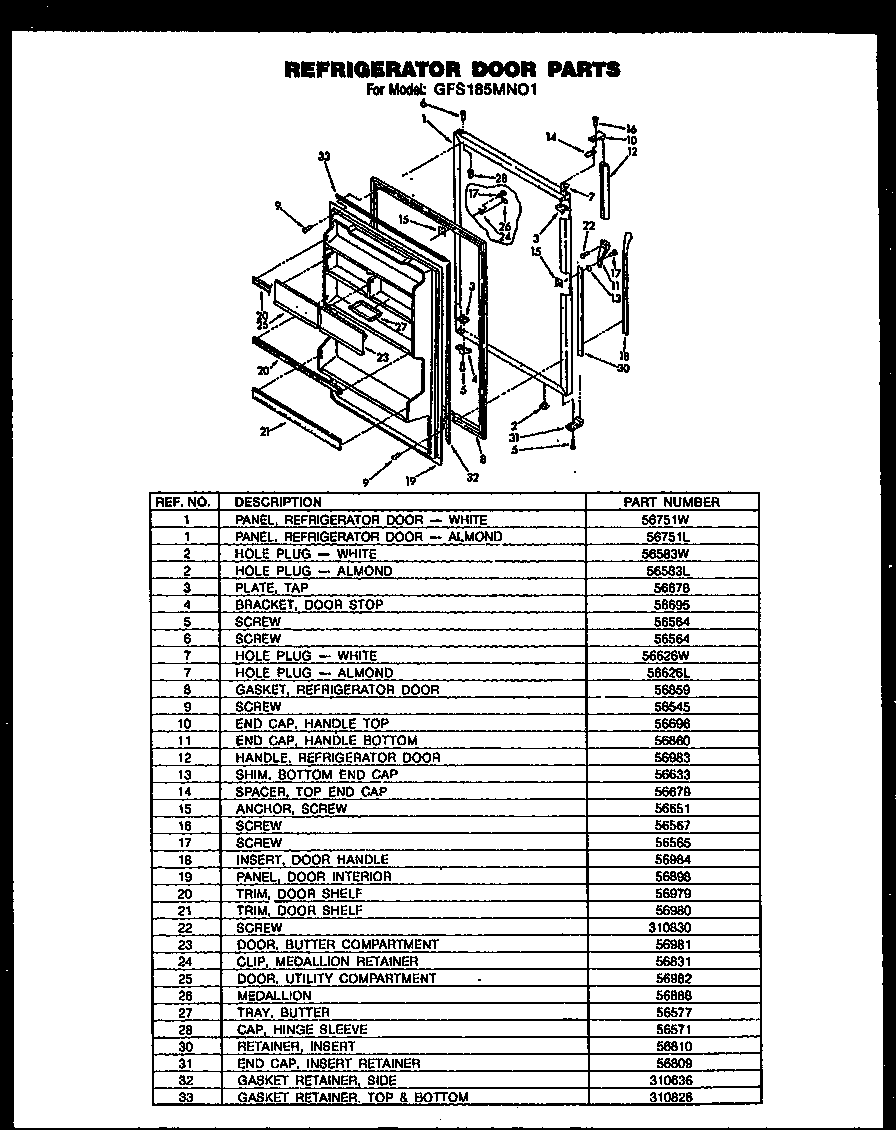

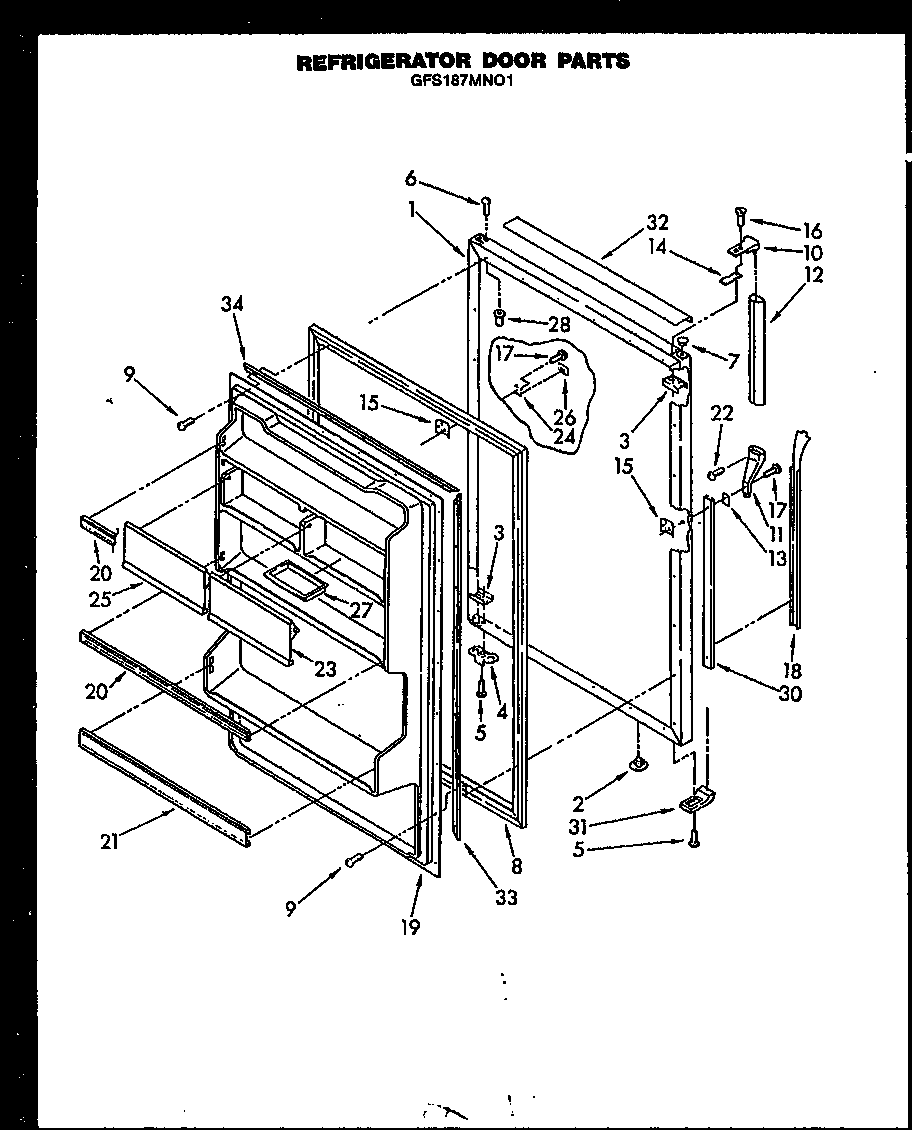

Refrigerator door parts (gfs165mn01) diagram

Refrigerator door shelf trim

Part #56969

The manufacturer no longer makes this part, and there's no substitute part

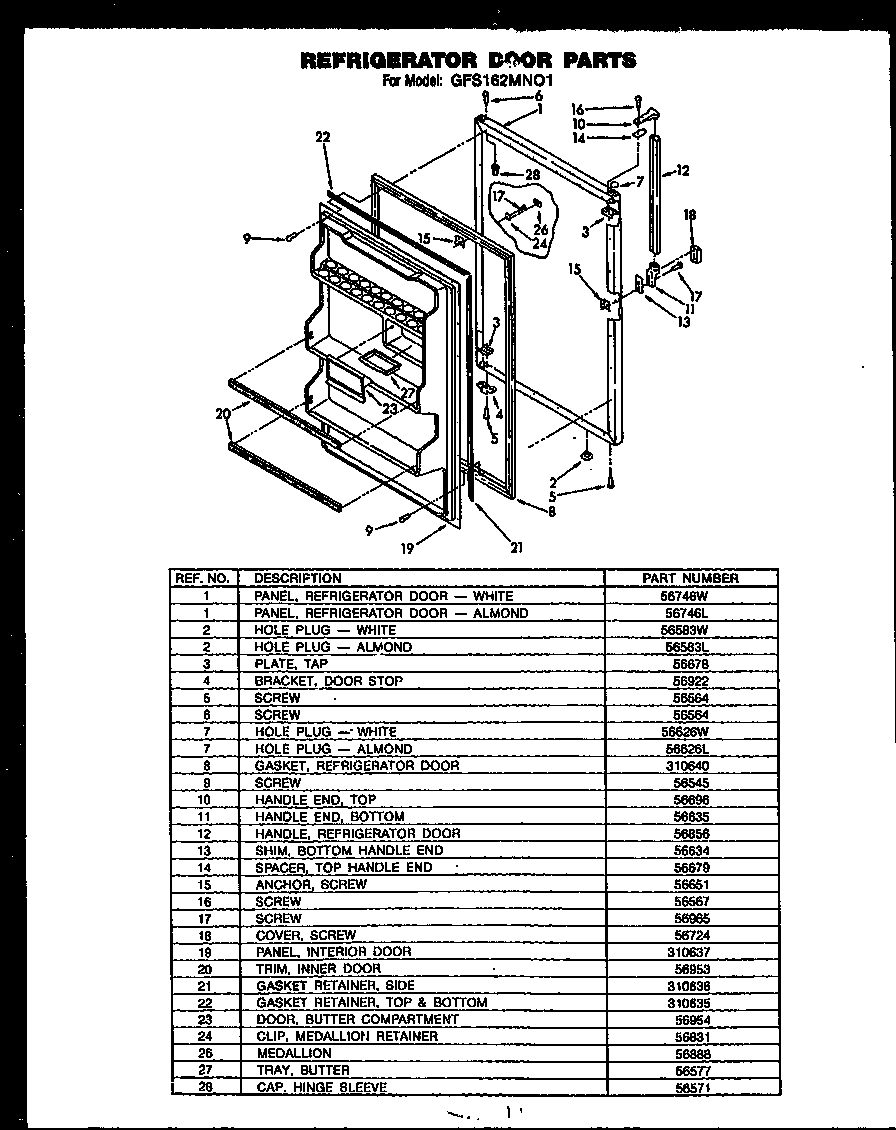

Magnetic Door Gasket 310640
Magnetic door gasket

Part #310640

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Seal Gasket 56814
#60

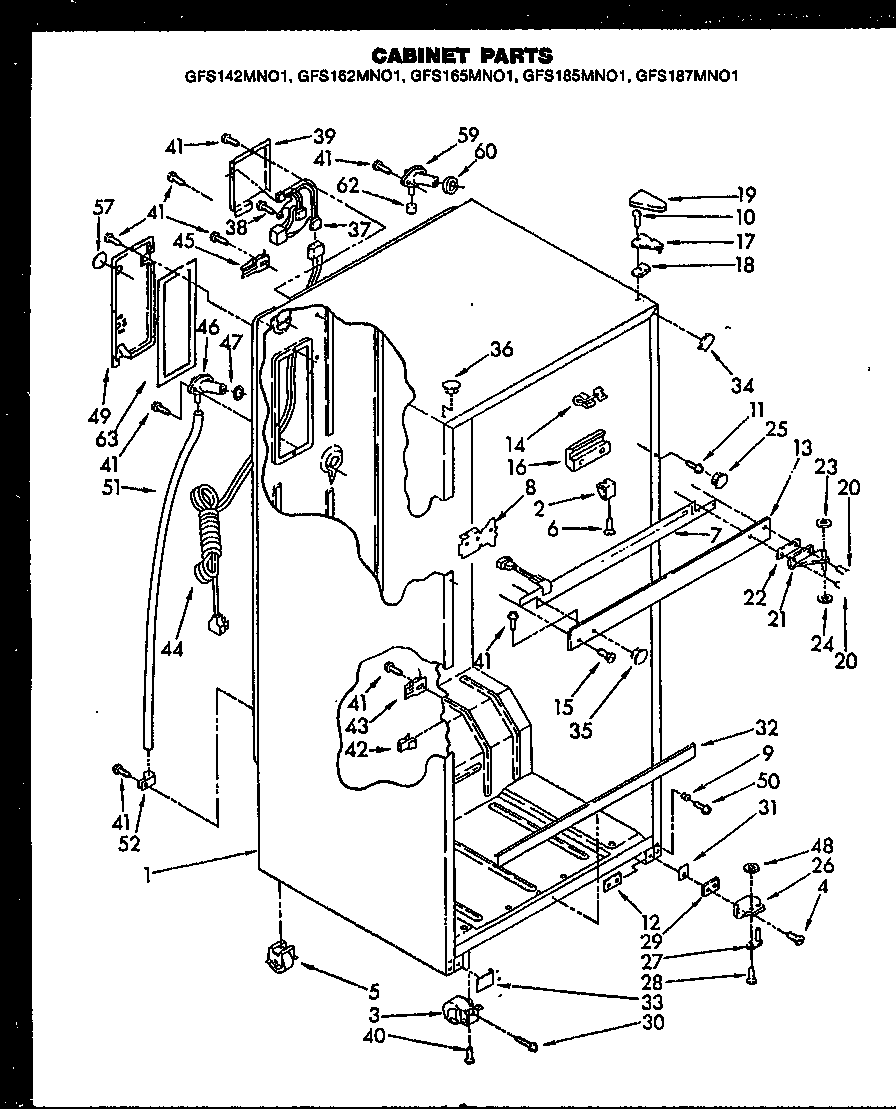

Cabinet diagram

Refrigerator seal gasket

Part #56814

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clamp 56576
#52

Cabinet diagram

Refrigerator clamp

Part #56576

The manufacturer no longer makes this part, and there's no substitute part

Panel, Door - Almond (note 1 - When Replacing The Outer 56746L
Panel, door - almond (note 1 - when replacing the outer

Part #56746L

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Compartment Separator 56867
#26

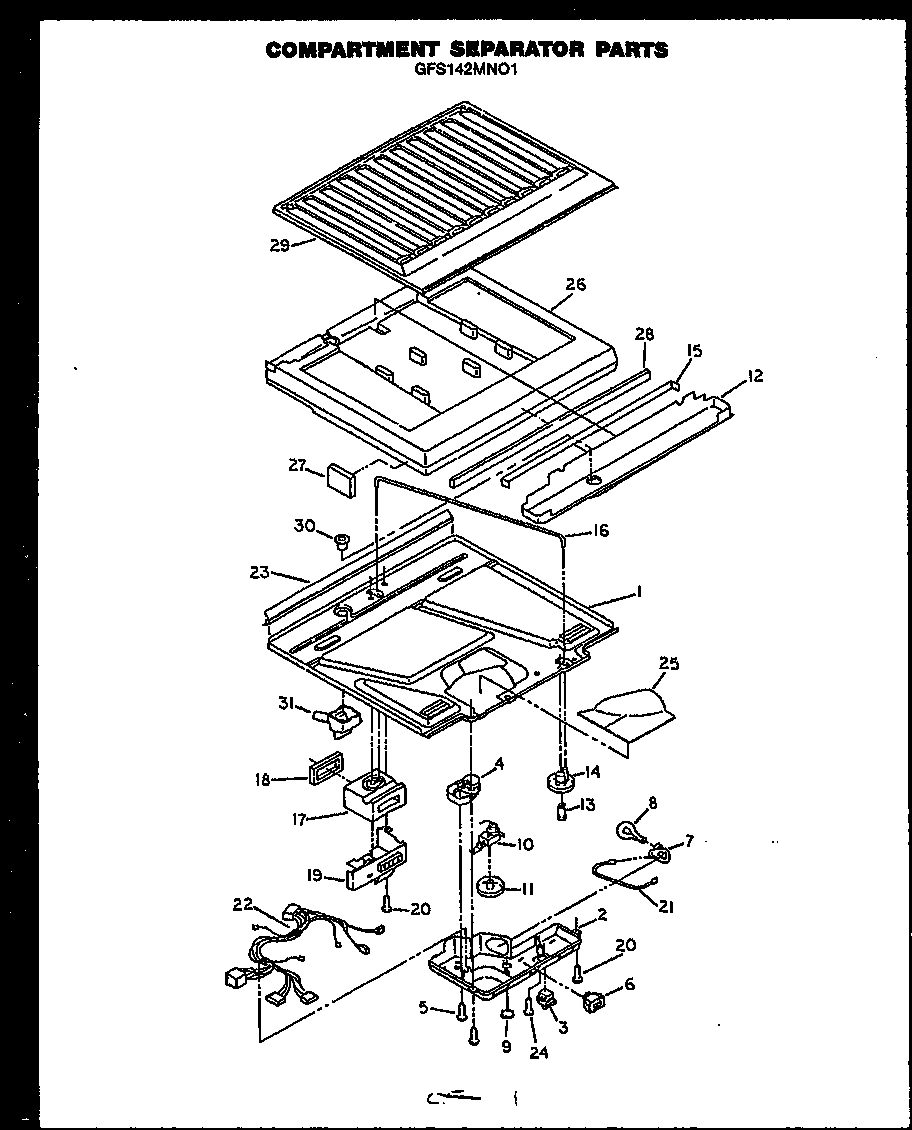

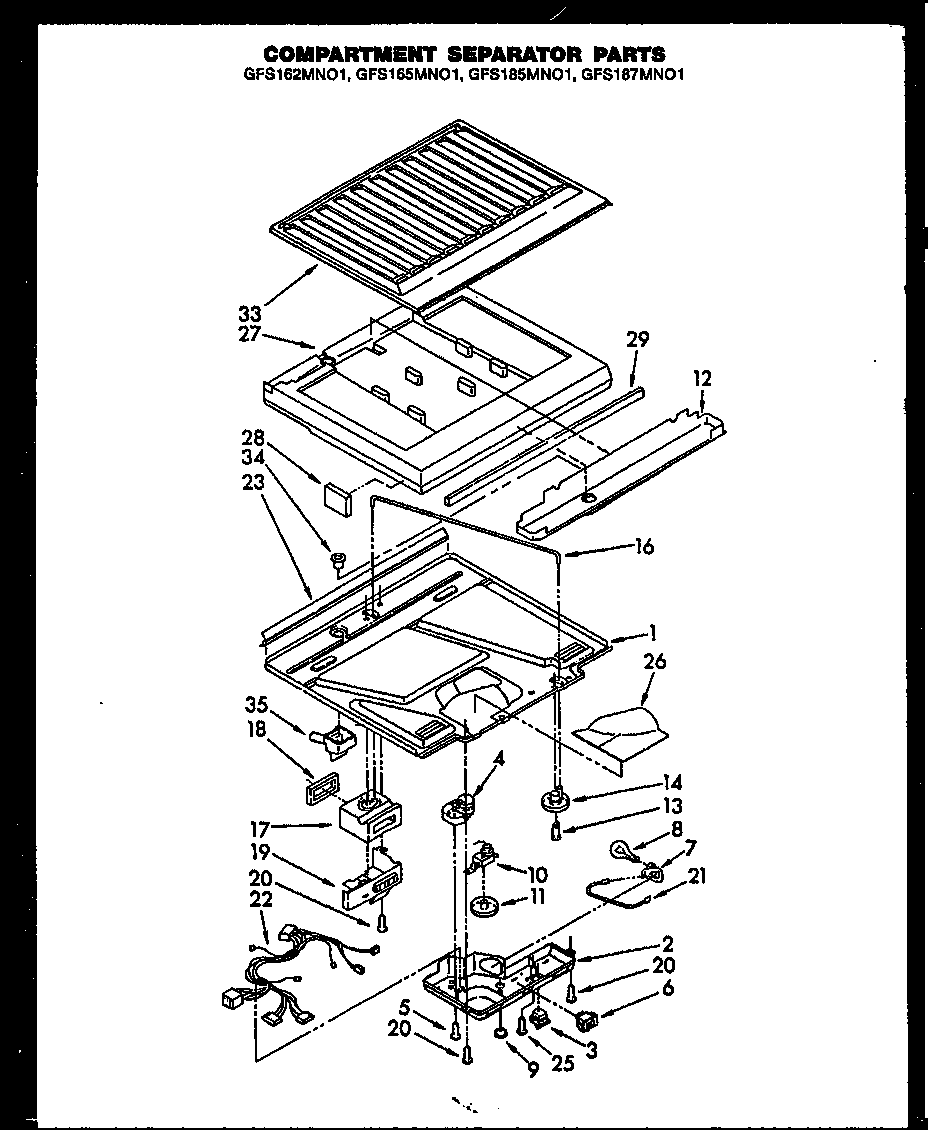

Compartment separator parts (gfs142mn01) diagram

Insulation, compartment separator

Part #56867

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Inner Door Panel 310827
#15B

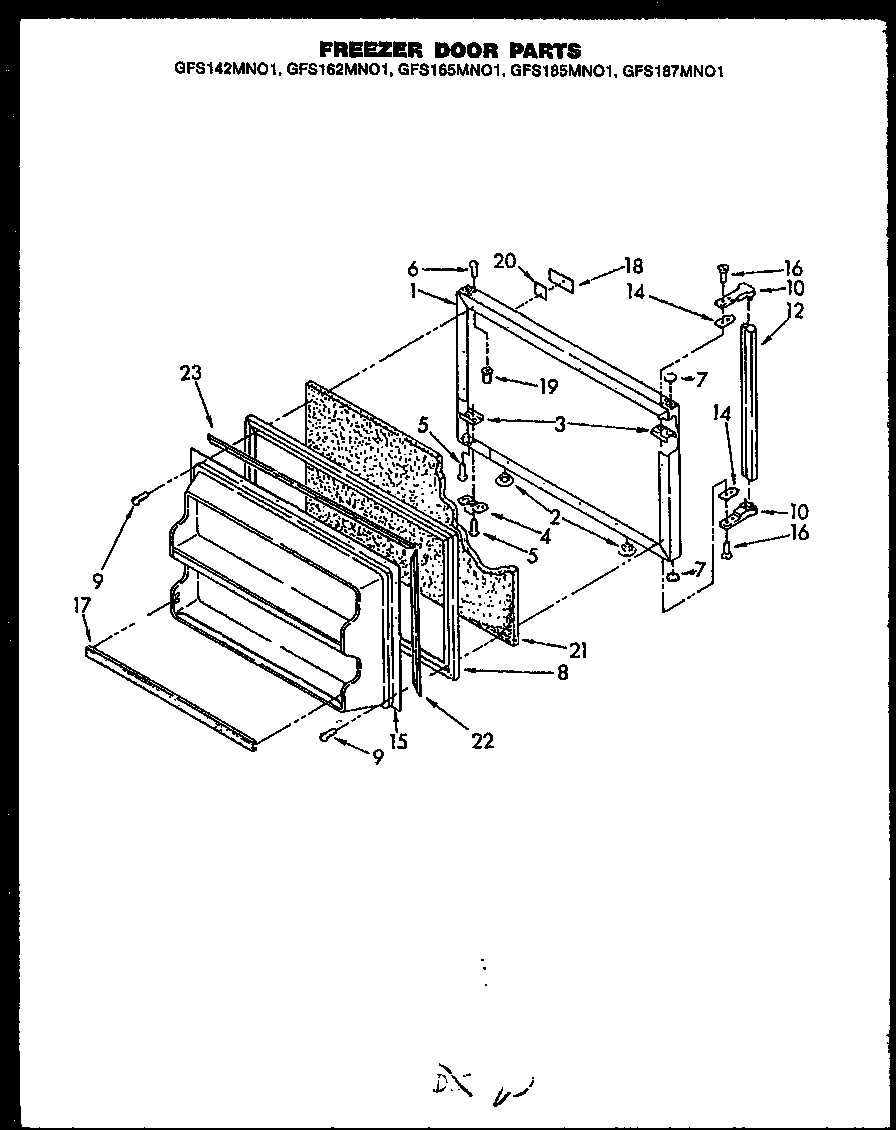

Freezer door parts diagram

Refrigerator inner door panel

Part #310827

The manufacturer no longer makes this part, and there's no substitute part

Shield, Electric Side 56658
#6

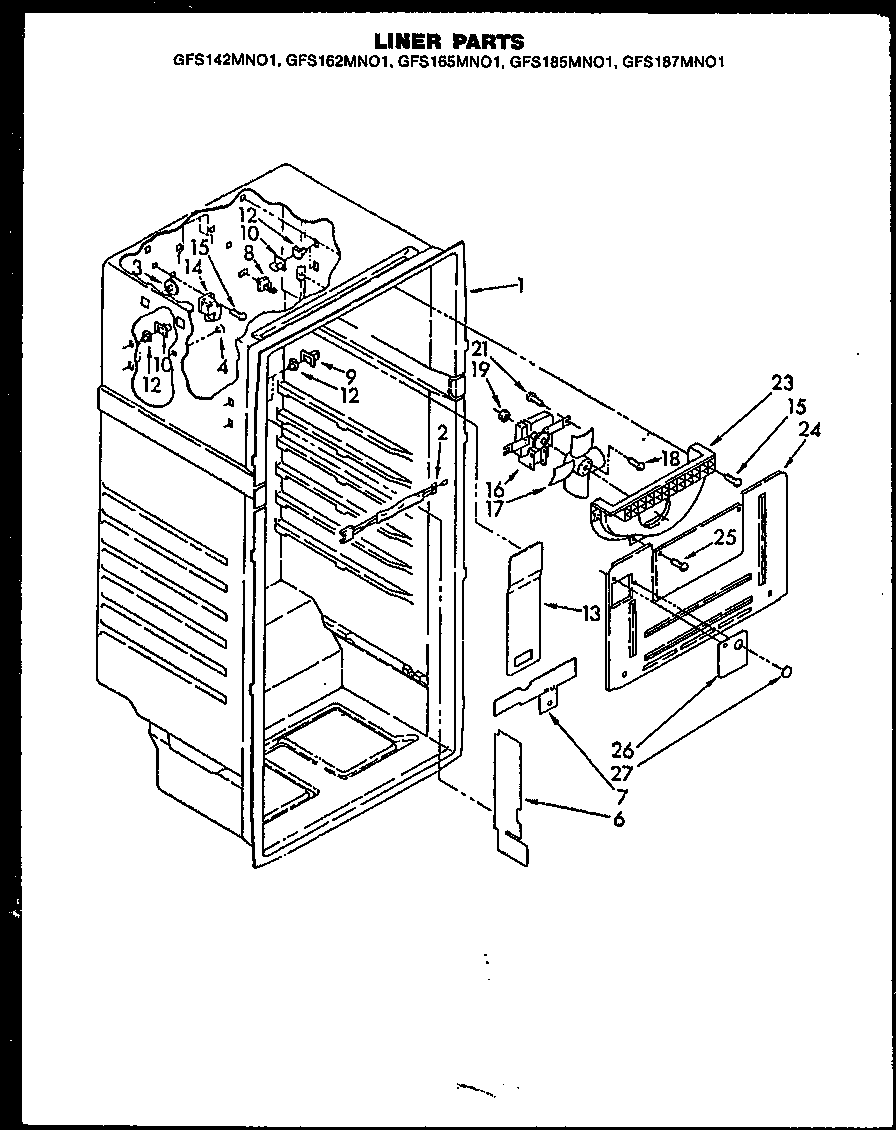

Liner parts diagram

Shield, electric side

Part #56658

The manufacturer no longer makes this part, and there's no substitute part

Handle, Center 56983
Handle, center

Part #56983

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mounting Plate 310822
#30

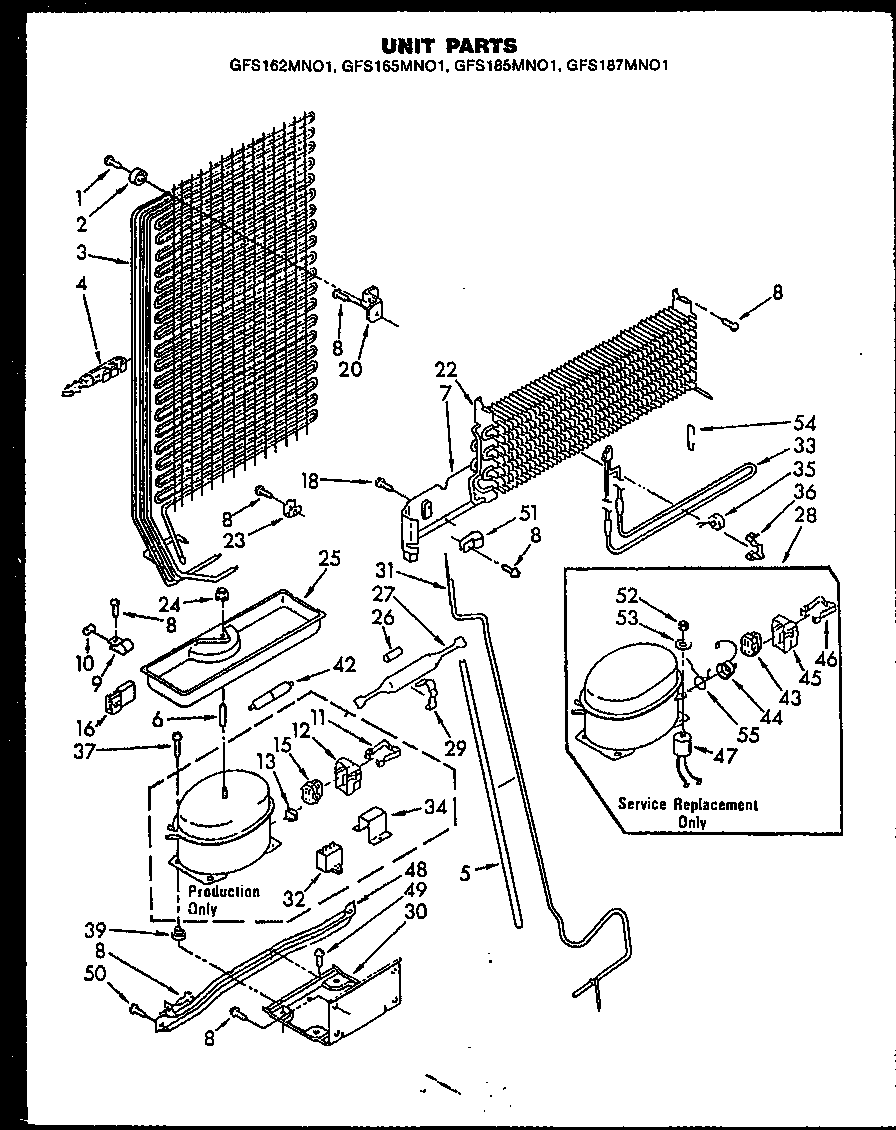

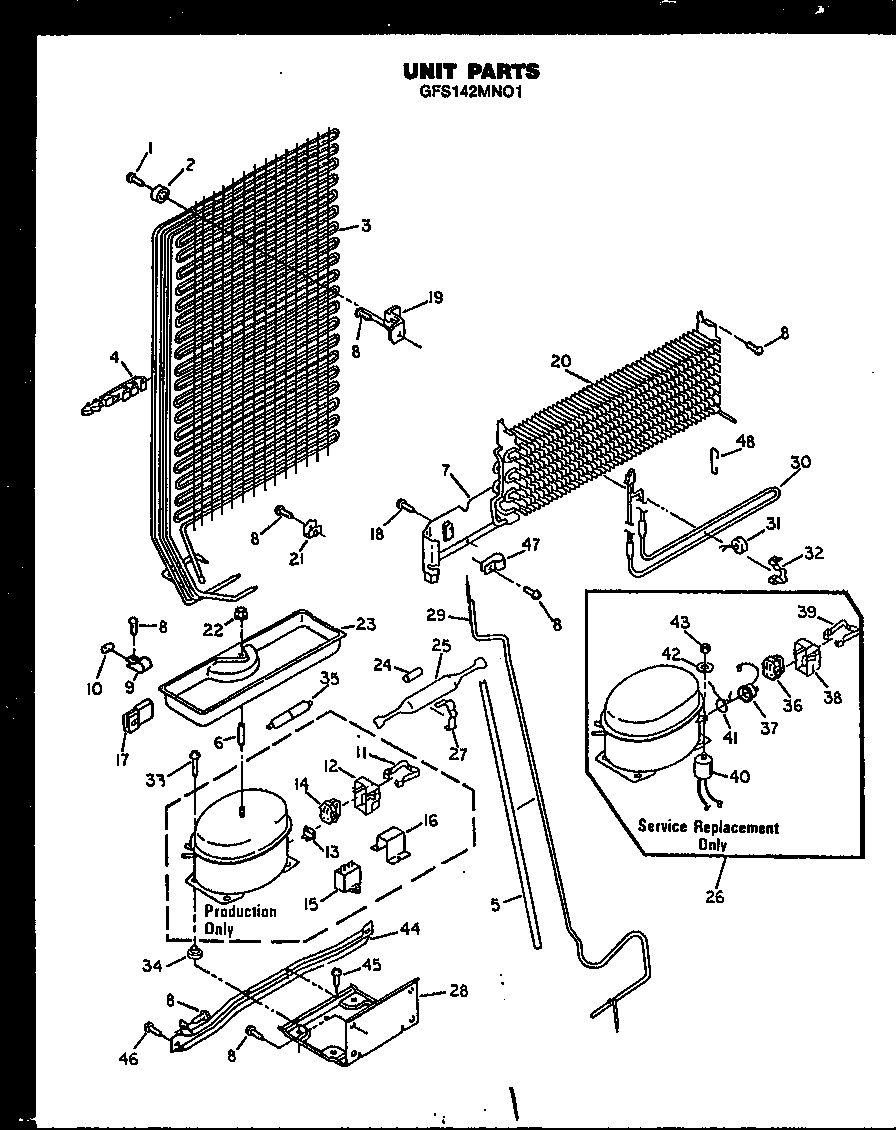

Unit parts (gfs162mn01) (gfs165mn01) (gfs185mn01) (gfs187mn01) diagram

Refrigerator mounting plate

Part #310822

The manufacturer no longer makes this part, and there's no substitute part
