Model # A633 Official Proctor Silex coffee maker with timer

Here are the diagrams and repair parts for Official Proctor Silex A633 coffee maker with timer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

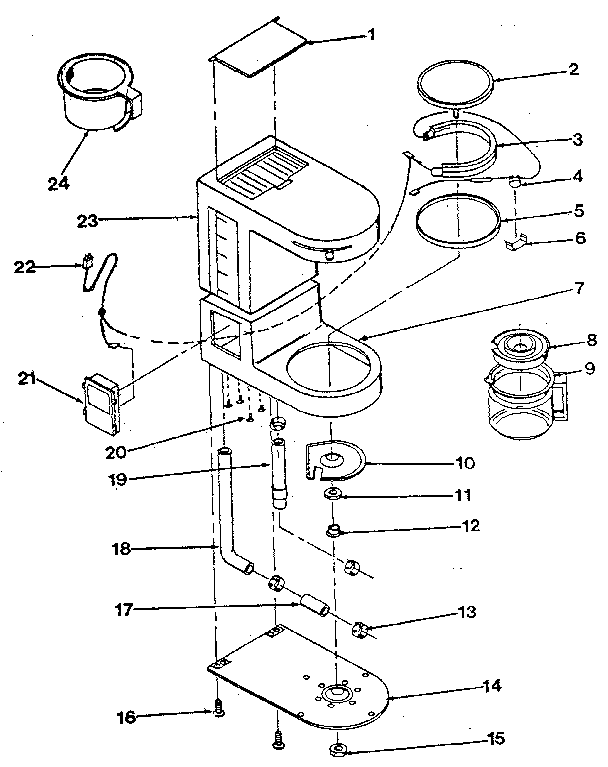

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Reservoir 913452
#23

Replacement parts diagram

Reservoir

Part #913452

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 982143
#4

Replacement parts diagram

Thermostat

Part #982143

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 968180
#22

Replacement parts diagram

Power cord

Part #968180

The manufacturer no longer makes this part, and there's no substitute part

Clamp 032026
#13

Replacement parts diagram

Clamp

Part #032026

The manufacturer no longer makes this part, and there's no substitute part

Carafe 601174
#9

Replacement parts diagram

Carafe

Part #601174

The manufacturer no longer makes this part, and there's no substitute part

Screw 002957
#16

Replacement parts diagram

Screw

Part #002957

The manufacturer no longer makes this part, and there's no substitute part

Warmer Ring 184177
#5

Replacement parts diagram

Warmer ring

Part #184177

The manufacturer no longer makes this part, and there's no substitute part

Input Hose 605403
#19

Replacement parts diagram

Input hose

Part #605403

The manufacturer no longer makes this part, and there's no substitute part

Eyelet 006055
#12

Replacement parts diagram

Eyelet

Part #006055

The manufacturer no longer makes this part, and there's no substitute part

Screw 002979
#20

Replacement parts diagram

Screw

Part #002979

The manufacturer no longer makes this part, and there's no substitute part
