Caloric
Top-Mount Refrigerator

Model # GCS120 Official Caloric refrigerator

Here are the diagrams and repair parts for Official Caloric GCS120 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

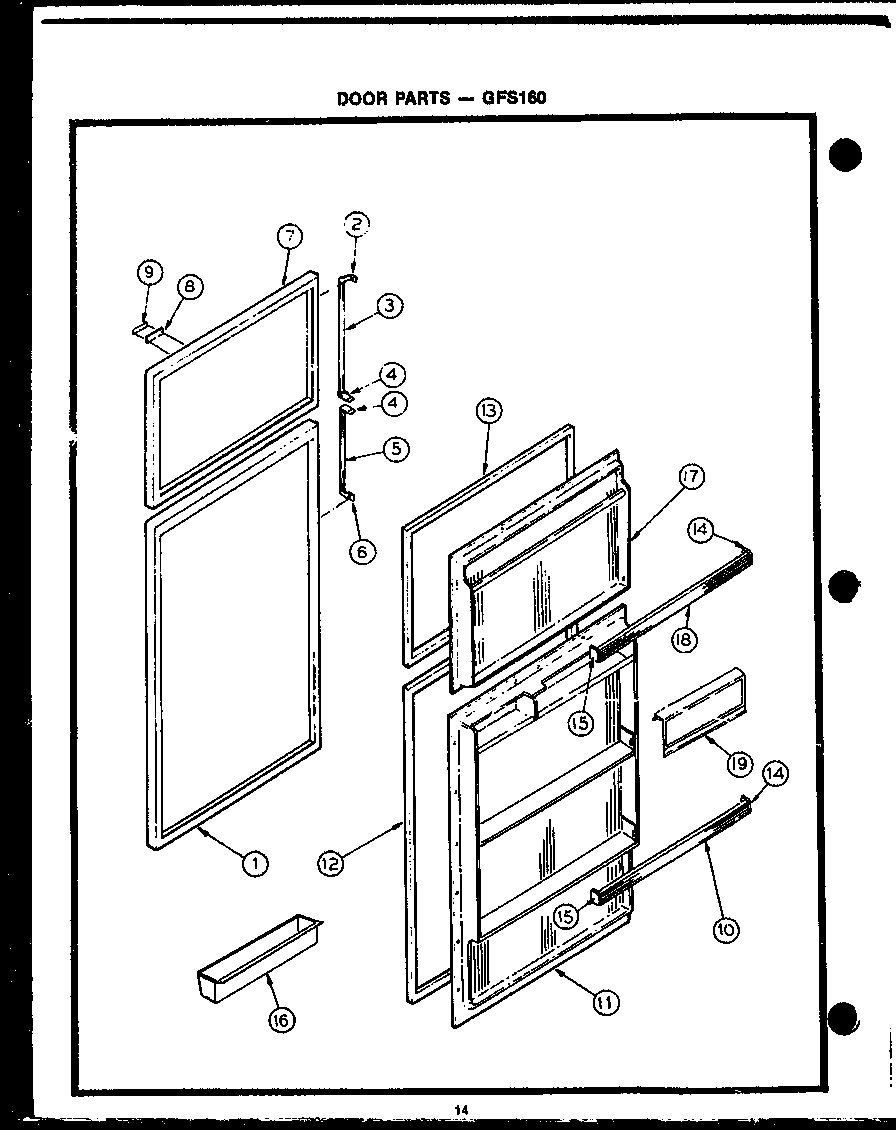

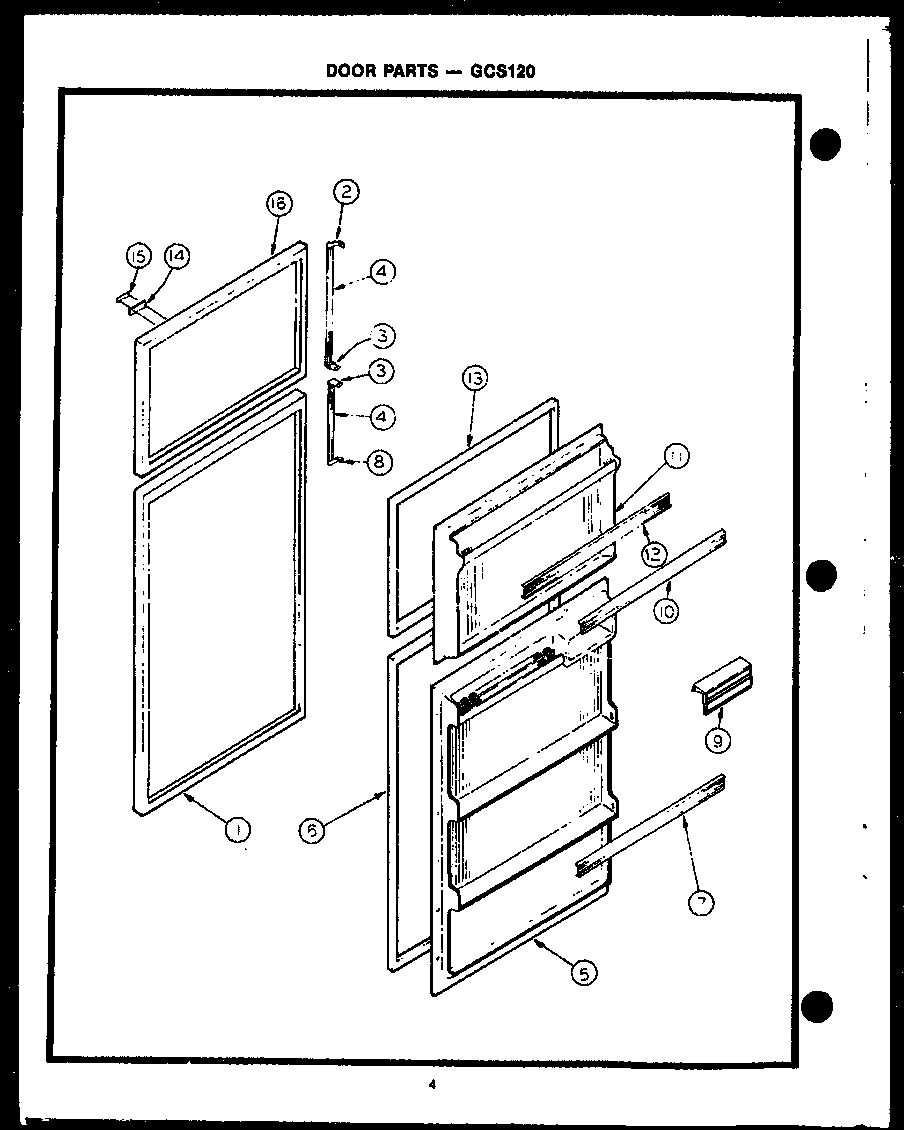

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |
Bottom - Freezer 86506
#9

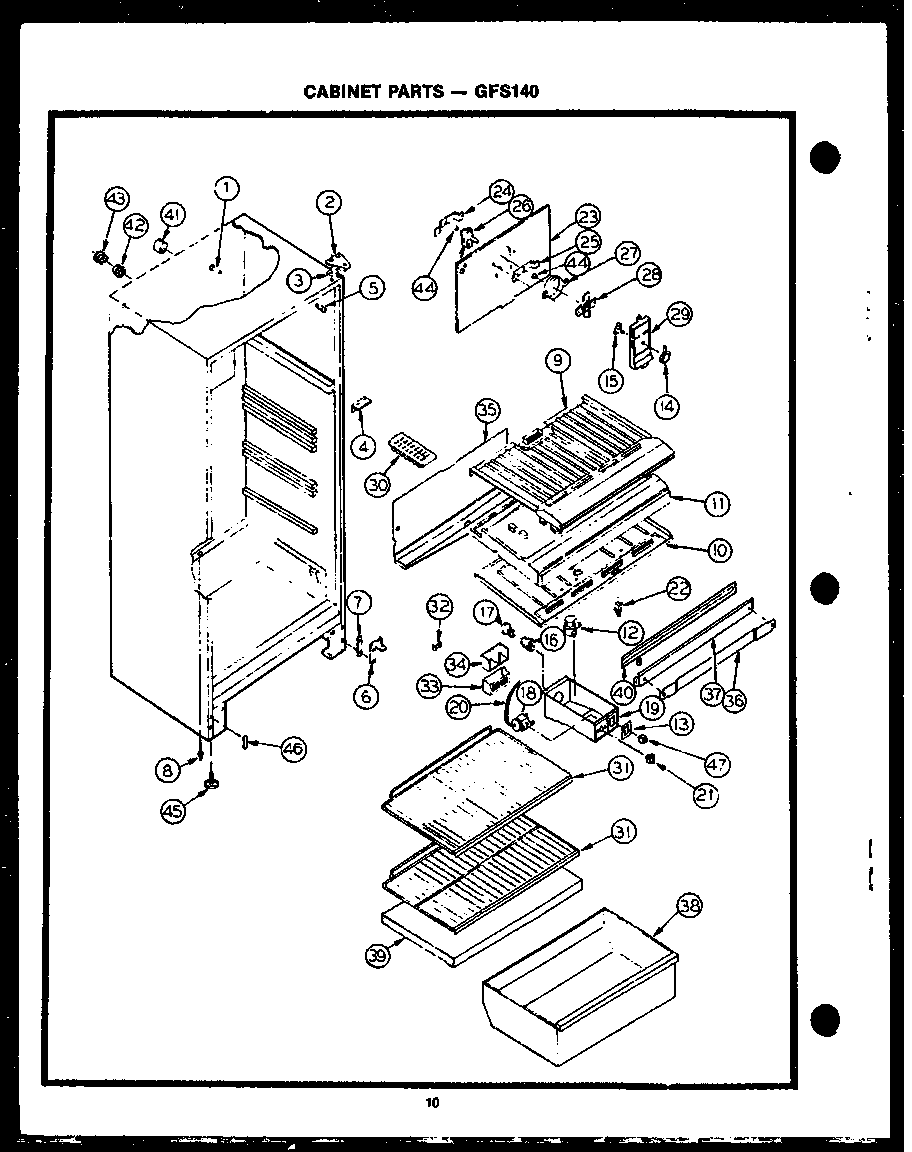

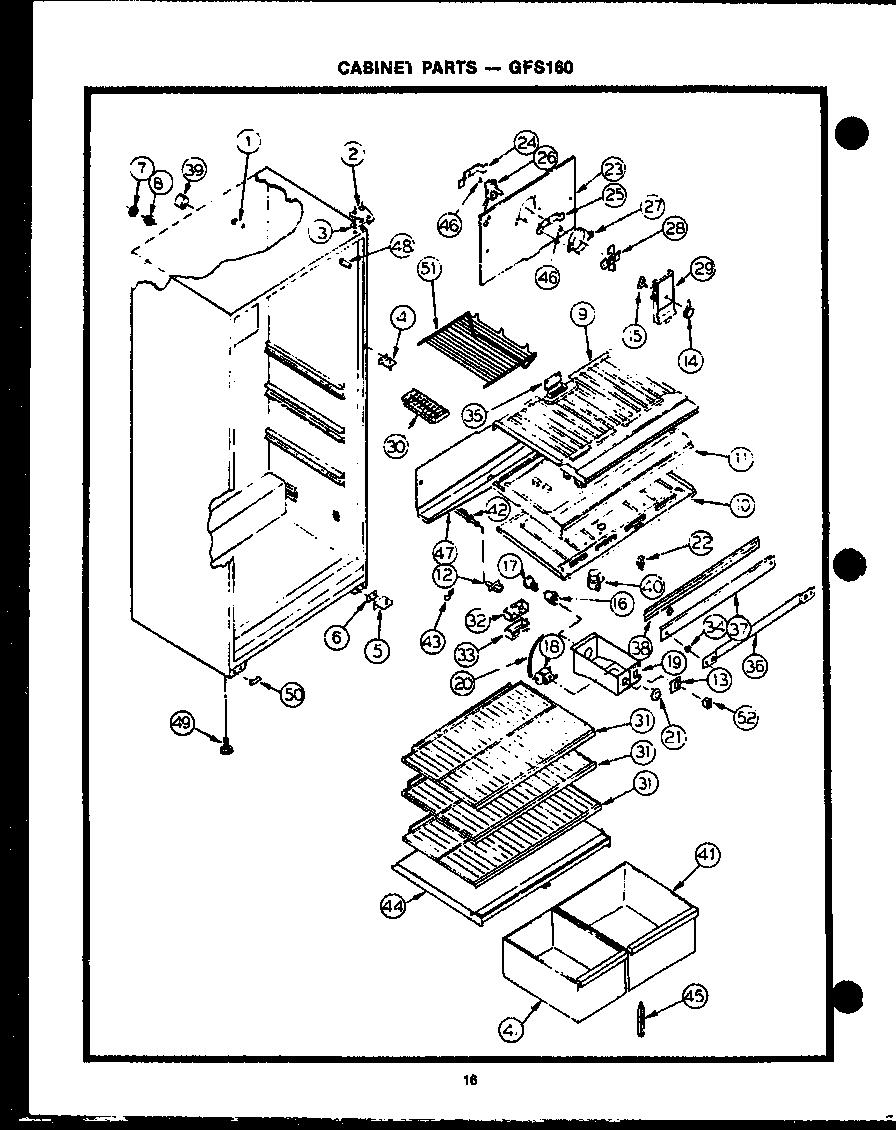

Cabinet parts (gfs140) diagram

Bottom - freezer

Part #86506

The manufacturer no longer makes this part, and there's no substitute part

Exterior Panel - Freezer (avocado) 86638V
#3B

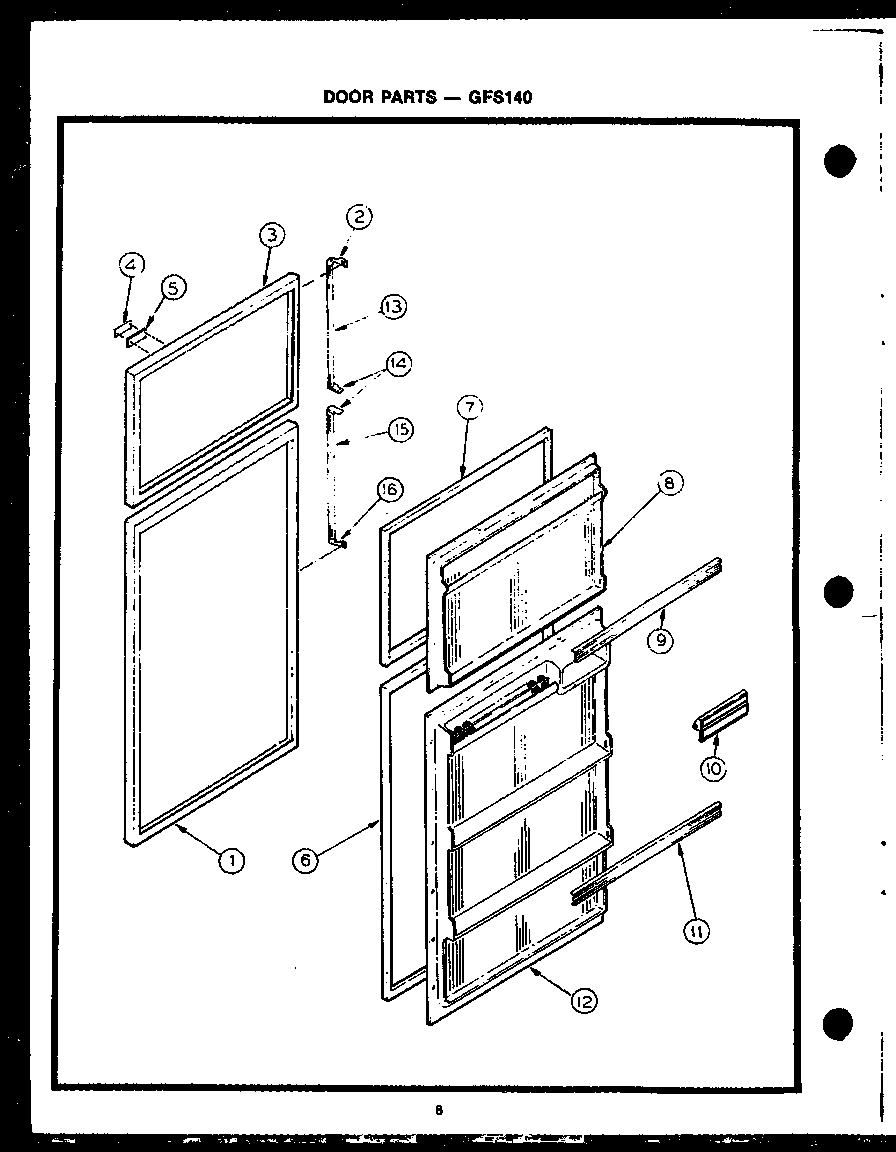

(gfs140) diagram

Exterior panel - freezer (avocado)

Part #86638V

The manufacturer no longer makes this part, and there's no substitute part

Cover - Crisper 86509
#26

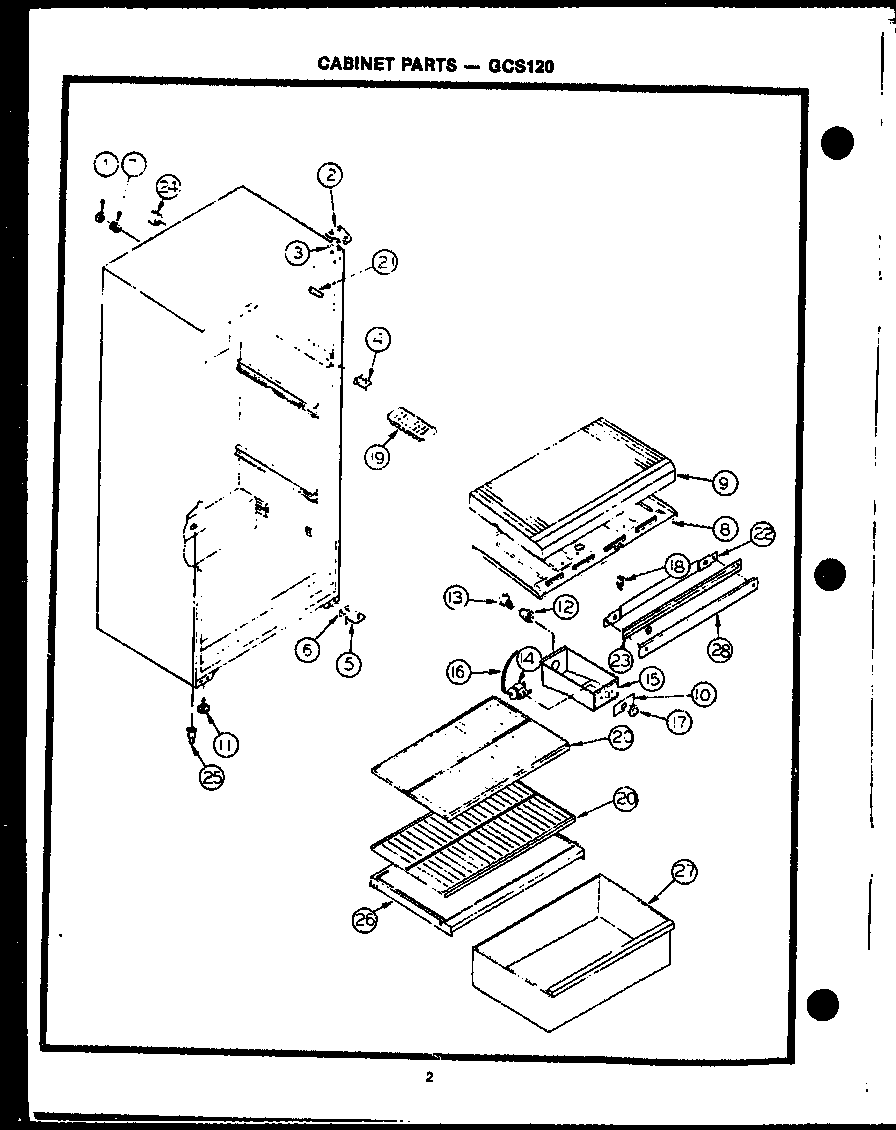

(gcs120) diagram

Cover - crisper

Part #86509

The manufacturer no longer makes this part, and there's no substitute part

Tube - Plastic 86458
Tube - plastic

Part #86458

The manufacturer no longer makes this part, and there's no substitute part

Divider - Compartment 86520
#11

Cabinet parts (gfs140) diagram

Divider - compartment

Part #86520

The manufacturer no longer makes this part, and there's no substitute part

Plug - Hinge Holes, Avocado 86632V
Plug - hinge holes, avocado

Part #86632V

The manufacturer no longer makes this part, and there's no substitute part

Top - Refrigerator 86570
#8

(gcs120) diagram

Top - refrigerator

Part #86570

The manufacturer no longer makes this part, and there's no substitute part

Exterior Panel - Refrigerator (almond) 86639N
#1E

(gfs140) diagram

Exterior panel - refrigerator (almond)

Part #86639N

The manufacturer no longer makes this part, and there's no substitute part

Button - Plug - Liner 86508

#NI

All parts diagram

Button - plug - liner

Part #86508

The manufacturer no longer makes this part, and there's no substitute part

Block - Evaporator R.h. 86519
#25

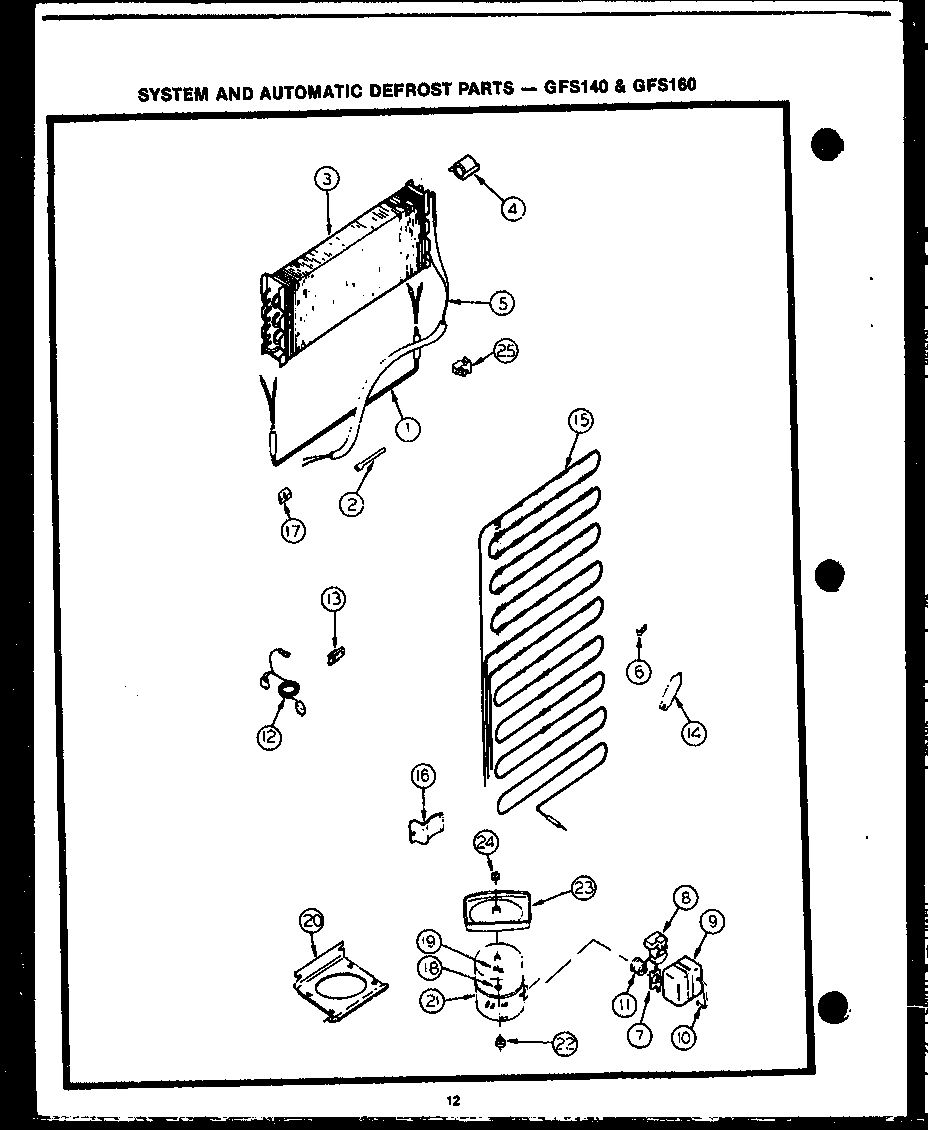

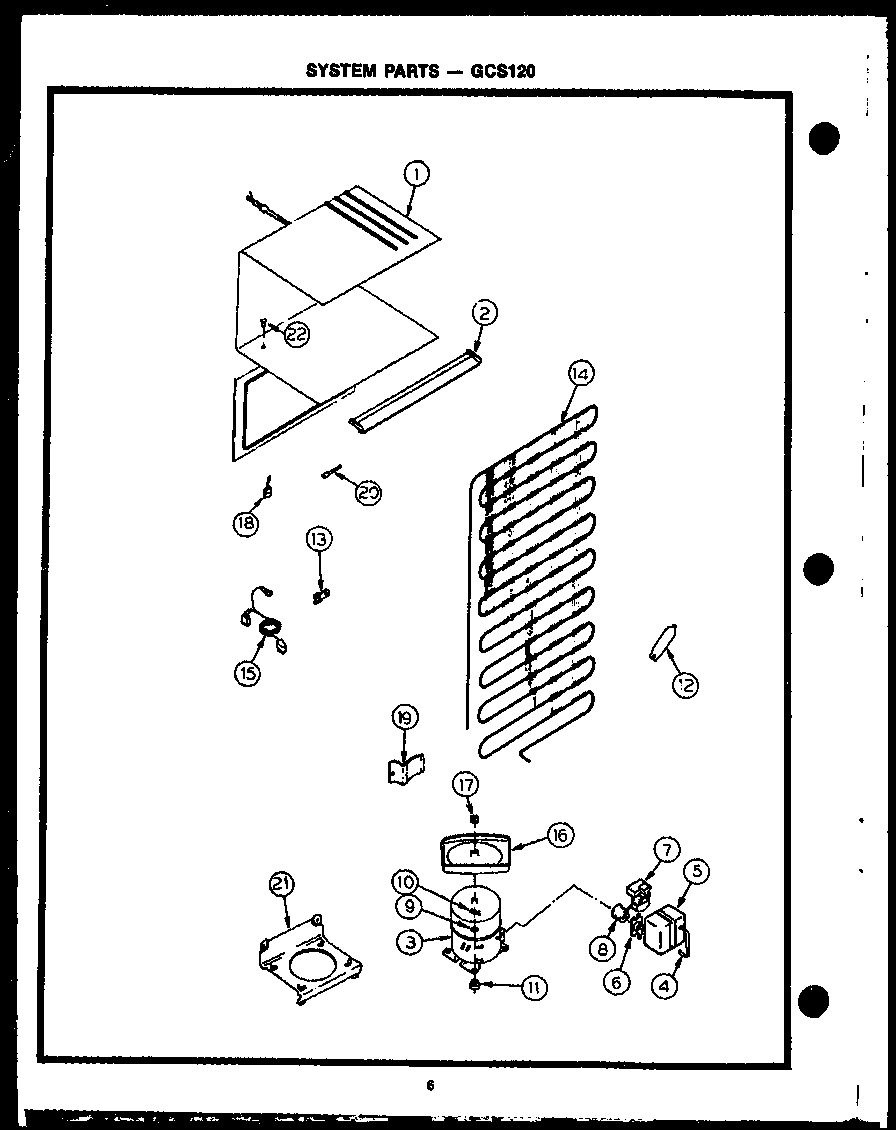

System and automatic defrost parts (gfs140) (gfs160) diagram

Block - evaporator r.h.

Part #86519

The manufacturer no longer makes this part, and there's no substitute part
