Model # 5871509180 Official Kenmore capri dishwasher

Here are the diagrams and repair parts for Official Kenmore 5871509180 capri dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

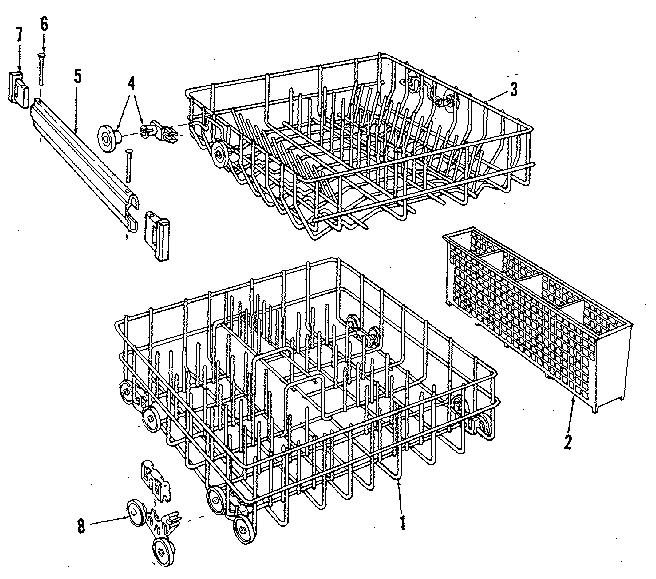

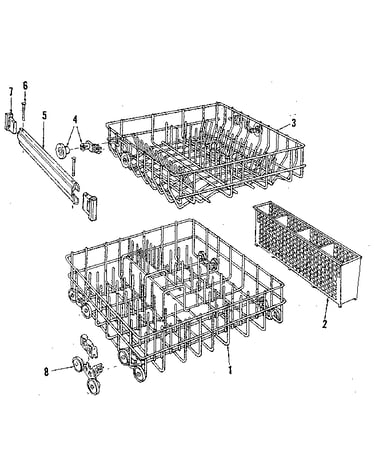

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Lock Nut 808470
#5

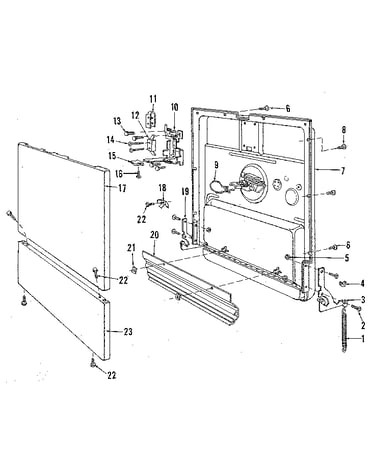

Door details diagram

Lock nut

Part #808470

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 808470. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Screw 809163
#16

Door details diagram

Screw

Part #809163

This item is not returnable
$2.16
In Stock
Nut 806834
#24

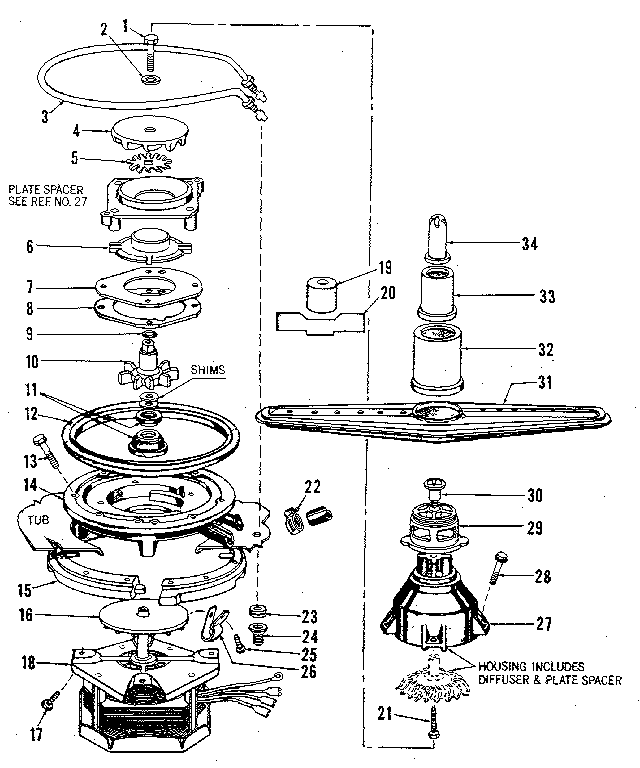

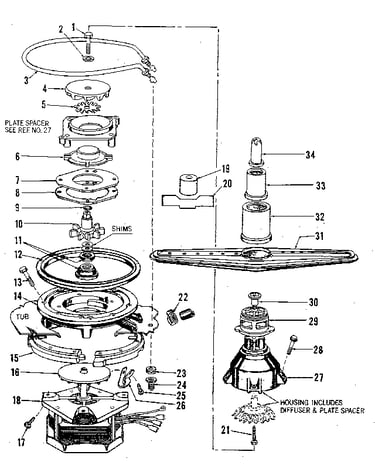

Motor, heater, & spray arm details diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw 806890
#8

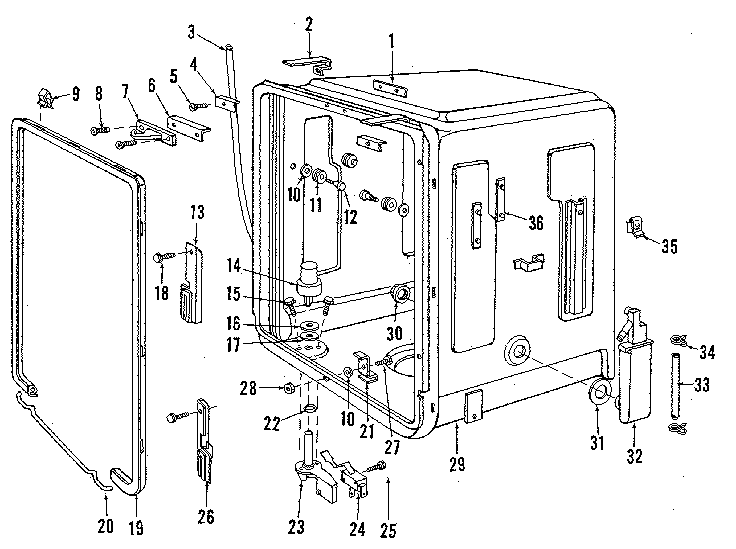

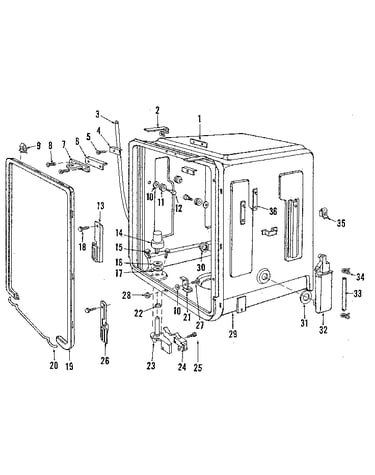

Tub details diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Cam Spring 806567
#4

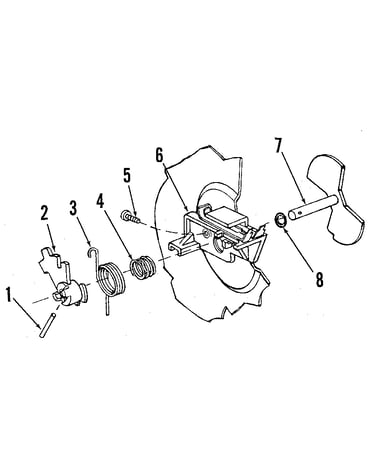

Detergent cup details diagram

Cam spring

Part #806567

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 806567. Substitute parts can look different from the original.
$29.93
In Stock
Washer 807373
#4

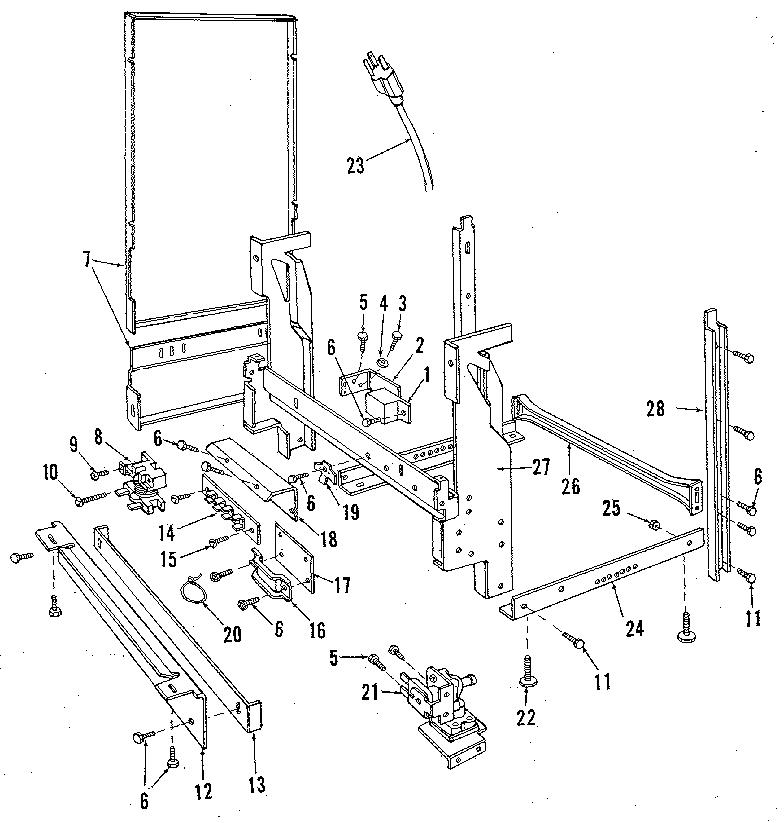

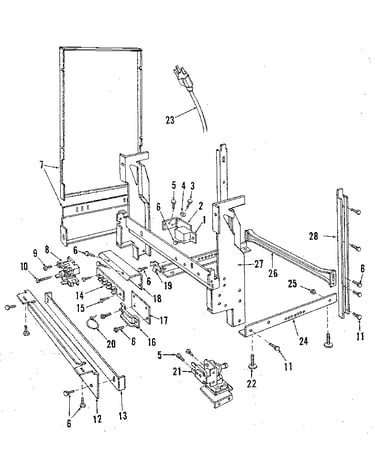

Frame details diagram

Washer

Part #807373

Replaced by #5300807373

?
Manufacturer substitution
This part replaces 807373. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Gasket 808063
#17

Tub details diagram

Gasket

Part #808063

Replaced by #5300808063

?
Manufacturer substitution
This part replaces 808063. Substitute parts can look different from the original.
This item is not returnable
$4.51 |
18% OFF Phone Price : $5.51
In Stock
Wire Tie 809418
#20

Frame details diagram

Wire tie

Part #809418

Replaced by #5300809418

?
Manufacturer substitution
This part replaces 809418. Substitute parts can look different from the original.
This item is not returnable
$2.26
In Stock
Wire Tie 809075
#9

Door details diagram

Wire tie

Part #809075

Replaced by #5300809075

?
Manufacturer substitution
This part replaces 809075. Substitute parts can look different from the original.
This item is not returnable
$3.00
In Stock
Arm Assembly 805681
#3

Door details diagram

Arm assembly

Part #805681

Replaced by #5300805681

?
Manufacturer substitution
This part replaces 805681. Substitute parts can look different from the original.
$79.52
In Stock
