Model # EH-1930 Official Ryobi gas-powered impact drill

Here are the diagrams and repair parts for Official Ryobi EH-1930 gas-powered impact drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

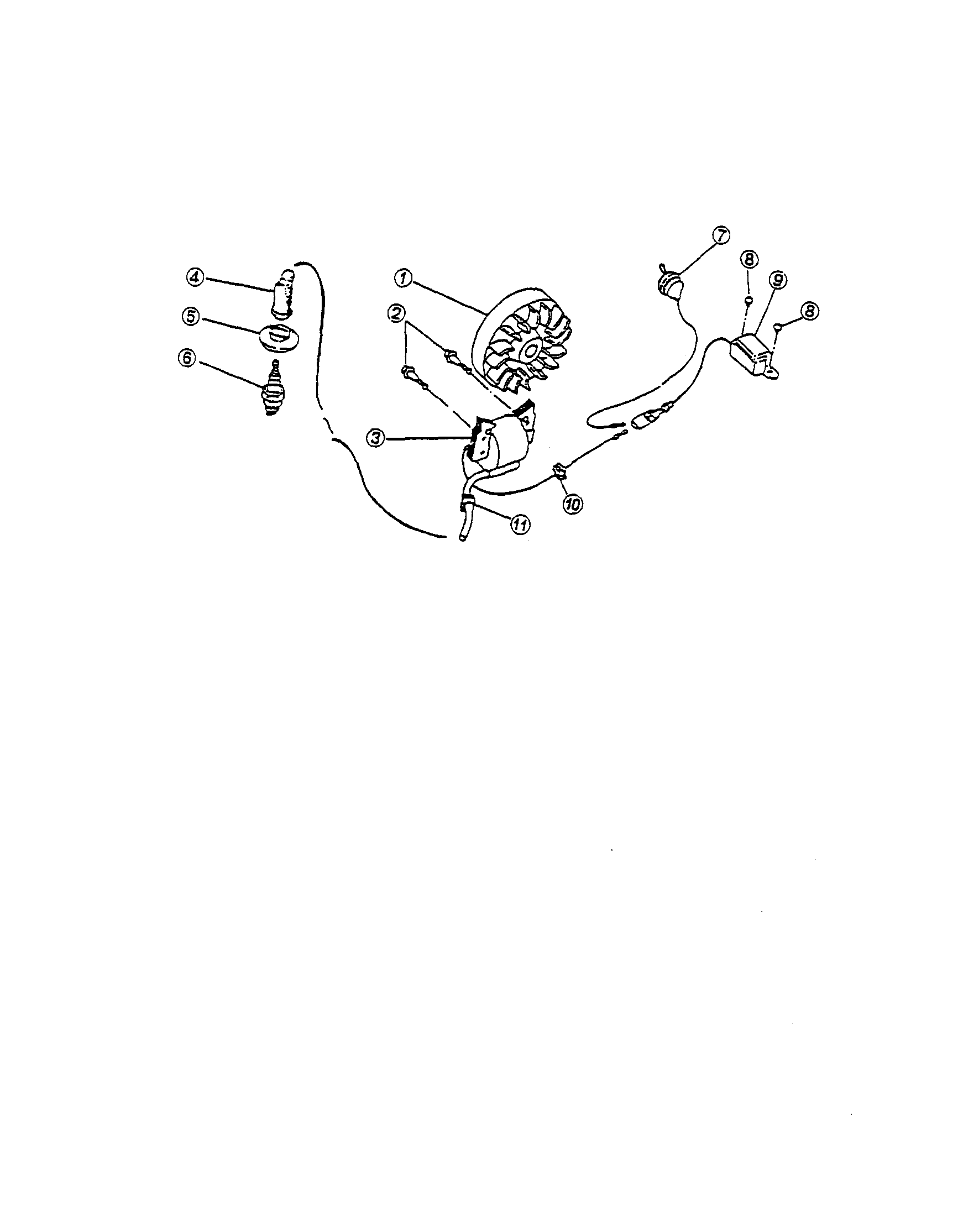

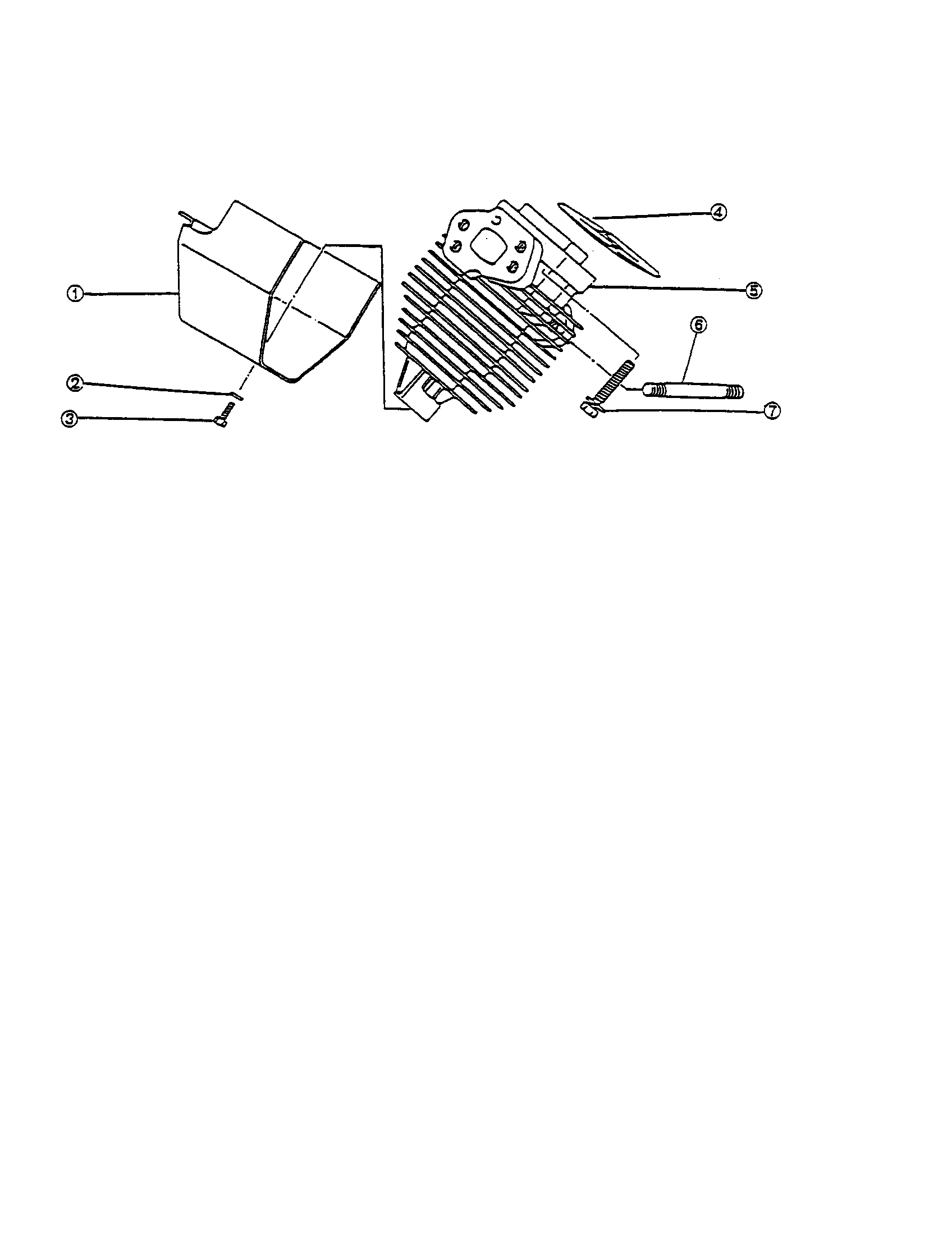

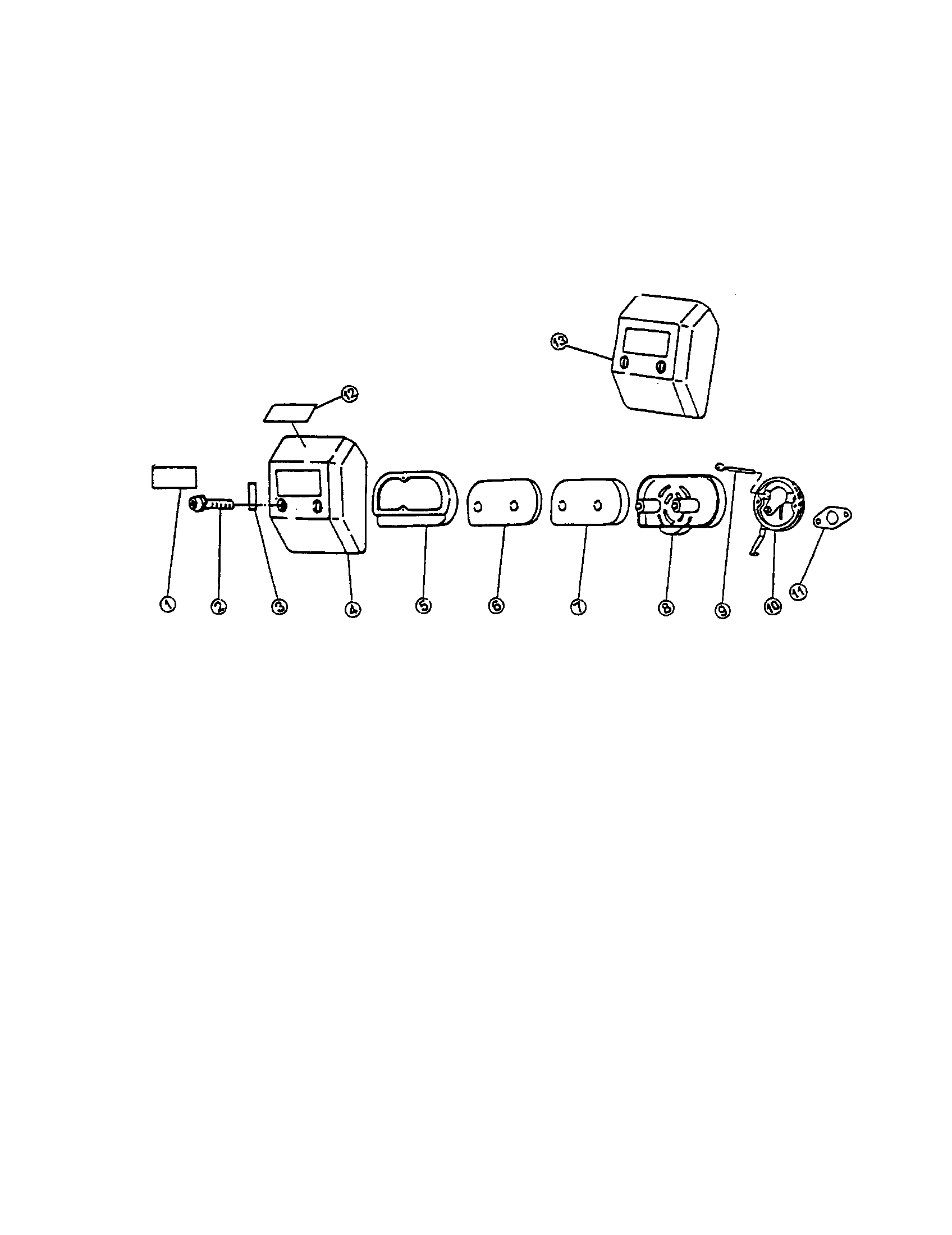

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Fuel Joint 2380138
#3

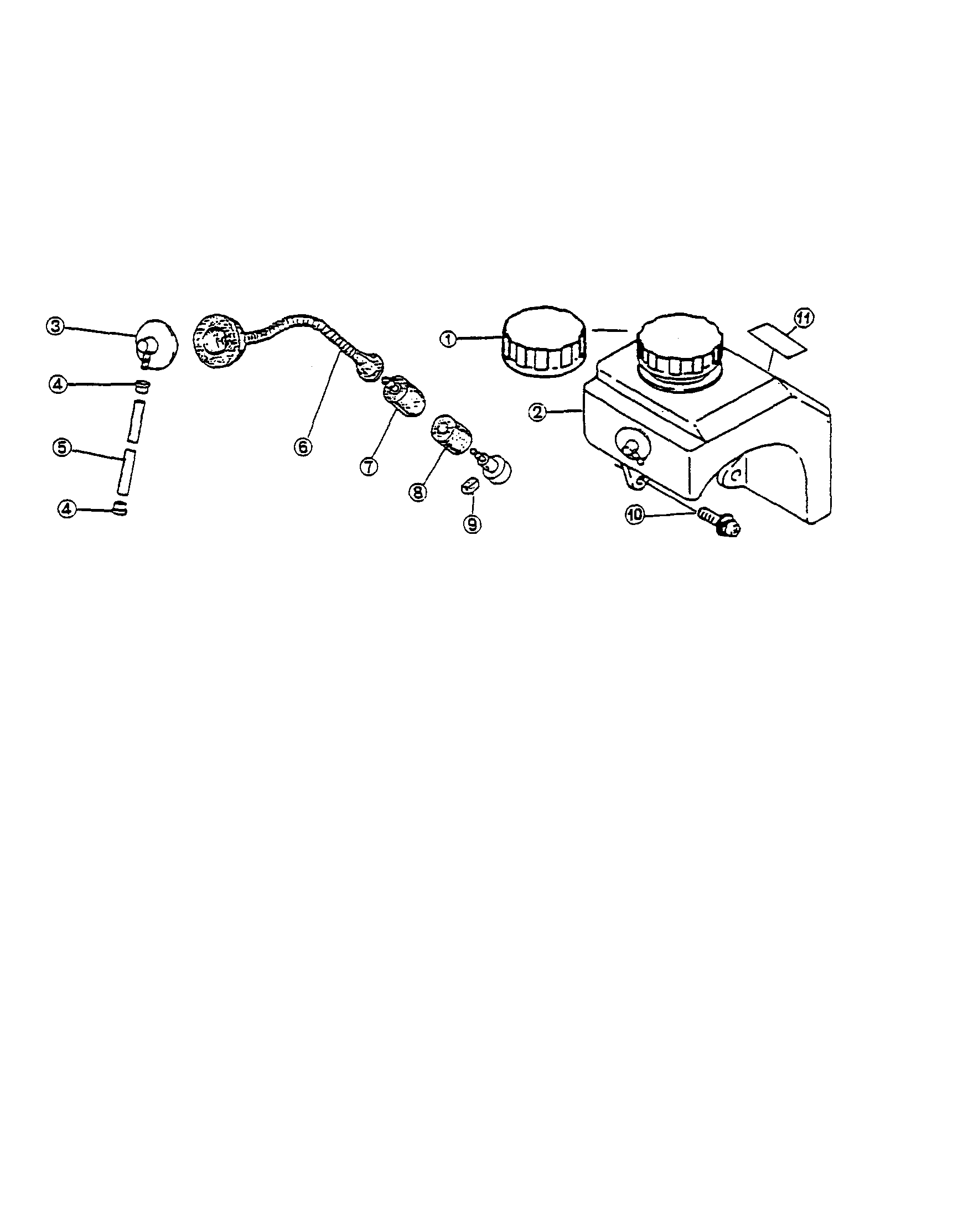

Fuel tank system diagram

Fuel joint

Part #2380138

The manufacturer no longer makes this part, and there's no substitute part

Spiral Spring 2380067
#14

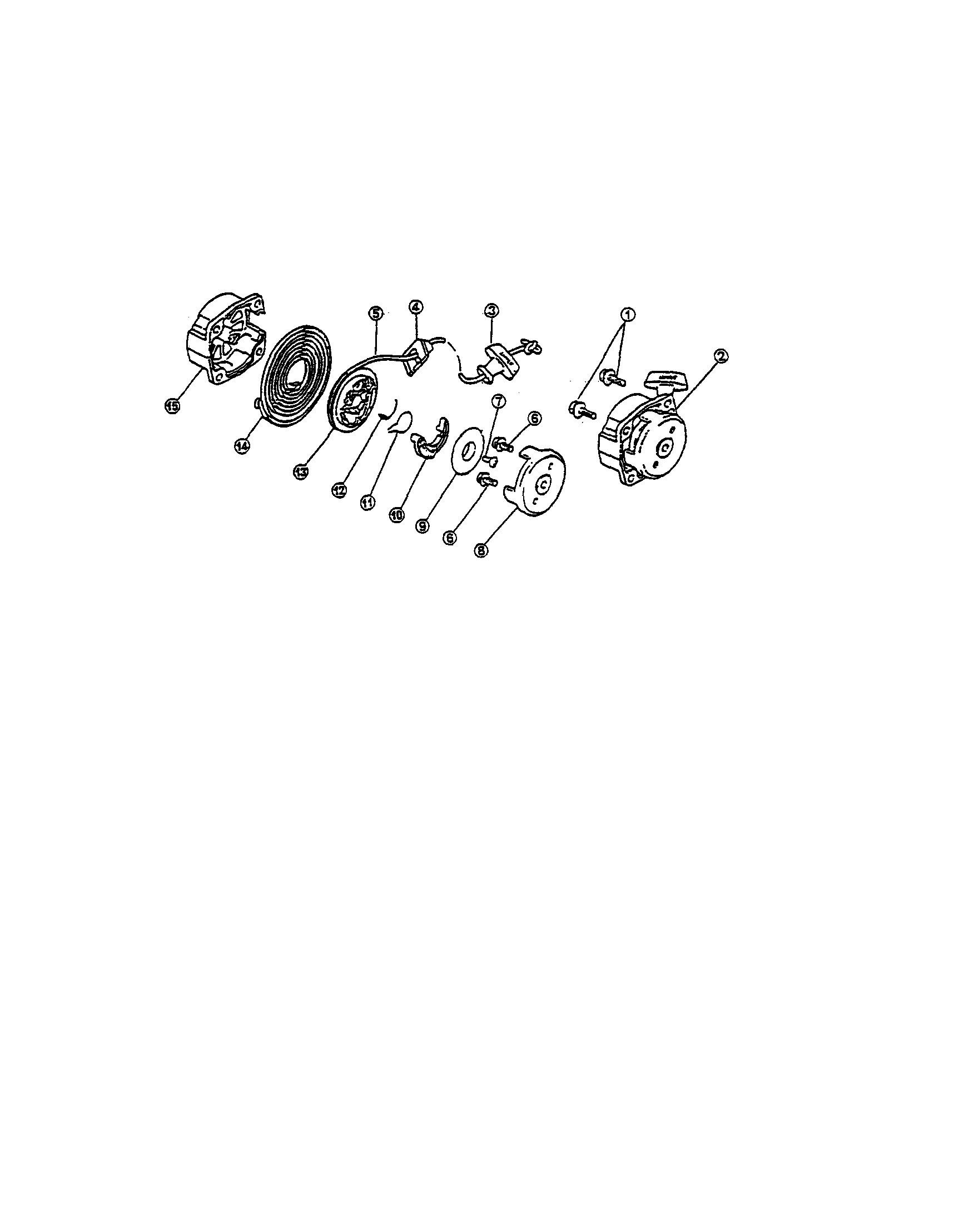

Recoil starter system diagram

Spiral spring

Part #2380067

The manufacturer no longer makes this part, and there's no substitute part

Phillips Pan Screw M6 X 12 (2) 9020612
#6

Recoil starter system diagram

Phillips pan screw m6 x 12 (2)

Part #9020612

The manufacturer no longer makes this part, and there's no substitute part

Screw 9000410
#58

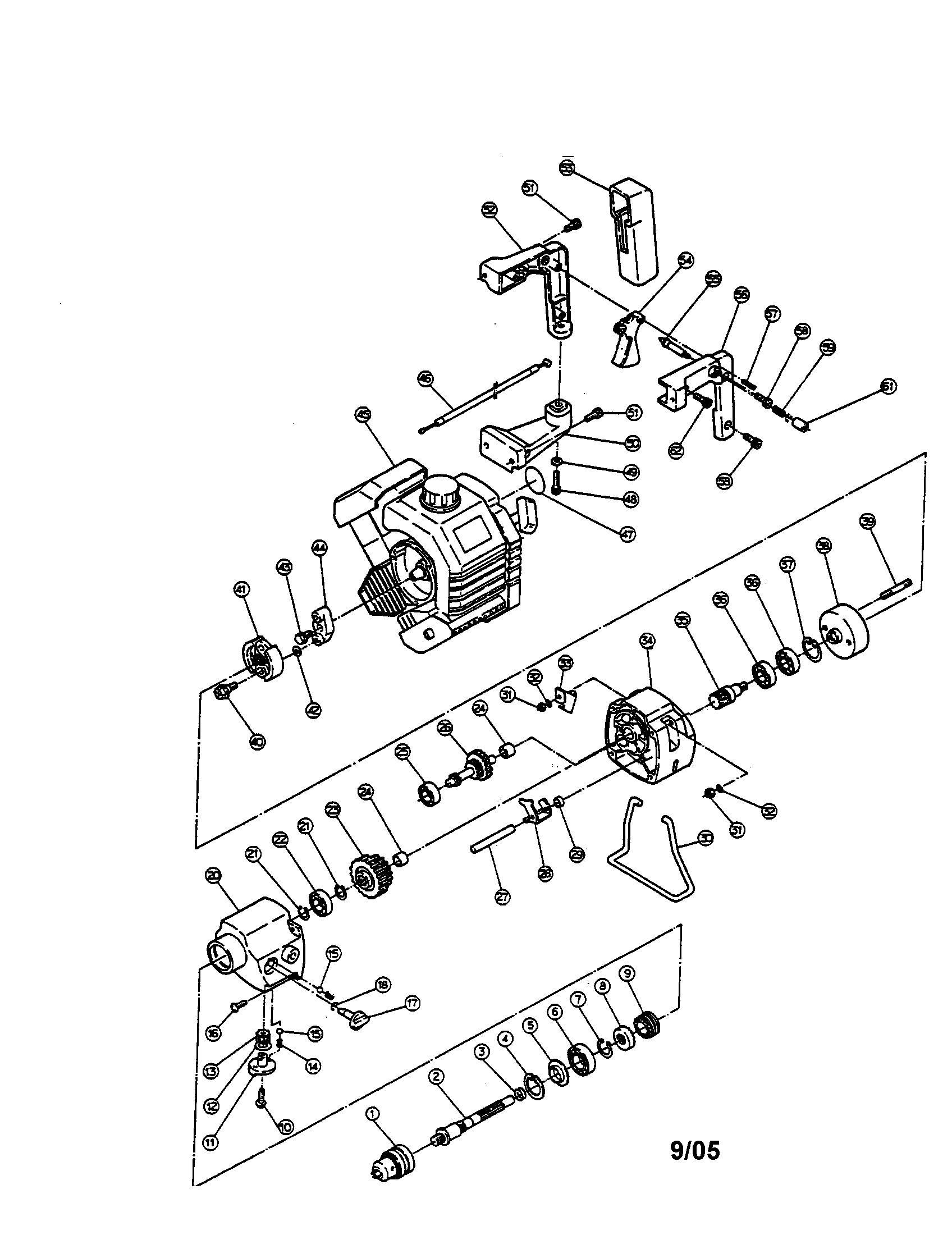

Impact drill diagram

Screw

Part #9000410

The manufacturer no longer makes this part, and there's no substitute part

Drive Gear Assembly 2050002
#26

Impact drill diagram

Drive gear assembly

Part #2050002

The manufacturer no longer makes this part, and there's no substitute part

Screw 2380105
#9

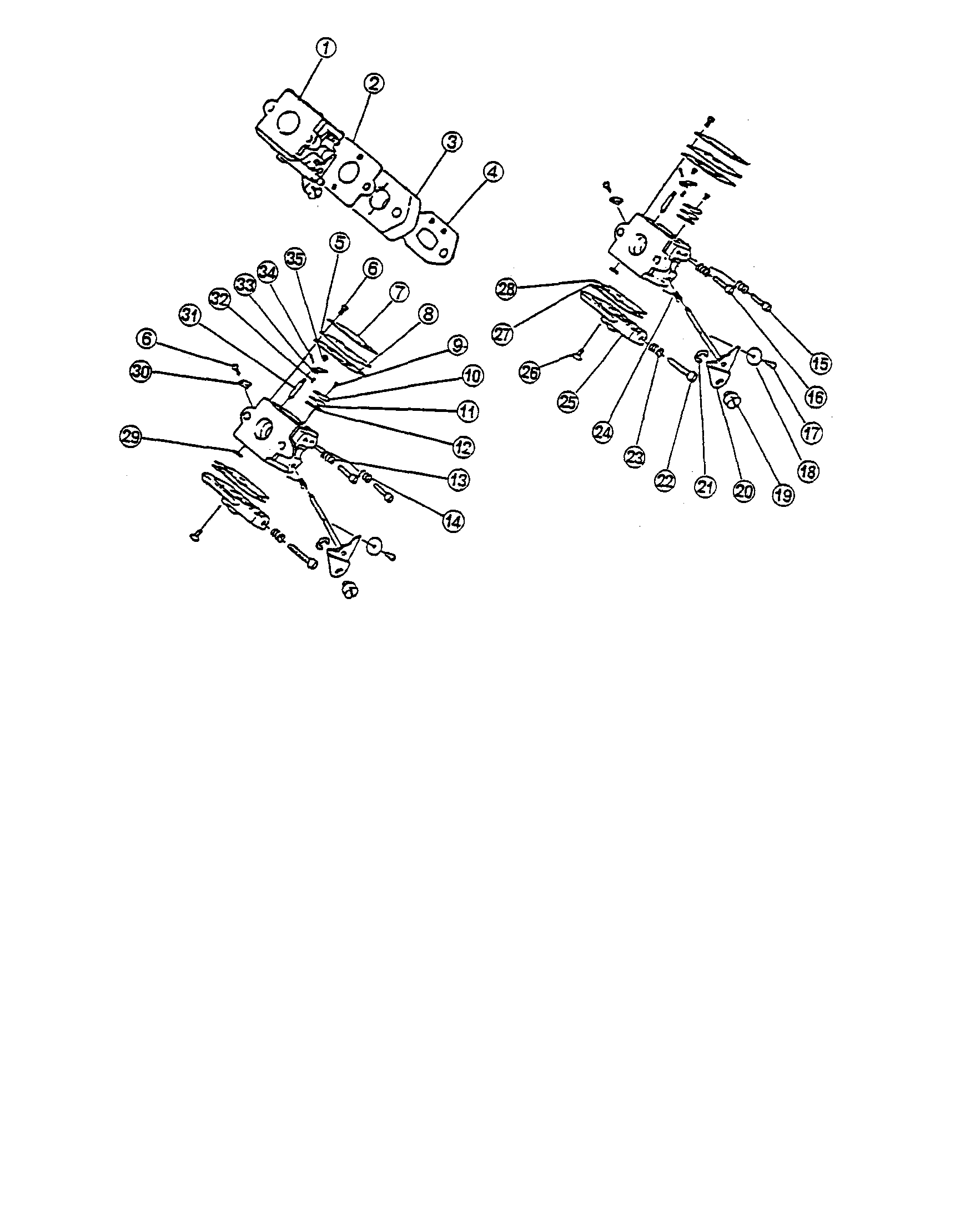

Carburetor system diagram

Screw

Part #2380105

The manufacturer no longer makes this part, and there's no substitute part

Piston Set 2430237
#5

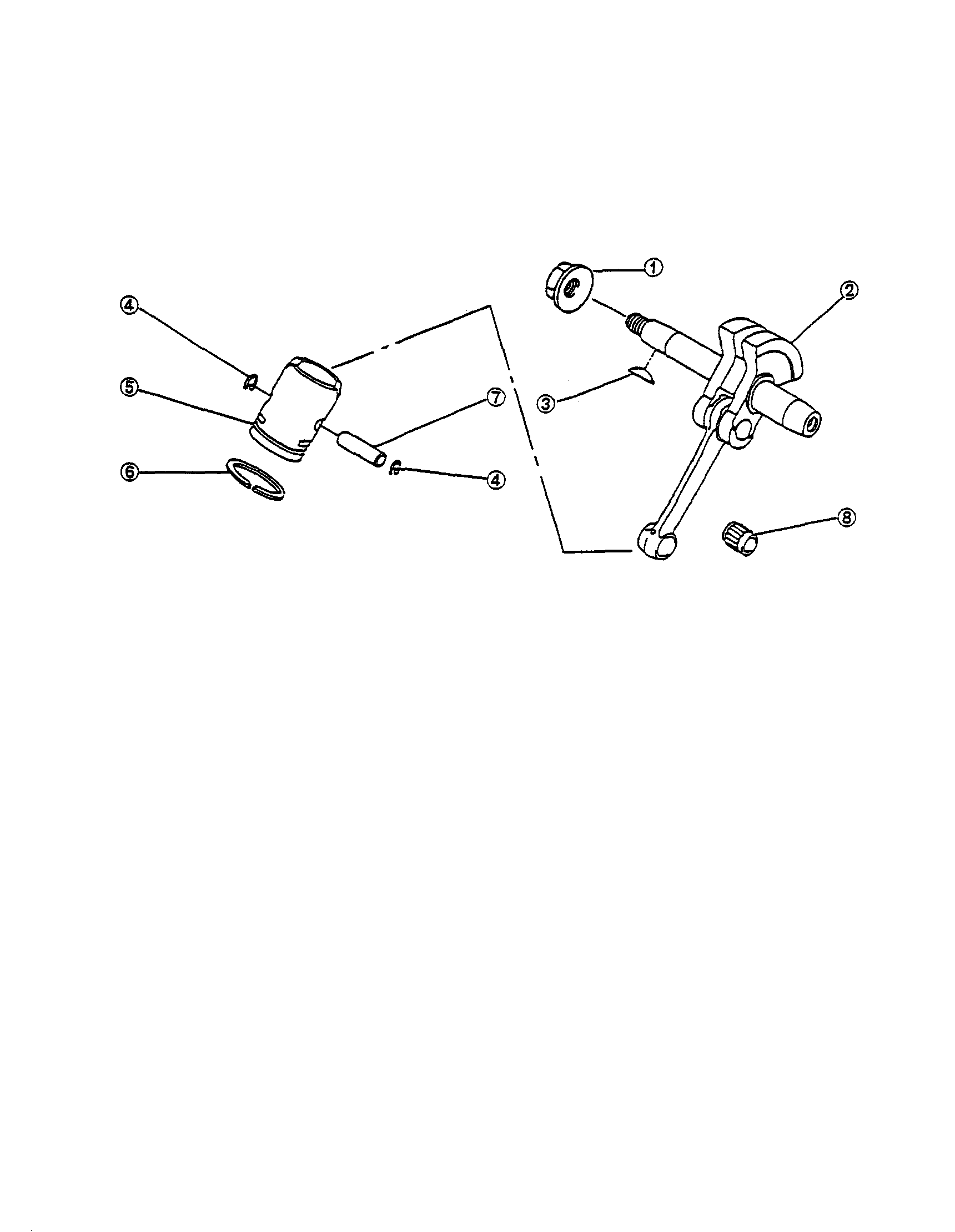

Crankshaft and piston system diagram

Piston set

Part #2430237

The manufacturer no longer makes this part, and there's no substitute part

Swivel 2380115
#19

Carburetor system diagram

Swivel

Part #2380115

The manufacturer no longer makes this part, and there's no substitute part

Idle Adjust Spring 2380119
#23

Carburetor system diagram

Idle adjust spring

Part #2380119

The manufacturer no longer makes this part, and there's no substitute part

Crankcase Assembly 2440801
#1

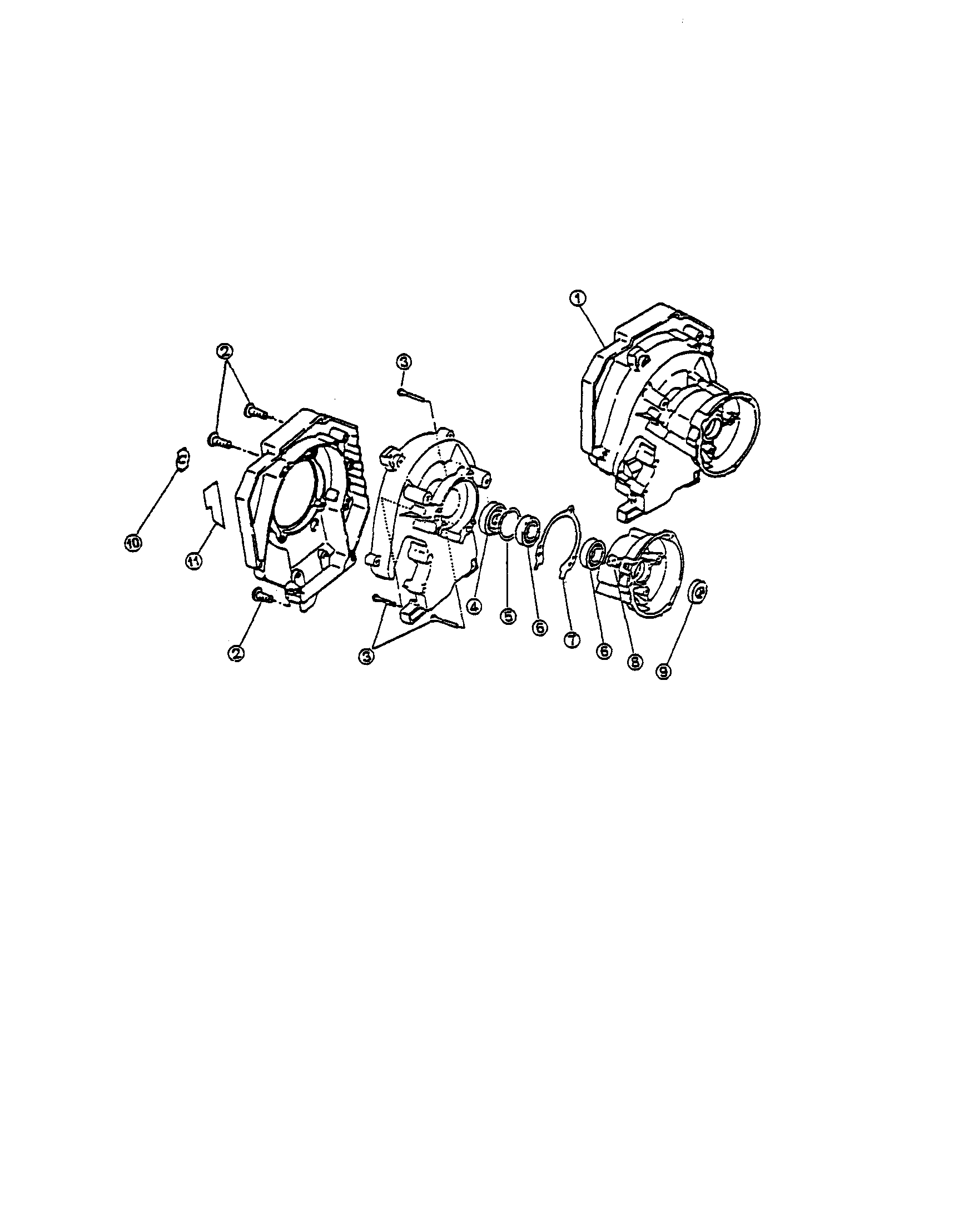

Crankcase system diagram

Crankcase assembly

Part #2440801

The manufacturer no longer makes this part, and there's no substitute part
