Craftsman
Front-Engine Lawn Tractor

Model # 247203716 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 247203716 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

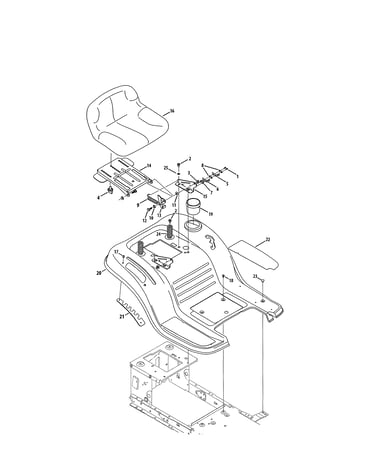

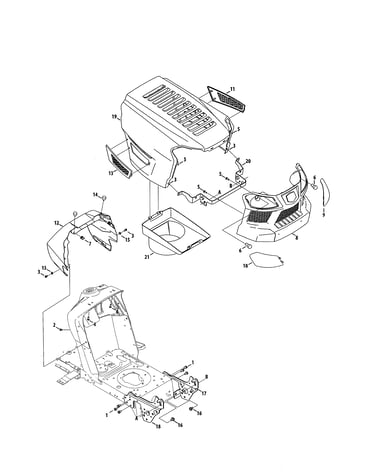

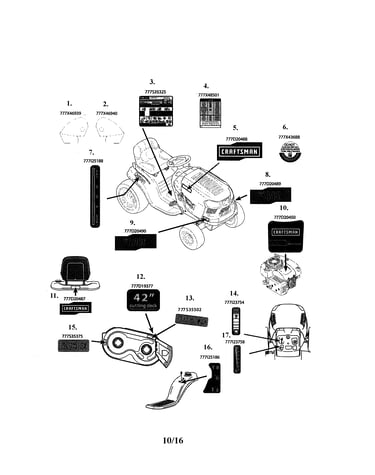

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 457 parts  |
Lawn Tractor 42-in Deck Bagging Blade 942-04308
#33

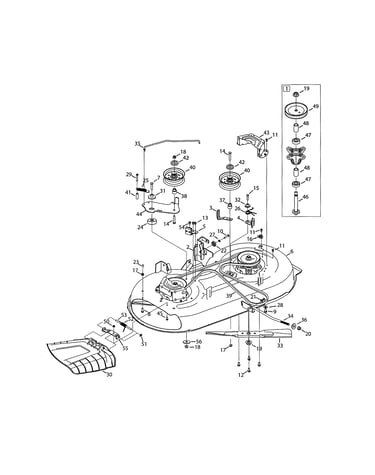

Deck/spindle pulley diagram

Lawn tractor 42-in deck bagging blade

Part #942-04308

Replaced by #942-04308A

?
Manufacturer substitution
This part replaces 942-04308. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.76 |
17% OFF Phone Price : $34.76
In Stock
Troybilt Lawn Tractor Blade Engagement Cable (replaces 946-05124) 946-05124A
#22

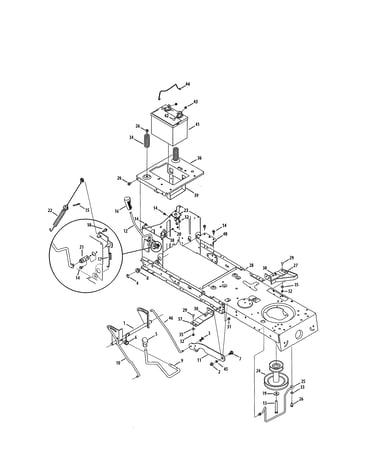

Frame/battery diagram

Troybilt lawn tractor blade engagement cable (replaces 946-05124)

Part #946-05124A

BEST SELLER
$33.04 |
15% OFF Phone Price : $39.04
In Stock
Lawn & Garden Equipment Cotter Pin, 1/4- To 5/16-in 714-04040
Lawn & garden equipment cotter pin, 1/4- to 5/16-in

Part #714-04040

BEST SELLER
This item is not returnable
$2.91 |
26% OFF Phone Price : $3.91
In Stock
Lawn & Garden Equipment Hex Flange Nut (replaces 753-05549, 912-0417a) 712-0417A
#19

Deck/spindle pulley diagram

Lawn & garden equipment hex flange nut (replaces 753-05549, 912-0417a)

Part #712-0417A

BEST SELLER
$8.00 |
11% OFF Phone Price : $9.00
In Stock
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.53 |
18% OFF Phone Price : $5.53
In Stock
Lawn Tractor Ignition Key 625-04124
#33

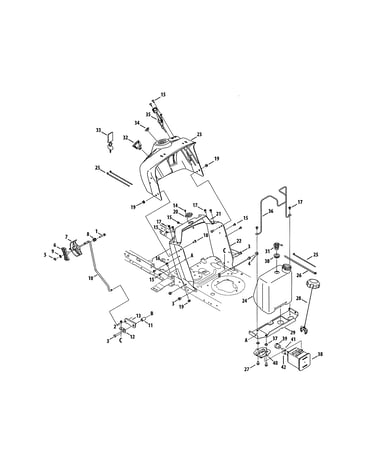

Fuel tank/dash panel diagram

Lawn tractor ignition key

Part #625-04124

Replaced by #925-1745A

?
Manufacturer substitution
This part replaces 625-04124. Substitute parts can look different from the original.
BEST SELLER
$19.56 |
9% OFF Phone Price : $21.56
In Stock
Ace Lawn & Garden Equipment Self-tapping Bolt, 5/16-18 X 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, Gw-7101260) 710-1260A
Ace lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, gw-7101260)

Part #710-1260A

BEST SELLER
This item is not returnable
$4.34 |
19% OFF Phone Price : $5.34
In Stock
Lawn Tractor Bearing (replaces 741-04124) 941-04124
#16

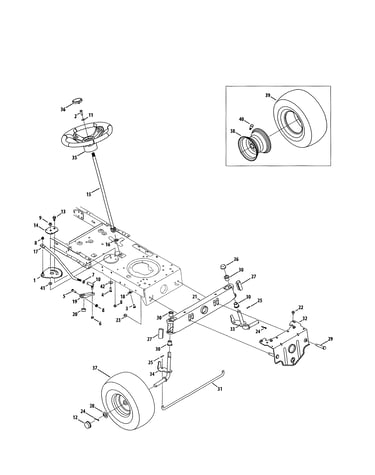

Steering/wheel diagram

Lawn tractor bearing (replaces 741-04124)

Part #941-04124

BEST SELLER
This item is not returnable
$6.10 |
14% OFF Phone Price : $7.10
In Stock
Lawn Tractor Steering Sector Gear 617-04094
#1

Steering/wheel diagram

Lawn tractor steering sector gear

Part #617-04094

BEST SELLER
$29.81 |
17% OFF Phone Price : $35.81
In Stock
Lawn Tractor Ground Drive Belt, 5/8 X 35-11/16-in 954-05040
#39

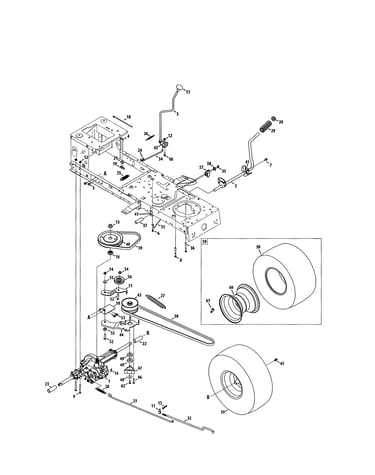

Transmission/wheel diagram

Lawn tractor ground drive belt, 5/8 x 35-11/16-in

Part #954-05040

Replaced by #490-501-Y087

?
Manufacturer substitution
This part replaces 954-05040. Substitute parts can look different from the original.
BEST SELLER
$27.66 |
18% OFF Phone Price : $33.66
In Stock
