Model # 315267380 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315267380 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

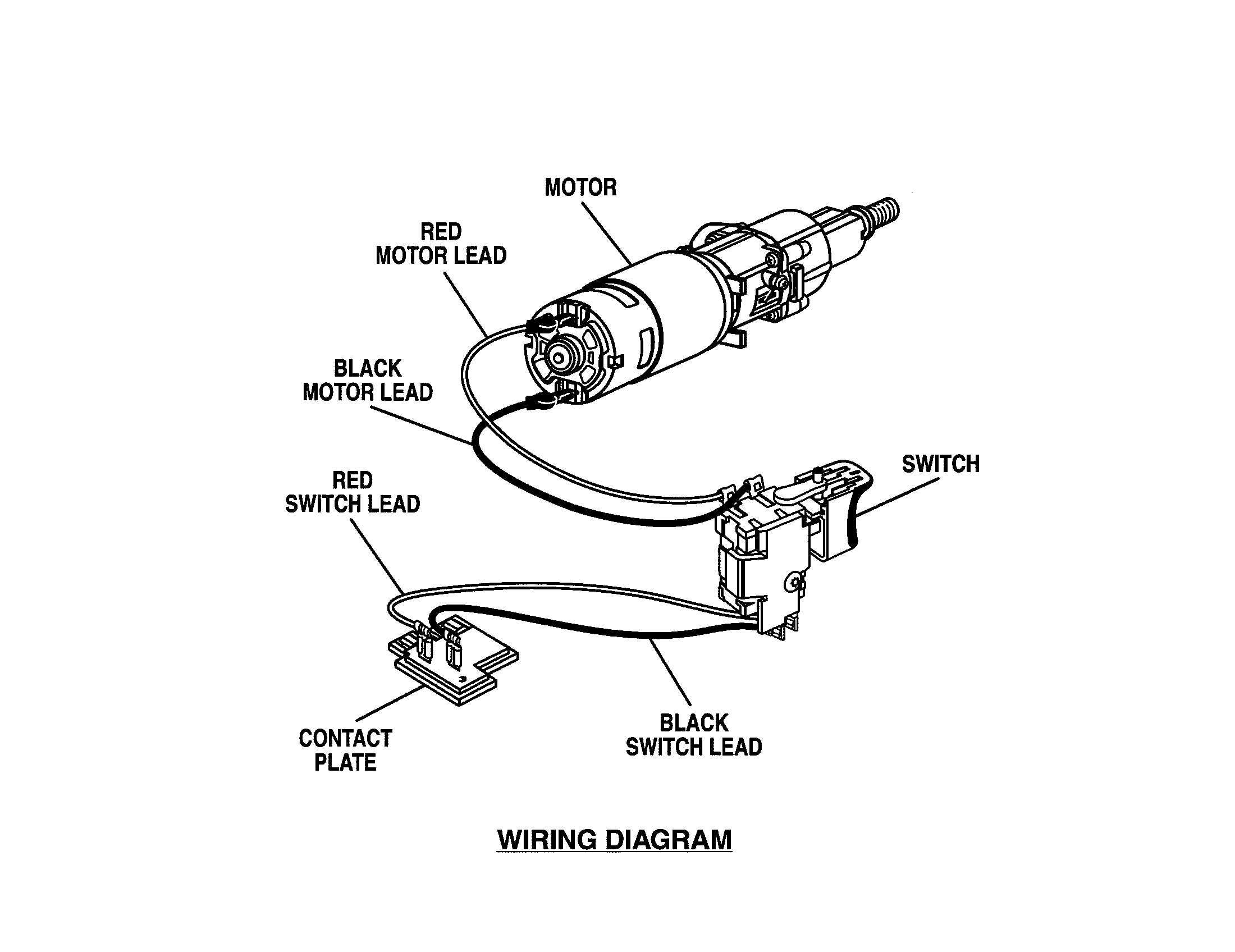

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Logo Plate 981501-001
#3

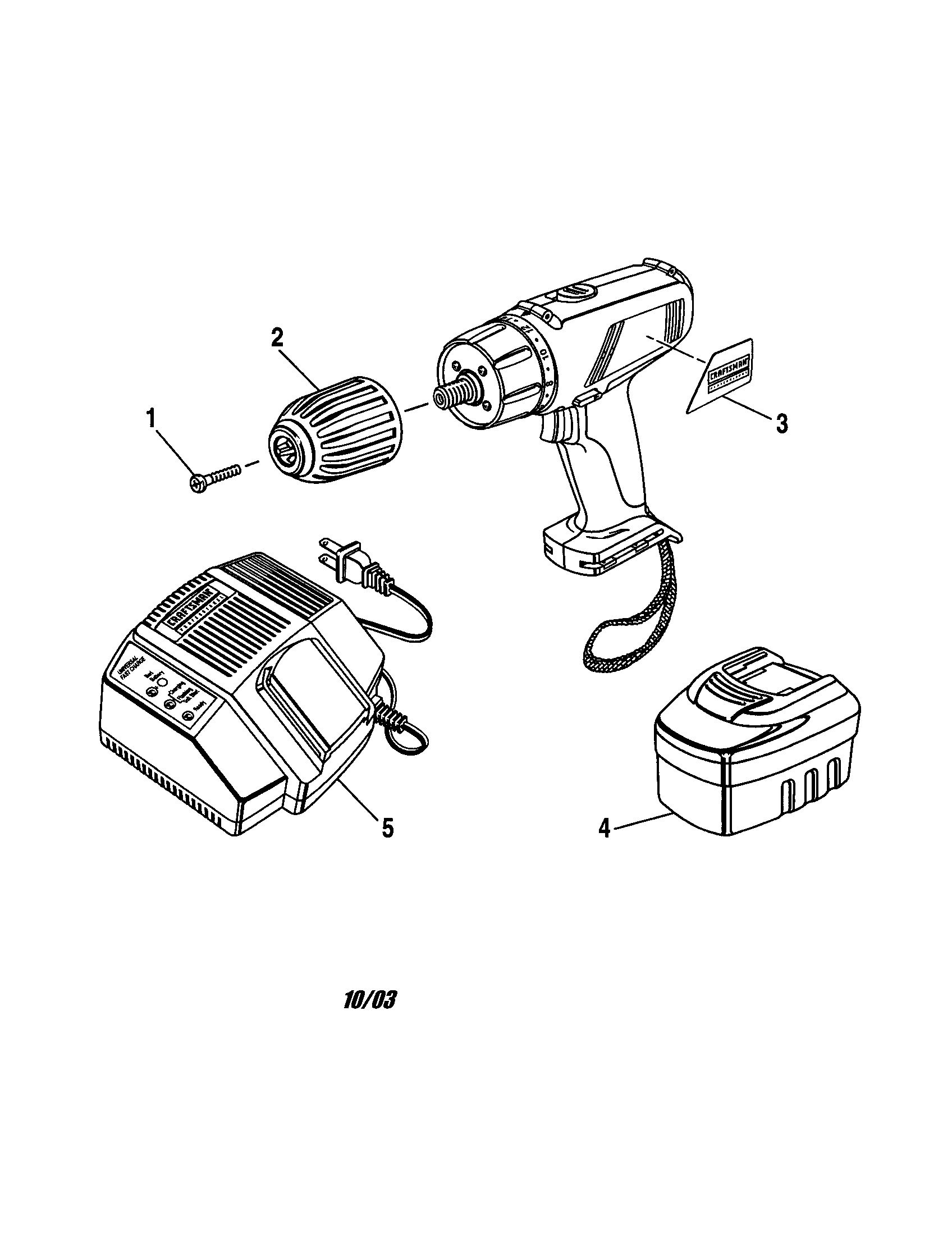

Charger/chuck/battery pack diagram

Logo plate

Part #981501-001

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Steel Ball 6721901
#4

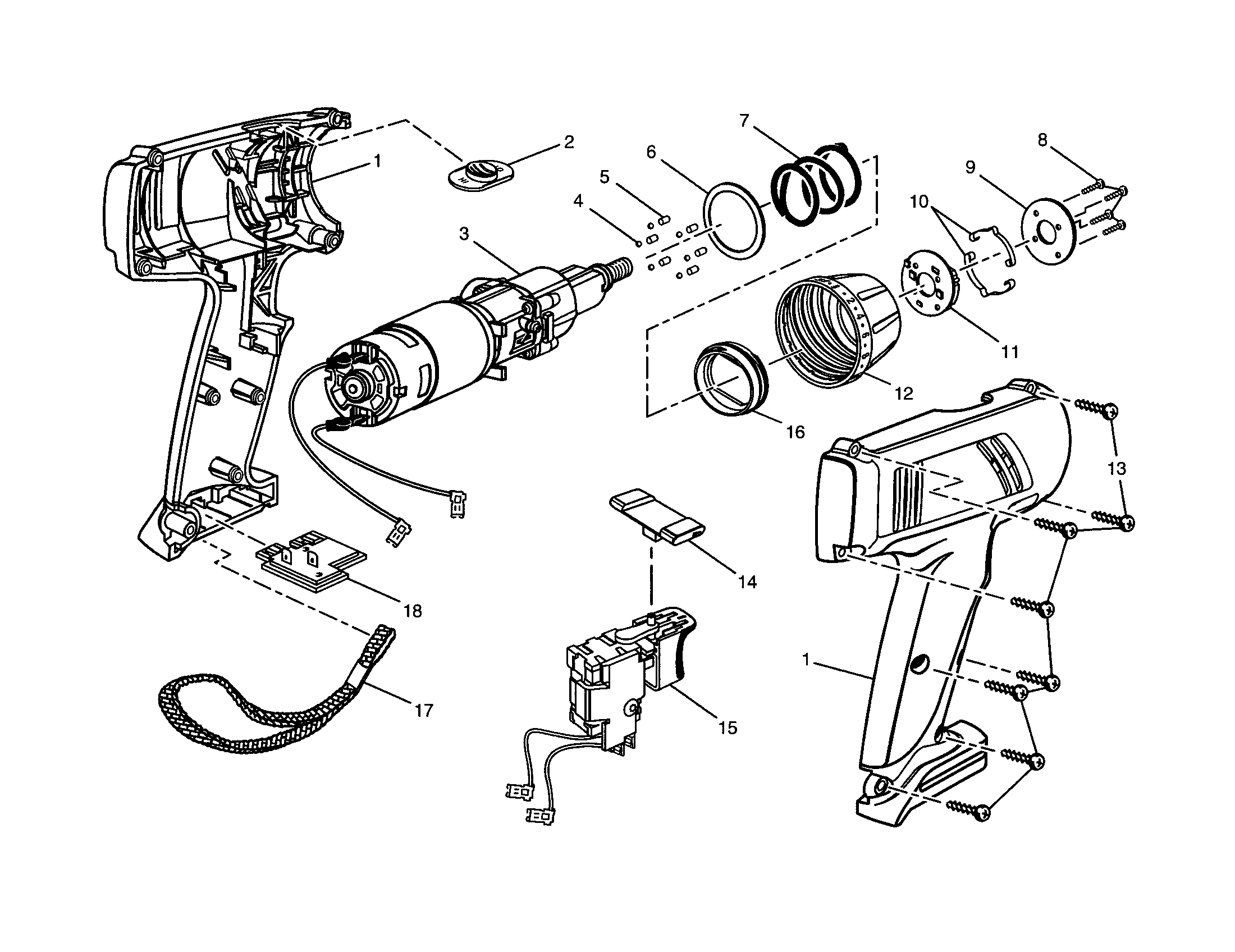

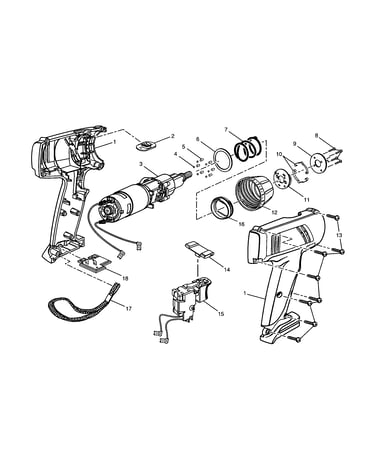

Housing diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620805
#13

Housing diagram

Screw

Part #6620805

The manufacturer no longer makes this part, and there's no substitute part

Charger 981399-001
#5

Charger/chuck/battery pack diagram

Charger

Part #981399-001

The manufacturer no longer makes this part, and there's no substitute part

Plate 3009961
#18

Housing diagram

Plate

Part #3009961

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 981403-001
#4

Charger/chuck/battery pack diagram

Battery pack

Part #981403-001

The manufacturer no longer makes this part, and there's no substitute part

Motor 983603-001
#3

Housing diagram

Motor

Part #983603-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 6872401
#7

Housing diagram

Spring

Part #6872401

The manufacturer no longer makes this part, and there's no substitute part

Housing 984698-001
#1

Housing diagram

Housing

Part #984698-001

The manufacturer no longer makes this part, and there's no substitute part

Retainer 6375301
#9

Housing diagram

Retainer

Part #6375301

The manufacturer no longer makes this part, and there's no substitute part
