Model # 867840211 Official Kenmore 265-v packaged terminal heat pump
Here are the diagrams and repair parts for Official Kenmore 867840211 265-v packaged terminal heat pump, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867840211 265-V Packaged Terminal Heat Pump

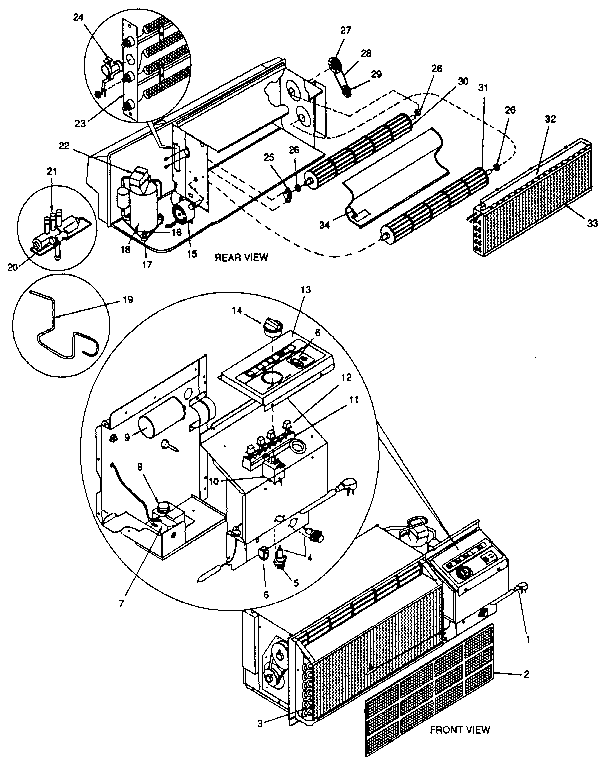

#21
Functional diagram
Rev valve
Part #1058469
Replaced by #V3-410080-770
?
Manufacturer substitution
This part replaces 1058469. Substitute parts can look different from the original.
$203.70
In Stock
#26
Functional diagram
Isolator bea
Part #1058987
The manufacturer no longer makes this part, and there's no substitute part

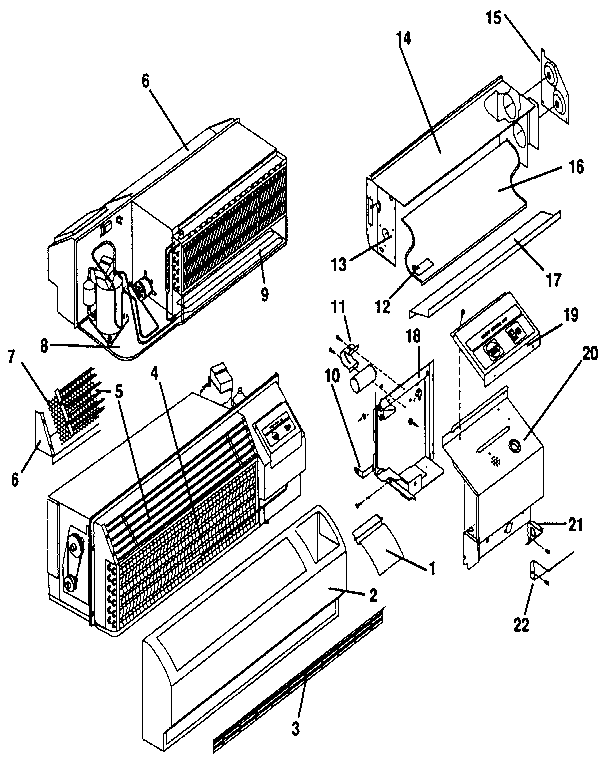

#16
Non functional diagram
Scroll blwr
Part #1059150
The manufacturer no longer makes this part, and there's no substitute part
#19
Non functional diagram
Plate ctl bo
Part #1058427
The manufacturer no longer makes this part, and there's no substitute part
#20
Non functional diagram
Cntl bx asy
Part #1058436
The manufacturer no longer makes this part, and there's no substitute part
#1
Non functional diagram
Control door
Part #1058430
The manufacturer no longer makes this part, and there's no substitute part
#4
Non functional diagram
Clip
Part #1058518
The manufacturer no longer makes this part, and there's no substitute part
#32
Functional diagram
Tray dist
Part #1058876
The manufacturer no longer makes this part, and there's no substitute part
#22
Non functional diagram
Plate jct bo
Part #1058426
The manufacturer no longer makes this part, and there's no substitute part
#18
Non functional diagram
Wall divider
Part #1062001
The manufacturer no longer makes this part, and there's no substitute part
