Amana
Gas Range

Model # DCF3315AC Official Amana gas freestanding range

Here are the diagrams and repair parts for Official Amana DCF3315AC gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

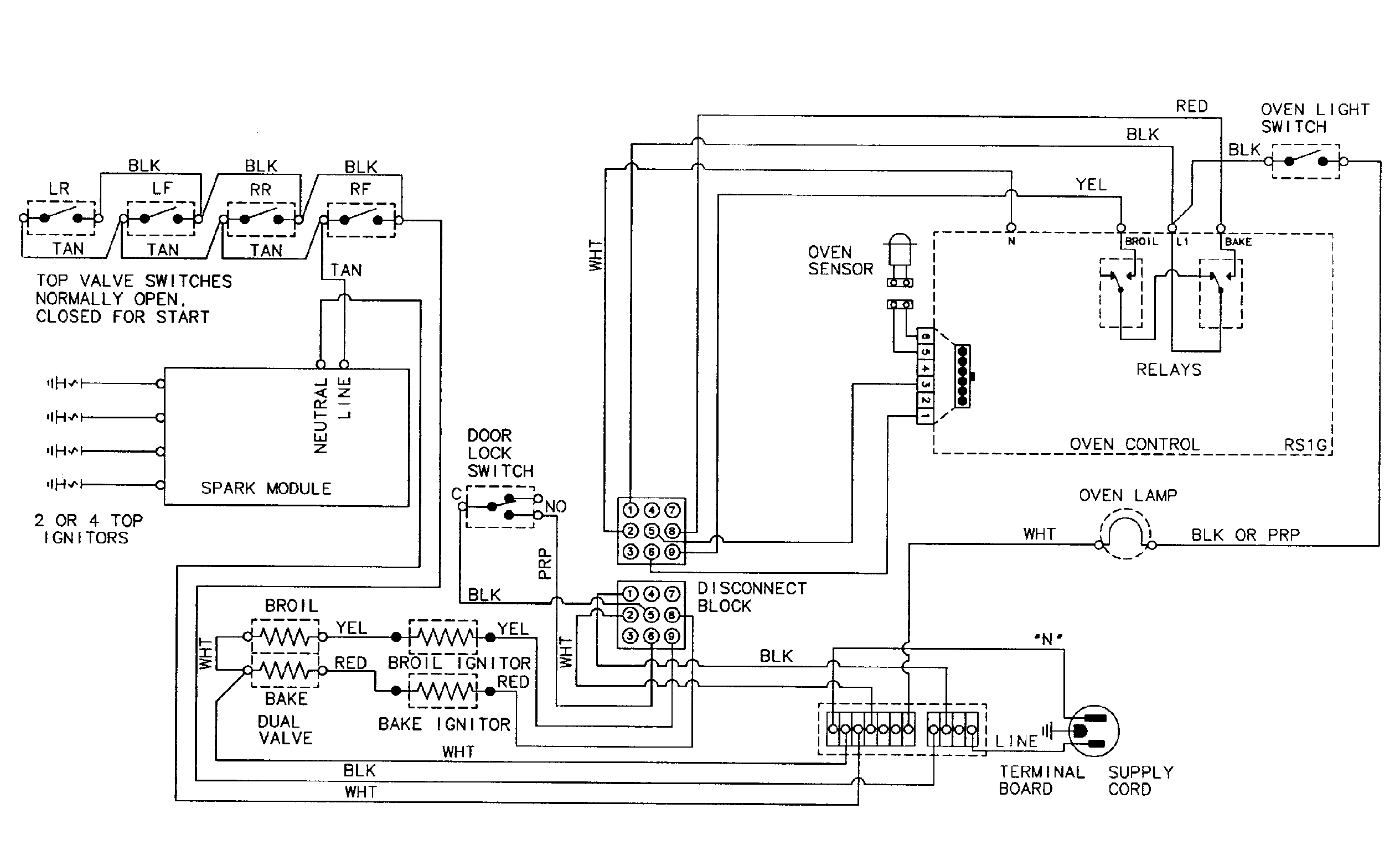

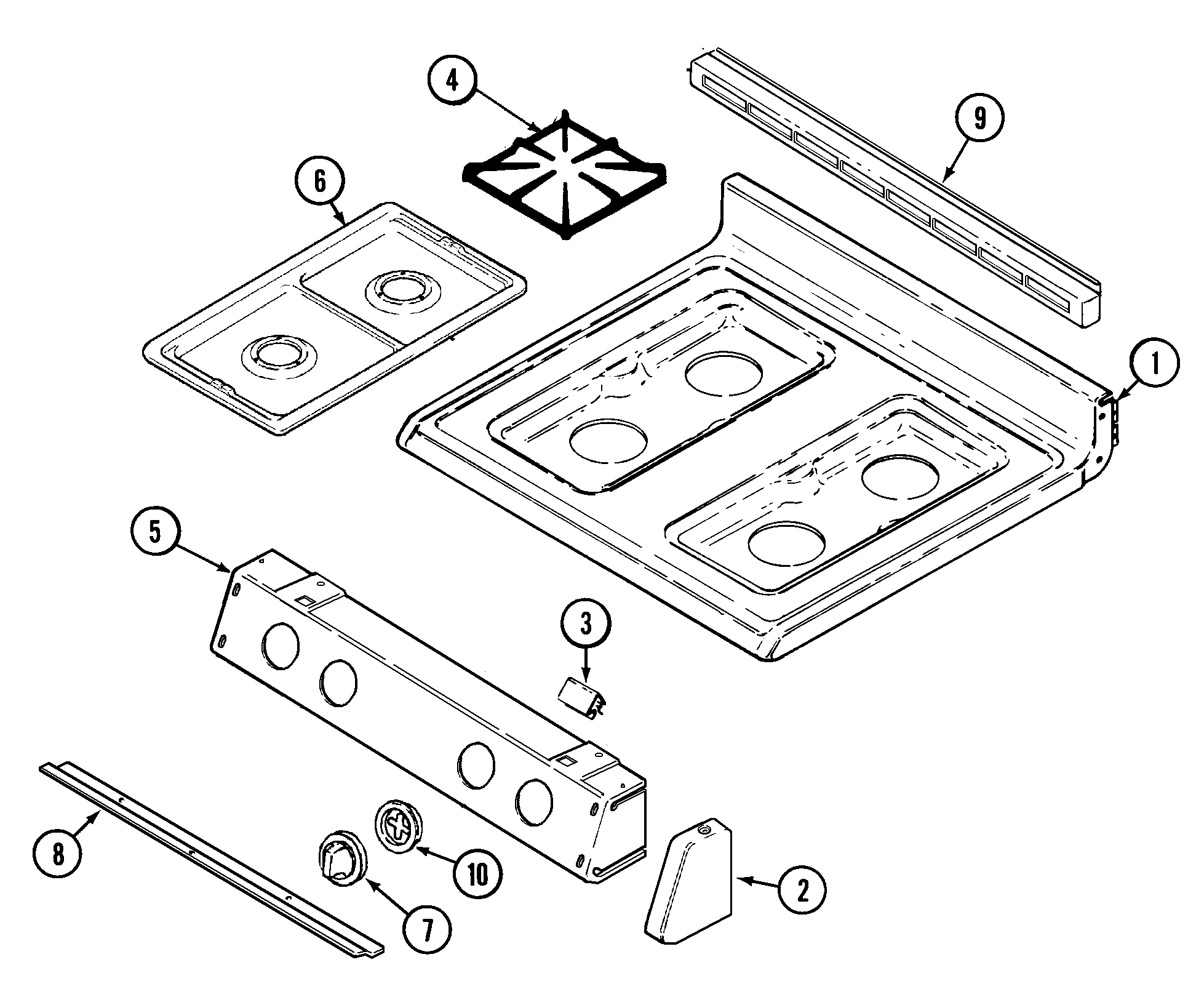

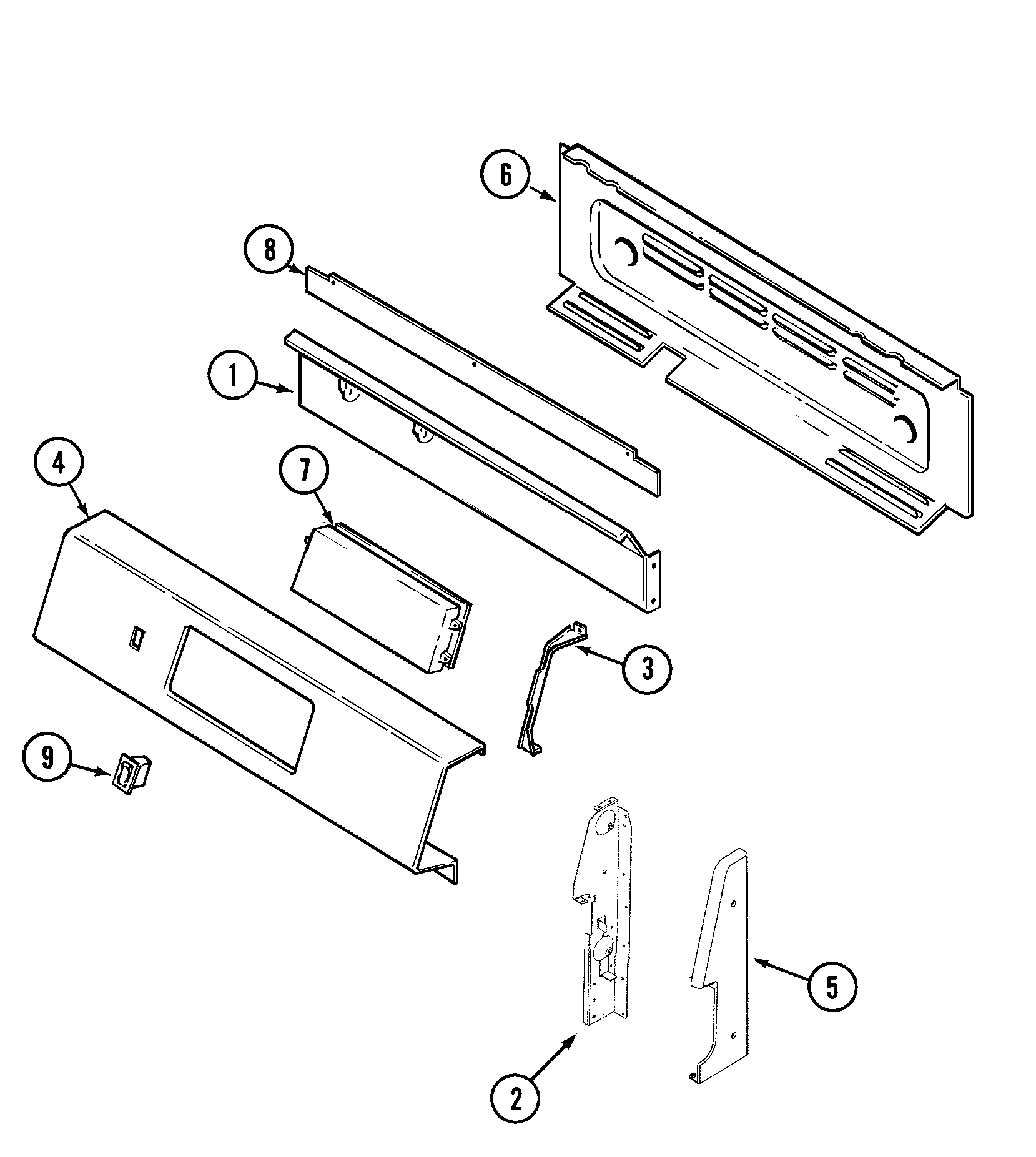

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Oven Bulb 7407P103-60
#10

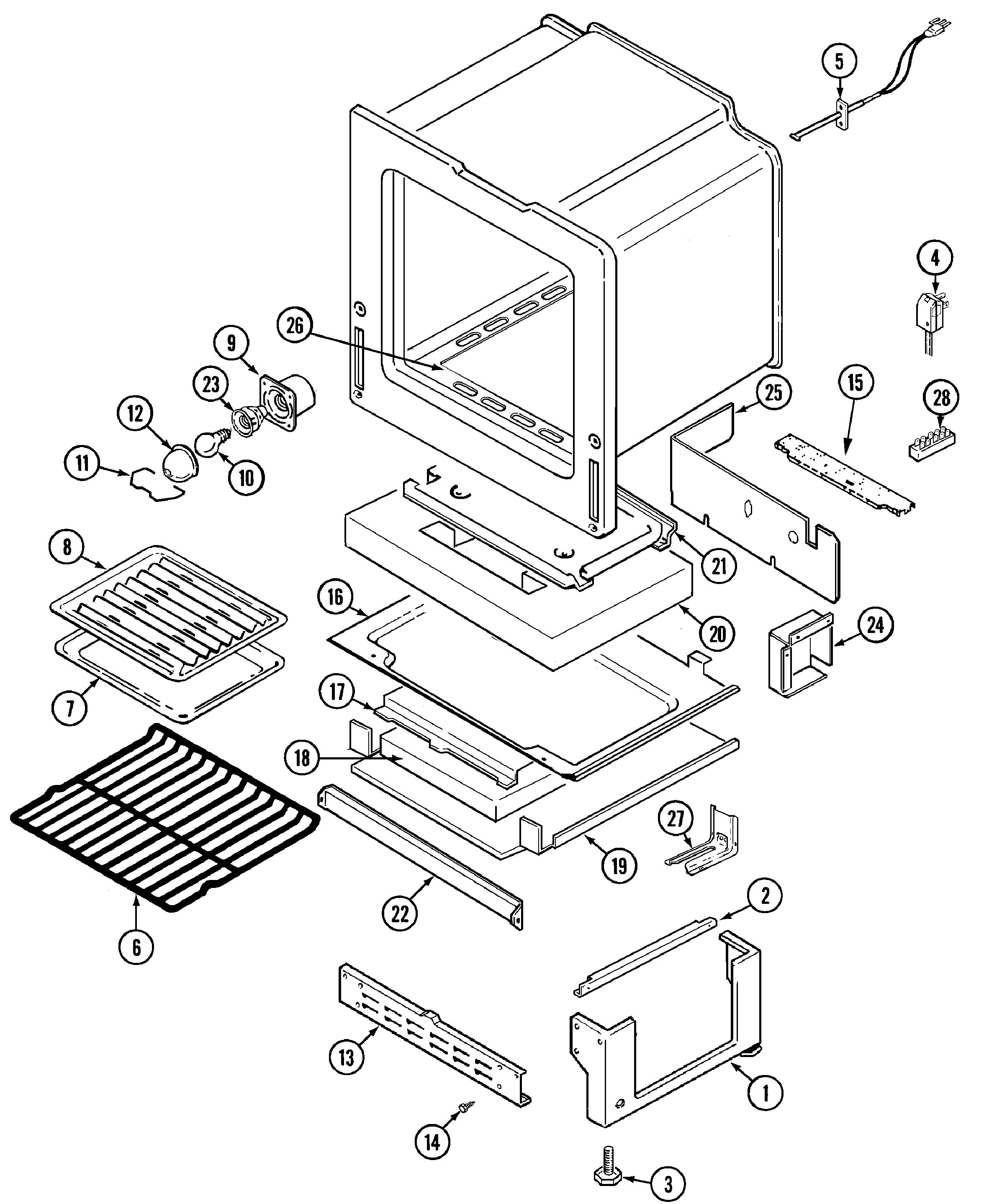

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Igniter 7432P075-60
#9

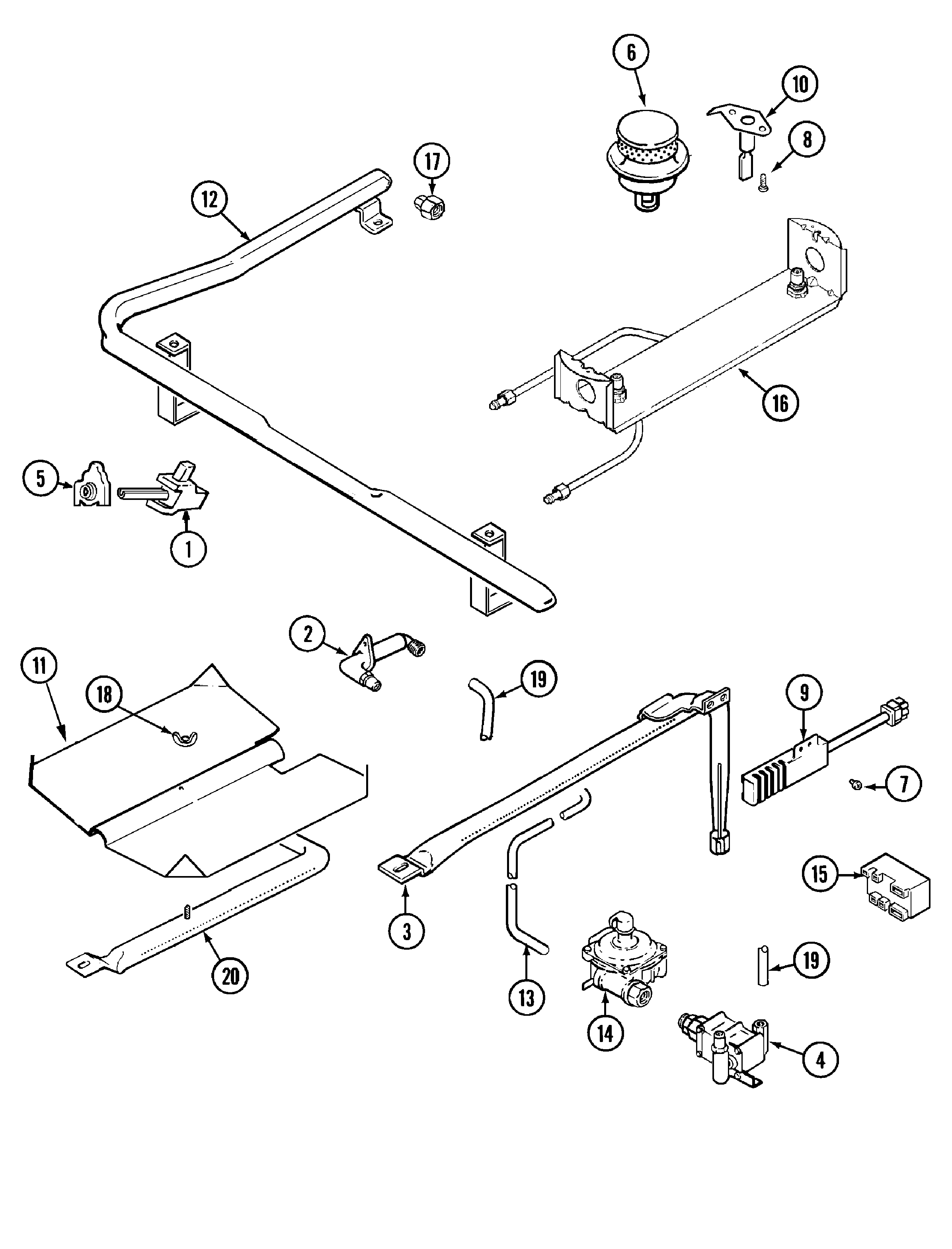

Gas controls diagram

Igniter

Part #7432P075-60

Replaced by #74007498

?
Manufacturer substitution
This part replaces 7432P075-60. Substitute parts can look different from the original.
BEST SELLER
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Oven Sensor 74004944
#5

Oven/base diagram

Oven sensor

Part #74004944

Replaced by #12001655

?
Manufacturer substitution
This part replaces 74004944. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Oven Seal 7201P046-60
#1A

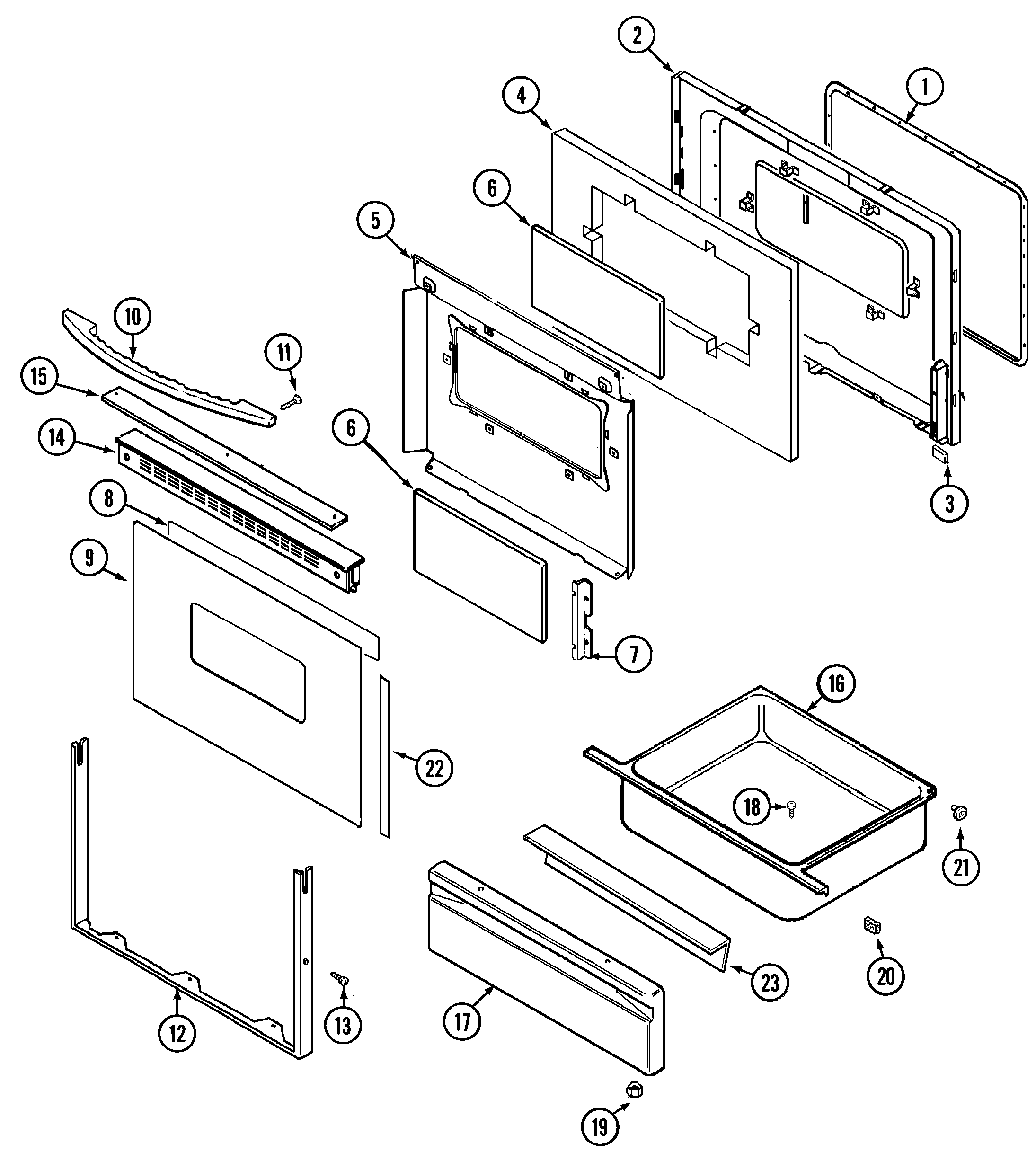

Door/drawer diagram

Oven seal

Part #7201P046-60

The manufacturer no longer makes this part, and there's no substitute part

Screw 7101P338-60
Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P282-60
Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Lever Screw 7101P230-60
#13

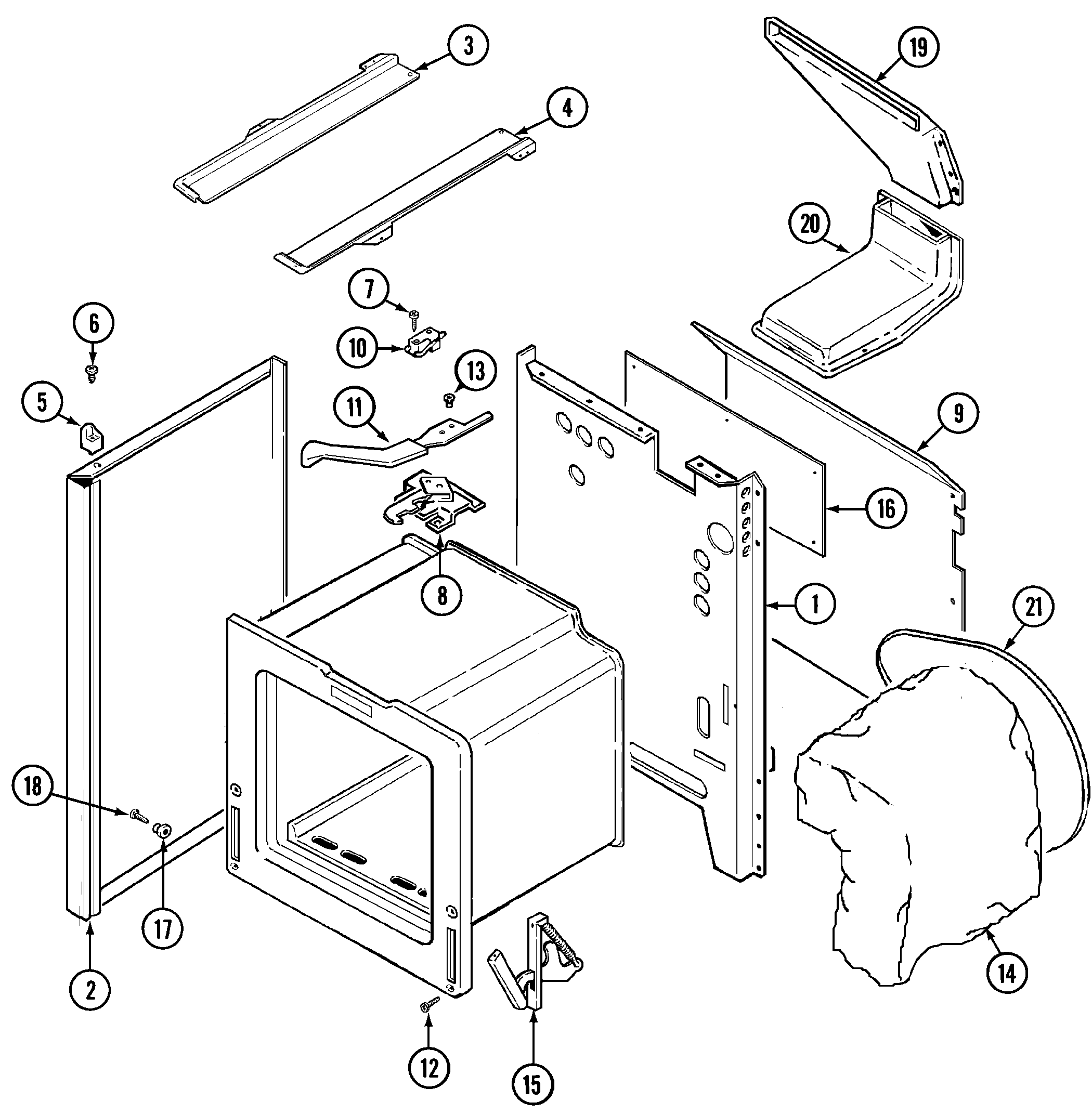

Body diagram

Lever screw

Part #7101P230-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P230-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Screw 74003004
#18A

Body diagram

Oven screw

Part #74003004

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 74003004. Substitute parts can look different from the original.
$13.06
In Stock
Bracket, Ant 74005564
#27

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Burner Kit 12001496
#6

Gas controls diagram

Burner kit

Part #12001496

The manufacturer no longer makes this part, and there's no substitute part
