Model # MU12CN Official Mitsubishi split-type air conditioner

Here are the diagrams and repair parts for Official Mitsubishi MU12CN split-type air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Prplr Blde R01093115
#6

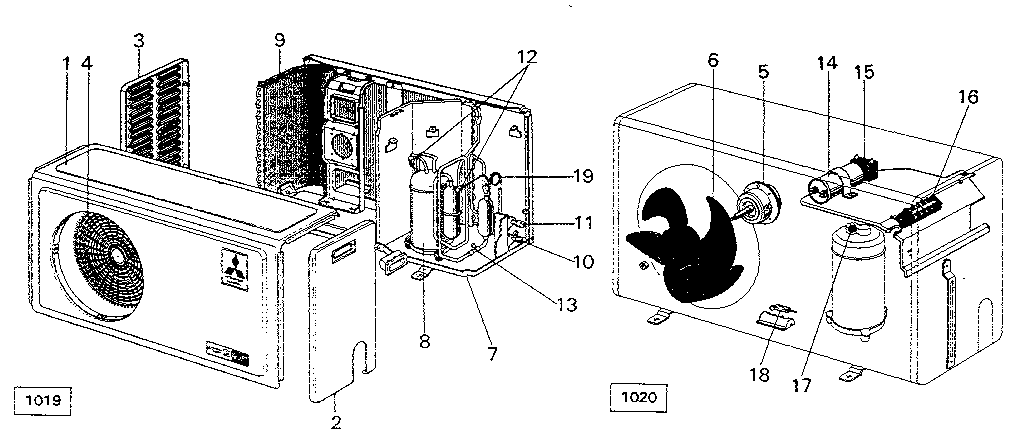

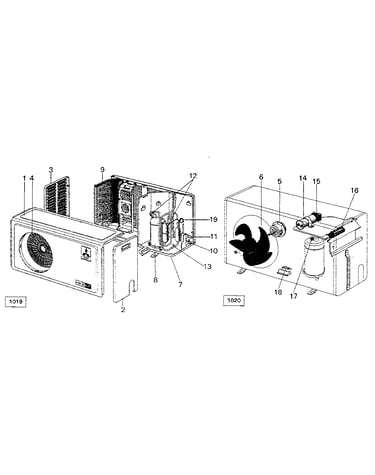

Outdoor unit diagram

Prplr blde

Part #R01093115

The manufacturer no longer makes this part, and there's no substitute part

Cabinet T2W510232
#1

Outdoor unit diagram

Cabinet

Part #T2W510232

The manufacturer no longer makes this part, and there's no substitute part

Motor Prtctr T2W394330
#17

Outdoor unit diagram

Motor prtctr

Part #T2W394330

The manufacturer no longer makes this part, and there's no substitute part

Compressor T2W521661
#11

Outdoor unit diagram

Compressor

Part #T2W521661

The manufacturer no longer makes this part, and there's no substitute part

Fusble Plug T2W416642
#13

Outdoor unit diagram

Fusble plug

Part #T2W416642

The manufacturer no longer makes this part, and there's no substitute part

Heat Exchanger T2W516630
#9

Outdoor unit diagram

Heat exchanger

Part #T2W516630

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Tdr Fn Thrm M21G14309
#18

Outdoor unit diagram

Mitsubishi tdr fn thrm

Part #M21G14309

The manufacturer no longer makes this part, and there's no substitute part

Base Assmy T2W523290
#7

Outdoor unit diagram

Base assmy

Part #T2W523290

The manufacturer no longer makes this part, and there's no substitute part

Comp Capctr T2W500353
#14

Outdoor unit diagram

Comp capctr

Part #T2W500353

The manufacturer no longer makes this part, and there's no substitute part

Chrge Plug T2W457641
#12

Outdoor unit diagram

Chrge plug

Part #T2W457641

The manufacturer no longer makes this part, and there's no substitute part
