Kenmore
Air Purifier

Model # 6358314701 Official Kenmore electronic air cleaner

Here are the diagrams and repair parts for Official Kenmore 6358314701 electronic air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

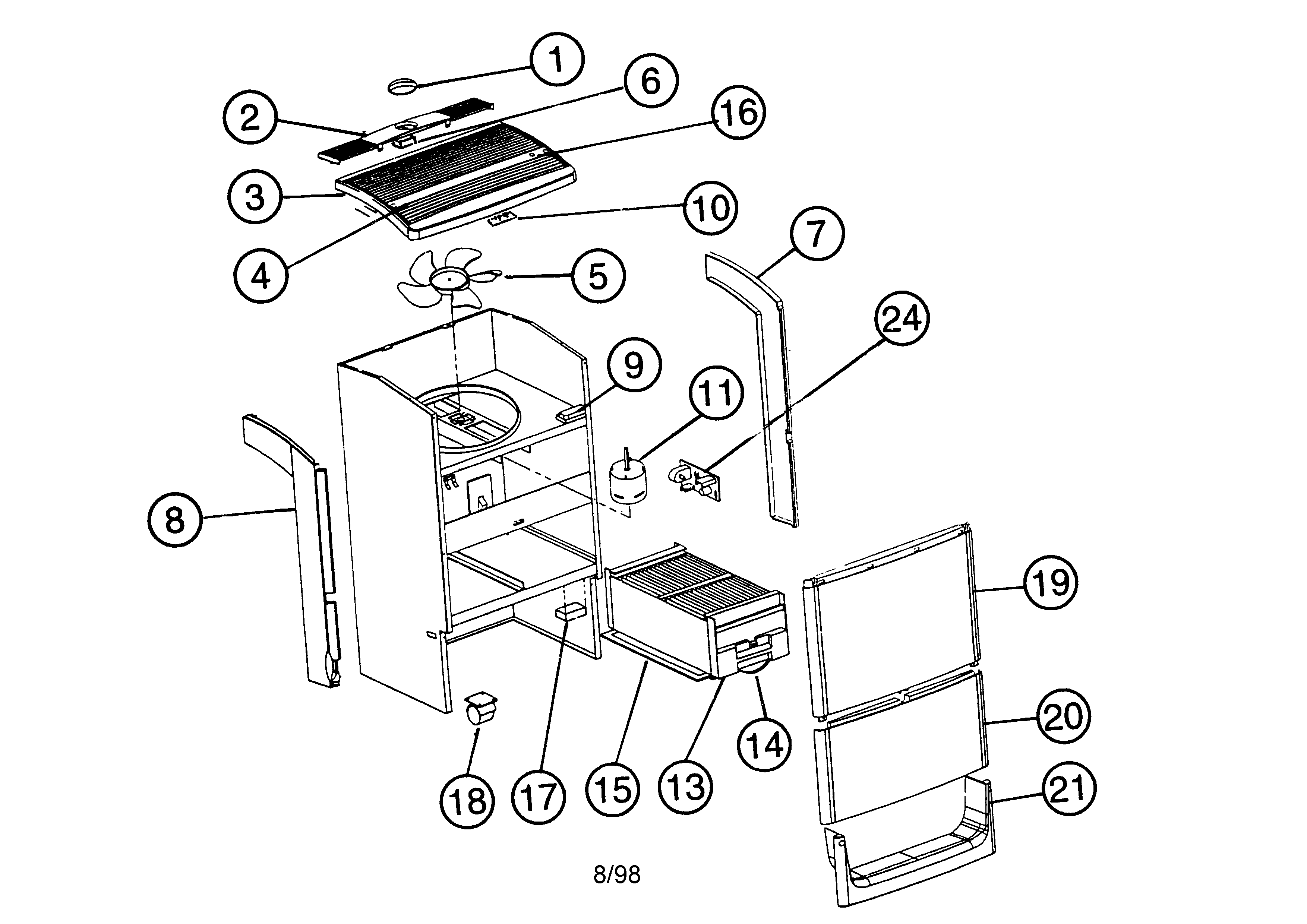

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Filter 350074-001
#13

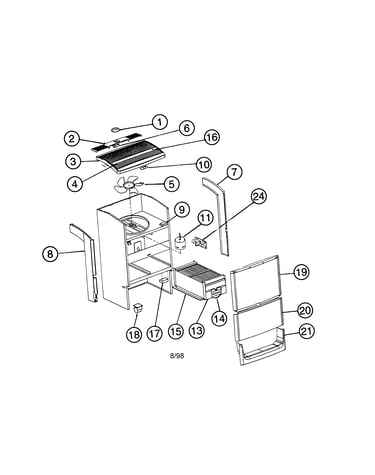

None diagram

Filter

Part #350074-001

The manufacturer no longer makes this part, and there's no substitute part

Caster 245998-001
#18

None diagram

Caster

Part #245998-001

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 250250-001
#22

None diagram

Power cord

Part #250250-001

The manufacturer no longer makes this part, and there's no substitute part

Panel 450043-001
#19

None diagram

Panel

Part #450043-001

The manufacturer no longer makes this part, and there's no substitute part

Motor 250243-002
#11

None diagram

Motor

Part #250243-002

The manufacturer no longer makes this part, and there's no substitute part

Generator 150970-008
#9

None diagram

Generator

Part #150970-008

The manufacturer no longer makes this part, and there's no substitute part

Grill 450038-001
#3

None diagram

Grill

Part #450038-001

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 150255-002
#23

None diagram

Owner's manual

Part #150255-002

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 450039-001
#2

None diagram

Control panel

Part #450039-001

The manufacturer no longer makes this part, and there's no substitute part

Supply-pwr 252565-002
#24

None diagram

Supply-pwr

Part #252565-002

The manufacturer no longer makes this part, and there's no substitute part
