Electric Walk-Behind Mower

Model # LM1900 Official Black & Decker lawn mower

Here are the diagrams and repair parts for Official Black & Decker LM1900 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Black & Decker Screw 239382-00
#47

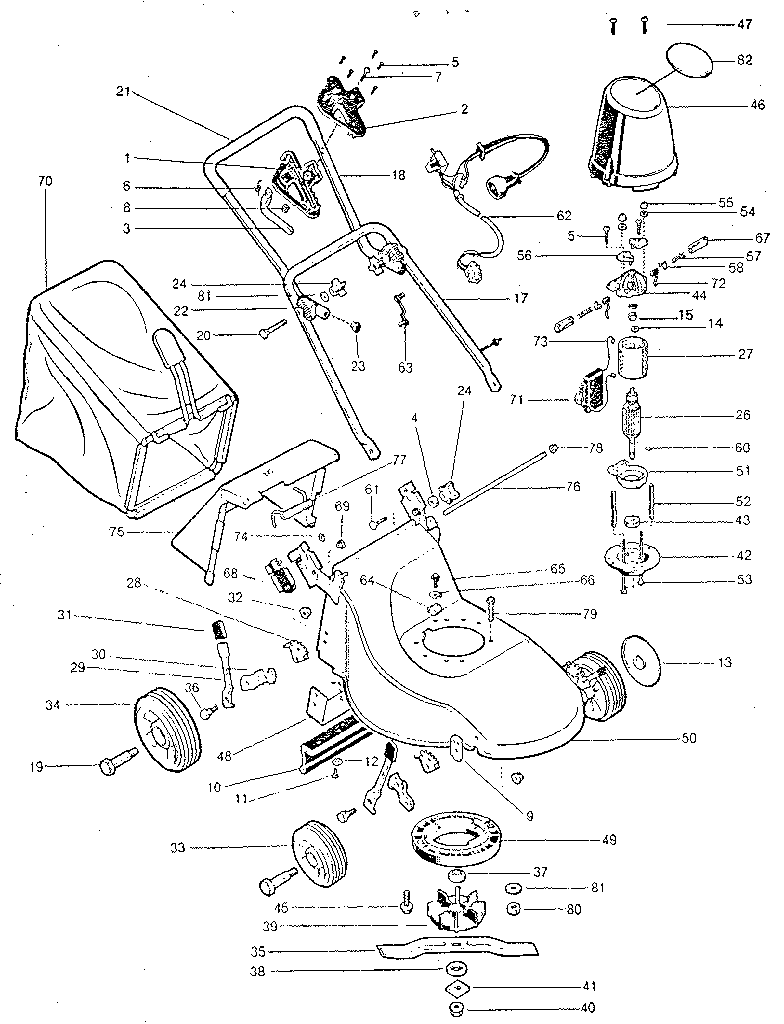

Replacement parts diagram

Black & decker screw

Part #239382-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Lever 241201-00
#29

Replacement parts diagram

Lawn mower lever

Part #241201-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Lawn Mower Pivot Bolt 241204-01
#20

Replacement parts diagram

Black & decker lawn mower pivot bolt

Part #241204-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Motor Mount 241083-00
#49

Replacement parts diagram

Black & decker motor mount

Part #241083-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Handle Insulator 241177-00
#68

Replacement parts diagram

Black & decker handle insulator

Part #241177-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Deck 241153-01
#50

Replacement parts diagram

Black & decker deck

Part #241153-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Pivot 241151-00
#22

Replacement parts diagram

Black & decker pivot

Part #241151-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Pivot Bolt 241204-00
#61

Replacement parts diagram

Black & decker pivot bolt

Part #241204-00

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Screw 99292-16
#7

Replacement parts diagram

Lawn mower screw

Part #99292-16

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lawn Mower Blade Spacer, Lower 92715-00
#41

Replacement parts diagram

Dewalt lawn mower blade spacer, lower

Part #92715-00

The manufacturer no longer makes this part, and there's no substitute part
