Model # 24B-060F766 Official Troybilt chipper/shredder vacuum & hose

Here are the diagrams and repair parts for Official Troybilt 24B-060F766 chipper/shredder vacuum & hose, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
#15

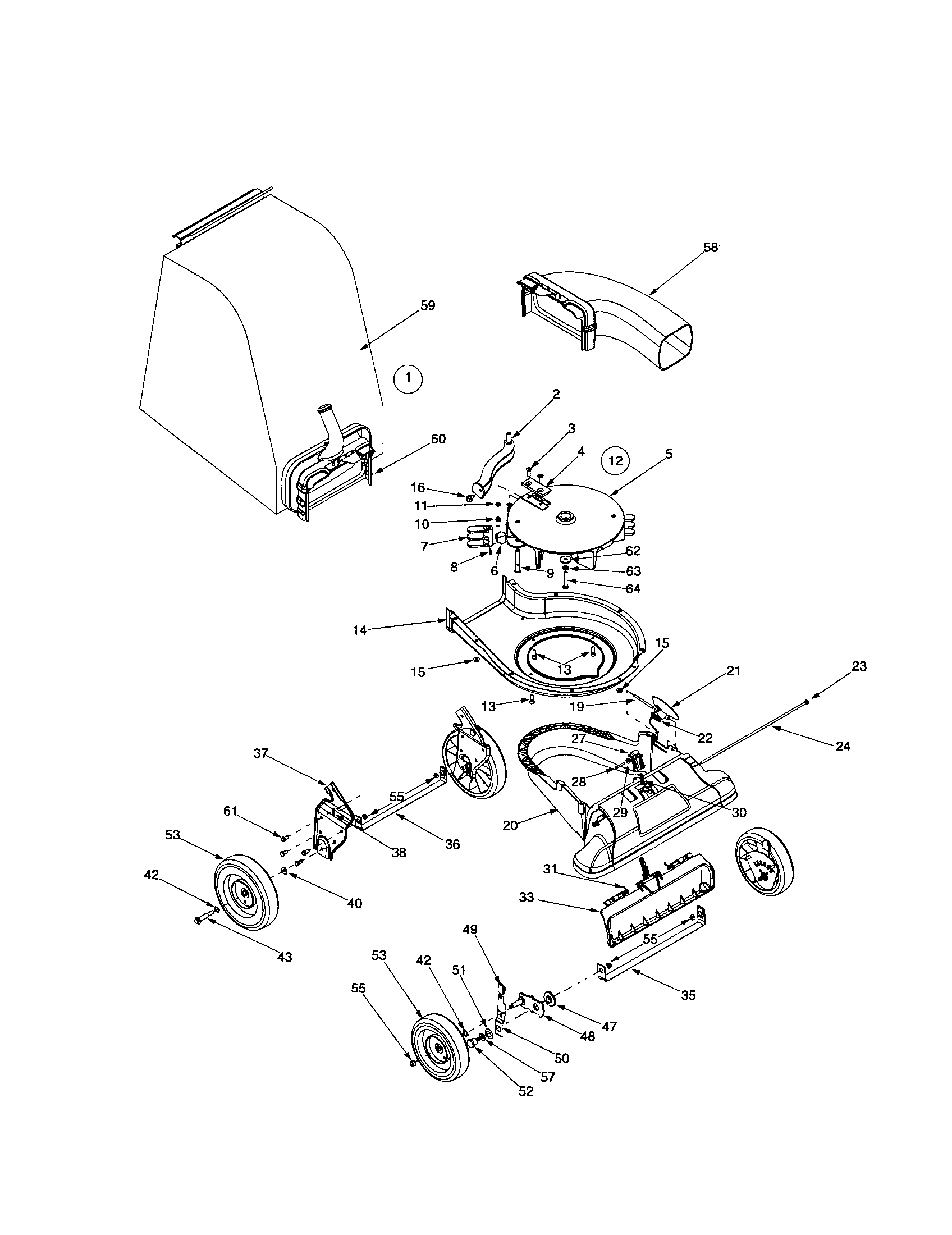

Bag/impeller/nozzle diagram

Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
#46

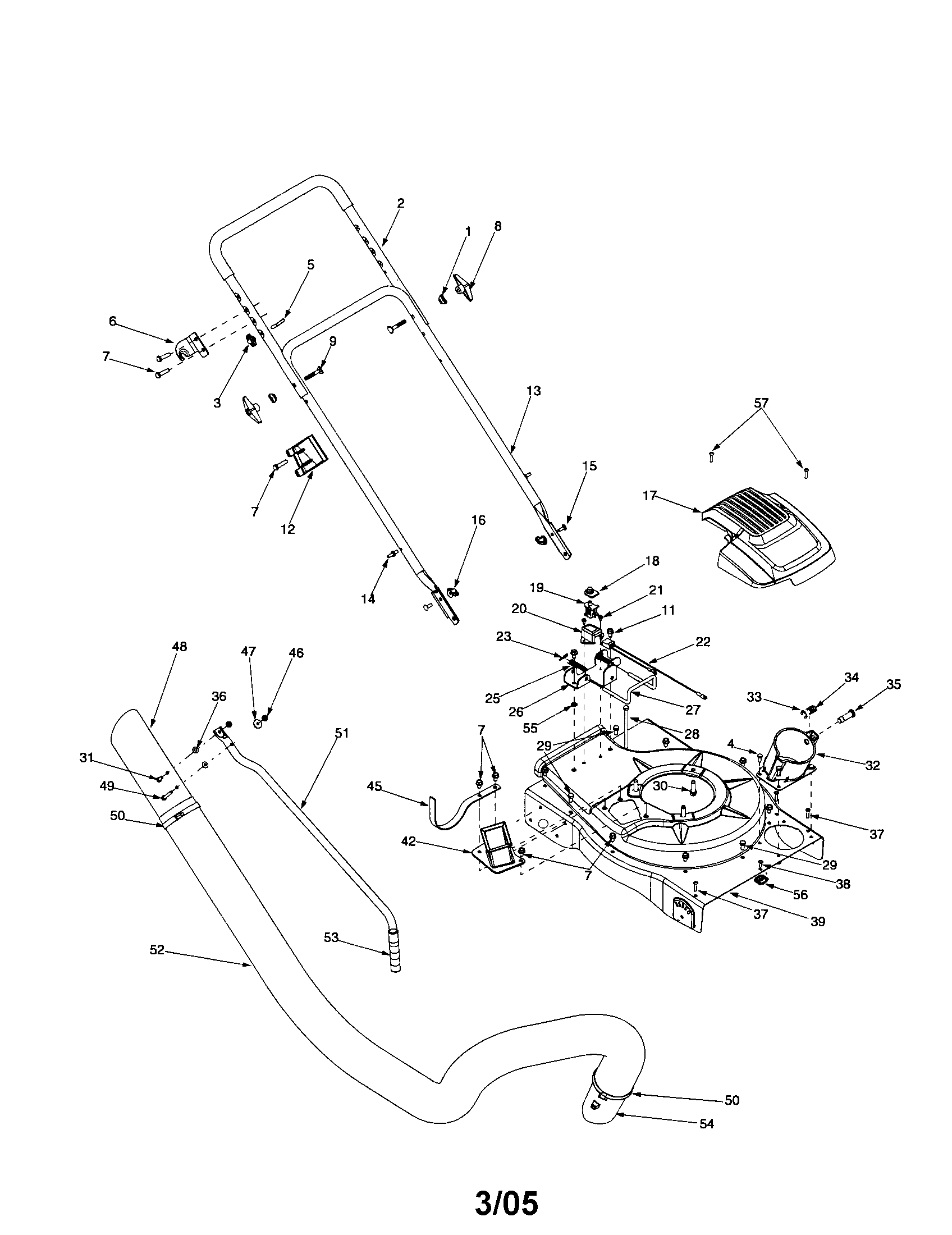

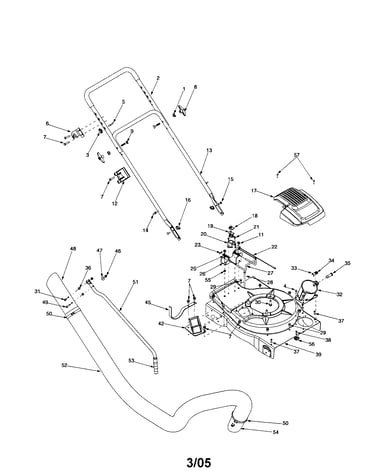

Hose/handle/shroud diagram

Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
Back Order
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#4

Hose/handle/shroud diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Knob Assembly 720-0241
#8

Hose/handle/shroud diagram

Knob assembly

Part #720-0241

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-0241. Substitute parts can look different from the original.
BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Chipper/shredder Flail Blade 719-0329
#7

Bag/impeller/nozzle diagram

Chipper/shredder flail blade

Part #719-0329

Get free shipping with Automatic Reorder

$32.18 |
16% OFF Phone Price : $38.18
In Stock
Lock Washer 736-0119
#11

Bag/impeller/nozzle diagram

Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Wing Nut 712-0397
#16

Hose/handle/shroud diagram

Wing nut

Part #712-0397

Replaced by #712-0397A

?
Manufacturer substitution
This part replaces 712-0397. Substitute parts can look different from the original.
This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Yard-man Lawn Vacuum Chipper/shredder Blower Chute (replaces 631-0090) OEM-290-012
#58

Bag/impeller/nozzle diagram

Yard-man lawn vacuum chipper/shredder blower chute (replaces 631-0090)

Part #OEM-290-012

$106.12 |
10% OFF Phone Price : $118.12
In Stock
Hose-vac 4 764-0648
#52

Hose/handle/shroud diagram

Hose-vac 4

Part #764-0648

Replaced by #764-0648A

?
Manufacturer substitution
This part replaces 764-0648. Substitute parts can look different from the original.
$143.30 |
8% OFF Phone Price : $155.30
In Stock
Lawn & Garden Equipment Hex Cap Screw 710-0751
#31

Hose/handle/shroud diagram

Lawn & garden equipment hex cap screw

Part #710-0751

This item is not returnable
$5.12 |
16% OFF Phone Price : $6.12
In Stock
