Model # MFC-4500 Official Brother fax machine

Here are the diagrams and repair parts for Official Brother MFC-4500 fax machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Label 2, Tfe/templates/s/t/communications/help Files, For Nb-60/nb-80c Nsp N/P
Label 2, tfe/templates/s/t/communications/help files, for nb-60/nb-80c nsp

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Cover UL6955001

#NI

All parts diagram

Cover

Part #UL6955001

The manufacturer no longer makes this part, and there's no substitute part

Screw UF6559001
#50

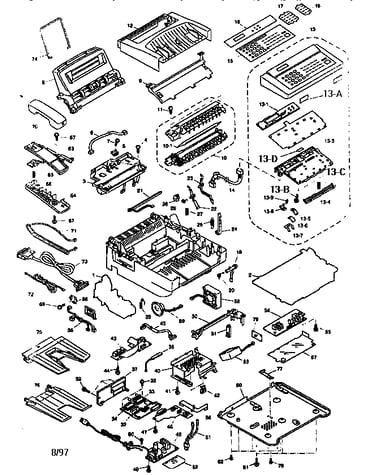

Unit diagram

Screw

Part #UF6559001

The manufacturer no longer makes this part, and there's no substitute part

Main Motor UF7090001
#53

Unit diagram

Main motor

Part #UF7090001

The manufacturer no longer makes this part, and there's no substitute part

Panel Pcb UF7325003
#13-1B

Unit diagram

Panel pcb

Part #UF7325003

The manufacturer no longer makes this part, and there's no substitute part

Harness UG4032001
#1-D

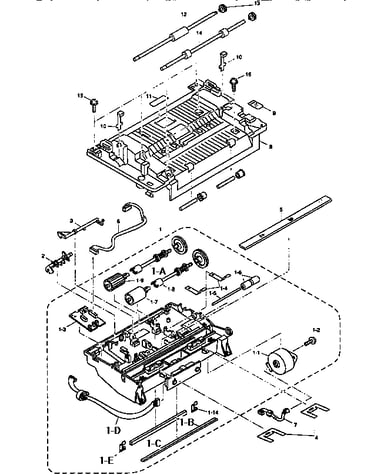

Scanning frame diagram

Harness

Part #UG4032001

The manufacturer no longer makes this part, and there's no substitute part

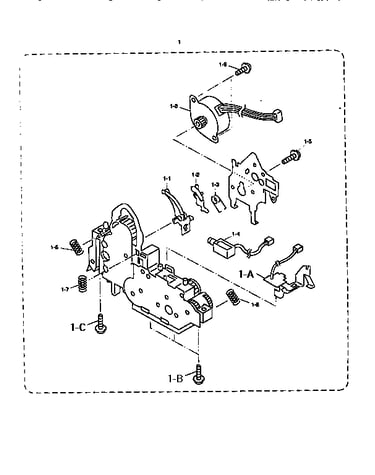

Roller Assembly UF7019001
#1-A

Scanning frame diagram

Roller assembly

Part #UF7019001

The manufacturer no longer makes this part, and there's no substitute part

Fpc Key As UF7305001
#13-2A

Unit diagram

Fpc key as

Part #UF7305001

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly UF7326001
#13A

Unit diagram

Panel assembly

Part #UF7326001

The manufacturer no longer makes this part, and there's no substitute part

Frame UF7320001
#1

Scanning frame diagram

Frame

Part #UF7320001

The manufacturer no longer makes this part, and there's no substitute part
