GE
Electric Cooktop

Model # ZHU30RDP3BB Official GE electric cooktop

Here are the diagrams and repair parts for Official GE ZHU30RDP3BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

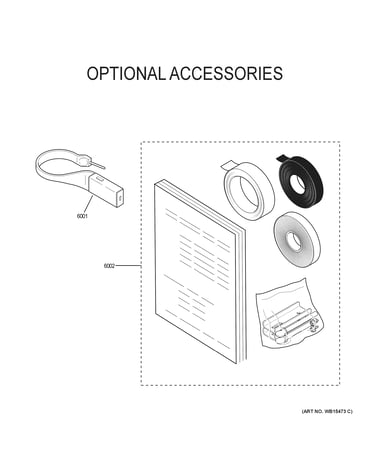

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Element Induction 3700w WB30X38227
#13

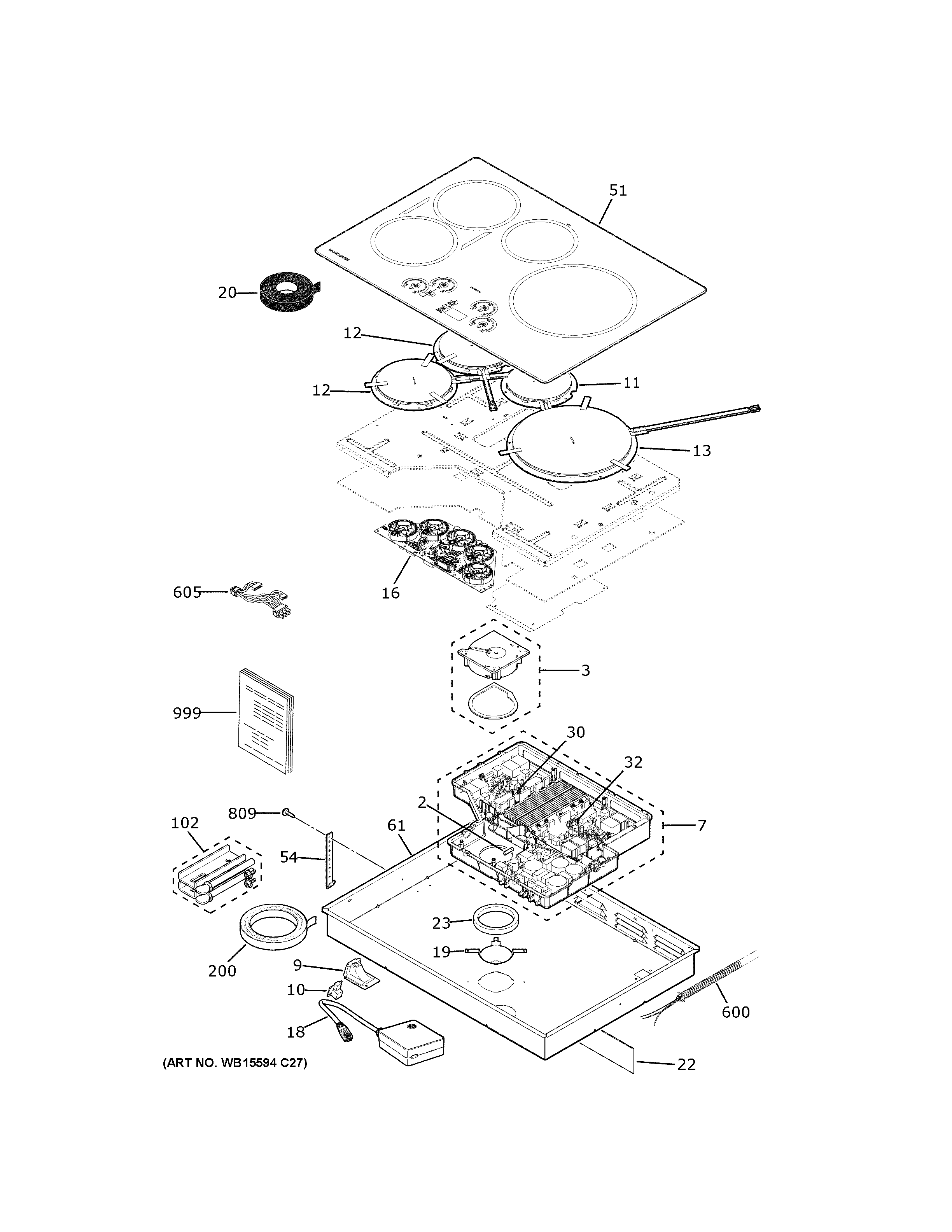

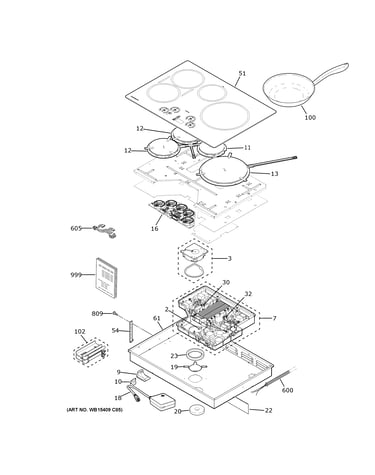

Control panel & cooktop diagram

Element induction 3700w

Part #WB30X38227

$111.10
In Stock
Cooktop Gas Blower WB26X24235
#3

Control panel & cooktop diagram

Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Fan WB02X24262
#19

Control panel & cooktop diagram

Fan

Part #WB02X24262

$8.71
In Stock
Wire Harness Gnd WB18X44582
#605

Control panel & cooktop diagram

Wire harness gnd

Part #WB18X44582

$11.29
In Stock
Right Generator Board WB27X44892
#32

Control panel & cooktop diagram

Right generator board

Part #WB27X44892

$239.02
In Stock
Left Generator Board WB27X44894
#30

Control panel & cooktop diagram

Left generator board

Part #WB27X44894

$239.02
In Stock
Maintop Glass Assembly 30 WB62X40290
#51

Control panel & cooktop diagram

Maintop glass assembly 30

Part #WB62X40290

$856.80
In Stock
Conduit Wire Asm WB18X31554
#600

Control panel & cooktop diagram

Conduit wire asm

Part #WB18X31554

$106.48
In Stock

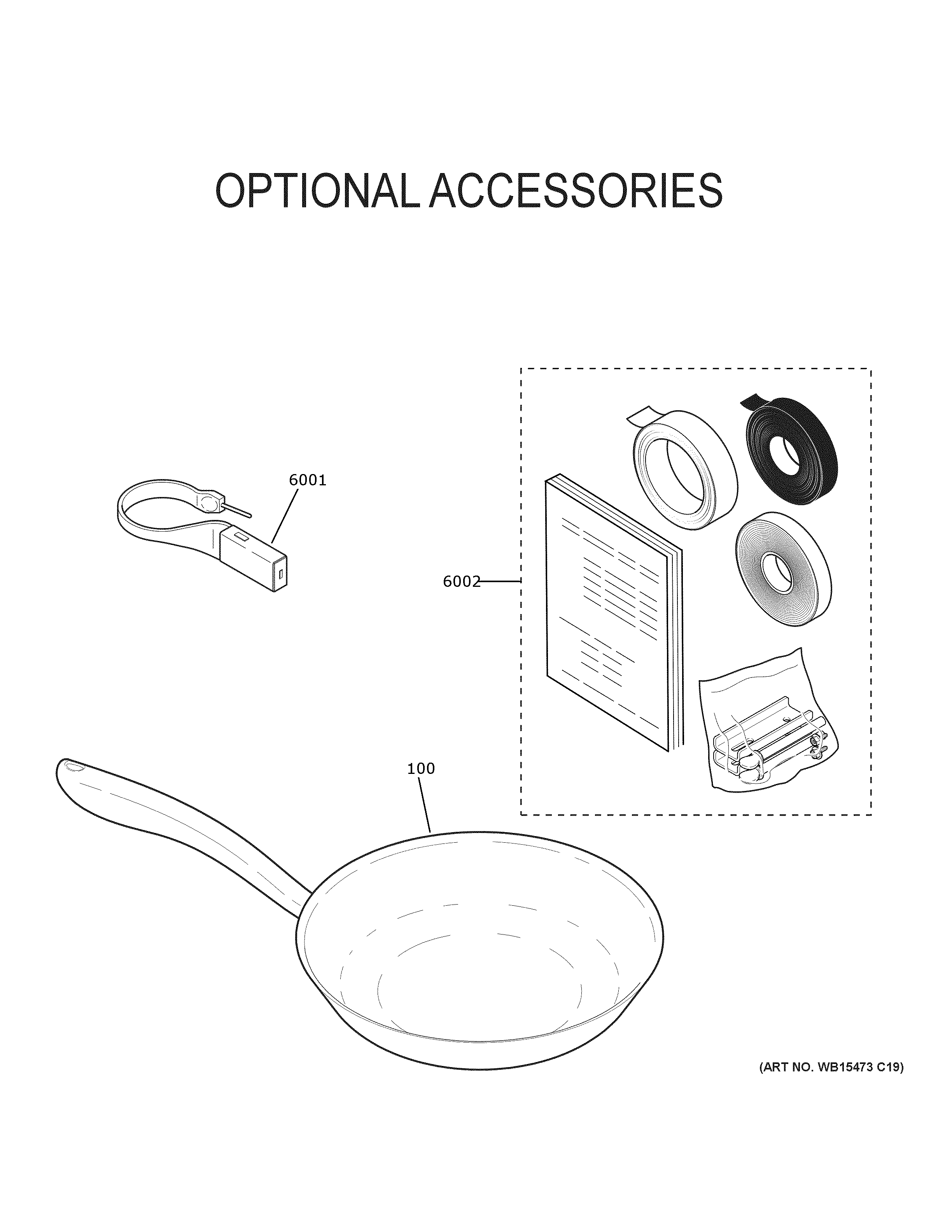

11" Precision Cooking Pan WB32X32079
#100

Control panel & cooktop diagram

11" precision cooking pan

Part #WB32X32079

$346.68
In Stock
