Model # PRD364EDG04 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRD364EDG04 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

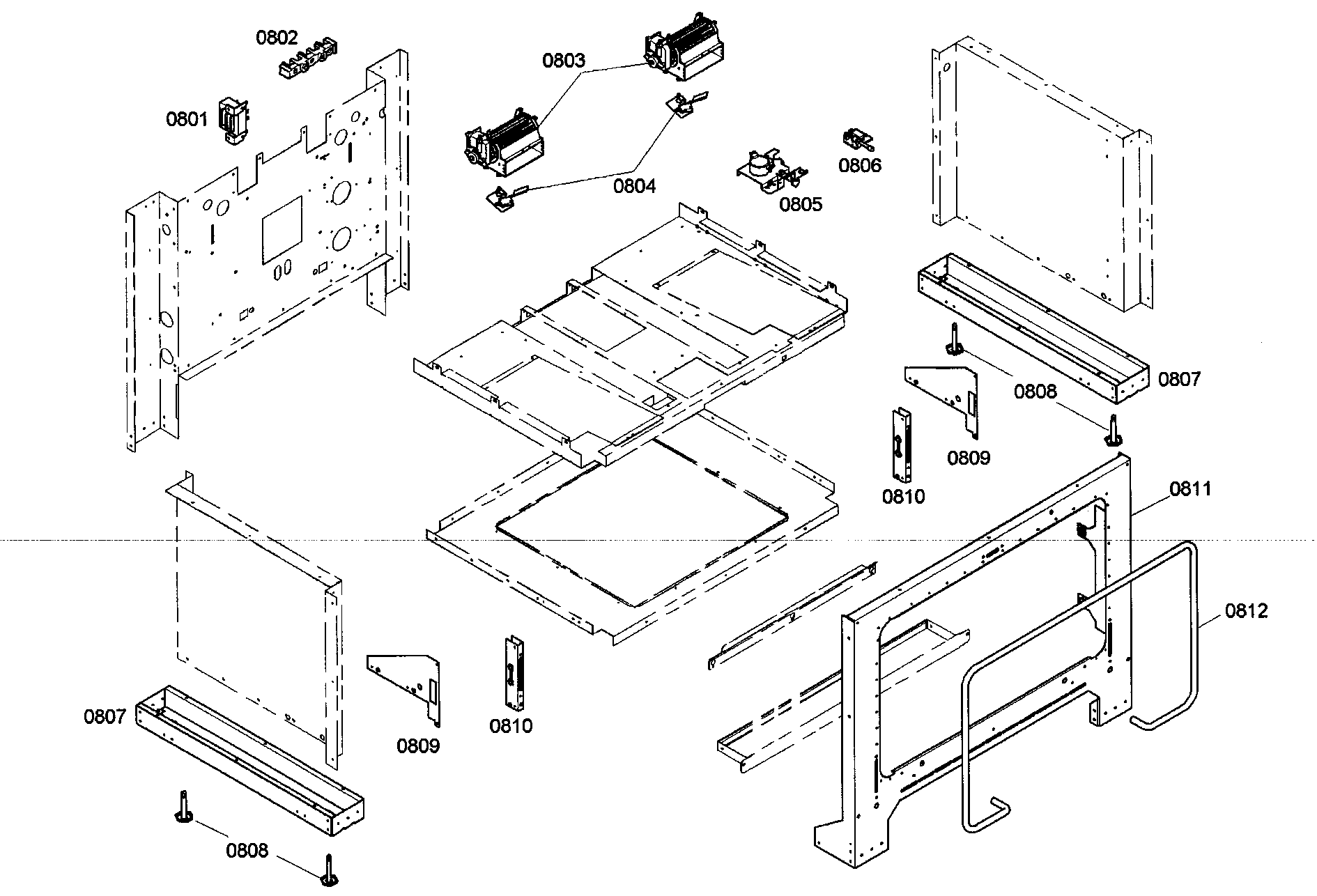

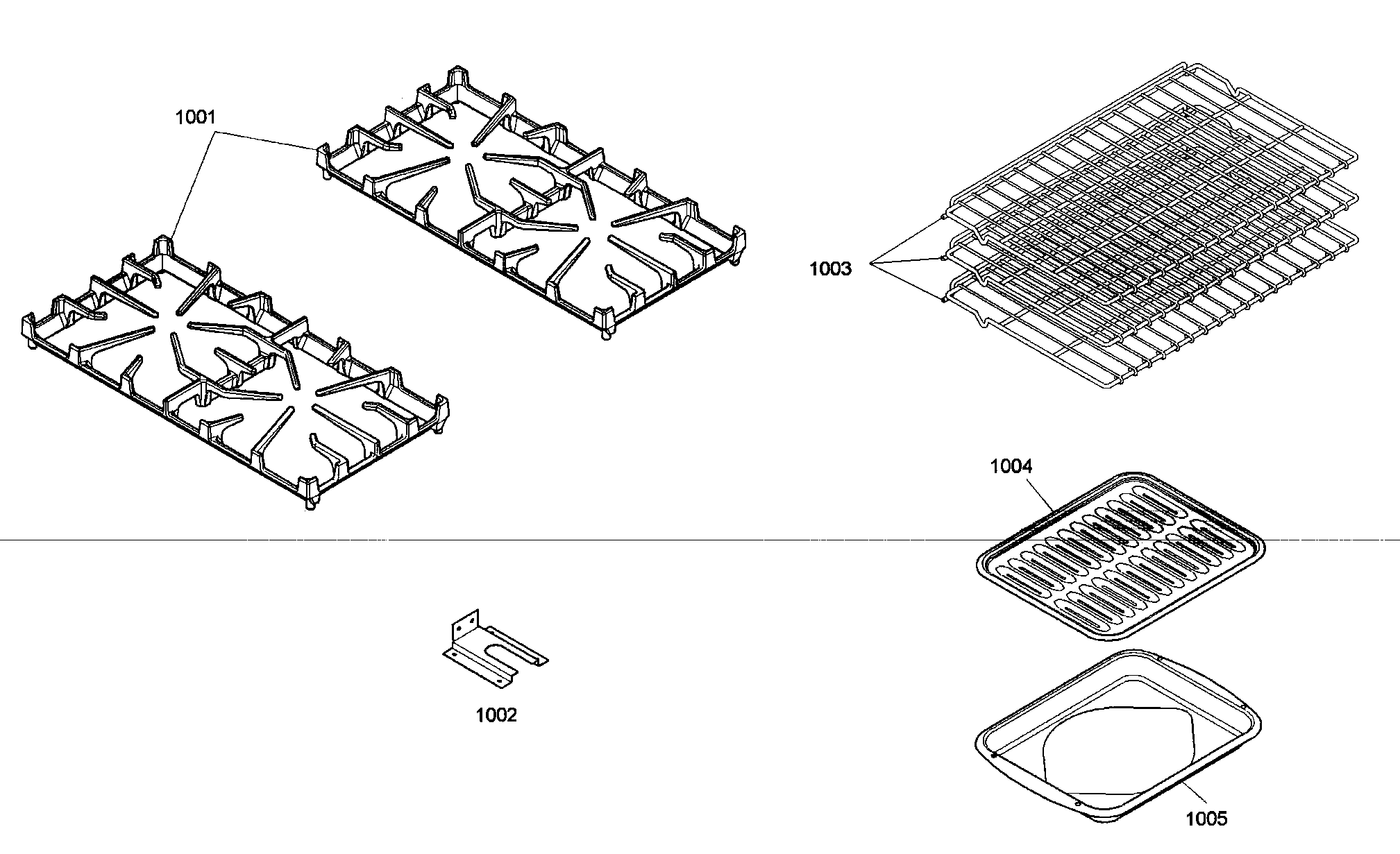

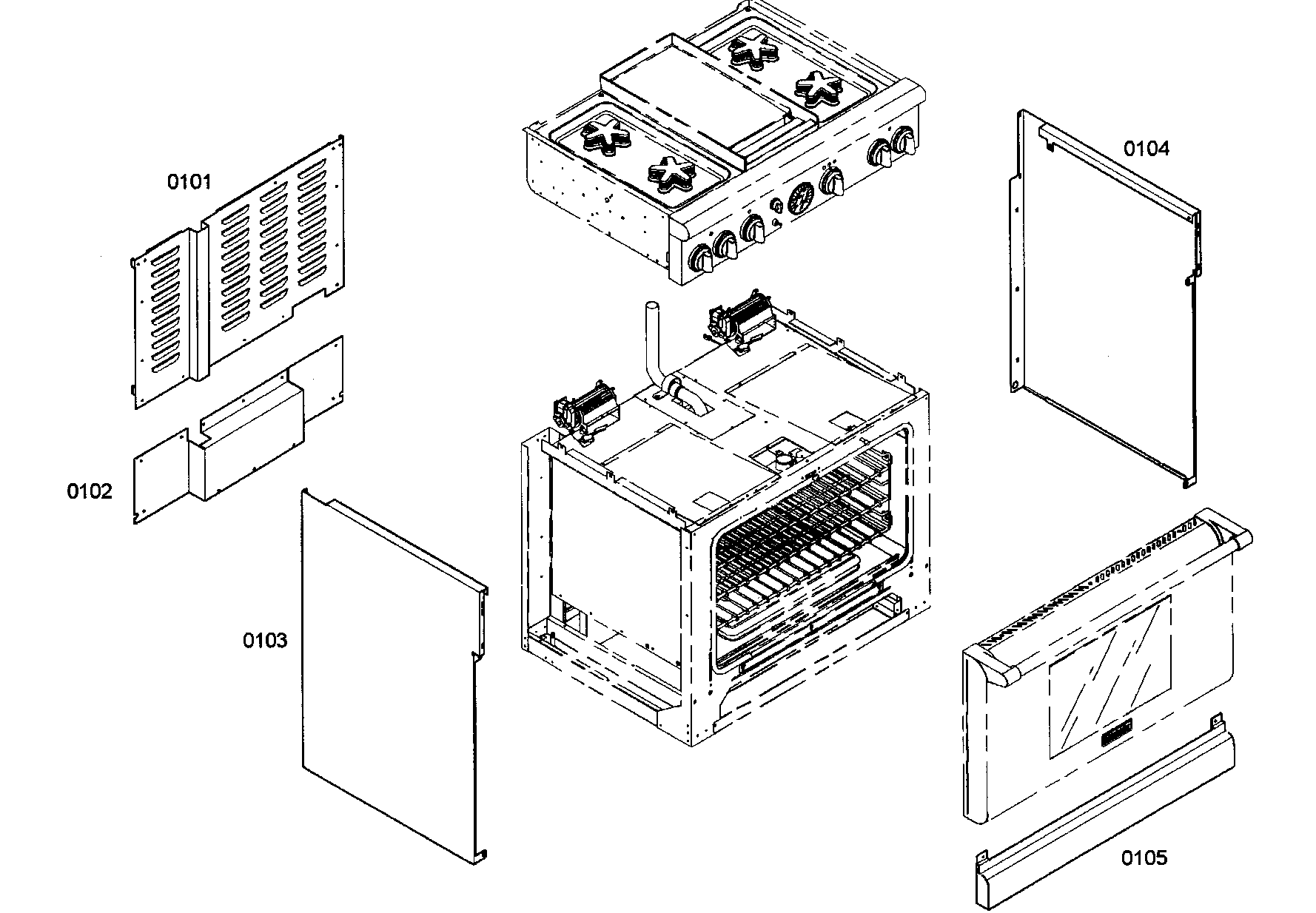

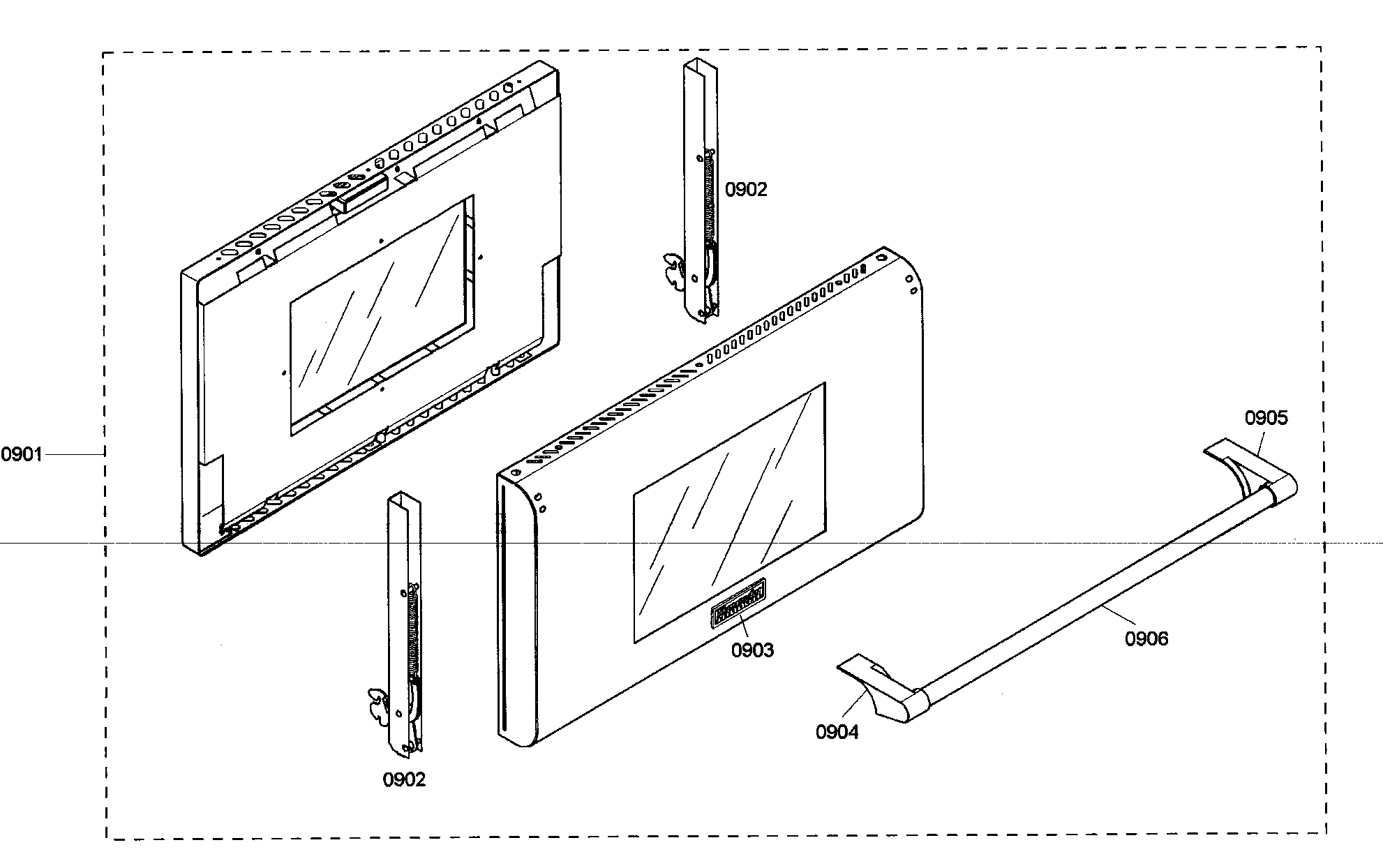

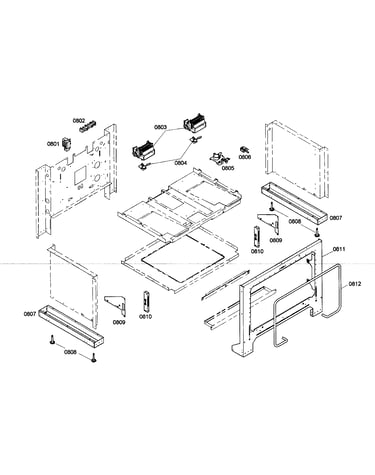

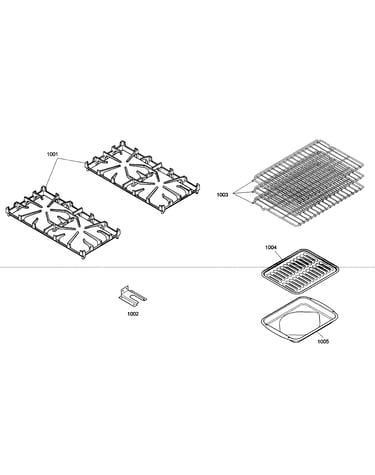

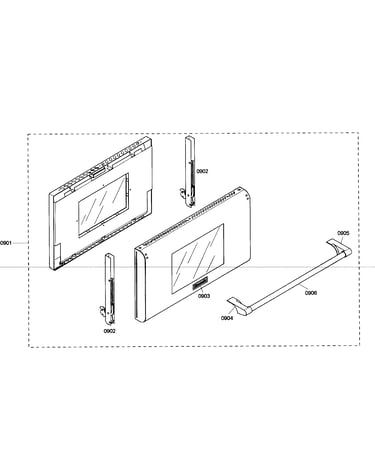

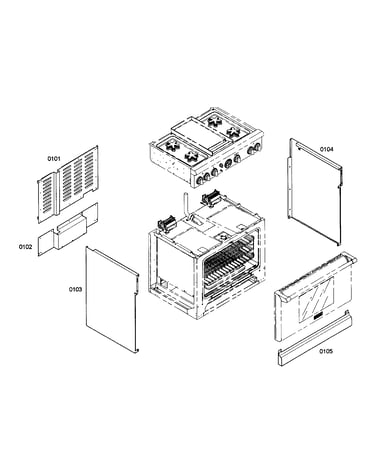

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Nut 188978
#307

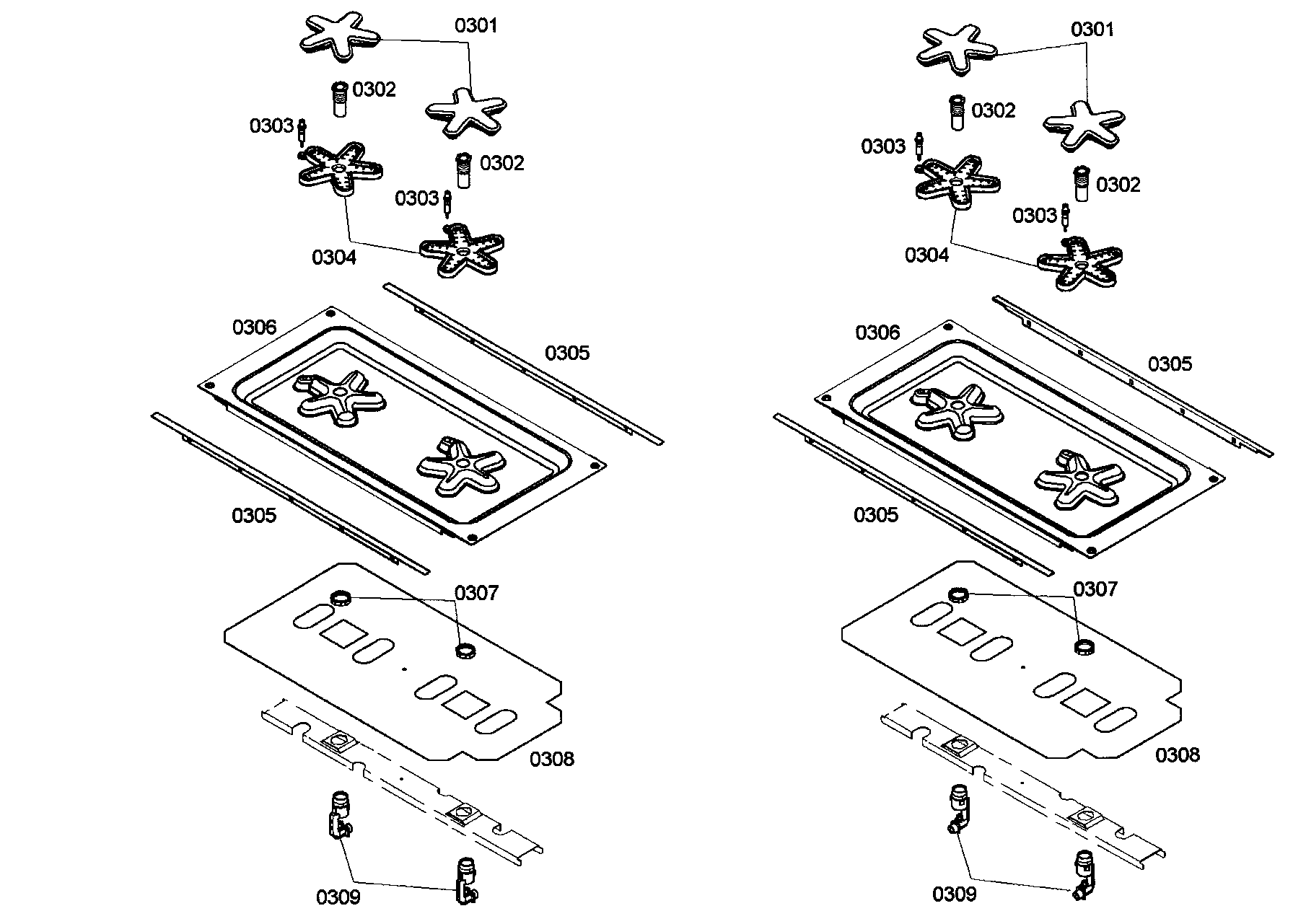

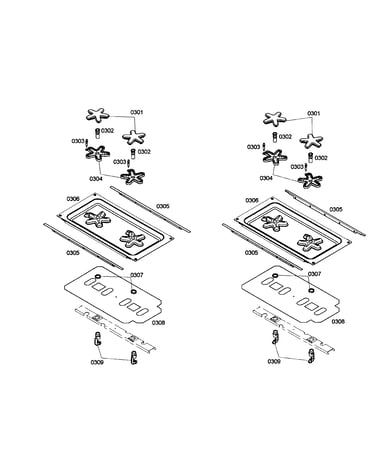

Burner assy diagram

Nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Cooktop Griddle 665616
#501

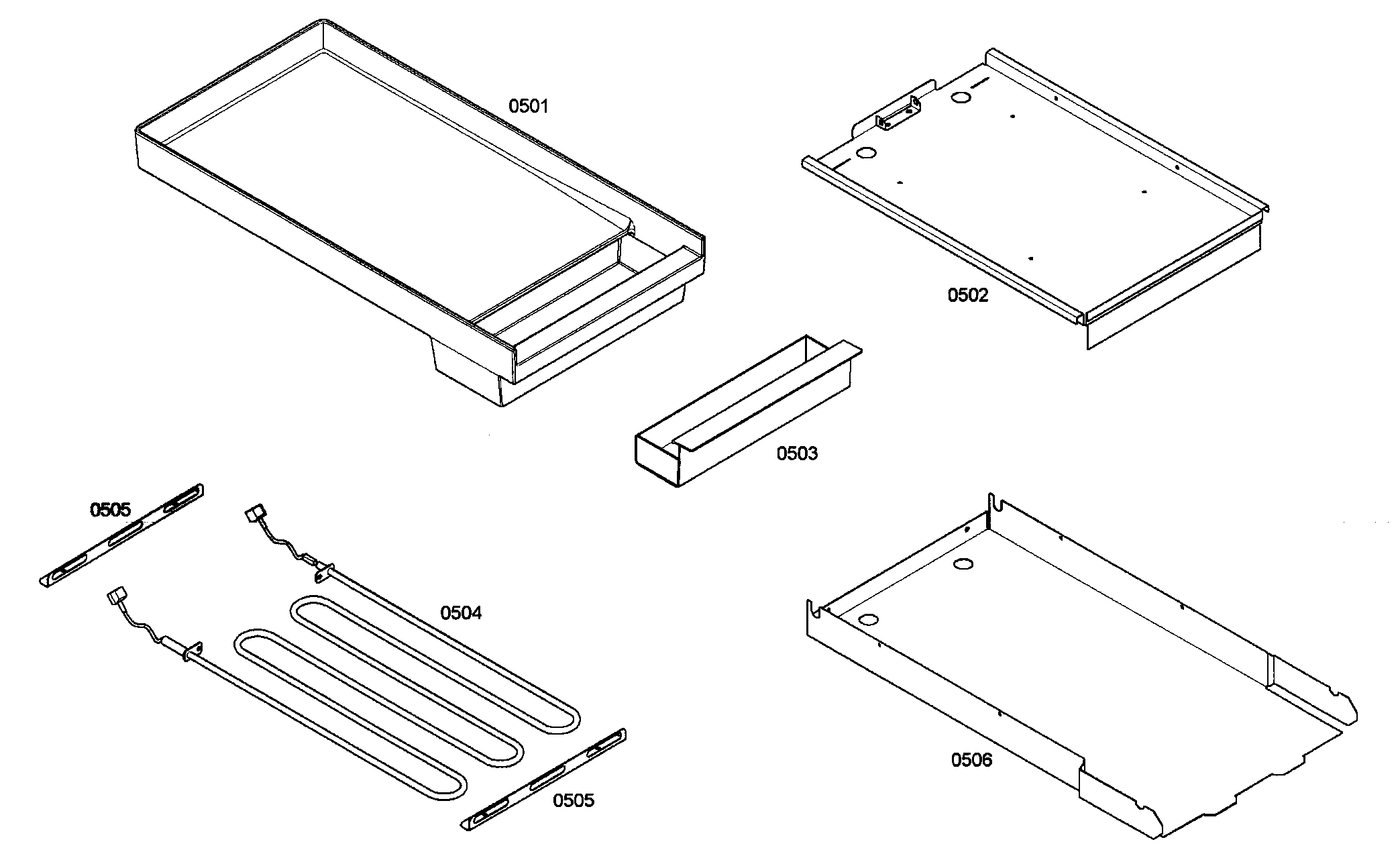

Griddle assy diagram

Cooktop griddle

Part #665616

Replaced by #00665616

?
Manufacturer substitution
This part replaces 665616. Substitute parts can look different from the original.
$626.01 |
$12.00 OFF Phone Price : $638.01
In Stock
Tube 498909
#407

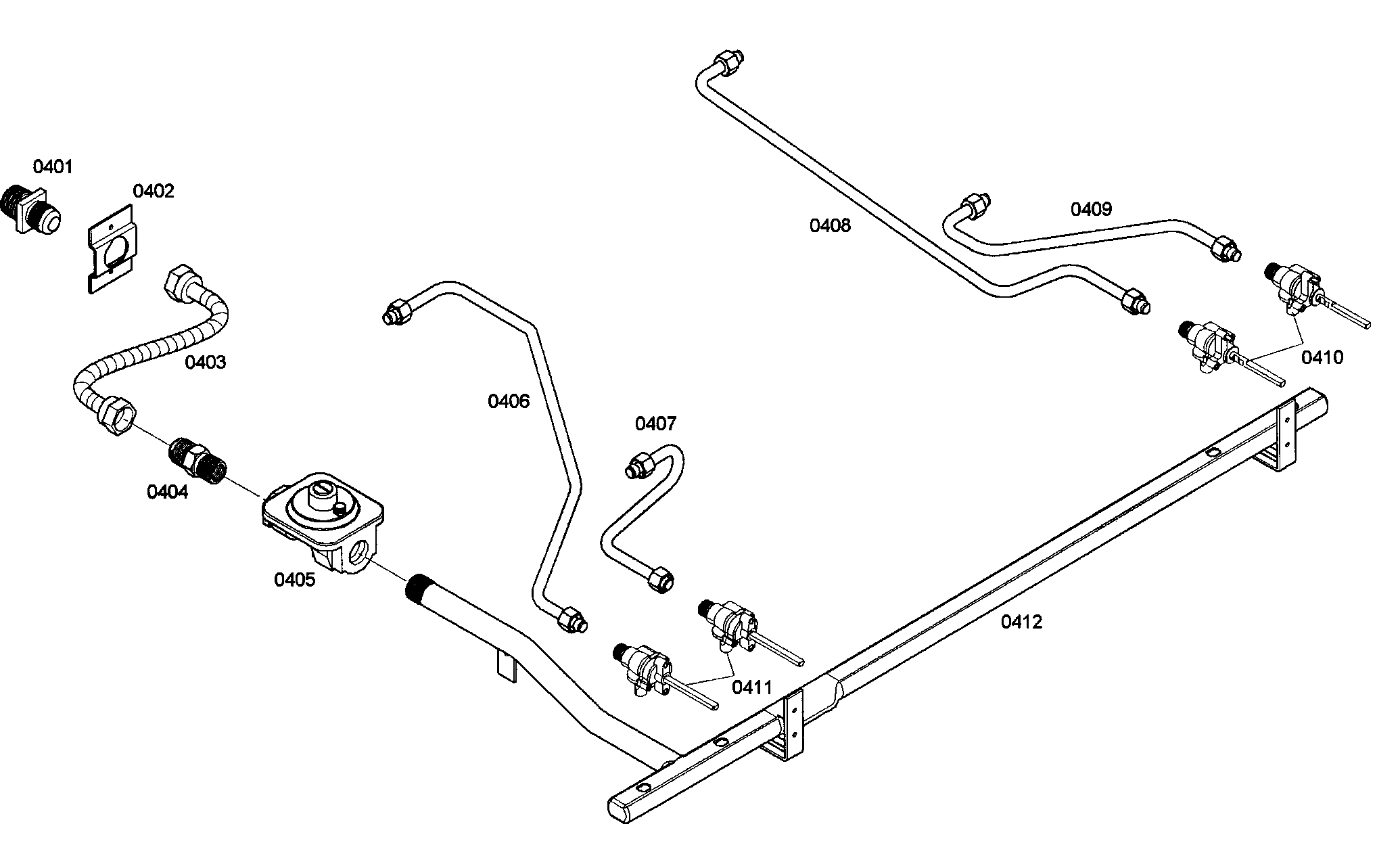

Gas supply diagram

Tube

Part #498909

Replaced by #00498909

?
Manufacturer substitution
This part replaces 498909. Substitute parts can look different from the original.
$40.62
In Stock
Ignition Module 604749
#604

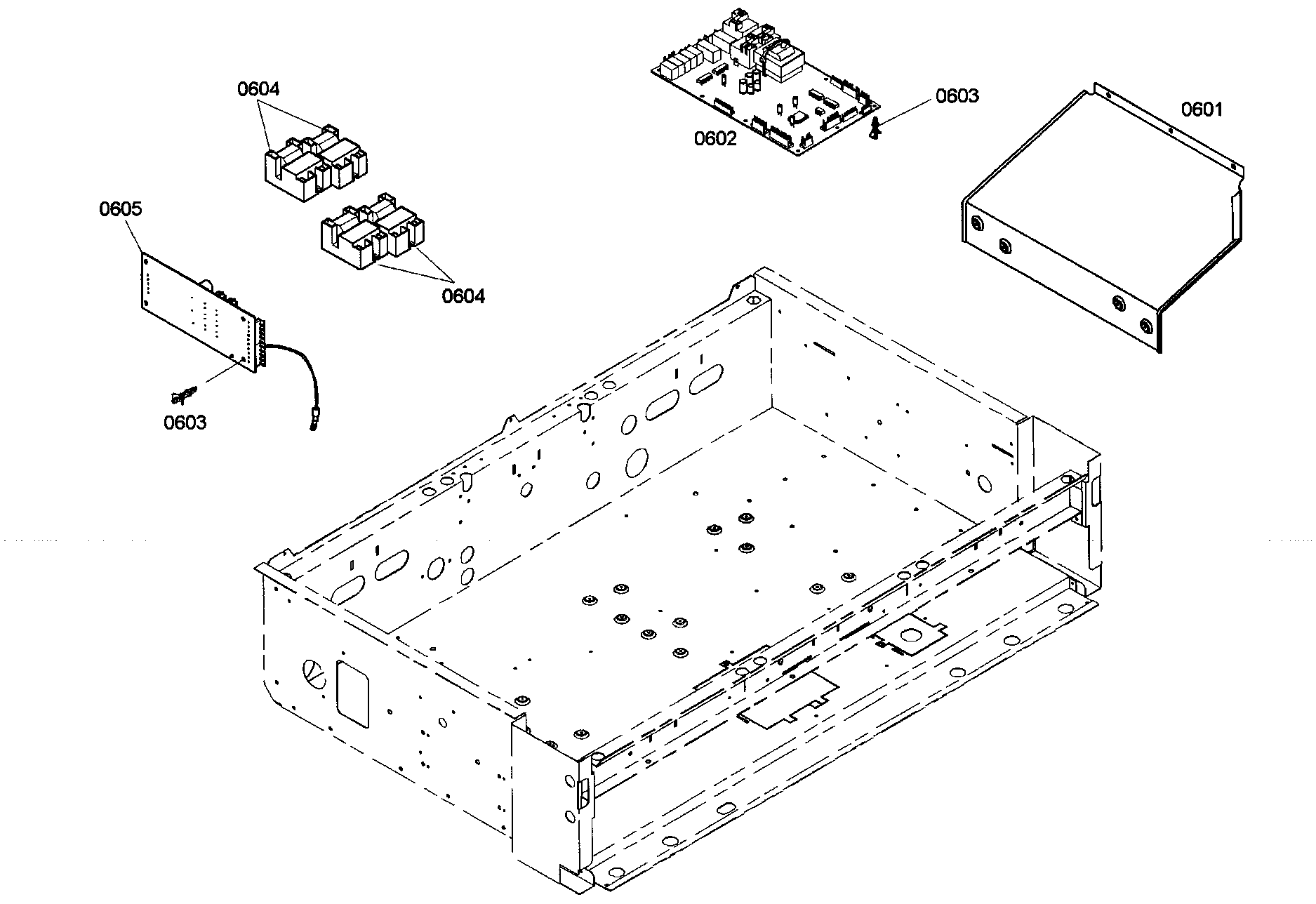

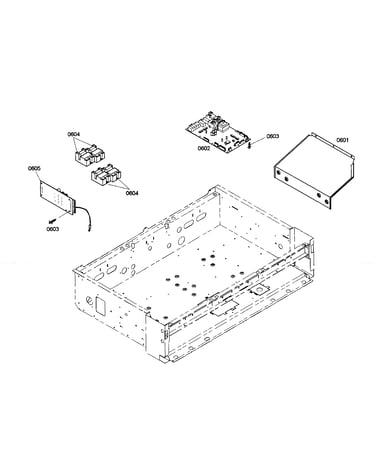

Pcb assy diagram

Ignition module

Part #604749

Replaced by #00619757

?
Manufacturer substitution
This part replaces 604749. Substitute parts can look different from the original.
$148.19 |
7% OFF Phone Price : $160.19
In Stock
Temp.dsply 641396
#220

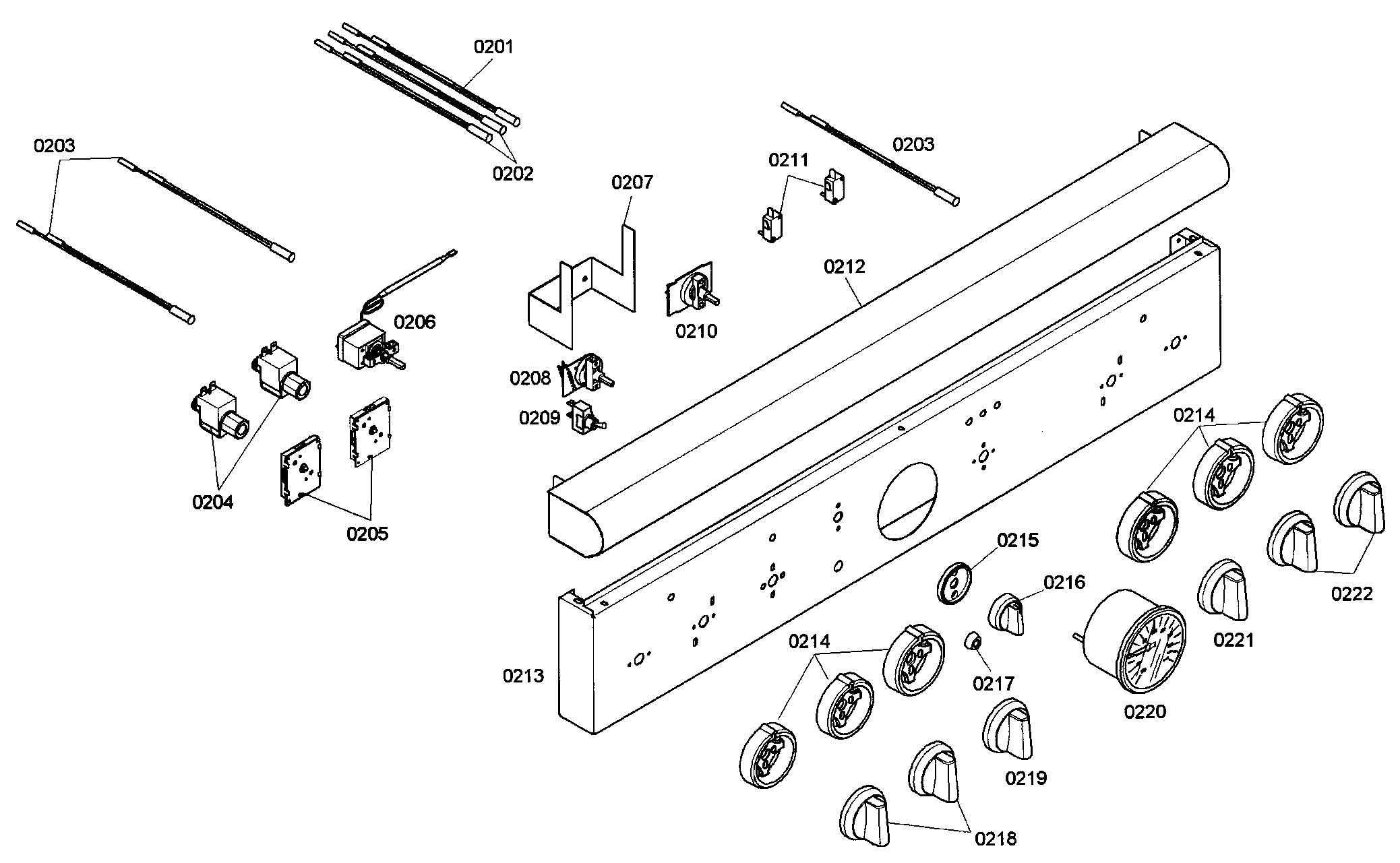

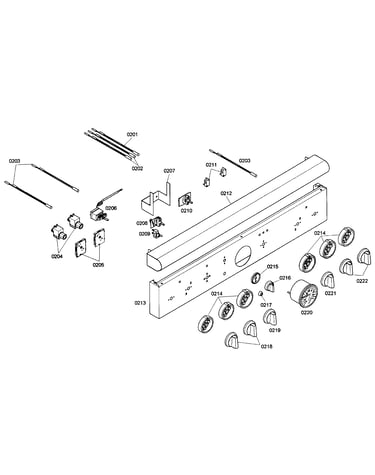

Control panel diagram

Temp.dsply

Part #641396

Replaced by #00641396

?
Manufacturer substitution
This part replaces 641396. Substitute parts can look different from the original.
$528.10 |
$12.00 OFF Phone Price : $540.10
In Stock
Cover 489125
#709

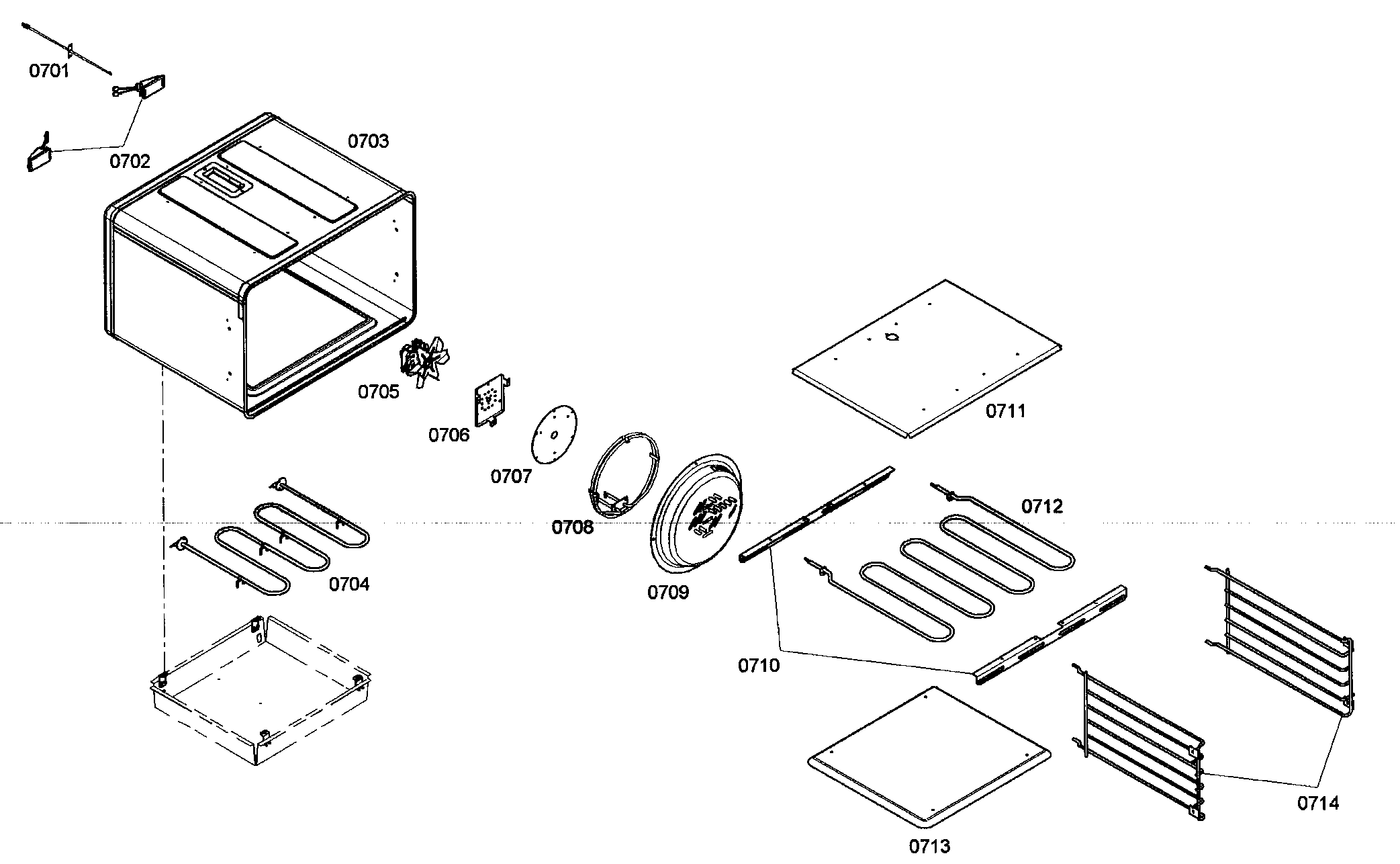

Oven assy diagram

Cover

Part #489125

Replaced by #00489125

?
Manufacturer substitution
This part replaces 489125. Substitute parts can look different from the original.
$202.62
In Stock
Knob 609111
#222

Control panel diagram

Knob

Part #609111

Replaced by #00609111

?
Manufacturer substitution
This part replaces 609111. Substitute parts can look different from the original.
$108.79 |
10% OFF Phone Price : $120.79
In Stock
Valve 492271
#411

Gas supply diagram

Valve

Part #492271

Replaced by #00628629

?
Manufacturer substitution
This part replaces 492271. Substitute parts can look different from the original.
$105.73
In Stock
Resistor 418329
#210

Control panel diagram

Resistor

Part #418329

Replaced by #00624610

?
Manufacturer substitution
This part replaces 418329. Substitute parts can look different from the original.
$104.68
In Stock
