Microwave/Hood Combo

Model # JVM3162DJ3BB Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE JVM3162DJ3BB microwave/hood combo, as well as links to manuals and error code tables, if available.

By Schematic

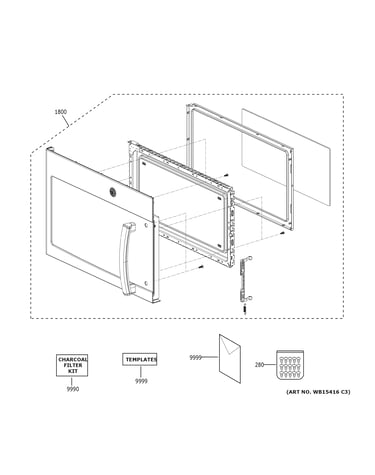

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JVM3162DJ3BB Microwave/Hood Combo
Microwave Primary Interlock Switch (replaces Wb24x10029, Wb24x10113) WB24X10047
#1446

Latch board parts diagram

Microwave primary interlock switch (replaces wb24x10029, wb24x10113)

Part #WB24X10047

5 (2)
BEST SELLER
$33.55 |
15% OFF Phone Price : $39.55
In Stock
Microwave High-voltage Diode WB18X10449
#50

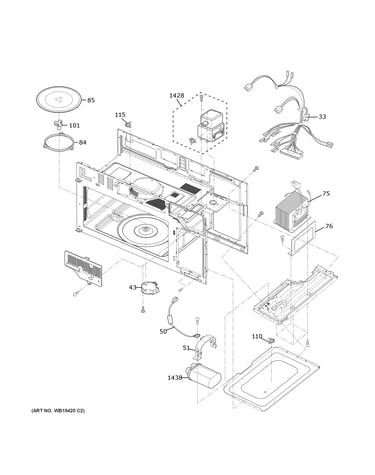

Interior parts (1) diagram

Microwave high-voltage diode

Part #WB18X10449

Replaced by #WB27X35382

?
Manufacturer substitution
This part replaces WB18X10449. Substitute parts can look different from the original.
BEST SELLER
$37.63
In Stock
Microwave Electronic Control Board (replaces Wb27x38153) WB27X29801
#12

Control parts diagram

Microwave electronic control board (replaces wb27x38153)

Part #WB27X29801

BEST SELLER
This item is not returnable
$103.79 |
10% OFF Phone Price : $115.79
In Stock
Microwave Door Interlock Switch (replaces Wb24x817) WB24X25397
#1445

Latch board parts diagram

Microwave door interlock switch (replaces wb24x817)

Part #WB24X25397

BEST SELLER
$27.07 |
18% OFF Phone Price : $33.07
In Stock
Microwave Thermal Cut-off (replaces Wb27x10788) WB21X10148
#110

Interior parts (1) diagram

Microwave thermal cut-off (replaces wb27x10788)

Part #WB21X10148

5 (1)
BEST SELLER
$23.66 |
20% OFF Phone Price : $29.66
In Stock
Hi Capacitor WB27X26368
#1438

Interior parts (1) diagram

Hi capacitor

Part #WB27X26368

BEST SELLER
$53.72 |
10% OFF Phone Price : $59.72
In Stock
Motor WB26X10226
#43

Interior parts (1) diagram

Motor

Part #WB26X10226

$32.22 |
16% OFF Phone Price : $38.22
In Stock
Microwave Glass Turntable Tray (replaces 1b71961a, Wb49x10061, Wb49x10067, Wb49x10225) WB49X10129
#85

Interior parts (1) diagram

Microwave glass turntable tray (replaces 1b71961a, wb49x10061, wb49x10067, wb49x10225)

Part #WB49X10129

$82.27 |
7% OFF Phone Price : $88.27
In Stock
Latch Board WB10X25380
#28

Latch board parts diagram

Latch board

Part #WB10X25380

$33.41
In Stock
Microwave Vent Grille (black) WB34X25406
#70

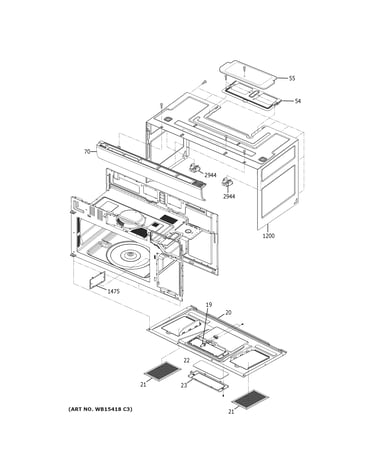

Oven cavity parts diagram

Microwave vent grille (black)

Part #WB34X25406

$126.71 |
9% OFF Phone Price : $138.71
In Stock
