Model # 217593650 Official Craftsman troller

Here are the diagrams and repair parts for Official Craftsman 217593650 troller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Washer 4638
#7

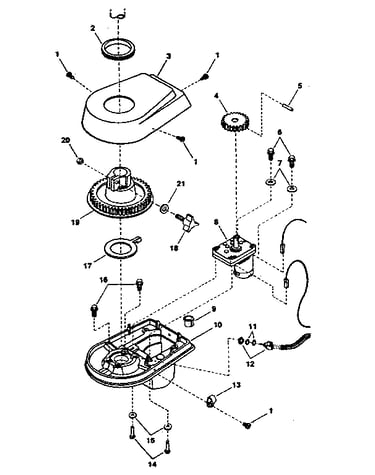

Remote steering drive diagram

Washer

Part #4638

The manufacturer no longer makes this part, and there's no substitute part

Washer 4457
#63

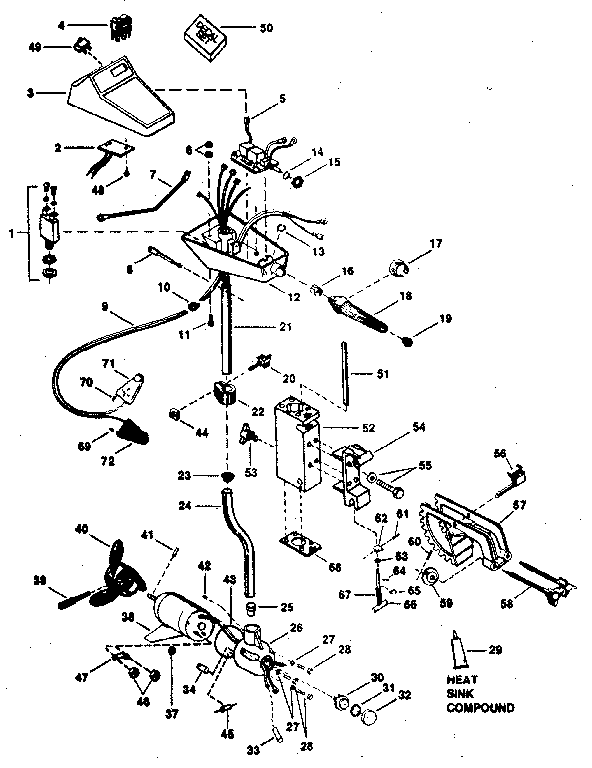

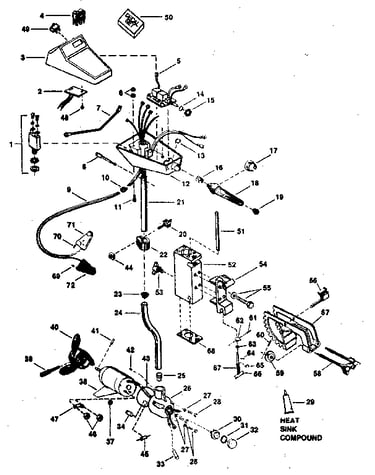

Troller assembly diagram

Washer

Part #4457

The manufacturer no longer makes this part, and there's no substitute part

Electric Motor 37151
#13

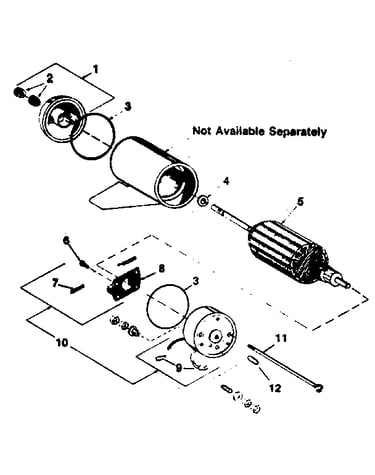

Electrical motor assembly diagram

Electric motor

Part #37151

The manufacturer no longer makes this part, and there's no substitute part

Spiral Pin 7112
#5

Remote steering drive diagram

Spiral pin

Part #7112

The manufacturer no longer makes this part, and there's no substitute part

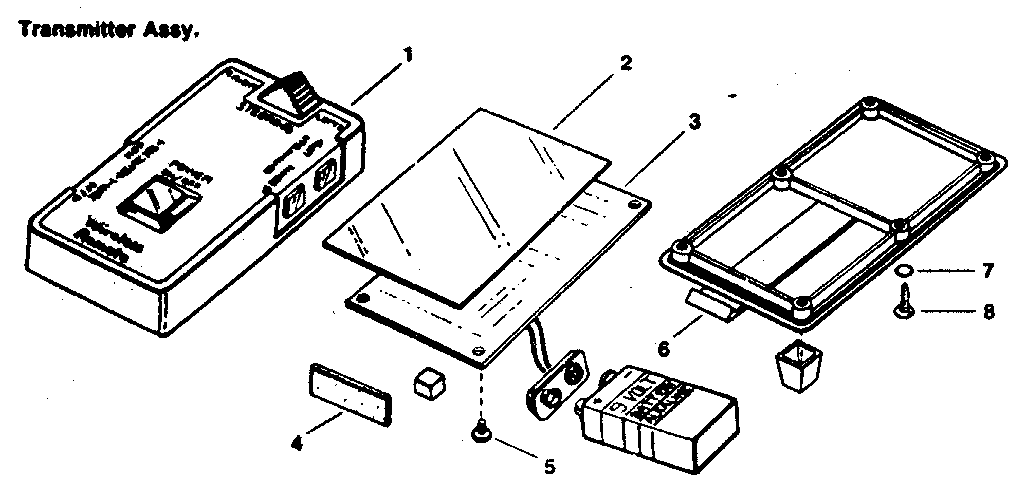

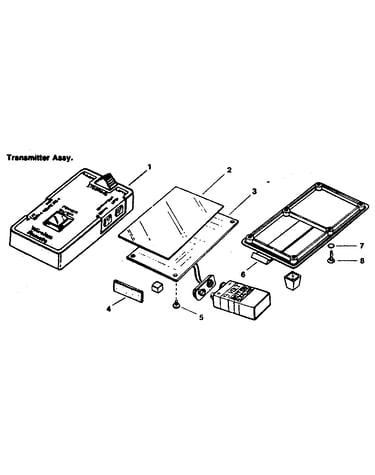

Remote Control 17108

#NI

All parts diagram

Remote control

Part #17108

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 93893

#NI

All parts diagram

Owner's manual

Part #93893

The manufacturer no longer makes this part, and there's no substitute part

Circ Breaker 76529
#1

Troller assembly diagram

Circ breaker

Part #76529

The manufacturer no longer makes this part, and there's no substitute part

Cap Blk 93358
#69

Troller assembly diagram

Cap blk

Part #93358

The manufacturer no longer makes this part, and there's no substitute part

Cover 37175
#3

Remote steering drive diagram

Cover

Part #37175

The manufacturer no longer makes this part, and there's no substitute part

Cover 36914
#72

Troller assembly diagram

Cover

Part #36914

The manufacturer no longer makes this part, and there's no substitute part
