Model # AWM593W2 Official Amana washer

Here are the diagrams and repair parts for Official Amana AWM593W2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

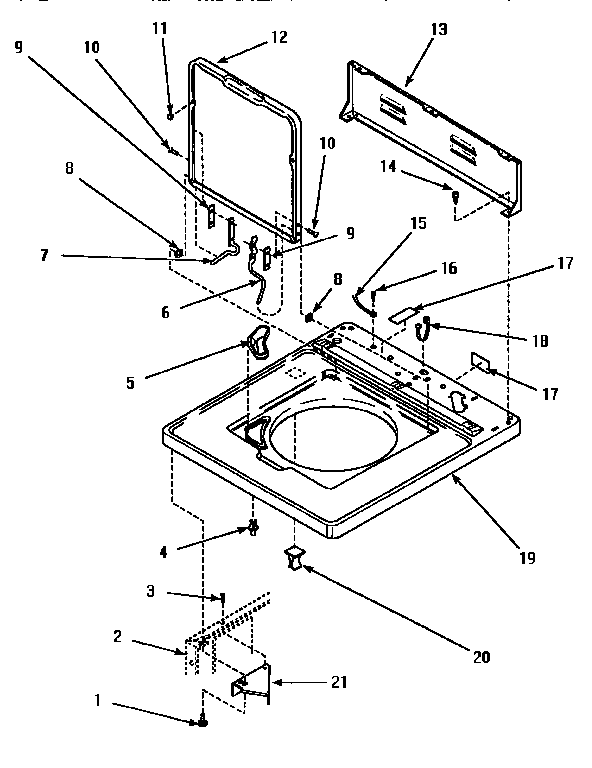

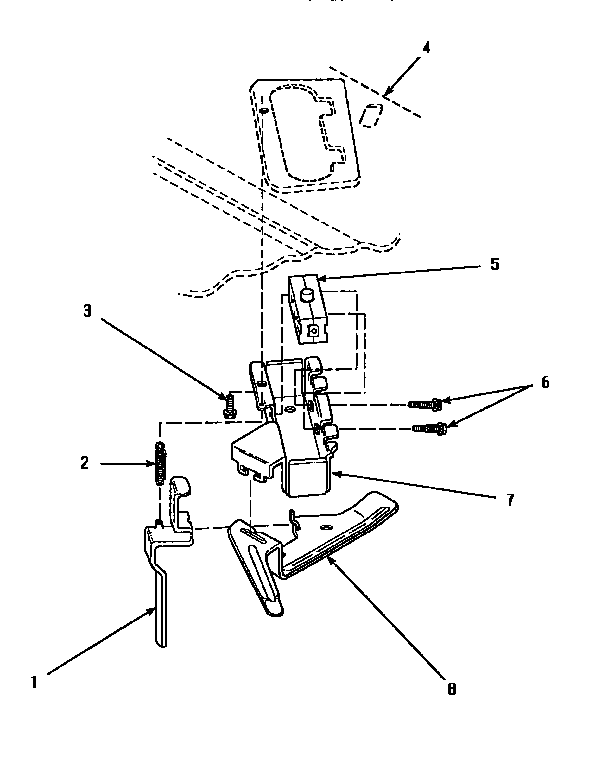

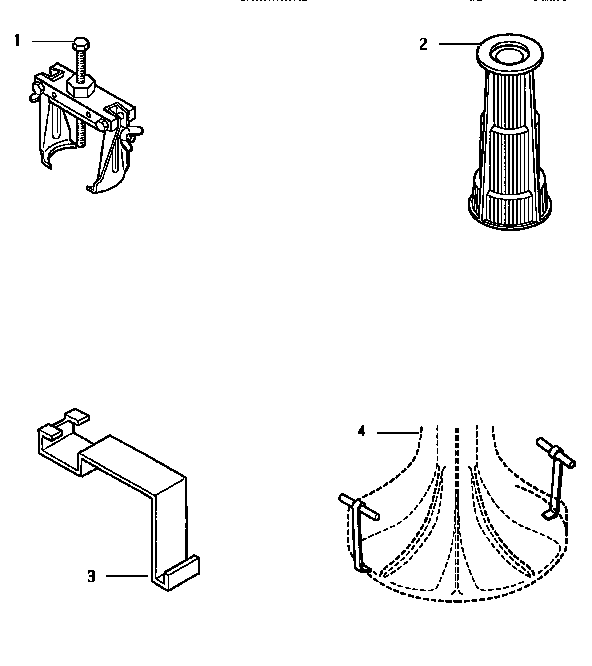

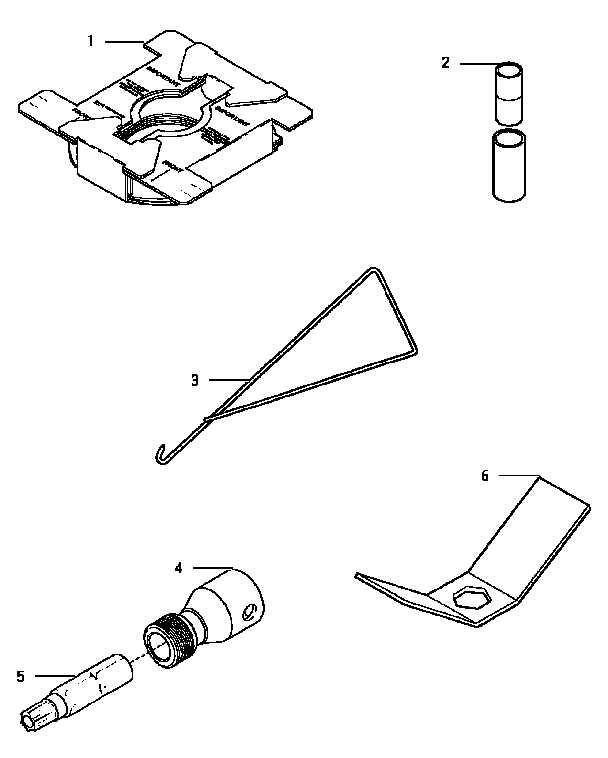

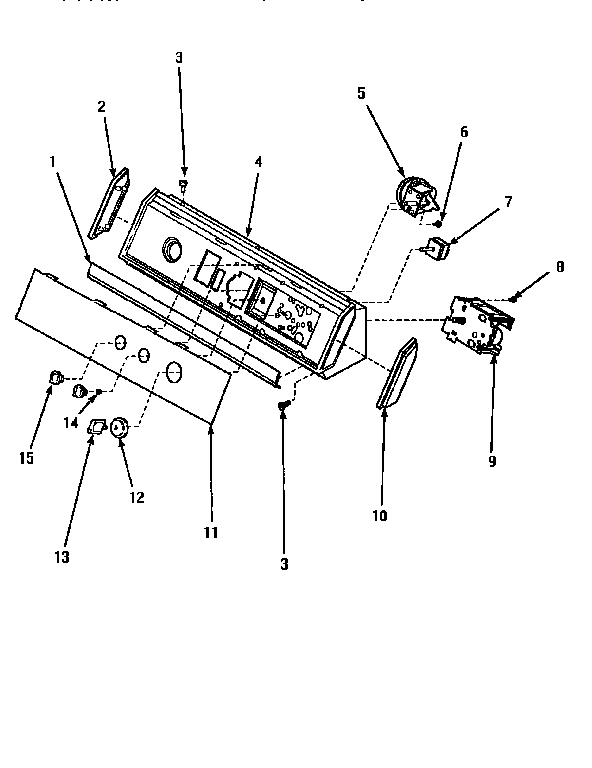

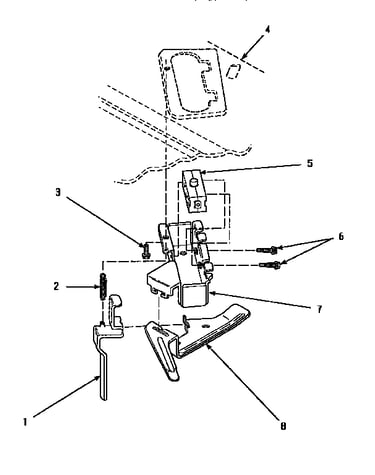

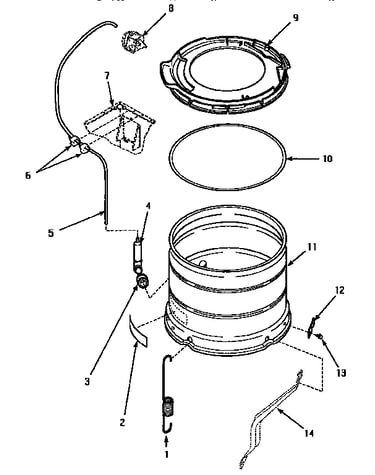

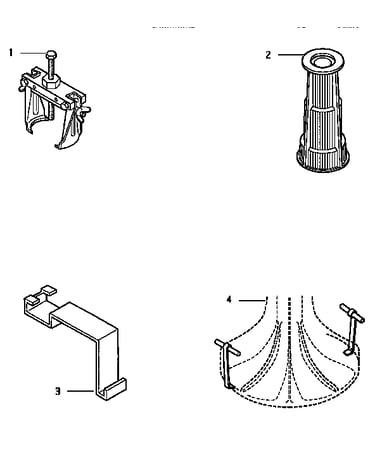

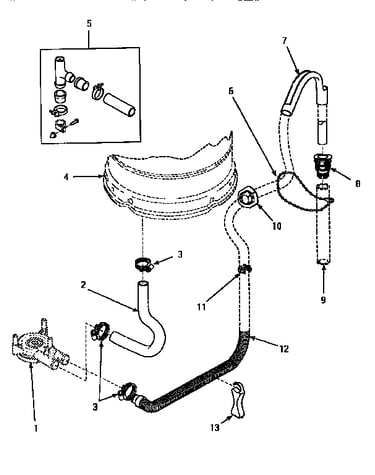

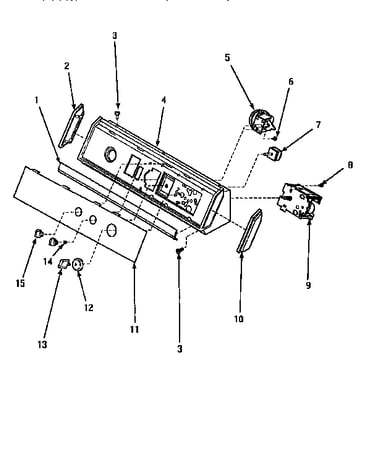

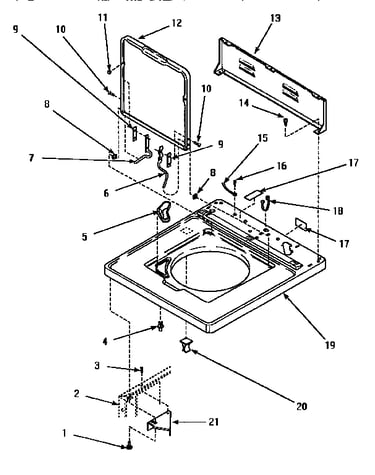

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Hose Clamp 36801
#6

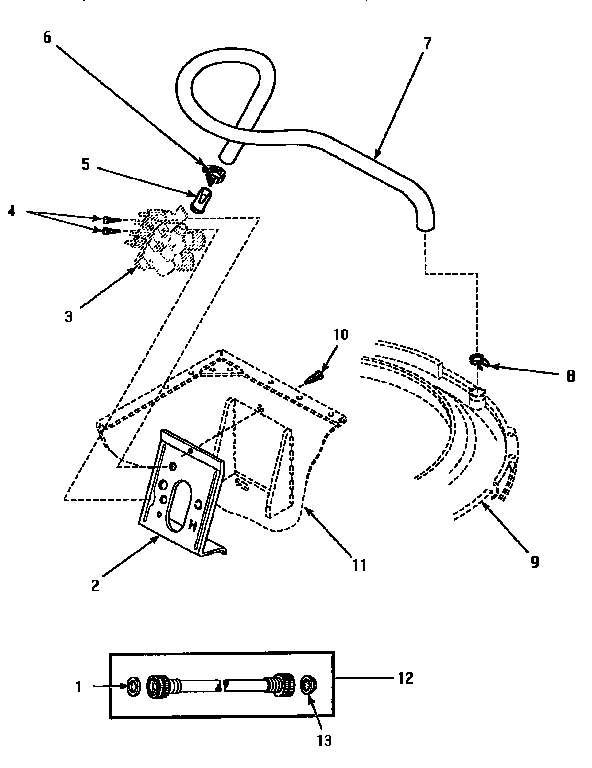

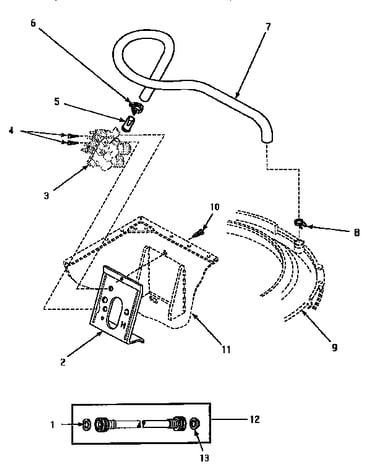

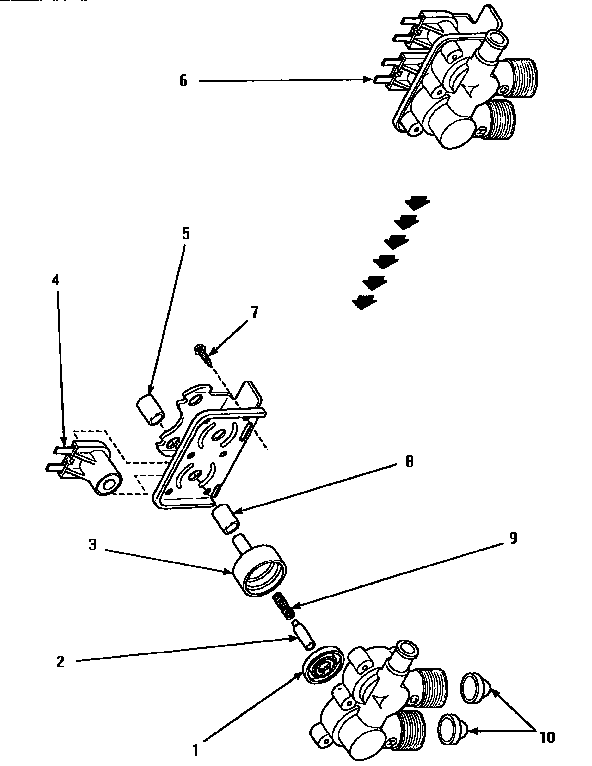

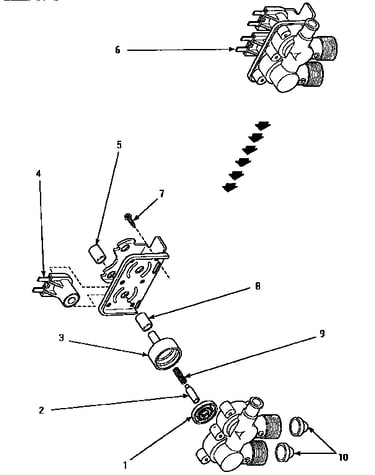

Inlet hose & mixing valve mount diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Nut 35423
#3

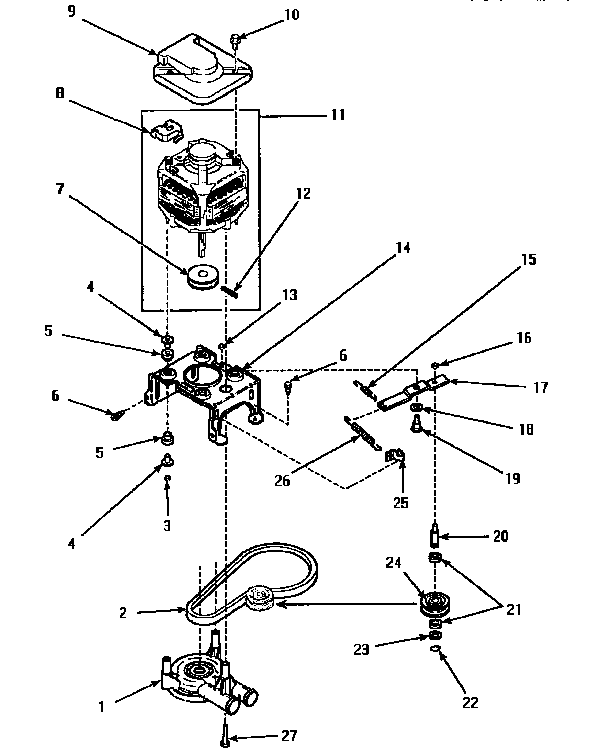

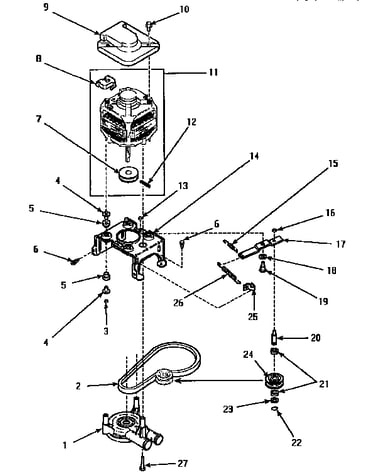

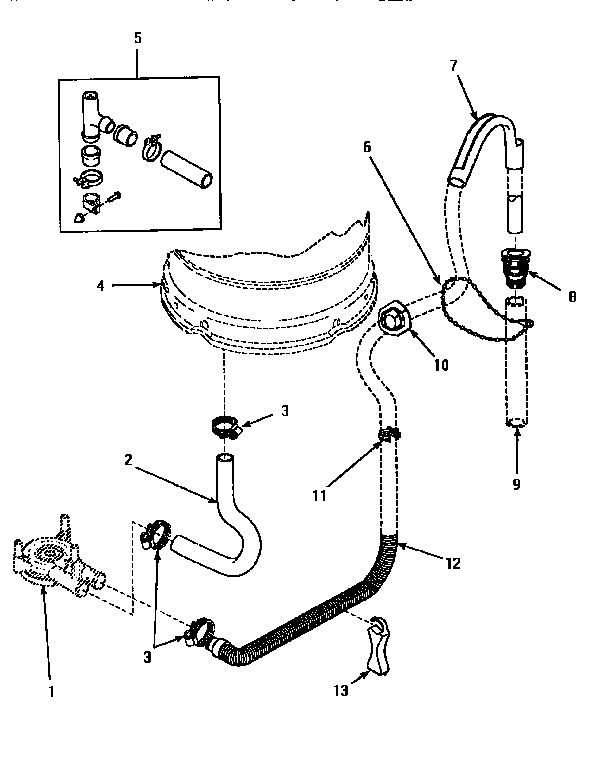

Motor, pump & idler assembly diagram

Nut

Part #35423

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 35423. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer 20290
#1

Inlet hose & mixing valve mount diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Leveling L 34319
#18

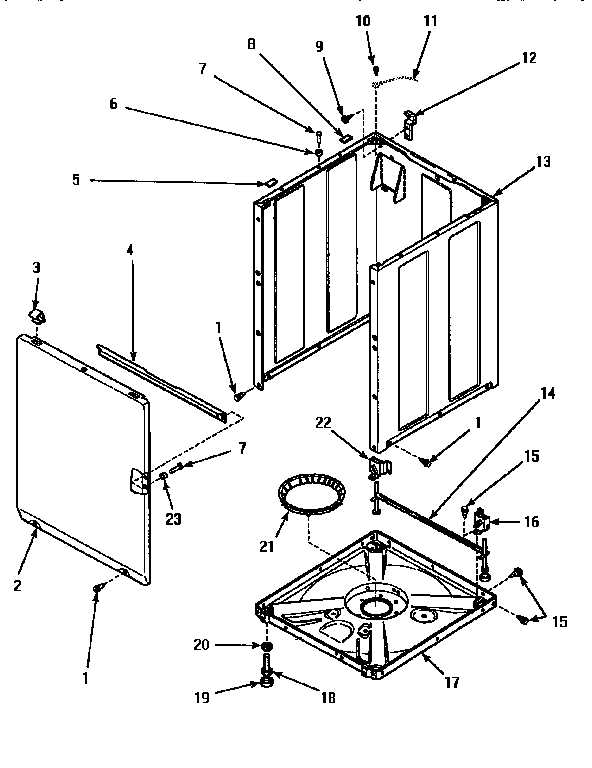

Front panel, base & cabinet assy diagram

Leveling l

Part #34319

Replaced by #22003428

?
Manufacturer substitution
This part replaces 34319. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Bearing 27182
#3

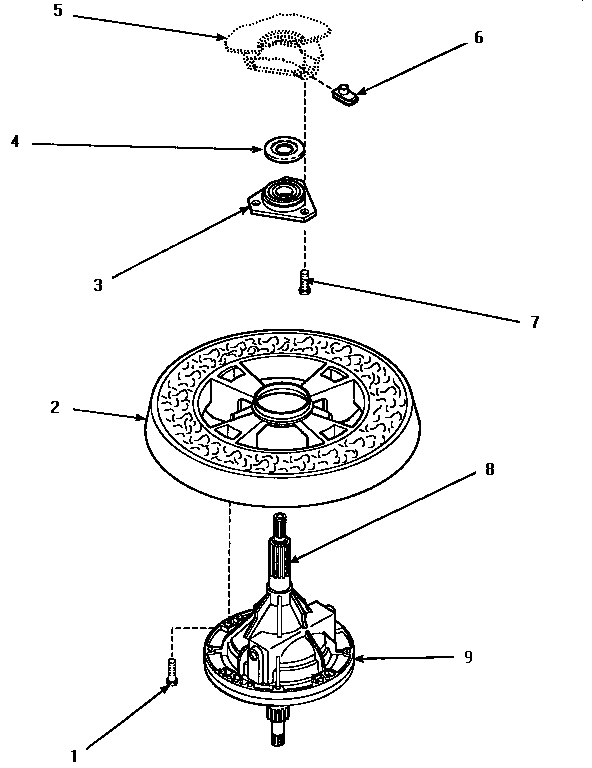

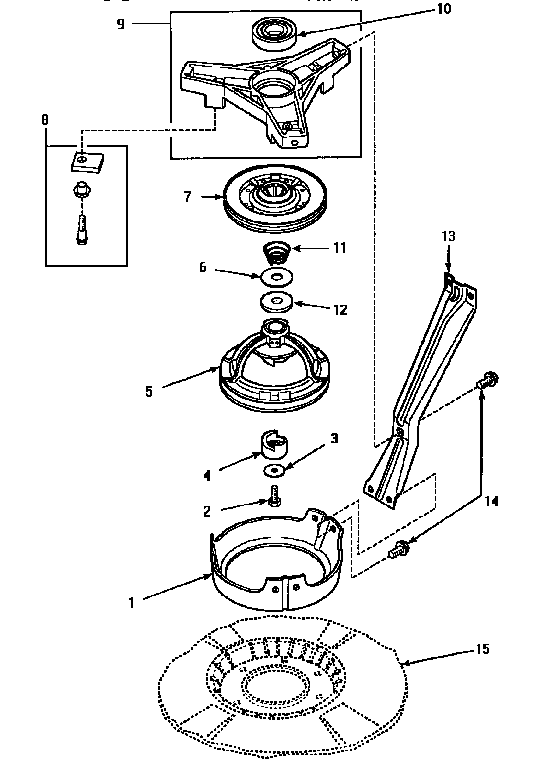

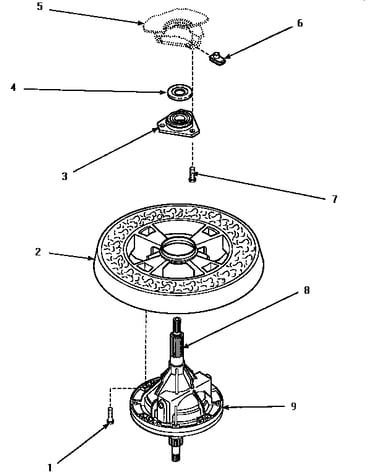

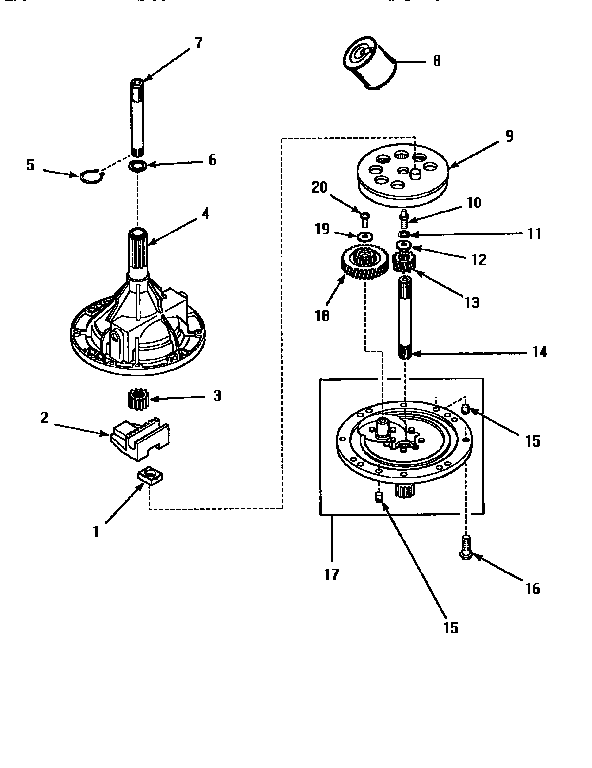

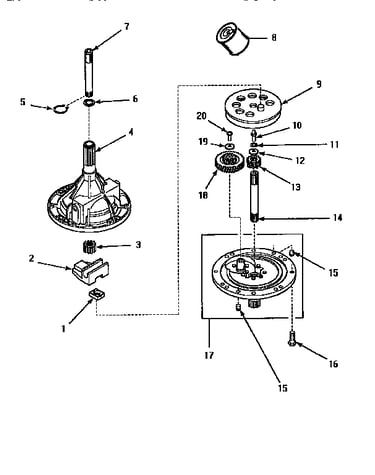

Transmission assy & balance ring diagram

Bearing

Part #27182

The manufacturer no longer makes this part, and there's no substitute part

Bearing 28944R
#10

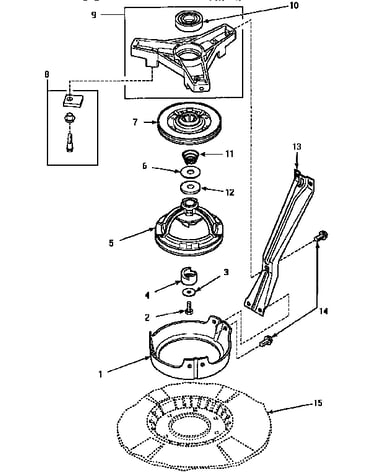

Bearing housing & pivot dome diagram

Bearing

Part #28944R

Replaced by #WP40004001

?
Manufacturer substitution
This part replaces 28944R. Substitute parts can look different from the original.
$50.16 |
11% OFF Phone Price : $56.16
In Stock

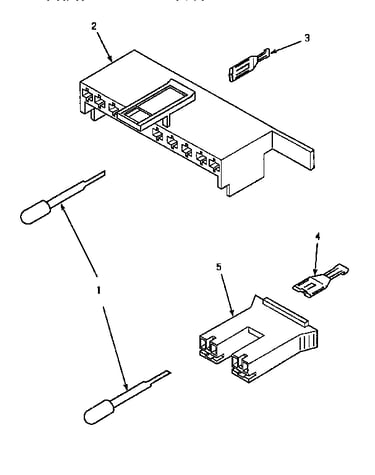

Connector 21091
#26

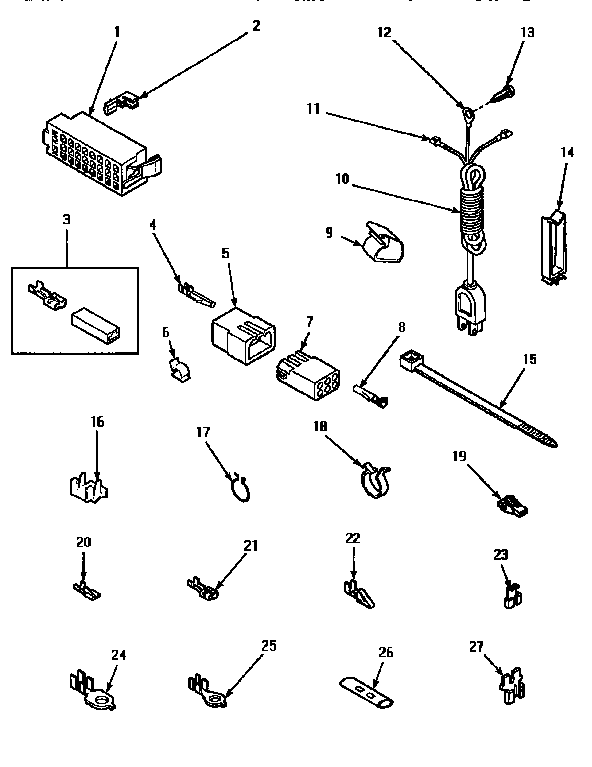

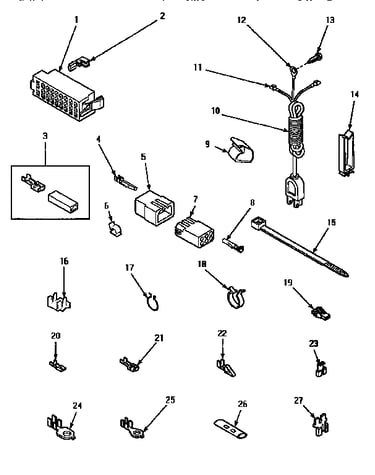

Power cord & terminals diagram

Connector

Part #21091

Replaced by #A0304502

?
Manufacturer substitution
This part replaces 21091. Substitute parts can look different from the original.
This item is not returnable
$3.60
In Stock
Screw 27202
#8

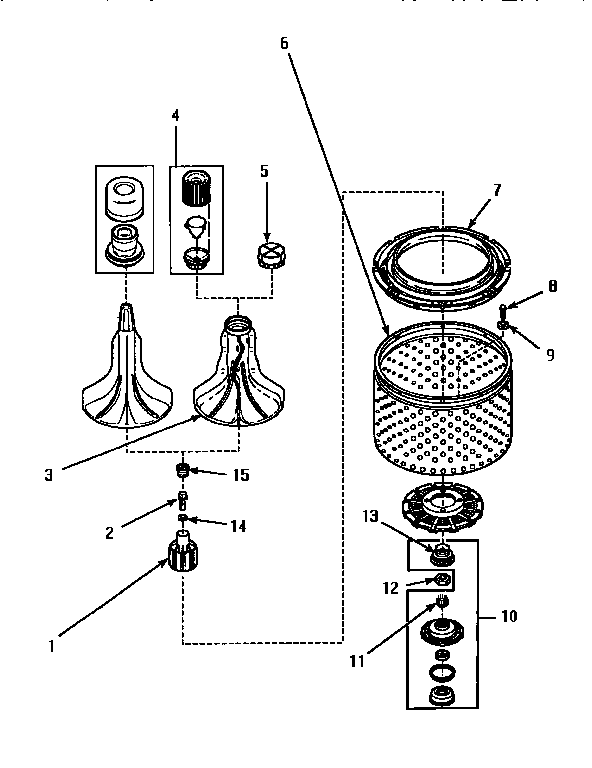

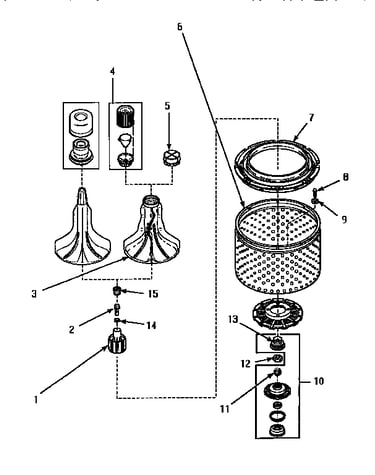

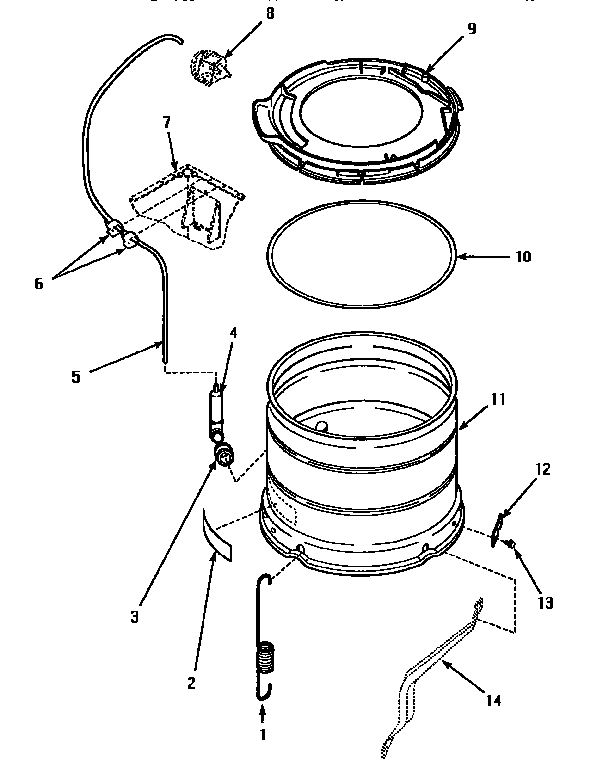

Agitator, washtub & hub diagram

Screw

Part #27202

The manufacturer no longer makes this part, and there's no substitute part

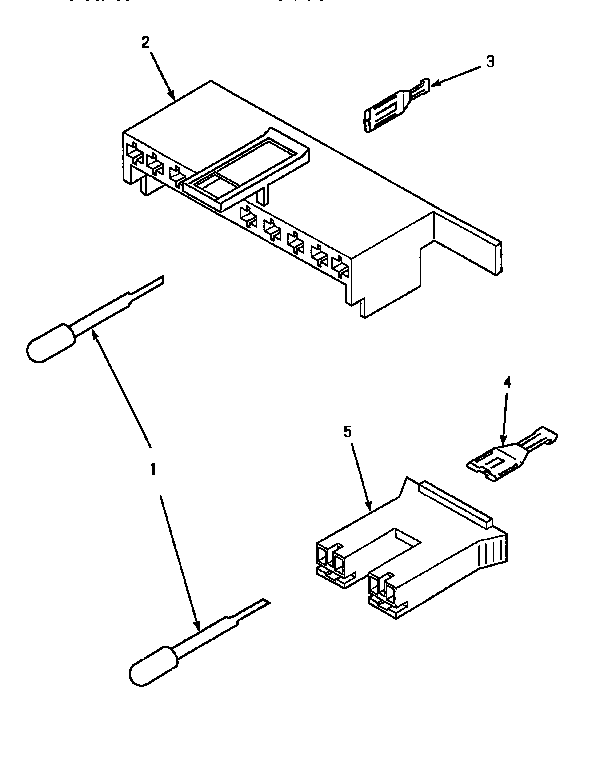

Harness 36278

#*05088

All parts diagram

Harness

Part #36278

Replaced by #36278

?
Manufacturer substitution
This part replaces 36278. Substitute parts can look different from the original.
$56.60
In Stock
Insert 29728
#11

Agitator, washtub & hub diagram

Insert

Part #29728

Replaced by #WP40008301

?
Manufacturer substitution
This part replaces 29728. Substitute parts can look different from the original.
This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
