Model # 260500180 Official LXI high-fidelity auto-reverse cassette

Here are the diagrams and repair parts for Official LXI 260500180 high-fidelity auto-reverse cassette, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Pc Board Sub 3513400
#34

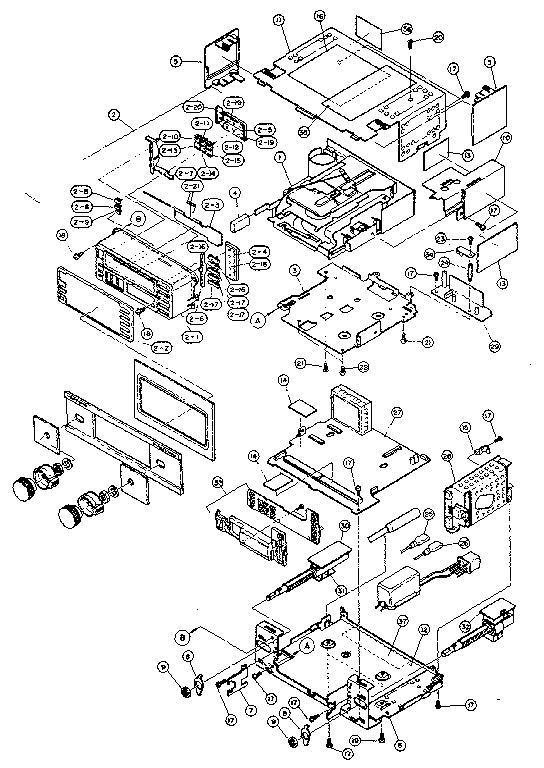

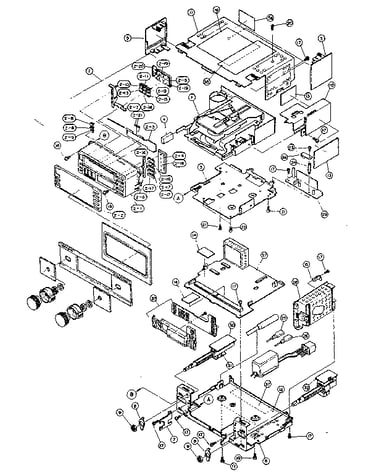

Cabinet & chassis diagram

Pc board sub

Part #3513400

The manufacturer no longer makes this part, and there's no substitute part

Pc Board 35026A0

#NI

All parts diagram

Pc board

Part #35026A0

The manufacturer no longer makes this part, and there's no substitute part

Pc Board Dis 35133A0
#33

Cabinet & chassis diagram

Pc board dis

Part #35133A0

The manufacturer no longer makes this part, and there's no substitute part

Serial Label 28A9004
#36

Cabinet & chassis diagram

Serial label

Part #28A9004

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 2656012
#25

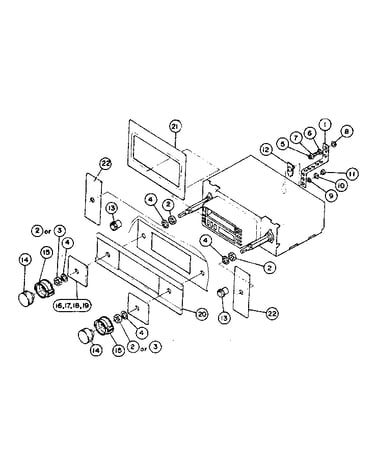

Unit diagram

Twist-on wire connector

Part #2656012

The manufacturer no longer makes this part, and there's no substitute part

Motor 24Z1031

#NI

All parts diagram

Motor

Part #24Z1031

The manufacturer no longer makes this part, and there's no substitute part

Sticker 28C1047
#37

Cabinet & chassis diagram

Sticker

Part #28C1047

The manufacturer no longer makes this part, and there's no substitute part

Spring 2572027
#38W

Cabinet & chassis diagram

Spring

Part #2572027

The manufacturer no longer makes this part, and there's no substitute part

Deck Brkt As 2110105C
#3

Cabinet & chassis diagram

Deck brkt as

Part #2110105C

The manufacturer no longer makes this part, and there's no substitute part

Spacer 2500004
#24

Cabinet & chassis diagram

Spacer

Part #2500004

The manufacturer no longer makes this part, and there's no substitute part
