Model # 793833701 Official Kenmore citrus juicer

Here are the diagrams and repair parts for Official Kenmore 793833701 citrus juicer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

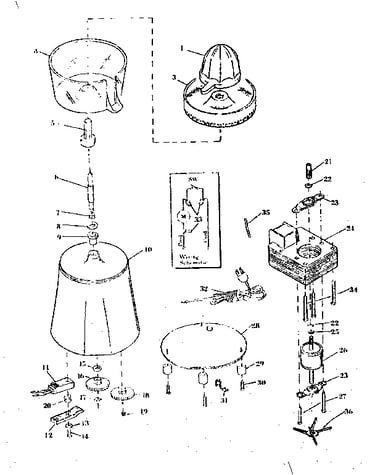

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Washer 67293
#8

Replacement parts diagram

Washer

Part #67293

The manufacturer no longer makes this part, and there's no substitute part

Swtch Bas As 208845
#11

Replacement parts diagram

Swtch bas as

Part #208845

The manufacturer no longer makes this part, and there's no substitute part

Hex Drive 67252
#5

Replacement parts diagram

Hex drive

Part #67252

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly 68660
#12

Replacement parts diagram

Lever assembly

Part #68660

The manufacturer no longer makes this part, and there's no substitute part

Fan 67624
#36

Replacement parts diagram

Fan

Part #67624

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 200901
#23

Replacement parts diagram

Bracket assembly

Part #200901

The manufacturer no longer makes this part, and there's no substitute part

Washer 78988
#22

Replacement parts diagram

Washer

Part #78988

The manufacturer no longer makes this part, and there's no substitute part

Gear 69726
#16

Replacement parts diagram

Gear

Part #69726

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 4321-030
#10

Replacement parts diagram

Housing assembly

Part #4321-030

The manufacturer no longer makes this part, and there's no substitute part

Bushing 67236
#9

Replacement parts diagram

Bushing

Part #67236

The manufacturer no longer makes this part, and there's no substitute part
