Model # XG8000E-5747-1 Official Generac generator

Here are the diagrams and repair parts for Official Generac XG8000E-5747-1 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

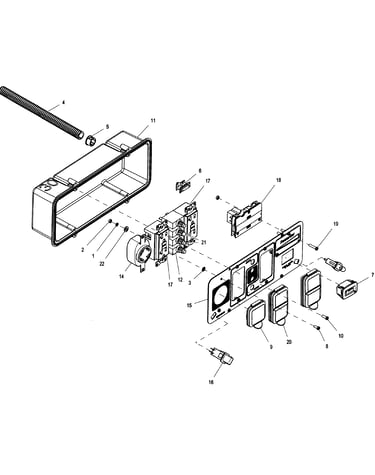

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Generator Air Filter 073111
#48

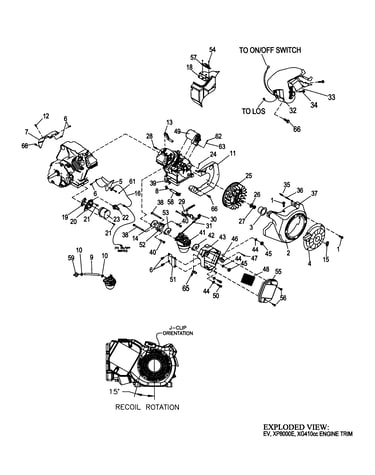

Engine 2 diagram

Generator air filter

Part #073111

Replaced by #073111S

?
Manufacturer substitution
This part replaces 073111. Substitute parts can look different from the original.
This item is not returnable
$27.32 |
18% OFF Phone Price : $33.32
In Stock
Generator Fuel Shut-off Valve 0H3419
#41

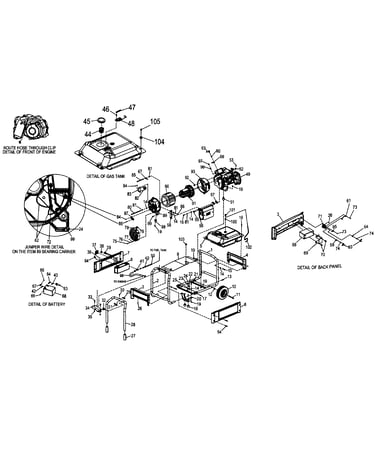

Frame assy diagram

Generator fuel shut-off valve

Part #0H3419

This item is not returnable
$14.46
In Stock
Generator Handle Stop Retainer 0G5442
#29

Frame assy diagram

Generator handle stop retainer

Part #0G5442

This item is not returnable
$2.16
In Stock
Generator Battery 0G9449
#68

Frame assy diagram

Generator battery

Part #0G9449

$86.87
In Stock
Generator Engine Valve Spring Retainer 0D2274
#23

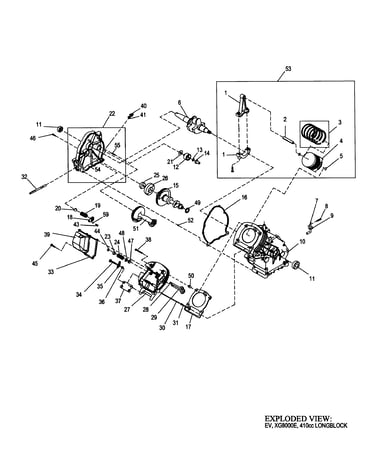

Engine 1 diagram

Generator engine valve spring retainer

Part #0D2274

This item is not returnable
$2.54 |
28% OFF Phone Price : $3.54
In Stock
Lawn & Garden Equipment Engine Cylinder Head Gasket 021713B
#17

Engine 1 diagram

Lawn & garden equipment engine cylinder head gasket

Part #021713B

This item is not returnable
$6.78 |
13% OFF Phone Price : $7.78
In Stock
Pressure Washer Engine Push Rod 0D9853B
#30

Engine 1 diagram

Pressure washer engine push rod

Part #0D9853B

$14.09
In Stock
Lawn & Garden Equipment Engine Ignition Coil 0G9241T
#33

Engine 2 diagram

Lawn & garden equipment engine ignition coil

Part #0G9241T

$43.29 |
12% OFF Phone Price : $49.29
In Stock
Generator Breather Hose 0D7199A
#13

Engine 2 diagram

Generator breather hose

Part #0D7199A

$28.16
In Stock
Adapter 091028
#52

Engine 2 diagram

Adapter

Part #091028

Replaced by #G091028

?
Manufacturer substitution
This part replaces 091028. Substitute parts can look different from the original.
This item is not returnable
$20.09 |
23% OFF Phone Price : $26.09
In Stock
