Model # CFRE4120SW Official Frigidaire dryer

Here are the diagrams and repair parts for Official Frigidaire CFRE4120SW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

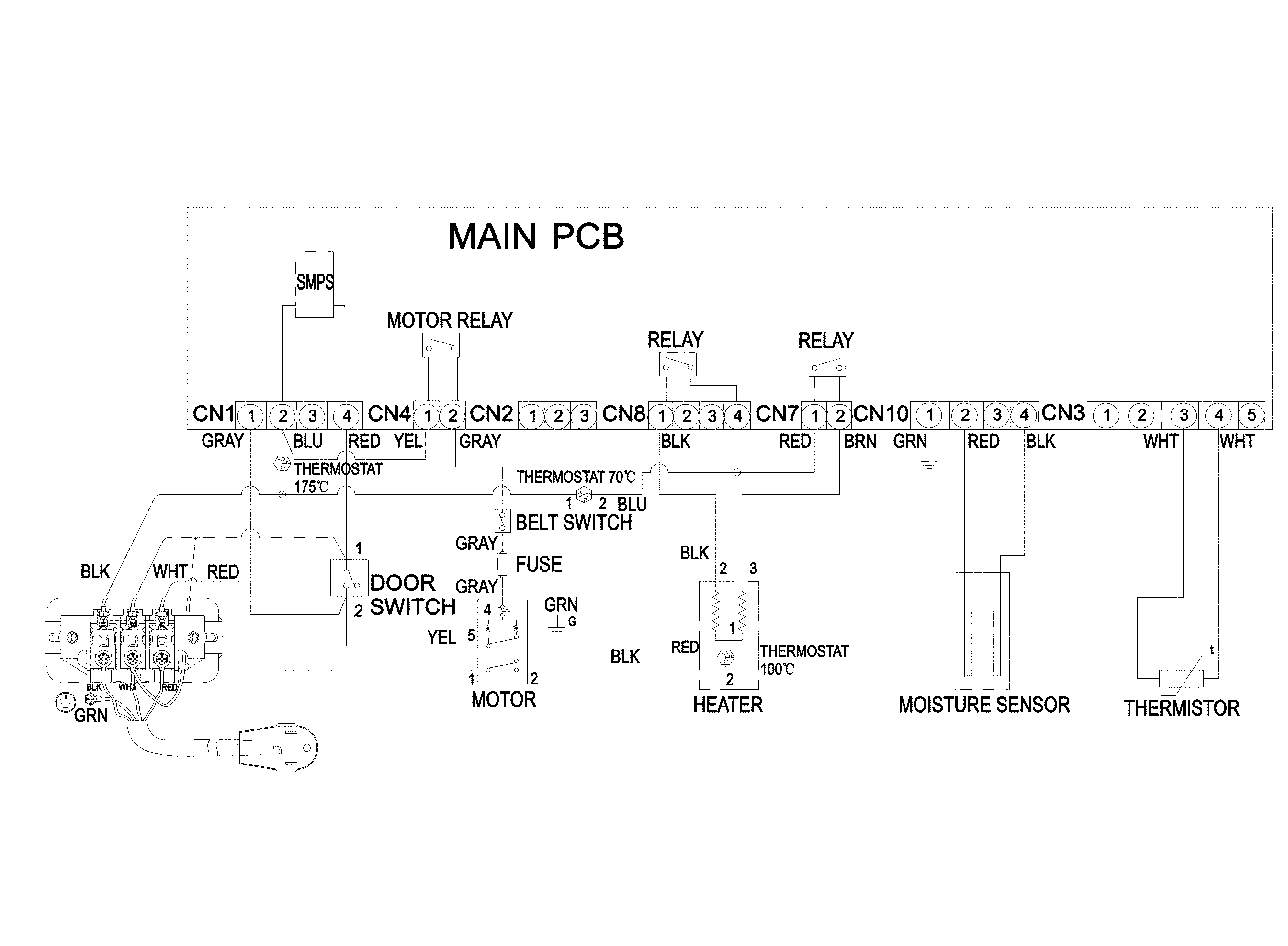

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Dryer Heater Assembly 5304511375
#8

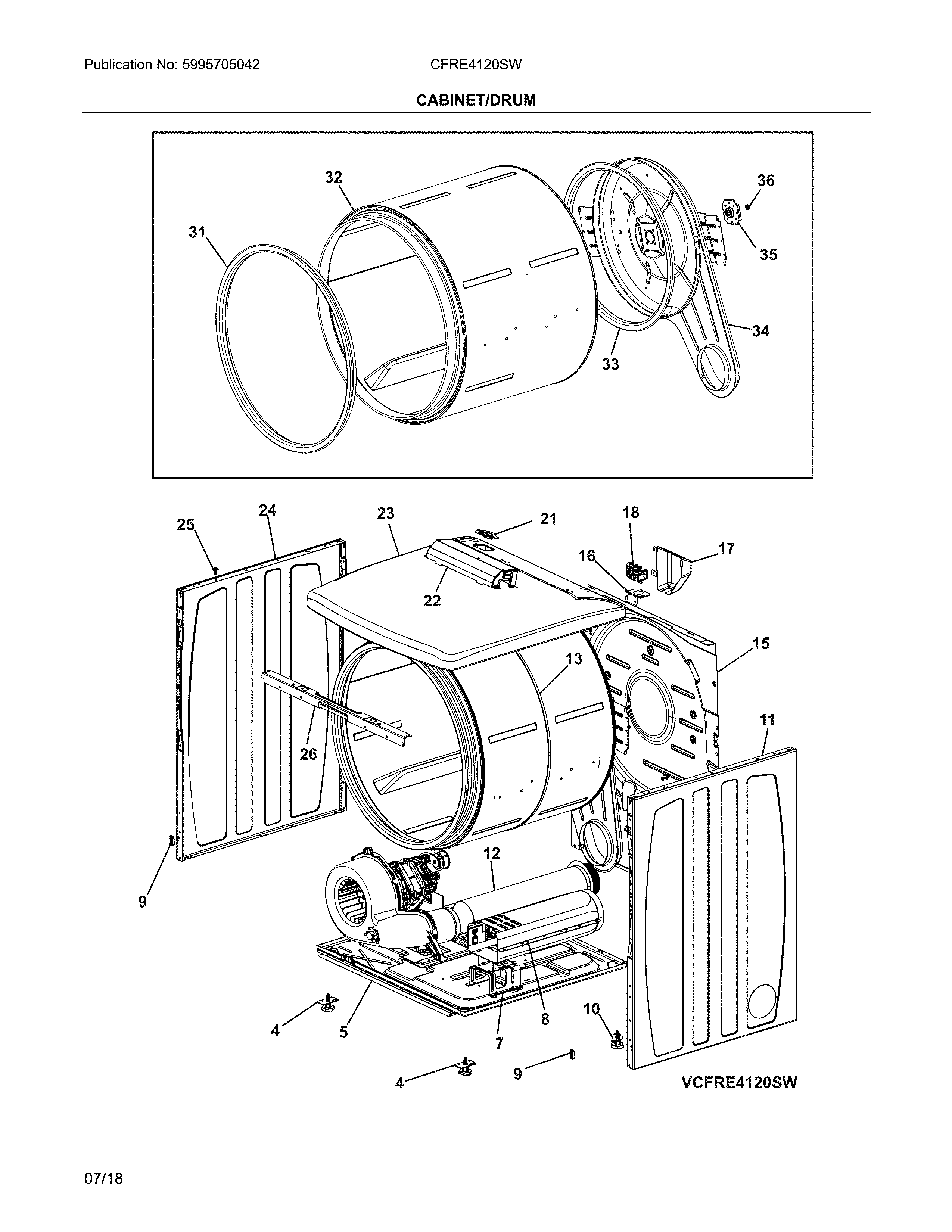

Cabinet/drum diagram

Dryer heater assembly

Part #5304511375

$203.90 |
6% OFF Phone Price : $215.90
In Stock
Board,user Interface ,assembly 5304511421
#4

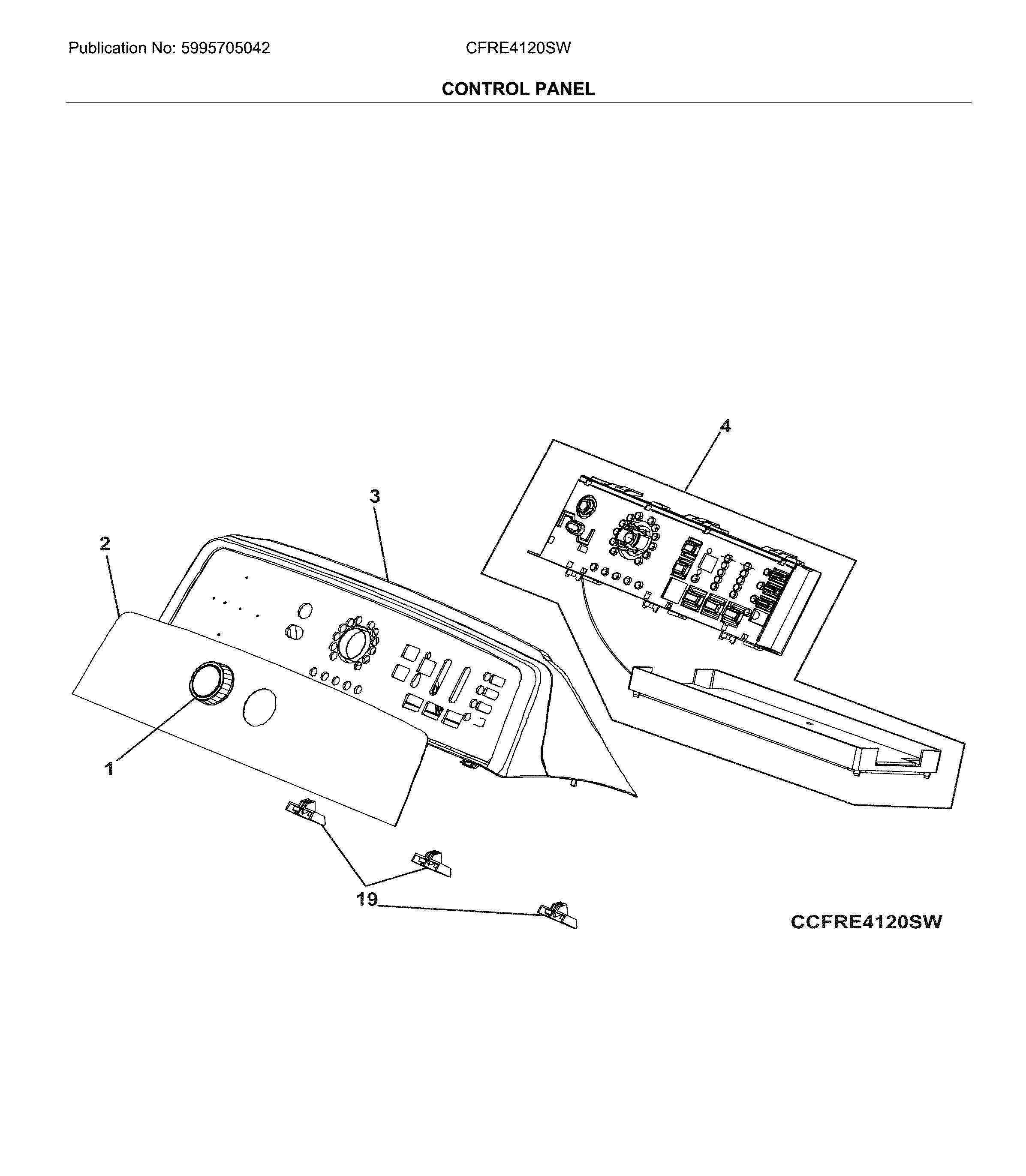

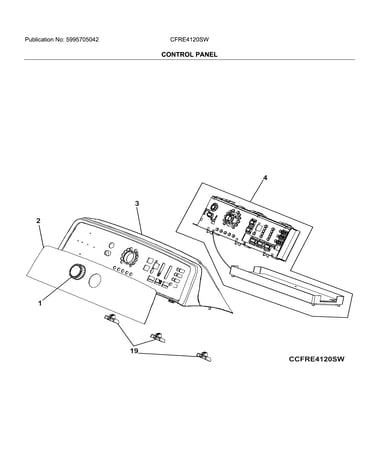

Control panel diagram

Board,user interface ,assembly

Part #5304511421

Replaced by #5304521563

?
Manufacturer substitution
This part replaces 5304511421. Substitute parts can look different from the original.
$254.67
In Stock
Dryer Drum Bearing 5304511395
#35

Cabinet/drum diagram

Dryer drum bearing

Part #5304511395

$59.42 |
9% OFF Phone Price : $65.42
In Stock
Dryer High-limit Thermostat 5304511428
#6

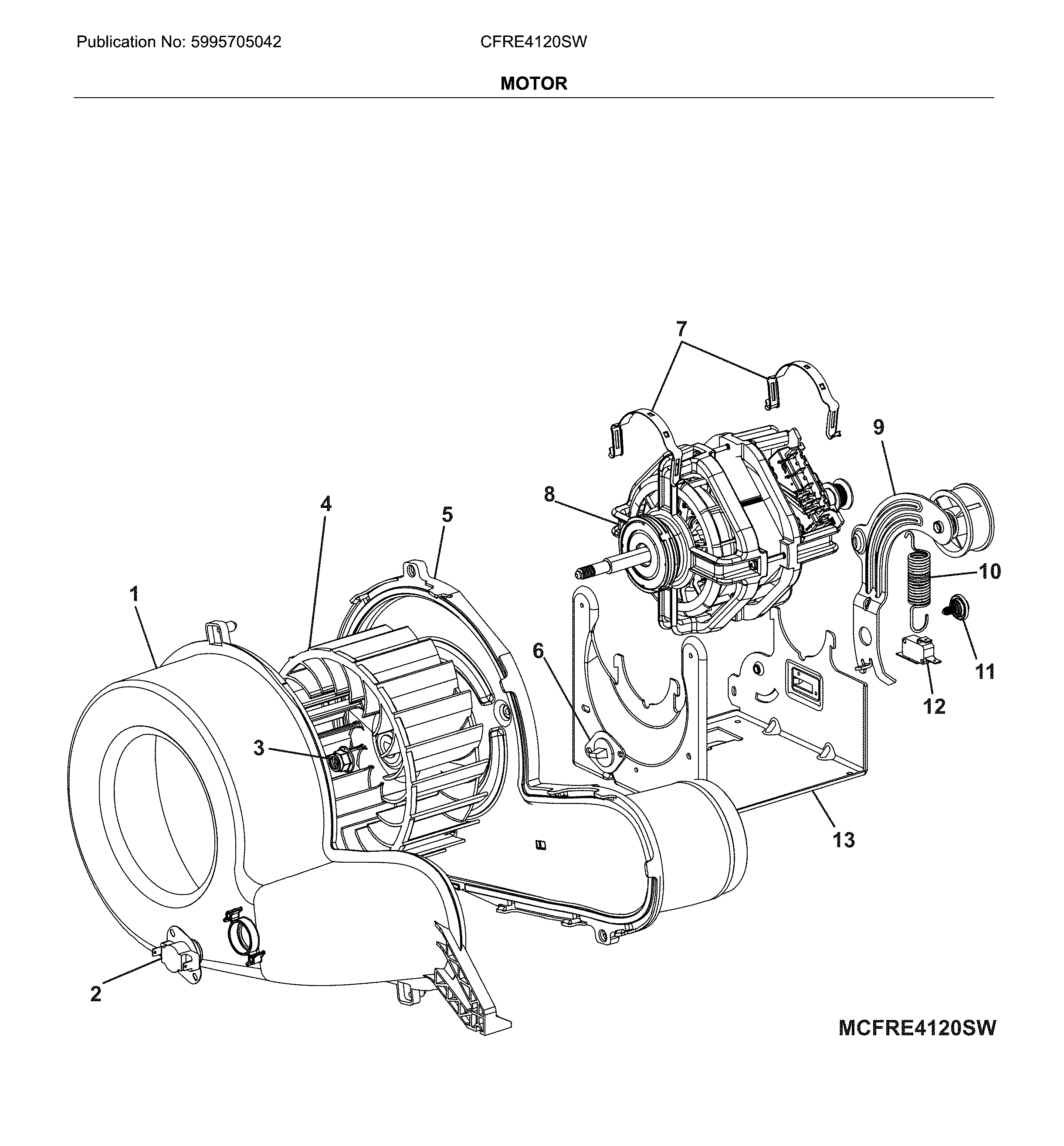

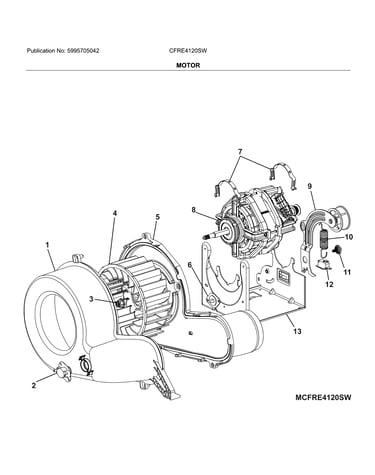

Motor diagram

Dryer high-limit thermostat

Part #5304511428

$60.59 |
9% OFF Phone Price : $66.59
In Stock
Sensor,humidity ,w/cover 5304511416
#38

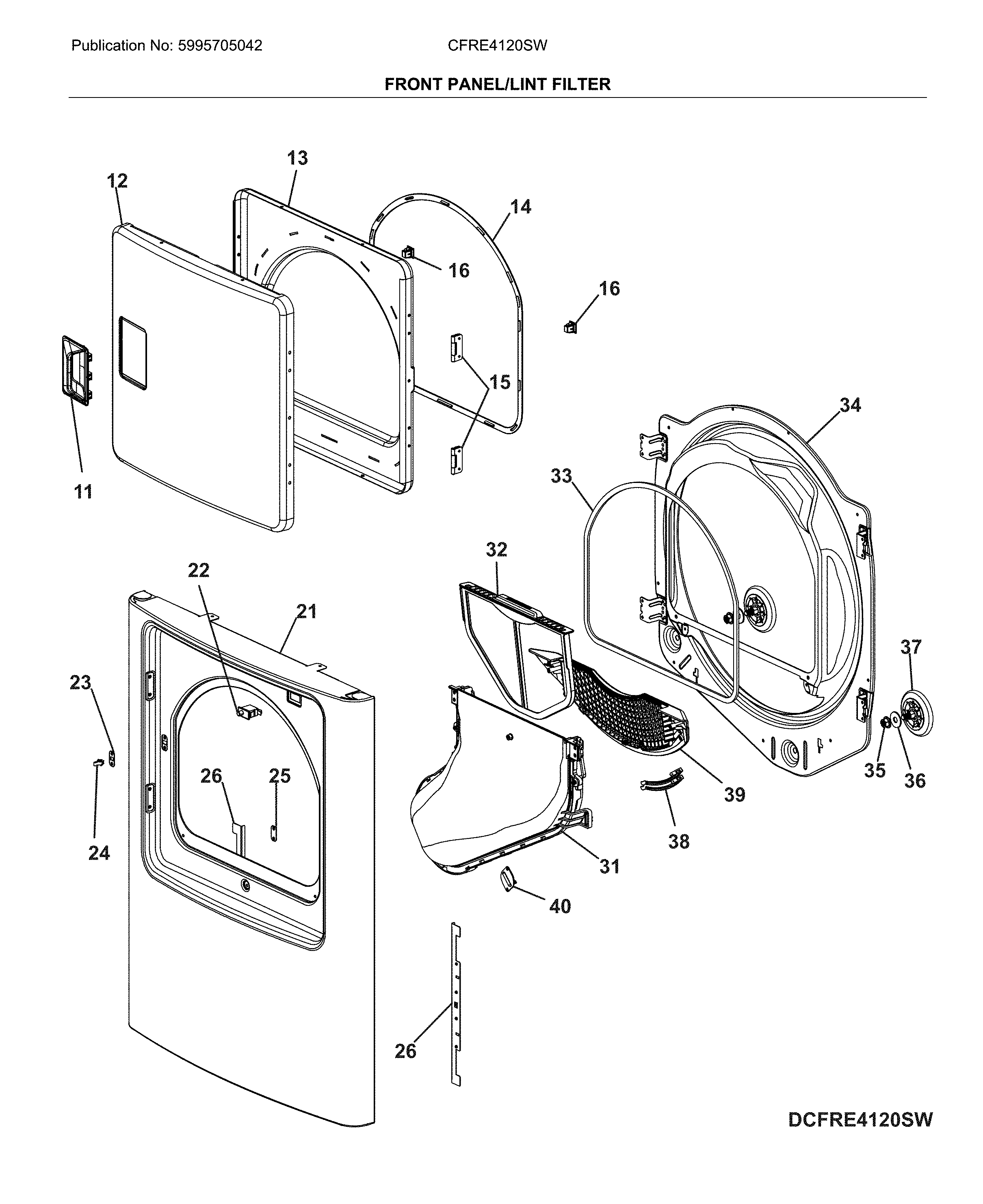

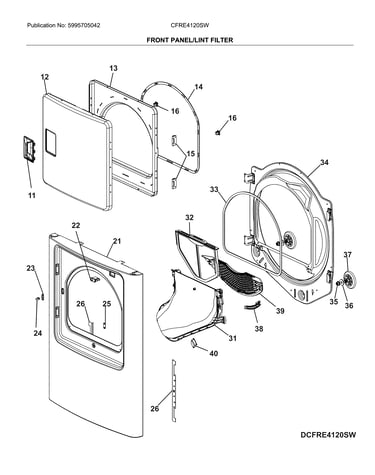

Front panel/lint filter diagram

Sensor,humidity ,w/cover

Part #5304511416

$21.91 |
21% OFF Phone Price : $27.91
In Stock
Dryer Blower Wheel Nut 5304511425
#3

Motor diagram

Dryer blower wheel nut

Part #5304511425

$11.86
In Stock
Nut 5304511396
#36

Cabinet/drum diagram

Nut

Part #5304511396

This item is not returnable
$6.97
In Stock
Dryer Door Catch 5304511402
#16

Front panel/lint filter diagram

Dryer door catch

Part #5304511402

This item is not returnable
$29.17 |
17% OFF Phone Price : $35.17
In Stock
Dryer Drum Felt Seal, Front 5304511391
#31

Cabinet/drum diagram

Dryer drum felt seal, front

Part #5304511391

$63.49 |
9% OFF Phone Price : $69.49
In Stock
Duct Assembly,drum Heating ,rear 5304511394
#34

Cabinet/drum diagram

Duct assembly,drum heating ,rear

Part #5304511394

$143.56
In Stock
