Model # A4880 Official Kenmore vacuum cleaner & attachment set

Here are the diagrams and repair parts for Official Kenmore A4880 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Relief 680175
#9

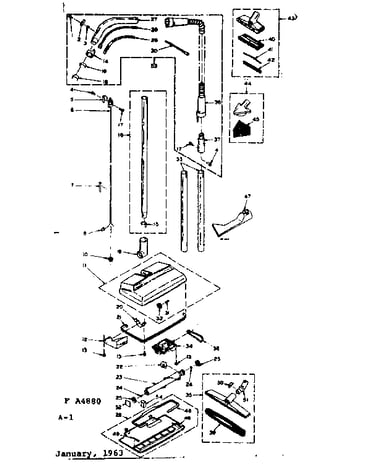

Power mate diagram

Relief

Part #680175

The manufacturer no longer makes this part, and there's no substitute part

Cord Plug 721189
#6

Power mate diagram

Cord plug

Part #721189

The manufacturer no longer makes this part, and there's no substitute part

Screw 680603
#13

Power mate diagram

Screw

Part #680603

The manufacturer no longer makes this part, and there's no substitute part

Exten Yoke 721126
#18

Power mate diagram

Exten yoke

Part #721126

The manufacturer no longer makes this part, and there's no substitute part

Dust Pad 721289
#52

Power mate diagram

Dust pad

Part #721289

The manufacturer no longer makes this part, and there's no substitute part

Nut 680510
#4

Power mate diagram

Nut

Part #680510

The manufacturer no longer makes this part, and there's no substitute part

Spring Assembly 720900
#16

Power mate diagram

Spring assembly

Part #720900

The manufacturer no longer makes this part, and there's no substitute part

Intake Tube 720953
#12

Power mate diagram

Intake tube

Part #720953

The manufacturer no longer makes this part, and there's no substitute part

Brush Insert 720959
#22

Power mate diagram

Brush insert

Part #720959

The manufacturer no longer makes this part, and there's no substitute part

Control Button 721160
#2

Power mate diagram

Control button

Part #721160

The manufacturer no longer makes this part, and there's no substitute part
