Amana
Countertop Microwave

Model # 1021.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1021000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

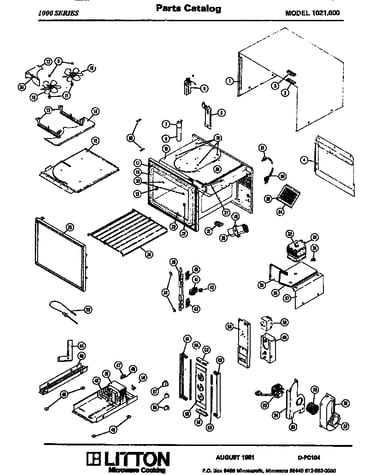

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Power Card M26D27
#30A

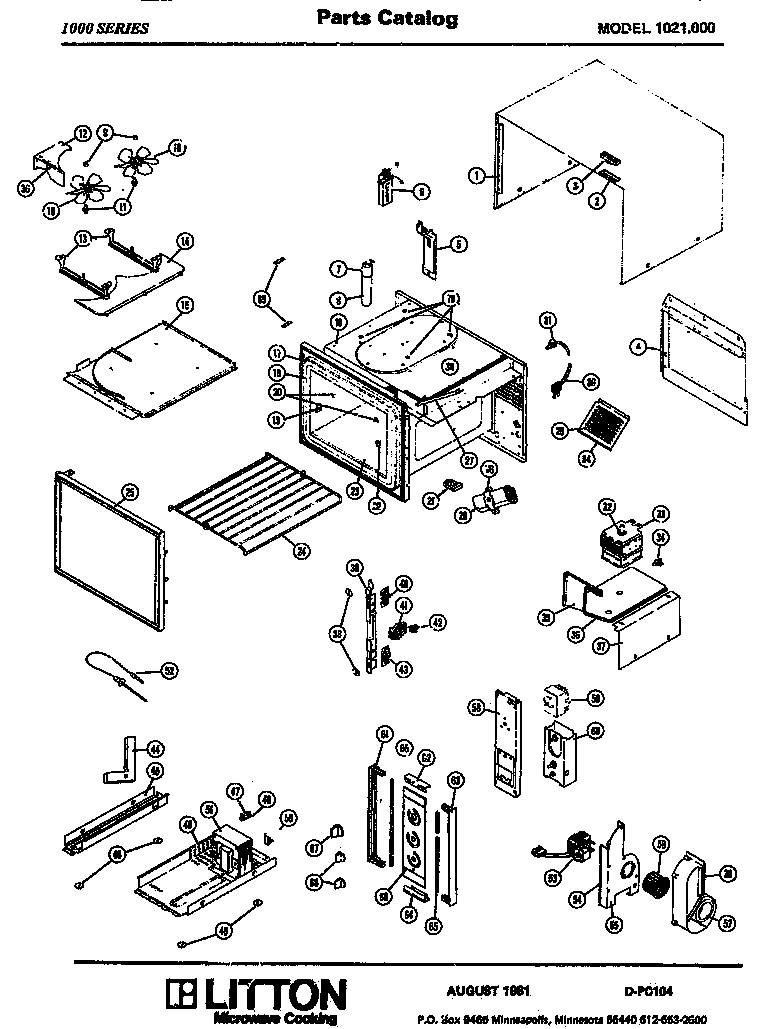

Microwave parts diagram

Power card

Part #M26D27

The manufacturer no longer makes this part, and there's no substitute part

Bearing Insert M2D479
#38

Microwave parts diagram

Bearing insert

Part #M2D479

The manufacturer no longer makes this part, and there's no substitute part

Screw Thermal Protector Mounting M1D666
#34B

Microwave parts diagram

Screw thermal protector mounting

Part #M1D666

The manufacturer no longer makes this part, and there's no substitute part

Protector M4D49
#34A

Microwave parts diagram

Protector

Part #M4D49

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Cording M1D368
#30B

Microwave parts diagram

Screw, cord cording

Part #M1D368

The manufacturer no longer makes this part, and there's no substitute part

Control Board Trim (top) M7D403
#62A

Microwave parts diagram

Control board trim (top)

Part #M7D403

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, Probe Jack Mtg. M1D617
#21B

Microwave parts diagram

Flat washer, probe jack mtg.

Part #M1D617

The manufacturer no longer makes this part, and there's no substitute part

Nut, Bracket Mtg. M1D310
#39B

Microwave parts diagram

Nut, bracket mtg.

Part #M1D310

The manufacturer no longer makes this part, and there's no substitute part

Timer (45 Minute) M30D68
#59A

Microwave parts diagram

Timer (45 minute)

Part #M30D68

The manufacturer no longer makes this part, and there's no substitute part

H. V. Lead #34 M5D292
#6E

Microwave parts diagram

H. v. lead #34

Part #M5D292

The manufacturer no longer makes this part, and there's no substitute part
