Kenmore
Top-Mount Refrigerator

Model # 2539368782 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 2539368782 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Ice Maker Mold 5303320545
#17

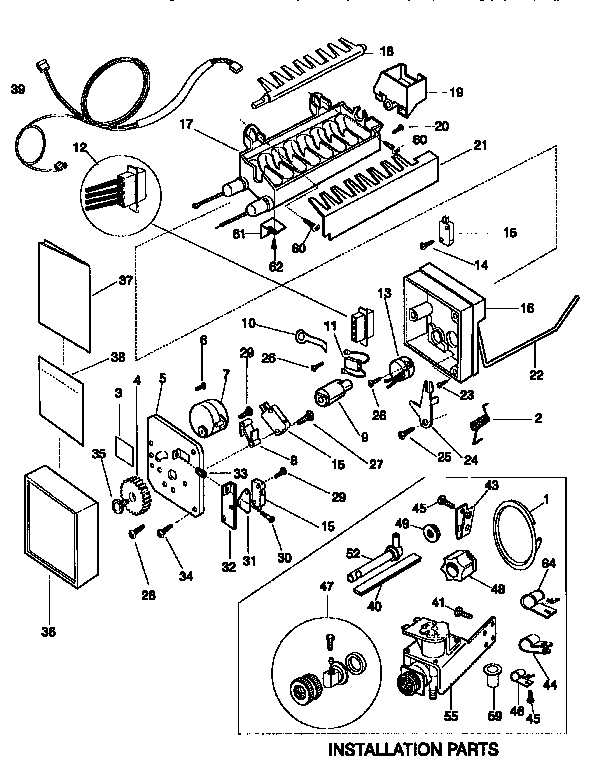

Installation parts and mold-ice maker assembly diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Drier-r12 218541000
#4

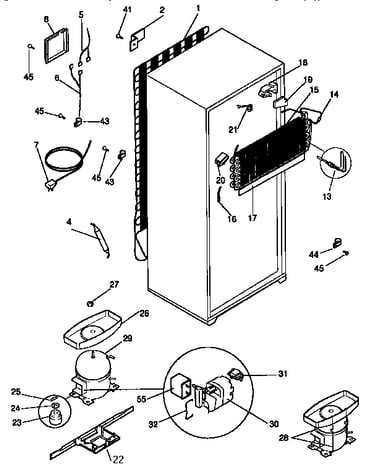

Unit parts diagram

Drier-r12

Part #218541000

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218541000. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

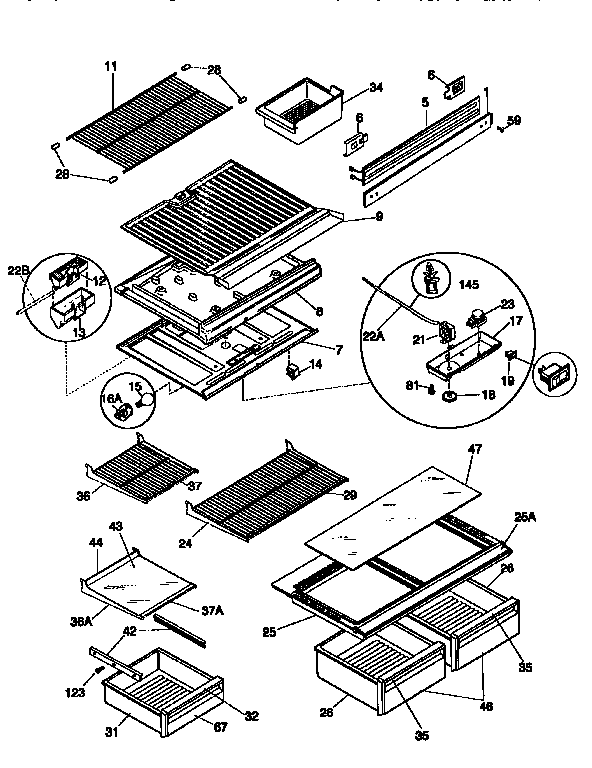

Separators and shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Timer 215267800
#23

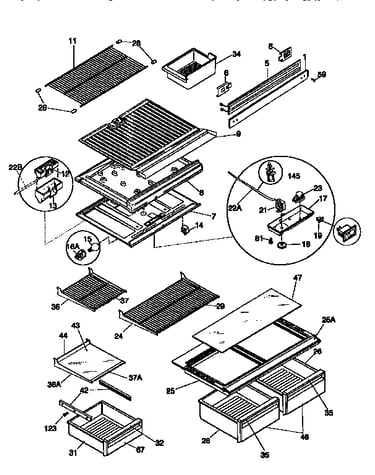

Separators and shelves diagram

Refrigerator timer

Part #215267800

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215267800. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Ice Maker Assembly 3206306
#7

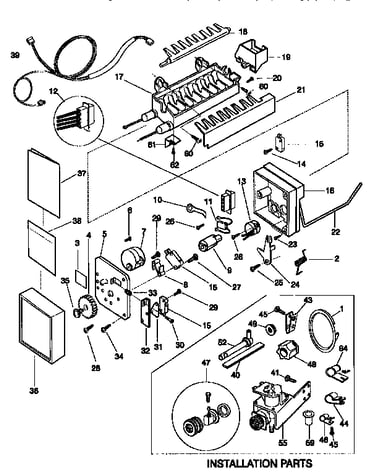

Installation parts and mold-ice maker assembly diagram

Refrigerator ice maker assembly

Part #3206306

Replaced by #5303918277

?
Manufacturer substitution
This part replaces 3206306. Substitute parts can look different from the original.
BEST SELLER
$116.77 |
9% OFF Phone Price : $128.77
Back Order
Refrigerator Door Gasket (almond) 218730606
#2

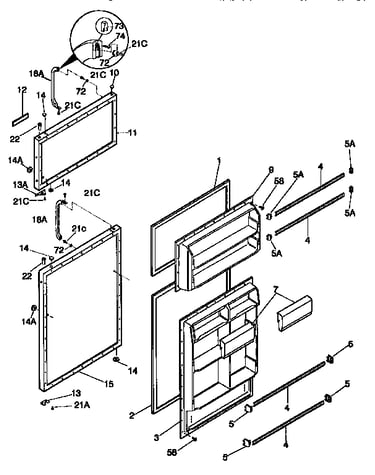

Door assembly diagram

Refrigerator door gasket (almond)

Part #218730606

Replaced by #5303207345

?
Manufacturer substitution
This part replaces 218730606. Substitute parts can look different from the original.
BEST SELLER
$108.92 |
10% OFF Phone Price : $120.92
In Stock
Evaporator Motor 215360800
#13

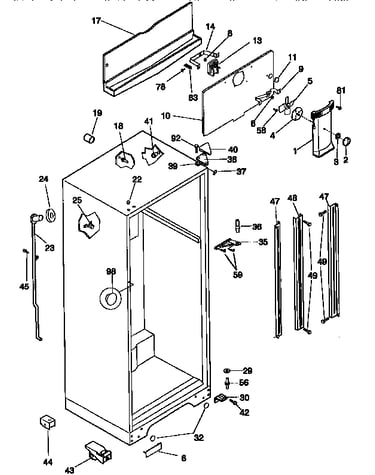

Cabinet parts diagram

Evaporator motor

Part #215360800

Replaced by #5300158289

?
Manufacturer substitution
This part replaces 215360800. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Receptacle 5308000815
#16A

Separators and shelves diagram

Refrigerator receptacle

Part #5308000815

Replaced by #218906802

?
Manufacturer substitution
This part replaces 5308000815. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Refrigerator Door Support 215473601
#5A

Door assembly diagram

Refrigerator door support

Part #215473601

Replaced by #215473602

?
Manufacturer substitution
This part replaces 215473601. Substitute parts can look different from the original.
This item is not returnable
$4.63 |
18% OFF Phone Price : $5.63
In Stock
Refrigerator Door Rack 218027045
#4

Door assembly diagram

Refrigerator door rack

Part #218027045

Replaced by #215366002

?
Manufacturer substitution
This part replaces 218027045. Substitute parts can look different from the original.
$43.63 |
12% OFF Phone Price : $49.63
In Stock
