Model # JE1390GV01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1390GV01 microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJE1390GV01 Microwaves

  • "switch, P" WB24X815
    #604

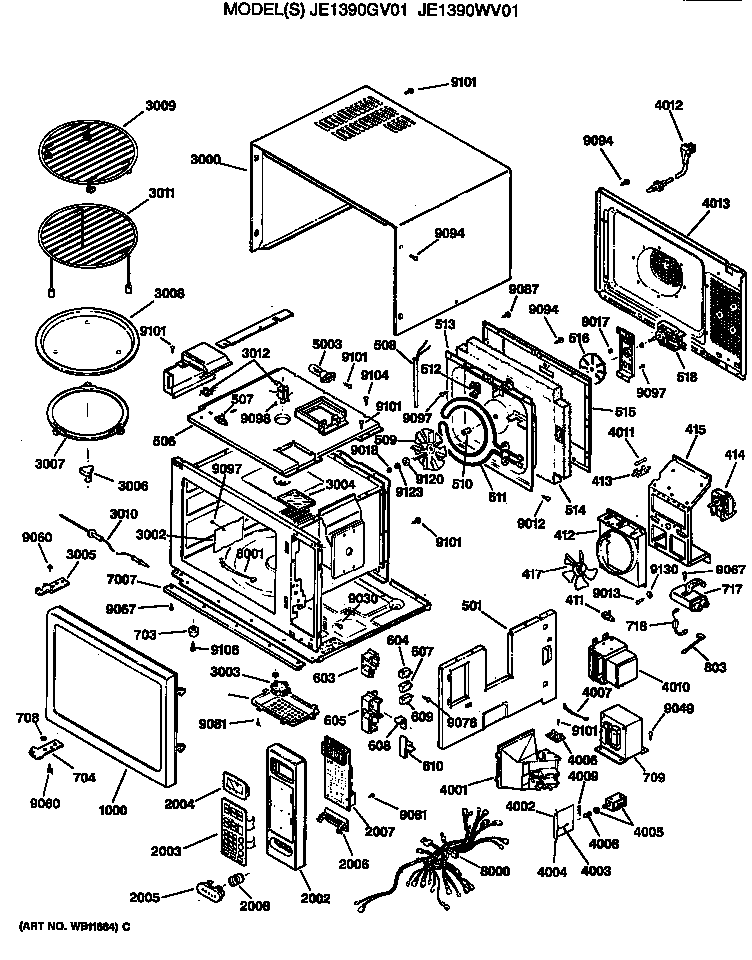

    Microwave diagram

    "switch, p"

    Part #WB24X815

    Replaced by #WB24X10047

    ?
    Manufacturer substitution
    This part replaces WB24X815. Substitute parts can look different from the original.
    5 (2)
    BEST SELLER
    $37.32 |
    14% OFF Phone Price : $43.32
    In Stock
  • Microwave Door Interlock Switch WB24X817
    #607

    Microwave diagram

    Microwave door interlock switch

    Part #WB24X817

    Replaced by #WB24X25397

    ?
    Manufacturer substitution
    This part replaces WB24X817. Substitute parts can look different from the original.
    BEST SELLER
    $28.71 |
    17% OFF Phone Price : $34.71
    In Stock
  • Blade Motor WB6X475
    #516

    Microwave diagram

    Blade motor

    Part #WB6X475

    $26.50
    In Stock
  • Pan Screw WB1X1509
    #9076

    Microwave diagram

    Pan screw

    Part #WB1X1509

    $10.06
    In Stock
  • Nut WB1X1520
    #9018

    Microwave diagram

    Nut

    Part #WB1X1520

    $7.40 |
    12% OFF Phone Price : $8.40
    In Stock
  • Washer WB1X1521
    #9120

    Microwave diagram

    Washer

    Part #WB1X1521

    $29.95
    In Stock
  • Screw WB1X1514
    #9101

    Microwave diagram

    Screw

    Part #WB1X1514

    This item is not returnable
    $13.37
    In Stock
  • Washer WB1X1522
    #9123

    Microwave diagram

    Washer

    Part #WB1X1522

    $10.27 |
    16% OFF Phone Price : $12.27
    In Stock
  • Ring Shaft WB1X1518
    #510

    Microwave diagram

    Ring shaft

    Part #WB1X1518

    $13.37
    In Stock
  • Use And Care Guide 49-8570

    #NI

    All parts diagram

    Use and care guide

    Part #49-8570

    $10.71
    In Stock
