Model # OH-100/P96288-3F Official Amana oil furnace

Here are the diagrams and repair parts for Official Amana OH-100/P96288-3F oil furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forOH-100/P96288-3F Oil Furnace

  • Screw M0211317
    Screw

    Part #M0211317

    Replaced by #WP489464

    ?
    Manufacturer substitution
    This part replaces M0211317. Substitute parts can look different from the original.
    This item is not returnable
    $6.60
    13% OFF Phone Price : $7.60
    In Stock
  • Furnace Blower Housing R0116702
    Furnace blower housing

    Part #R0116702

    The manufacturer no longer makes this part, and there's no substitute part

  • Front Left Panel R0178360
    #14C

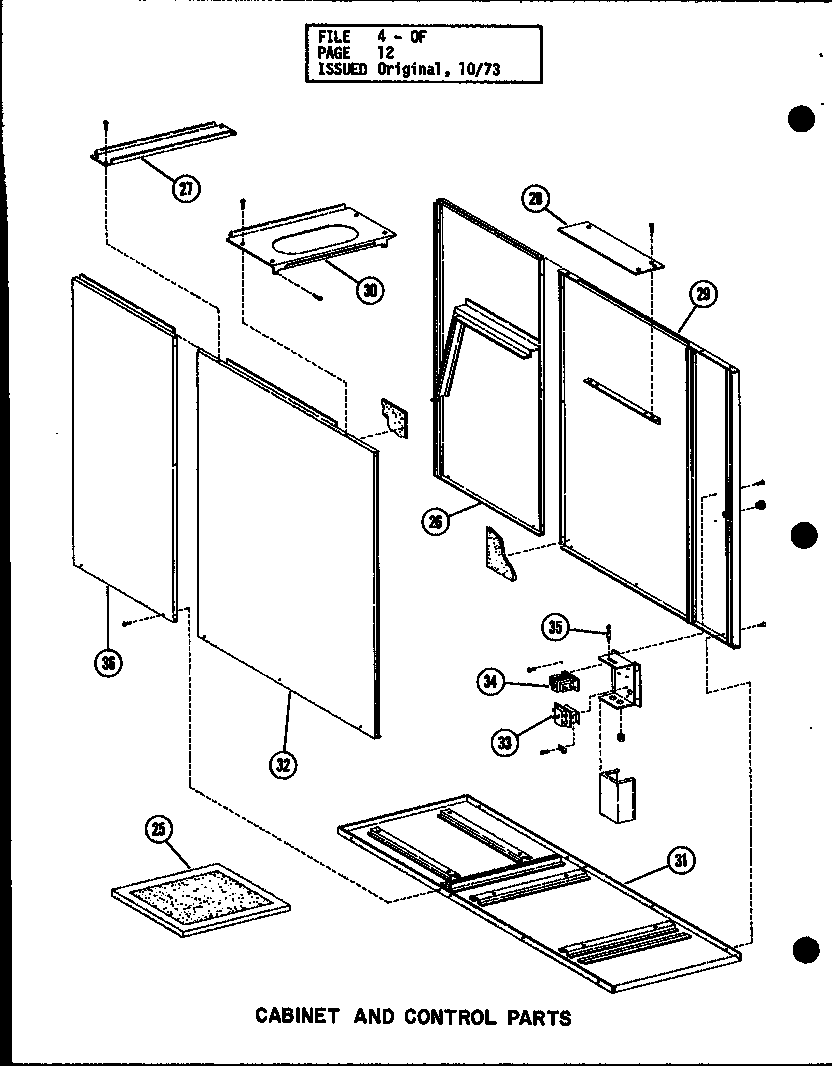

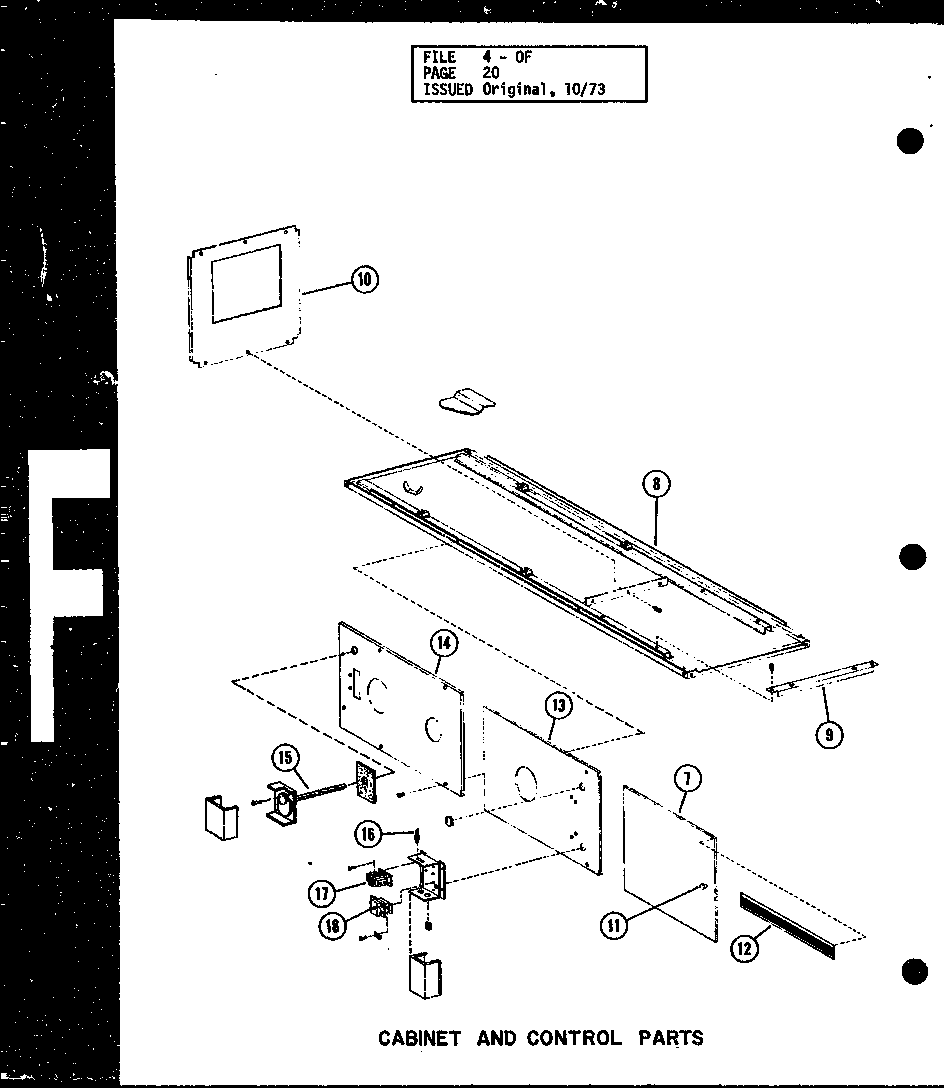

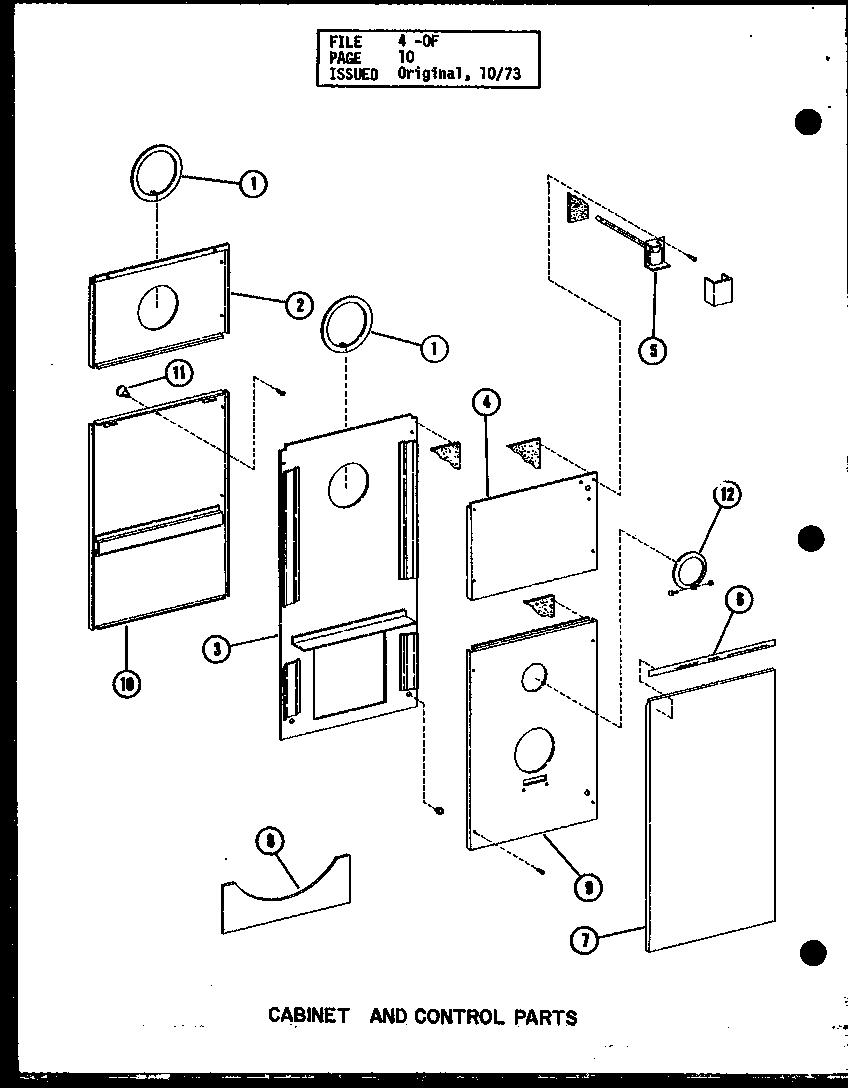

    Cabinet and control parts (os-85-3/p96291-5f) (os-100/p96291-1f) (os-100-3/p96291-2f) (os-125/p96291-3f) (os-125-4/p96291-4f) (os-150/p96317-1f) (os-200/p96317-2f) (os-250/p96317-3f) (os-335/p96317-4f) diagram

    Front left panel

    Part #R0178360

    The manufacturer no longer makes this part, and there's no substitute part

  • Filter Rack Top Or Botton R0178292
    #19

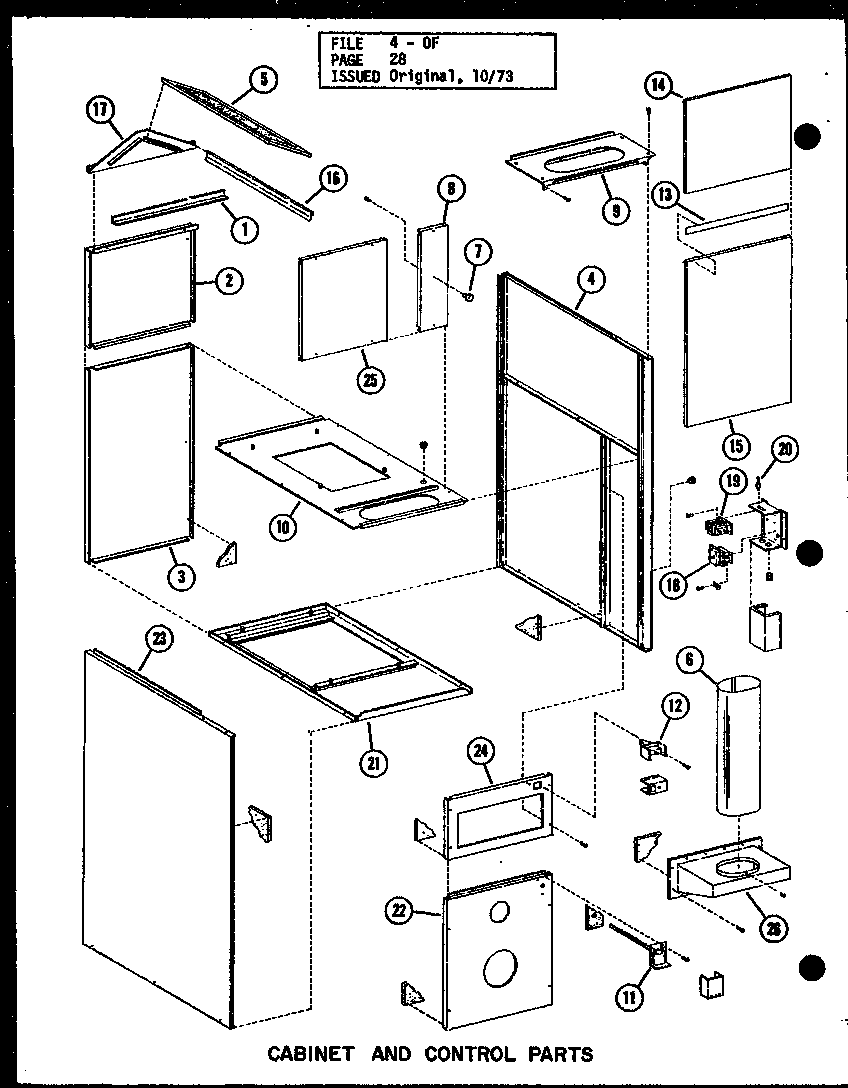

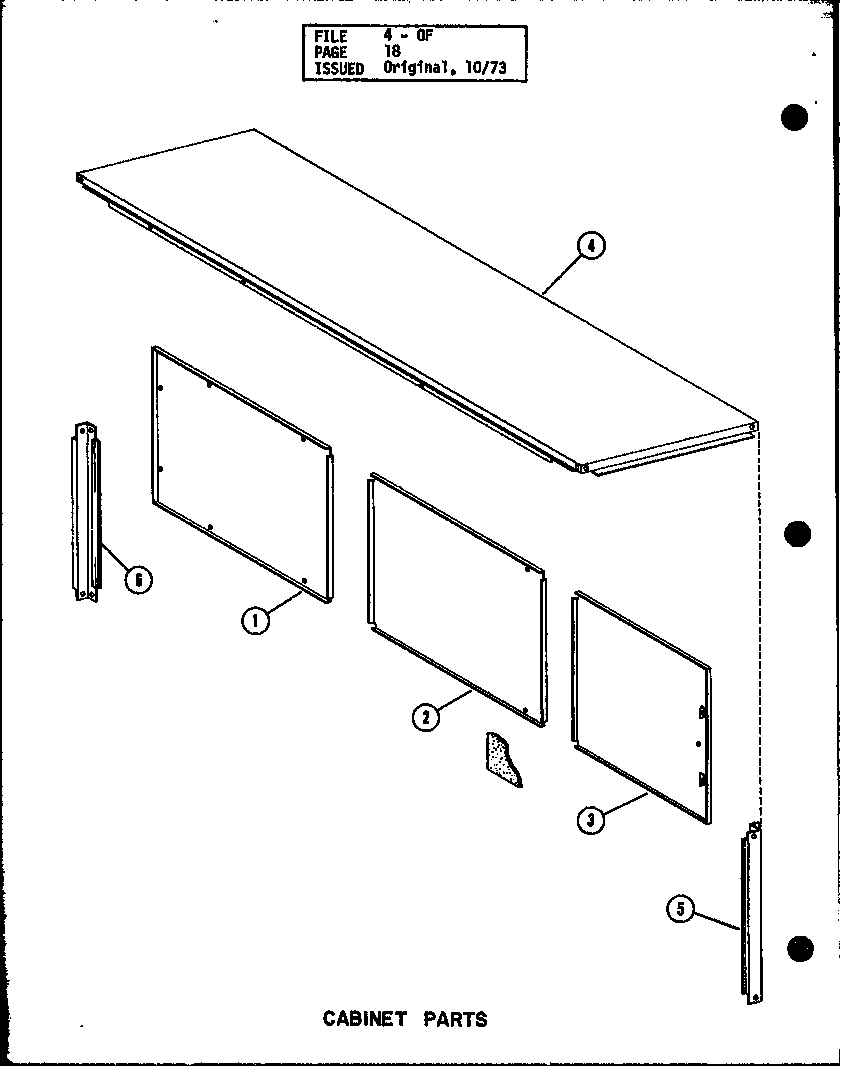

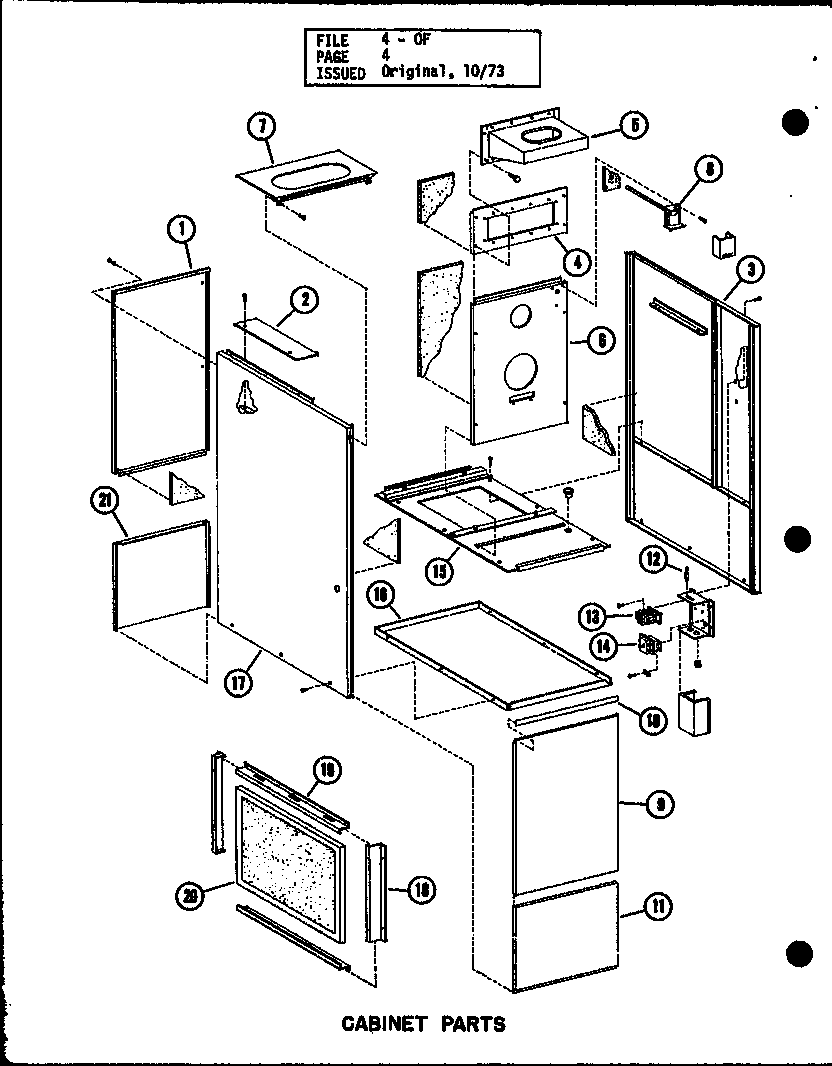

    Cabinet parts (oh-85/p96288-1f) (oh-85-3/p96288-2f) (oh-100/p96288-3f) (oh-100-3/p96288-4f) (oh-125/p96288-5f) (oh-125-3/p96288-6f) diagram

    Filter rack top or botton

    Part #R0178292

    The manufacturer no longer makes this part, and there's no substitute part

  • Frimary Relay, Honeywell R8184g1005 R0159005
    Frimary relay, honeywell r8184g1005

    Part #R0159005

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Tube R0178072
    Air tube

    Part #R0178072

    The manufacturer no longer makes this part, and there's no substitute part

  • Partition R0178177
    #3B

    Cabinet and control parts (ol-100/p96289-1f) (ol-100-3/p96289-2f) (ol-125/p96289-3f) (ol-125-3/p96289-4f) (ol-150/p96289-5f) (ol-150-4/p96289-6f) (ol-200/p96318-1f) (ol-250/p96318-2f) diagram

    Partition

    Part #R0178177

    The manufacturer no longer makes this part, and there's no substitute part

  • Filter, 20" X 12", Disposable C9401806
    Filter, 20" x 12", disposable

    Part #C9401806

    The manufacturer no longer makes this part, and there's no substitute part

  • Heat Exchanger Assembly, W/combustion Chamber R0118202
    #20B

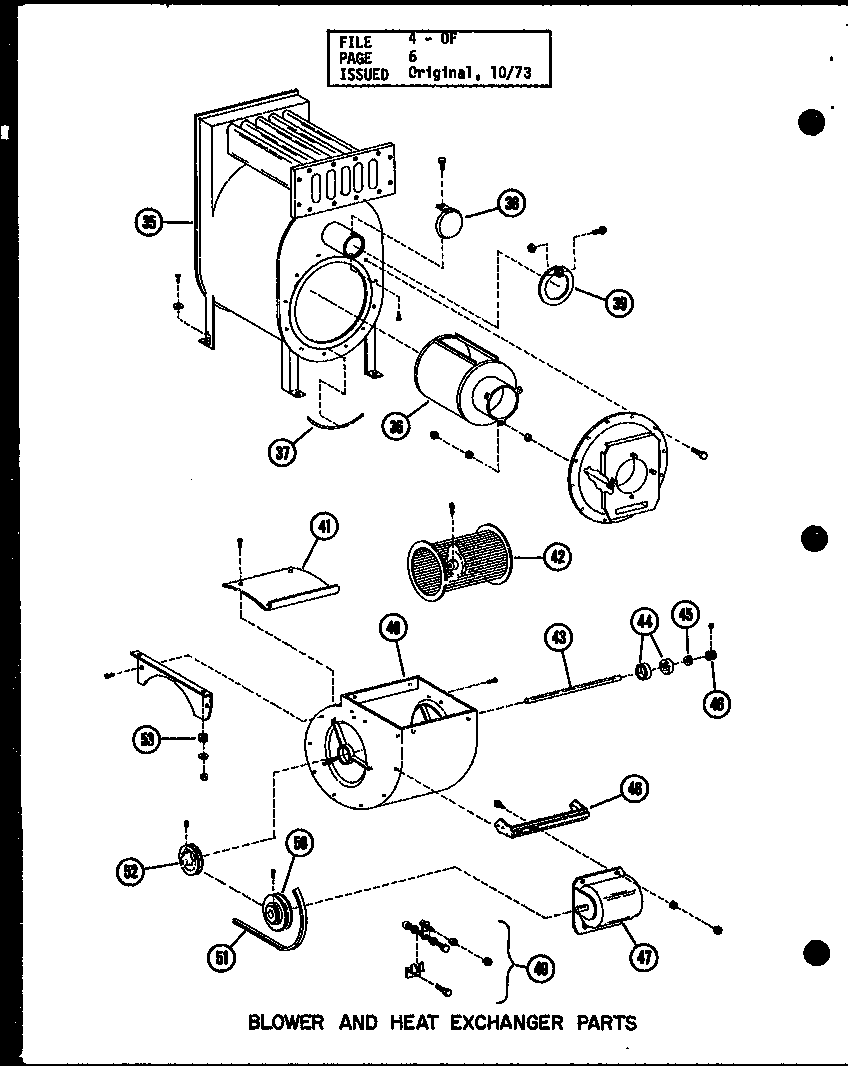

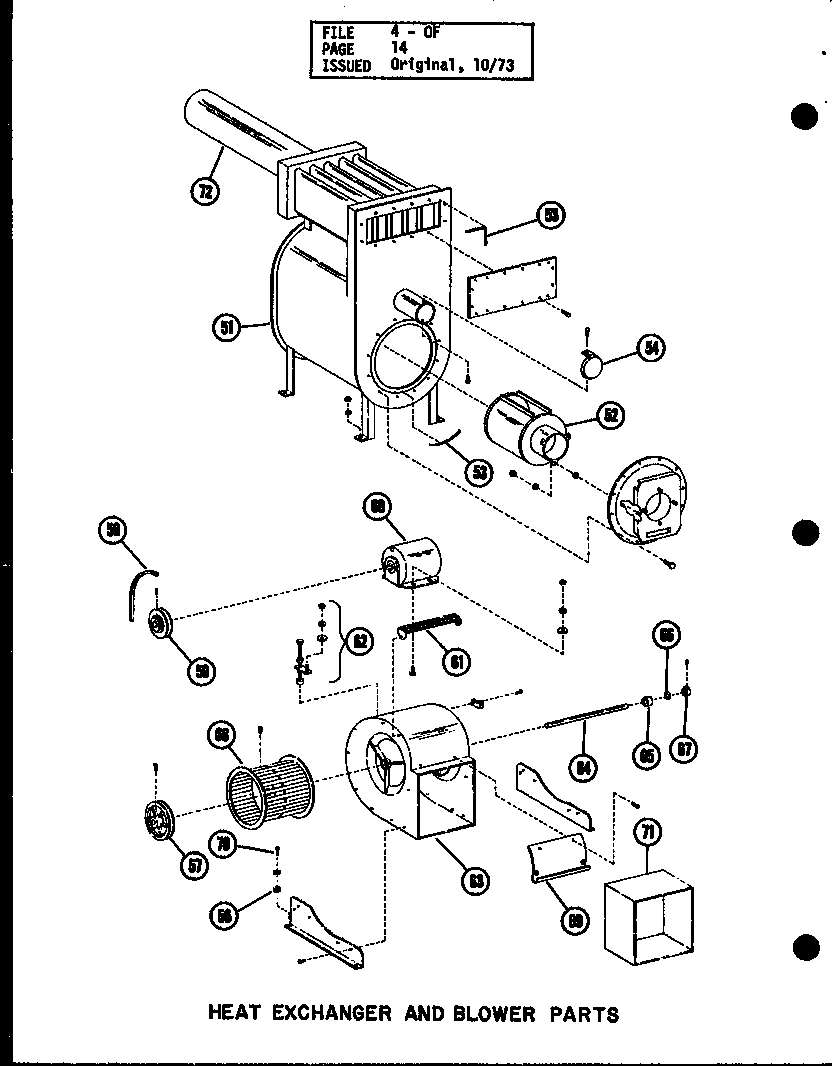

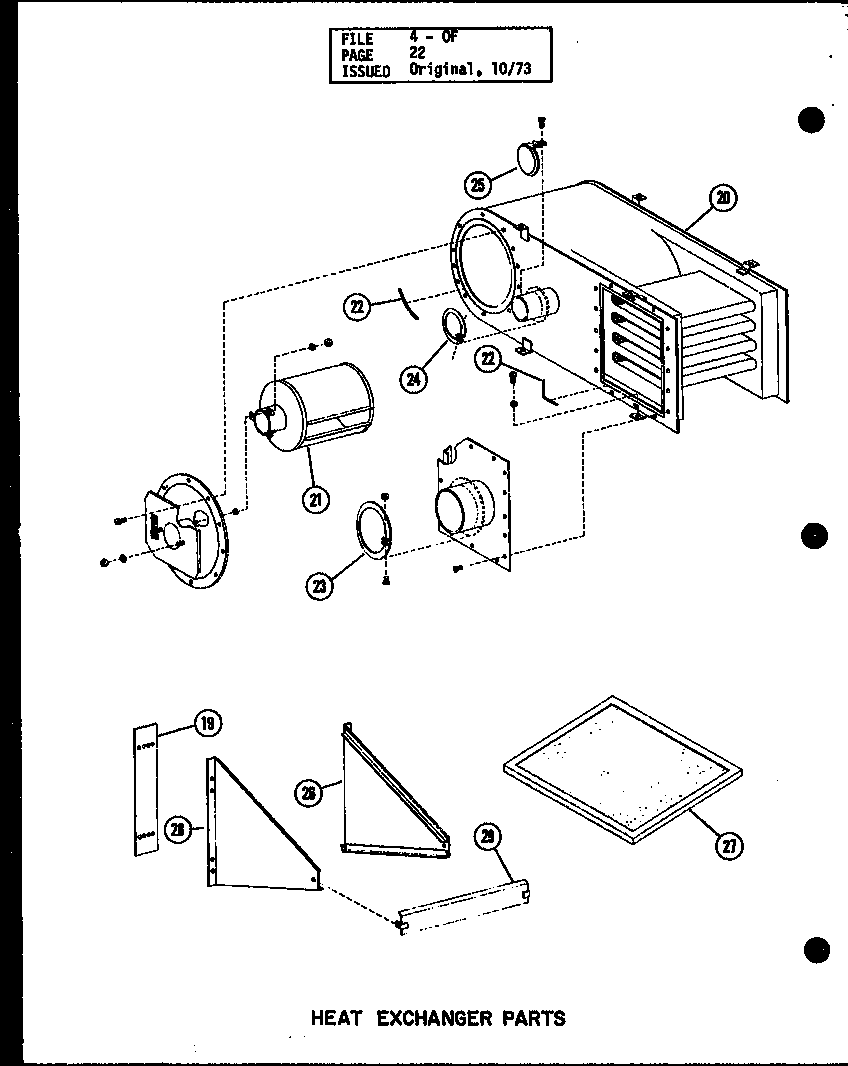

    Heat exchanger parts (os-85-3/p96291-5f) (os-100/p96291-1f) (os-100-3/p96291-2f) (os-125/p96291-3f) (os-125-4/p96291-4f) (os-150/p96317-1f) (os-200/p96317-2f) (os-250/p96317-3f) (os-335/p96317-4f) diagram

    Heat exchanger assembly, w/combustion chamber

    Part #R0118202

    The manufacturer no longer makes this part, and there's no substitute part

  • Filter Rack Access Panel R0178375

    #NI

    All parts diagram

    Filter rack access panel

    Part #R0178375

    The manufacturer no longer makes this part, and there's no substitute part
