Model # 580326511 Official Craftsman compartment alternator

Here are the diagrams and repair parts for Official Craftsman 580326511 compartment alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

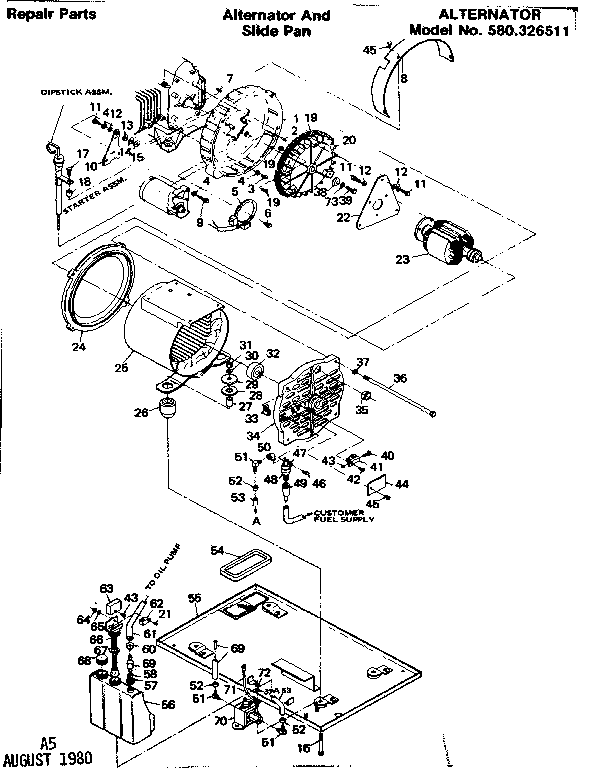

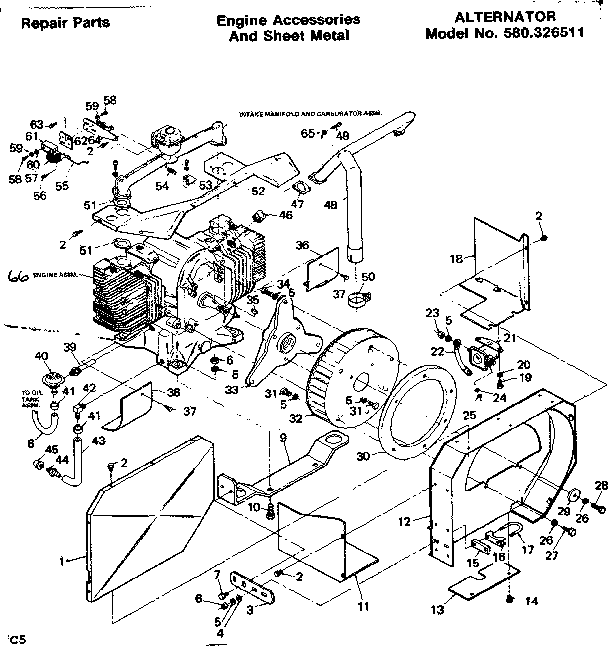

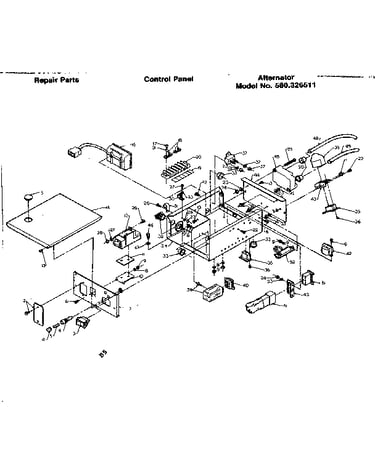

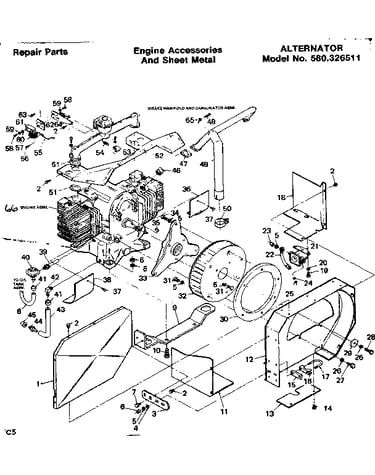

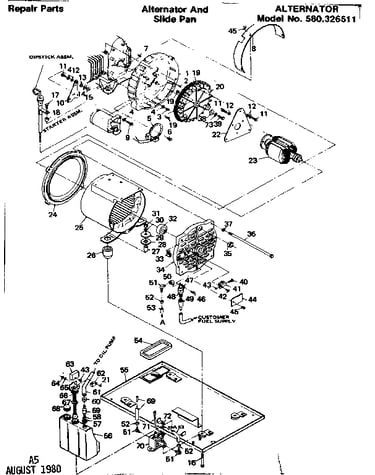

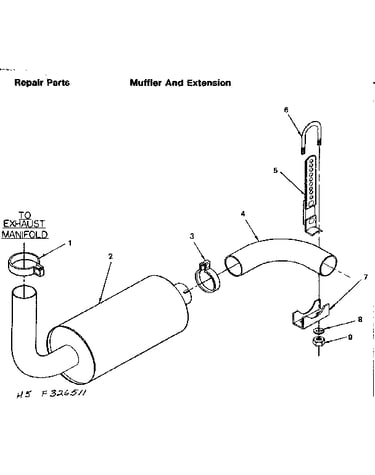

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 328 parts  |
Shaft Lever 49245
#27

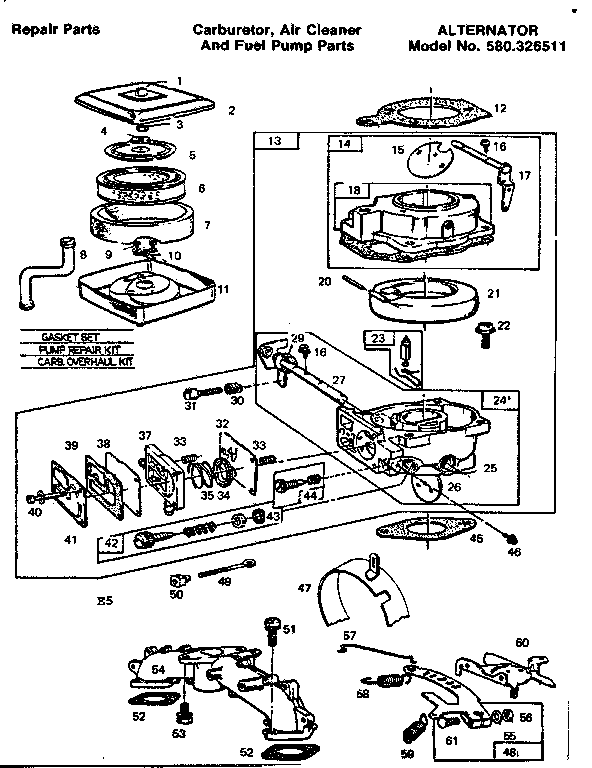

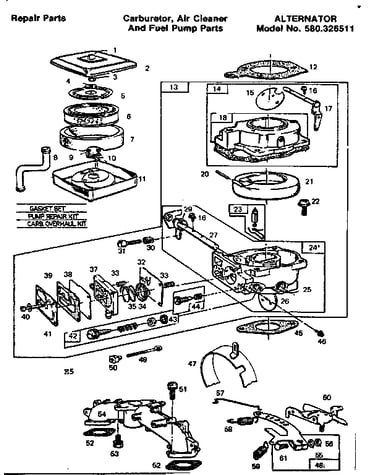

Carburetor, air cleaner and fuel pump diagram

Shaft lever

Part #49245

Replaced by #697029

?
Manufacturer substitution
This part replaces 49245. Substitute parts can look different from the original.
BEST SELLER
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Element 42883
#7

Carburetor, air cleaner and fuel pump diagram

Element

Part #42883

Replaced by #272490S

?
Manufacturer substitution
This part replaces 42883. Substitute parts can look different from the original.
BEST SELLER
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Clutch 42693
#5

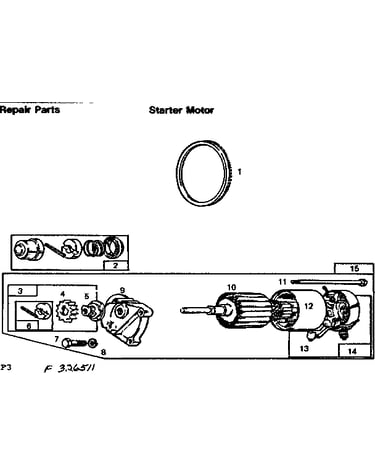

Starter motor diagram

Clutch

Part #42693

Replaced by #695708

?
Manufacturer substitution
This part replaces 42693. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Housing 42699
#12

Starter motor diagram

Housing

Part #42699

Replaced by #795121

?
Manufacturer substitution
This part replaces 42699. Substitute parts can look different from the original.
BEST SELLER
$165.53 |
7% OFF Phone Price : $177.53
In Stock
Seal 42686
#53

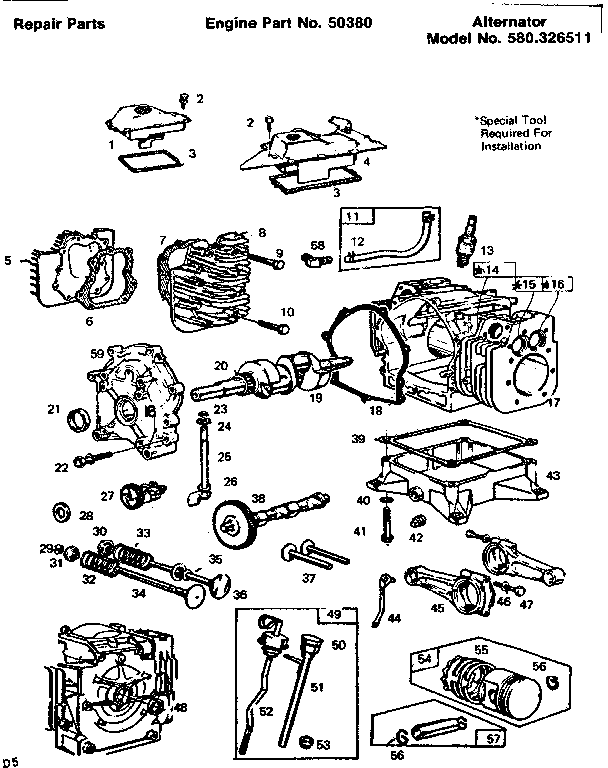

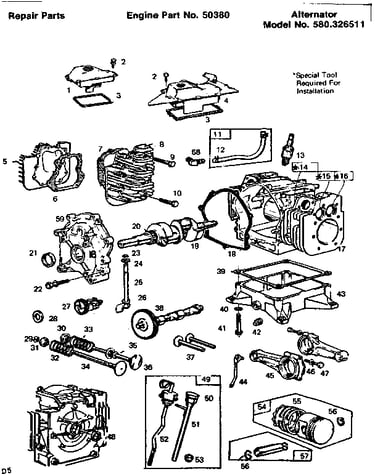

Engine part no. 50380 diagram

Seal

Part #42686

Replaced by #281370S

?
Manufacturer substitution
This part replaces 42686. Substitute parts can look different from the original.
This item is not returnable
$11.80 |
14% OFF Phone Price : $13.80
In Stock
Carburetor 42994
#13

Carburetor, air cleaner and fuel pump diagram

Carburetor

Part #42994

Replaced by #693480

?
Manufacturer substitution
This part replaces 42994. Substitute parts can look different from the original.
$272.16 |
$12.00 OFF Phone Price : $284.16
In Stock
Kit 42878
#2

Starter motor diagram

Kit

Part #42878

Replaced by #696540

?
Manufacturer substitution
This part replaces 42878. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Body Assembly 42996
#18

Carburetor, air cleaner and fuel pump diagram

Body assembly

Part #42996

Replaced by #693480

?
Manufacturer substitution
This part replaces 42996. Substitute parts can look different from the original.
$272.16 |
$12.00 OFF Phone Price : $284.16
In Stock
Body Assembly 42995
#14

Carburetor, air cleaner and fuel pump diagram

Body assembly

Part #42995

Replaced by #693480

?
Manufacturer substitution
This part replaces 42995. Substitute parts can look different from the original.
$272.16 |
$12.00 OFF Phone Price : $284.16
In Stock
Body 49252
#24

Carburetor, air cleaner and fuel pump diagram

Body

Part #49252

Replaced by #693480

?
Manufacturer substitution
This part replaces 49252. Substitute parts can look different from the original.
$272.16 |
$12.00 OFF Phone Price : $284.16
In Stock
